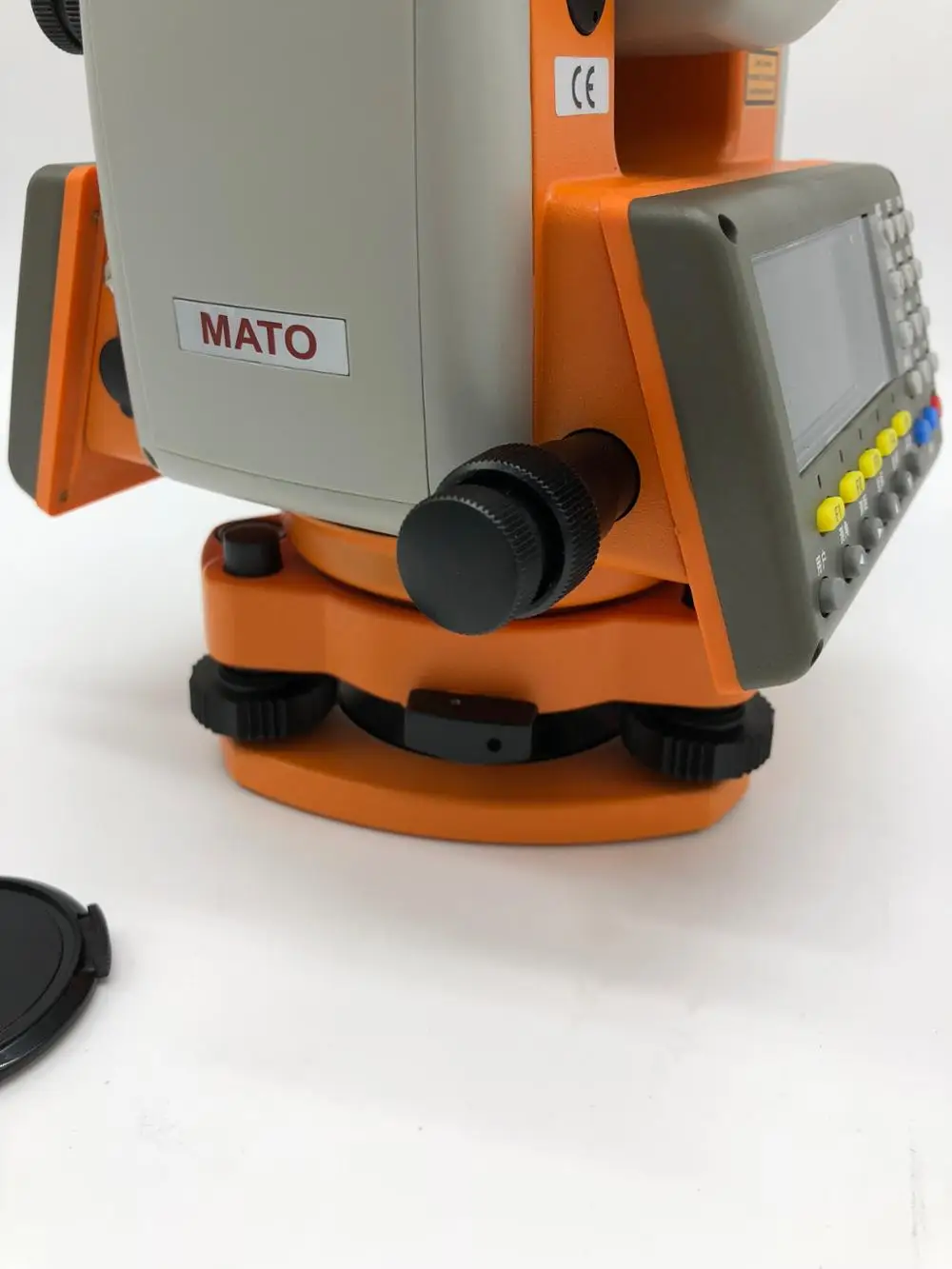

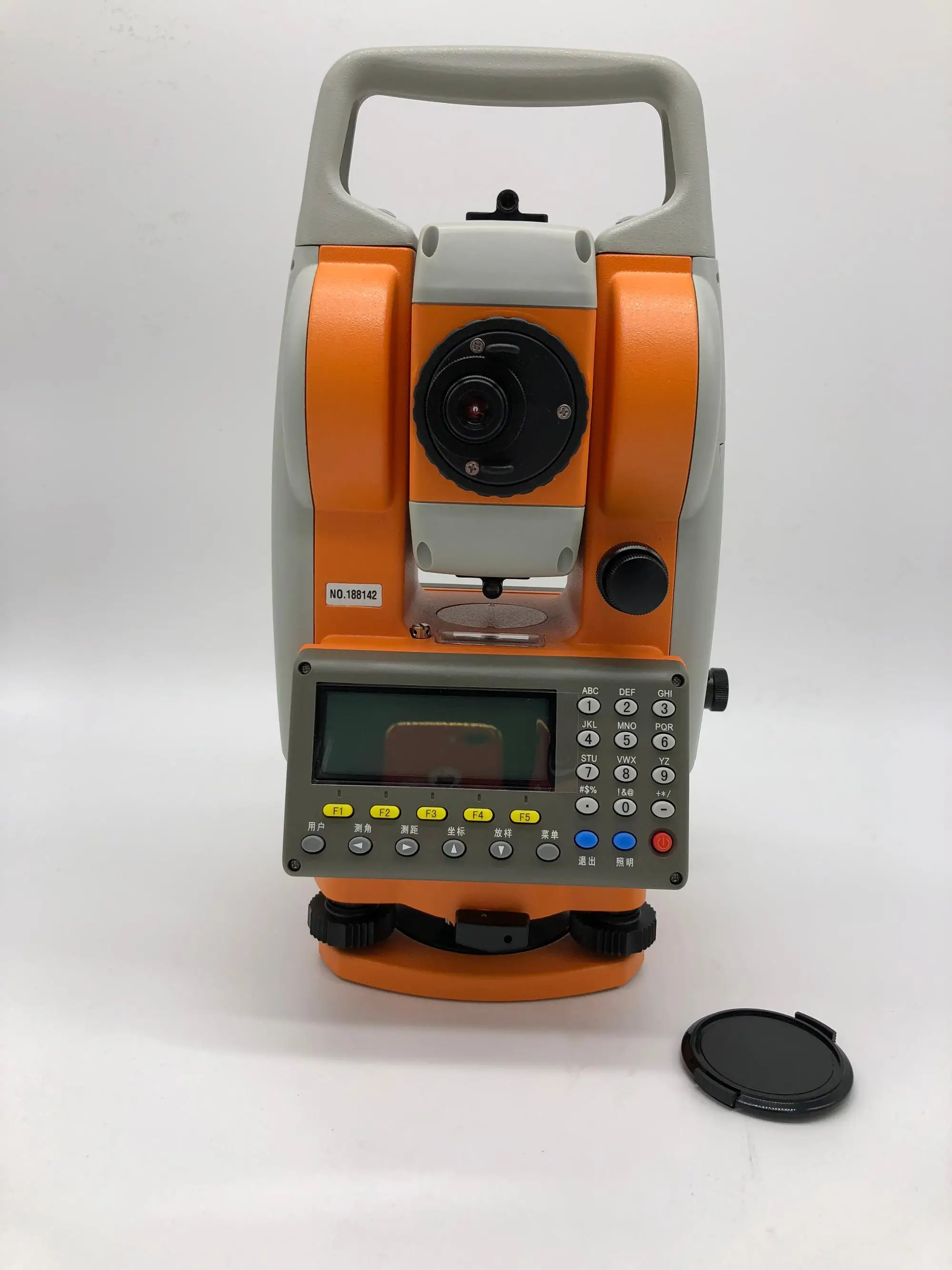

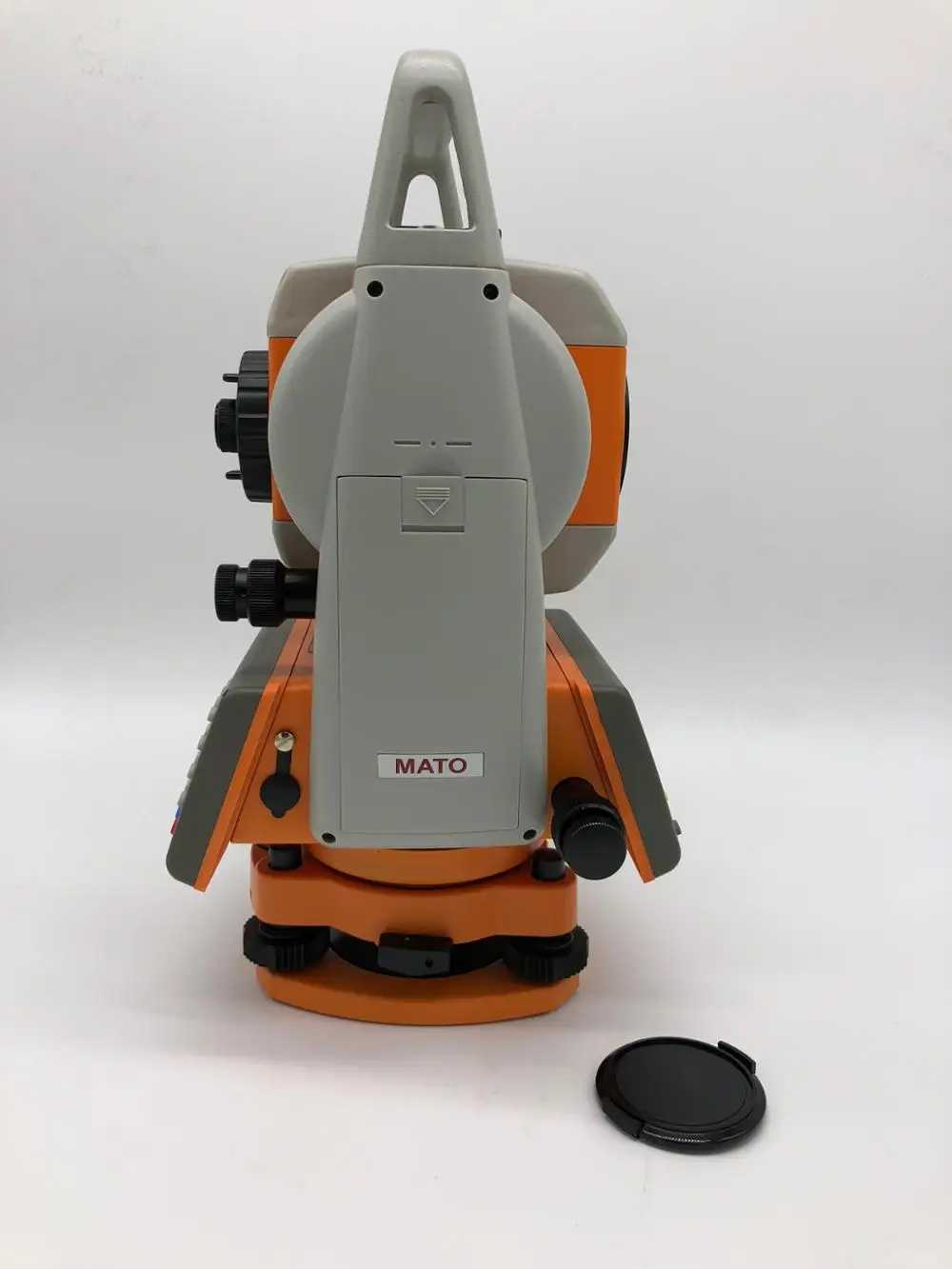

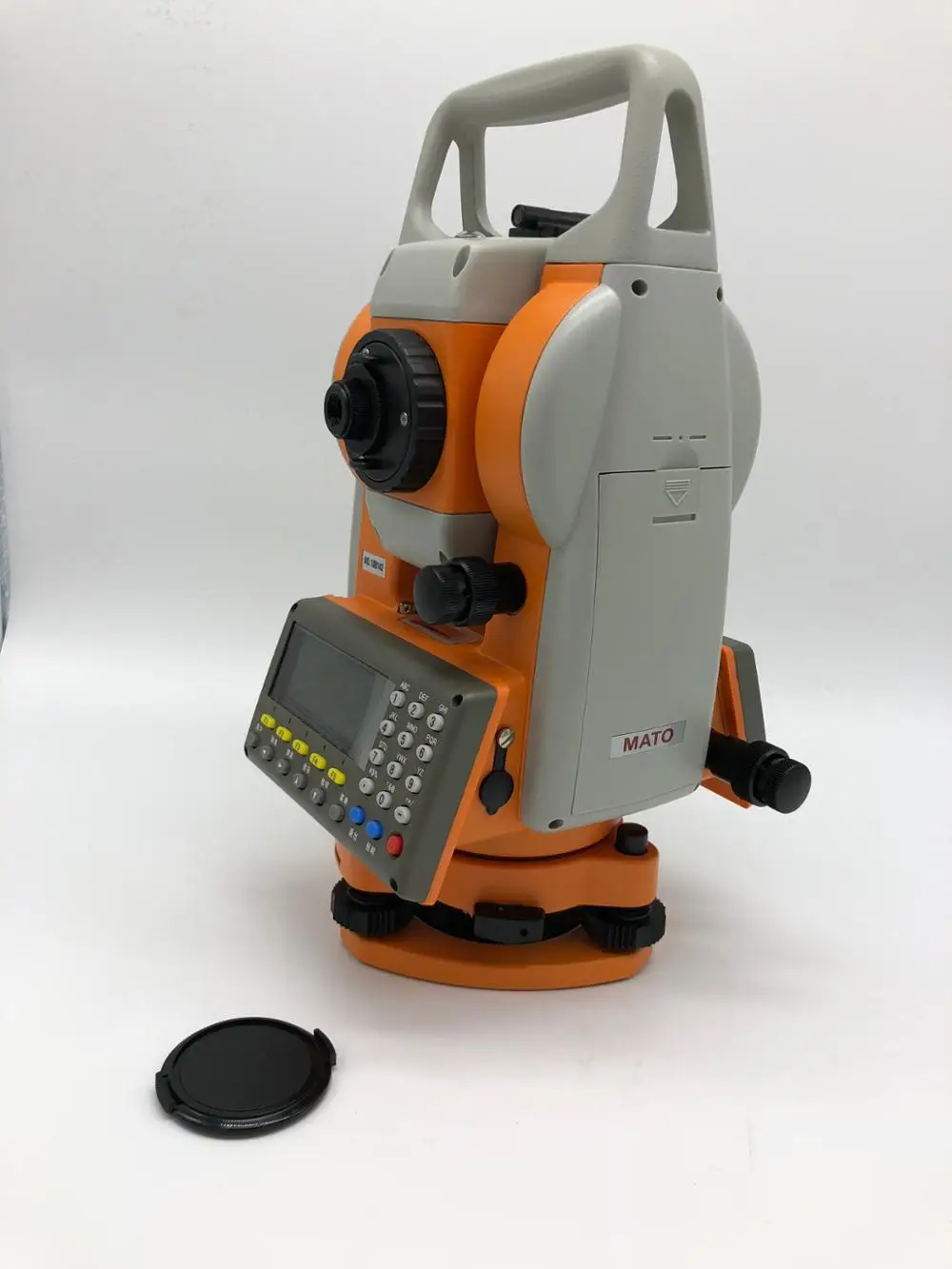

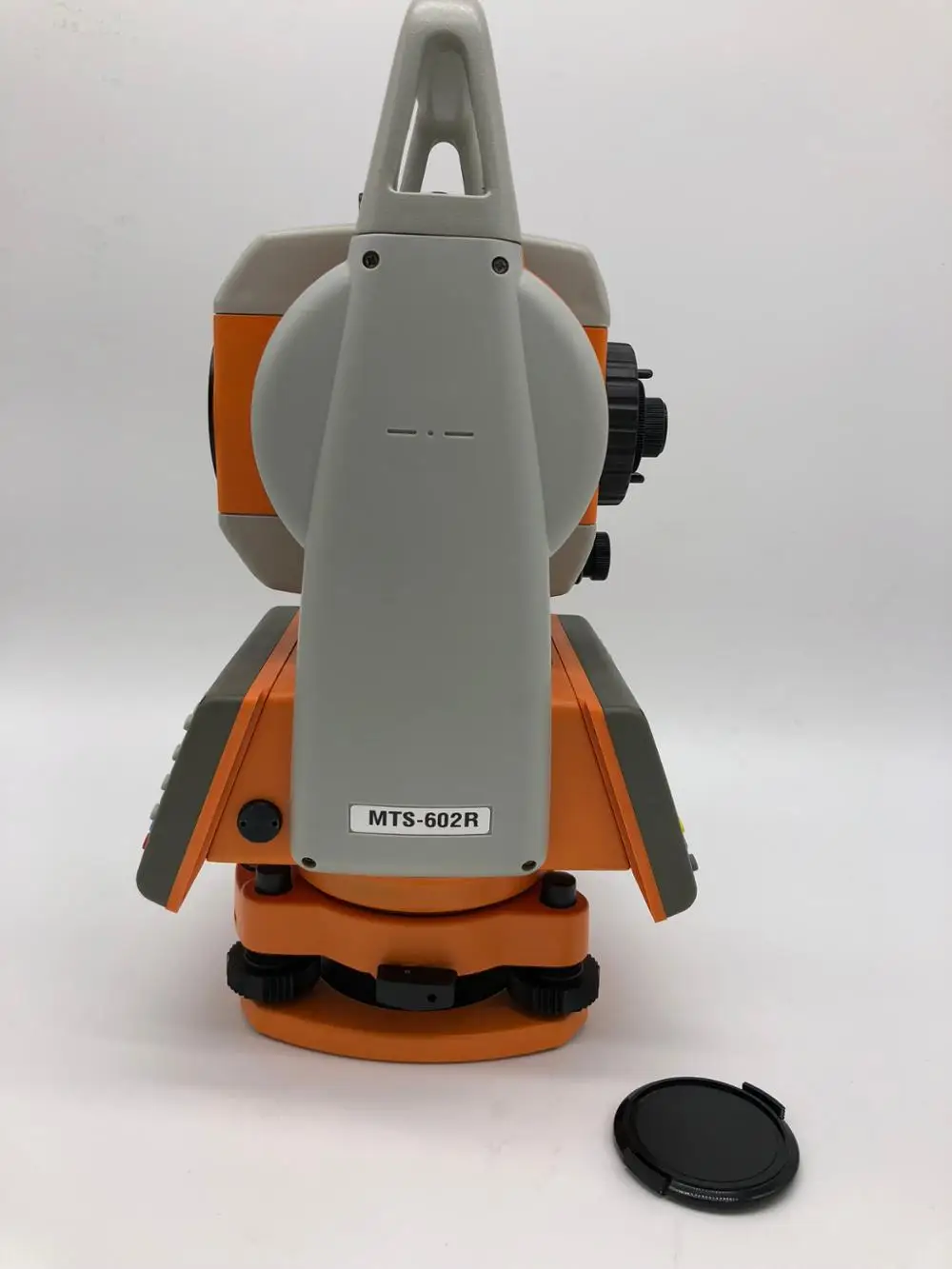

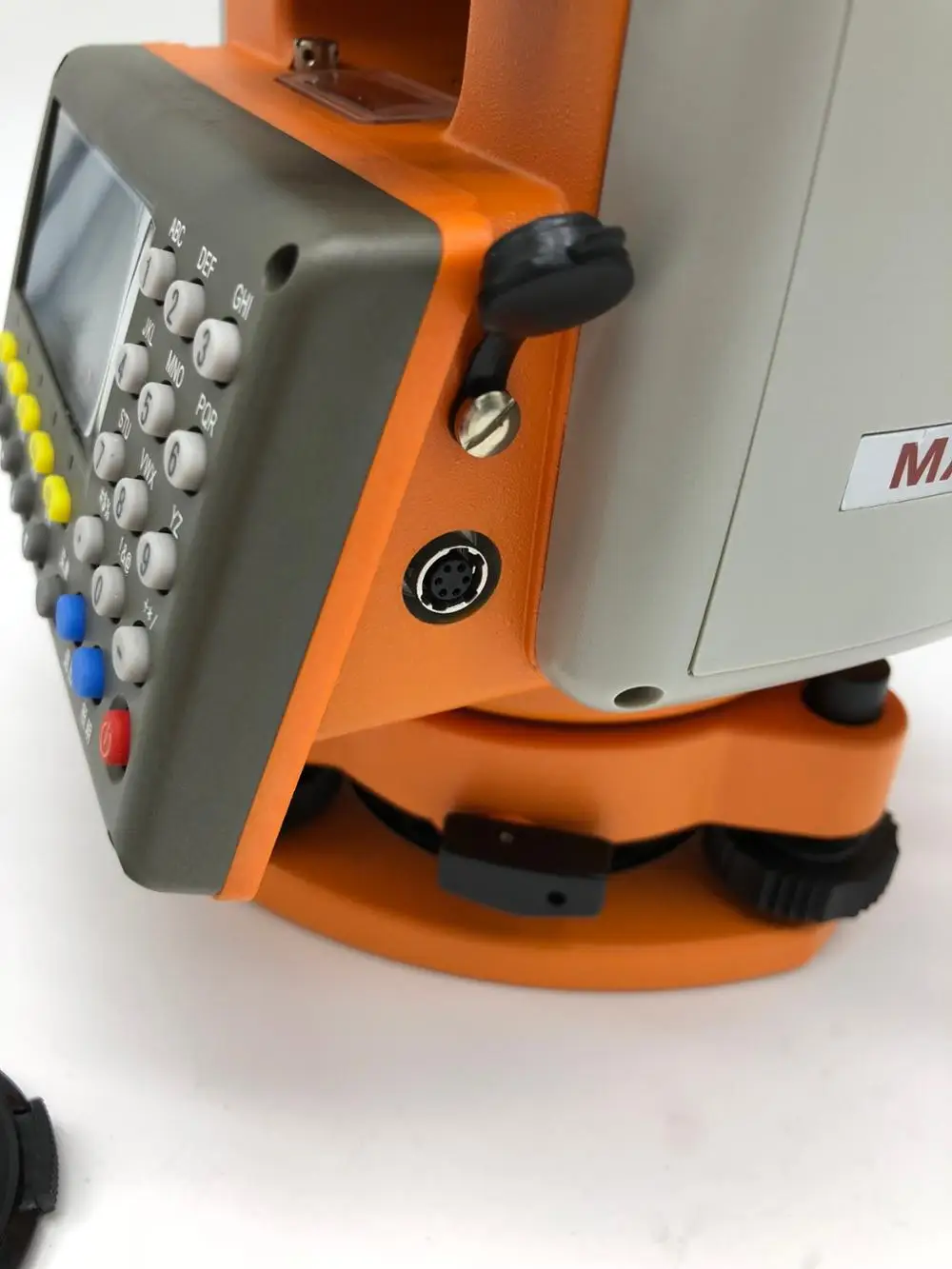

OEM service total station MTS 602R Reflectorless total station

 Preface
Thank you for selecting the MTS-600 Electronic Total Station.
For the best performance of the instrument, please read this
manual carefully and keep it in a convenient location for future
reference. Some of the diagrams shown in this manual may be
simplified for easier reading.
No further notice will be given for any changes of technical
specifications or appearance to the apparatus for the
improvement of performance and preciseness.
There is a guarantee card in the carrying case, please fill it out
and post it to our company.

Specifications
Telescope
Aperture: 45mm
Magnification: 30×
Image: Erect
Field of view: 1°30′
Minimum focus: 1.5m
Distance Measurement
Measuring range:
Reflectorless: *1
MTS-602R 200m *2
MTS-605R 200m *2
Reflective sheet: *3
MTS-602R 800m
MTS-605R 800m
Single prism: *3
MTS-602R --5.0km
MTS-602 ----2.0km
MTS-605R ---3.0km
MTS-605 ----2.0km
Three prisms: *3 :
MTS-602 -----3.0km
MTS-605 -----3.0km
Accuracy :
MTS-602 (R) --- ±(2+2×10 -6 ·D) mm *4
MTS-605 (R) --- ±(2+2×10 -6 ·D) mm *4
Minimum display :
Fine measurement : 1mm
Rapid measurement : 1mm
Tracking measurement : 1mm
Measuring time :
Fine measurement (repeat) : about 1.8sec.(first time2.5sec.)
Rapid measurement(repeat) : about 0.9sec.(first time 2.5sec.)
Tracking measurement : about 0.4sec.(first time 1.5sec.)
Atmospheric correction :
ppm input range : -499×10 -6 ~+499×10 -6 (step 1×10 -6 )
Prism constant correction : -99×10 -6 ~+99×10 -6 (step 1×10 -6 )
MTS600 Instruction Manual
89
Angle measurement
Minimum display: 10″/5″/1″
Standard deviation:
MTS-602(R)---2″
MTS-605(R)----5″
Measuring time : 0.1sec.
Range of compensation : ±3′(MTS-602(R) )
level parameter :
Circular level: 8' /2mm
Plate level : 30″/2mm
Battery
Voltage: DC 7.2V
Capacity:
Nickel hydrogen battery BDC18H: 1.8AH
Working duration(20℃): Distance and angle measurement: 4 hours
Lithium battery BDC40L: 4.0AH
Working duration(20℃) :Distance and angle measurement: 8hours
Temperature range
Operating : -20℃~+50℃
Dimension (190X210X350)mm
Weight 6kg

Original Packing.

Your products will be shipped within 3 days after received payment.

Your inquiry will be replied within 24 hours, we welcome your email and call at any time.

Our products are original and 100% new. and they will be carefully checked before we ship them out.

All the products we sell have one year warranty and we can supply technical support.

Shanghai Galxy International Trade company, Ltd. combining with developing, researching and producing. Our company is located in Pudong Developing Zone, and has two subsidiary companies: Shanghai Galaxy International Trade Co., Ltd. and Mato Opto-electrical High-tech Company. Our company has researching center and factory in Changzhou.

Our main products are as following: total station, electronic theodolite, automatic level, laser level, rotation laser, GPS, distance laser sensor and accessories, such as tripod, prism, pole, staff and USB cable for total station. Our company designs software for many domestic and oversea factories, for example, Boif, TJOP, Stanley, and Cst-Berger. We have powerful capacity in technical research, and the products we designed have advanced technology and steady performance. The non-prism total station and the absolute coding measure instrument we developed and produced have very competitive points in the measure instrument market.

We expect that we could cooperate with more business partners from all over the world. In addition, we can do OEM service for companies or dealers that want to find better producers in China.

Our goal is to produce the best surveying instruments in the world.

Our target is to globalize the market, internationalize the quality and maximize the profit!
