400w low rpm generator /wind turbine generator 12v/24v
- Category: >>>
- Supplier: Shanghai Laisa New Energy Technology Co. Ltd. [Shanghai China]Shanghai
Share on (60788548151):
Product Overview
Description

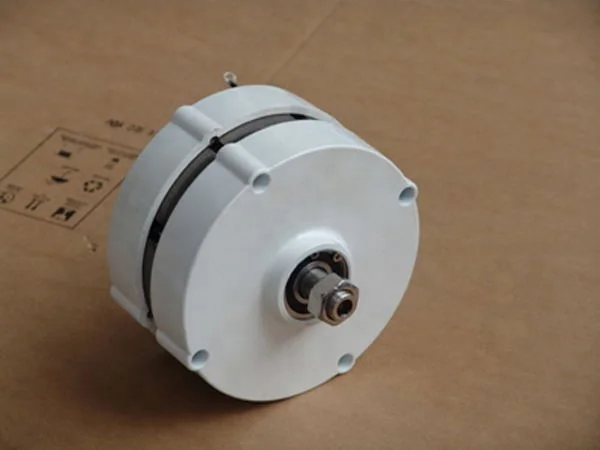

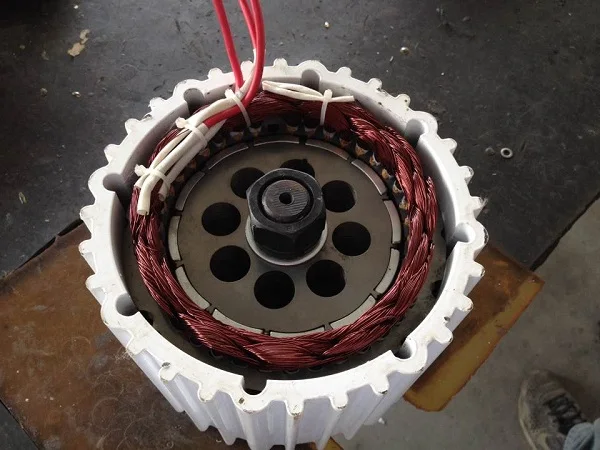

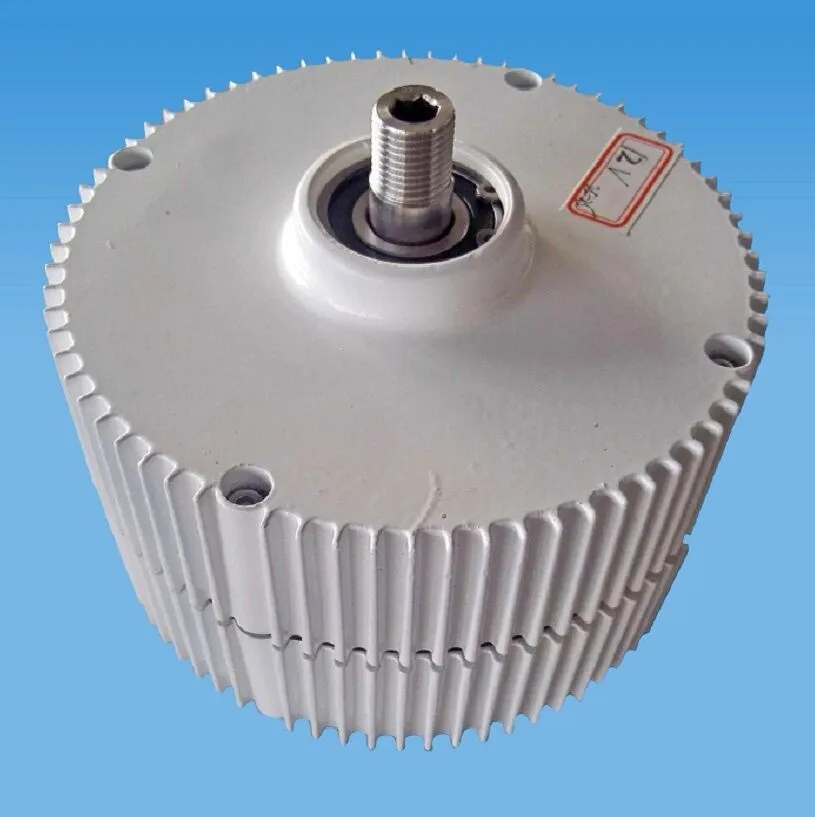

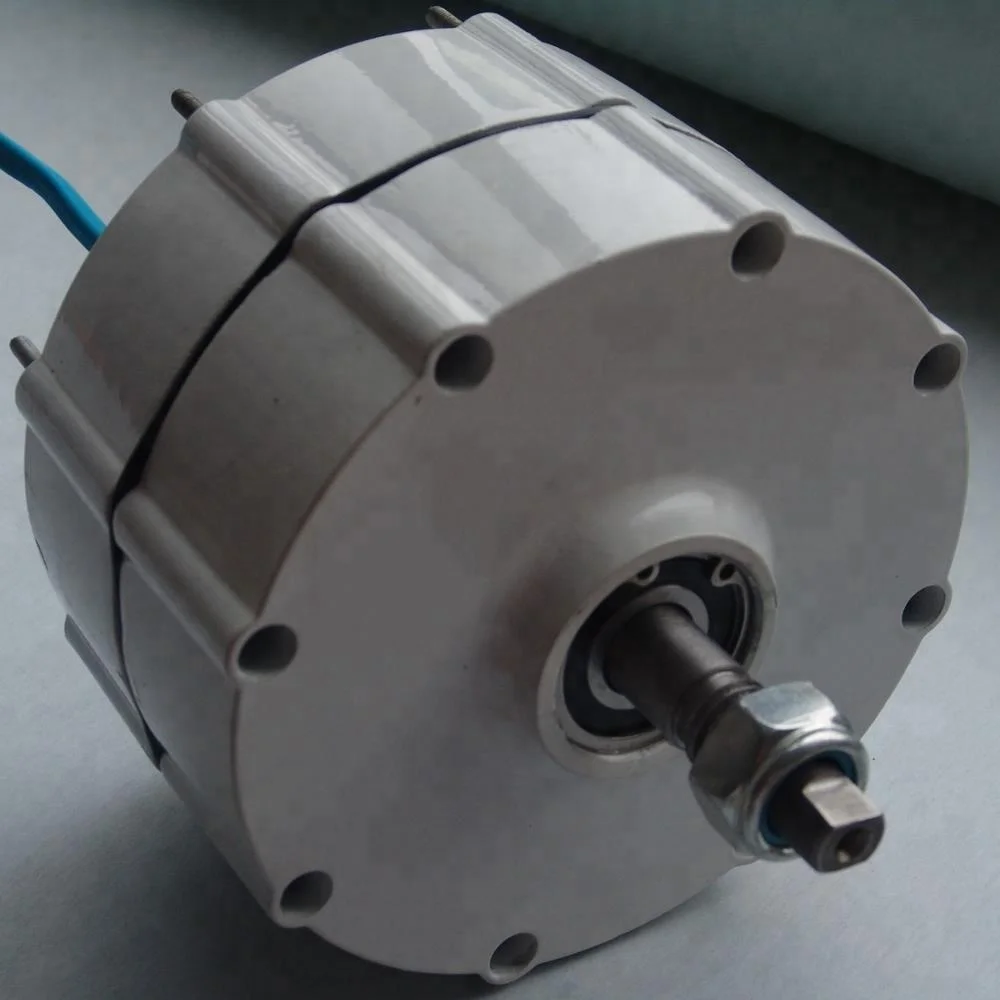

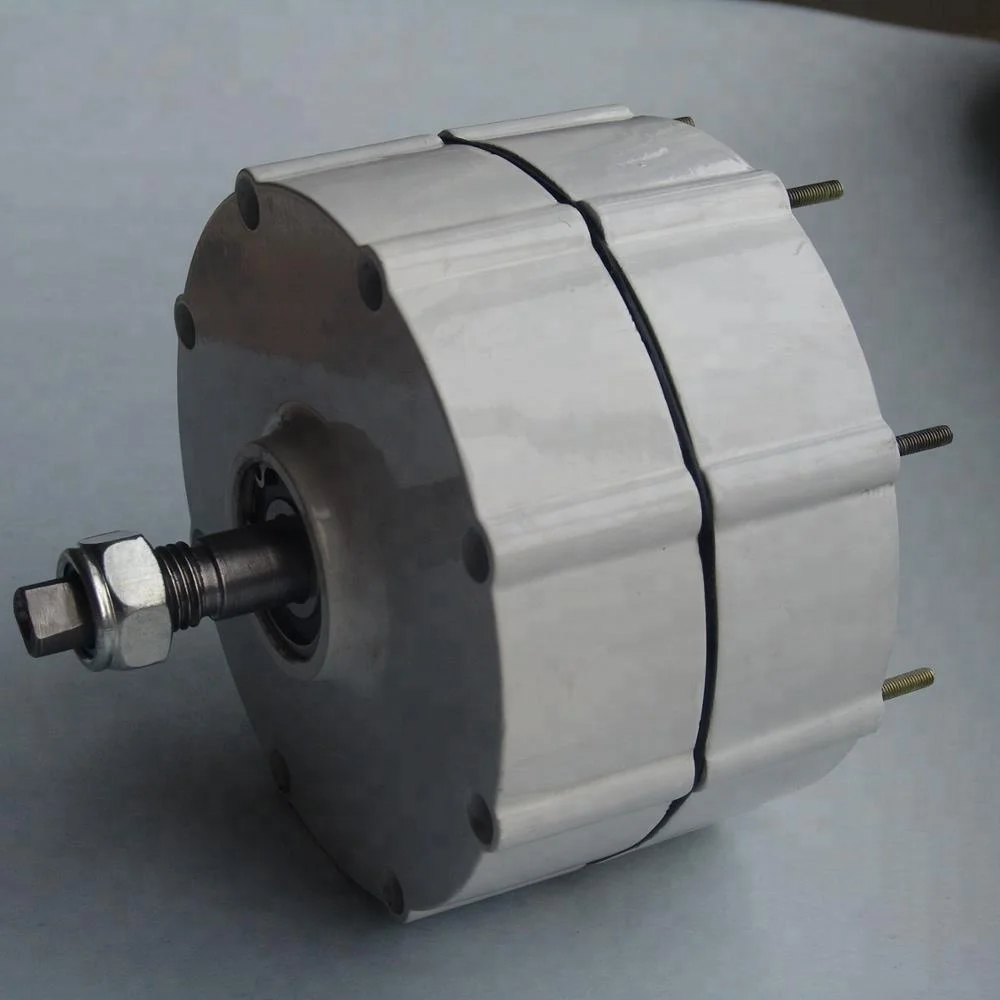

Product Details400w low rpm generator /wind turbine generator 12v/24v
400w low rpm generator /wind turbine generator 12v/24v
Features
1.Our products adopt NdFeB as magnets, which is called the king of magnetic, to ensure the product is effective in 20 years
2.High electric conductivity coil: low capacity
3.Swirl design: peaceful, exquisite, light and handy
Product Parameters
| Model | LS-400M | ||
| Rated Power(w) | 400w | ||
| Max Power(w) | 345w | ||
| Rated Voltage(v) | 12v/24v | ||
| Rated rotated speed(r/m) | 600r/m | ||
| Top net weight(kg) | 4.5kg | ||
| Output Current | AC | ||
| Rated Torque(N*M): | 0.32Nm | ||
| generator | 3 phase permanent magnet synchronous generator | ||
| Insulation Class: | F | ||
| Service Life: | More Than 20 years | ||
| Bearing | HRB or for your order | ||
| Shaft Material | stainless steel | ||
| Shell Material | aluminium alloy | ||
| Permanent Magnet Material | Rare Earth NdFeB | ||
| Protection Grade | IP54 | ||
| Lubrication | Lubrication Grease | ||
| Working temperature | -40℃ - 80 ℃ |

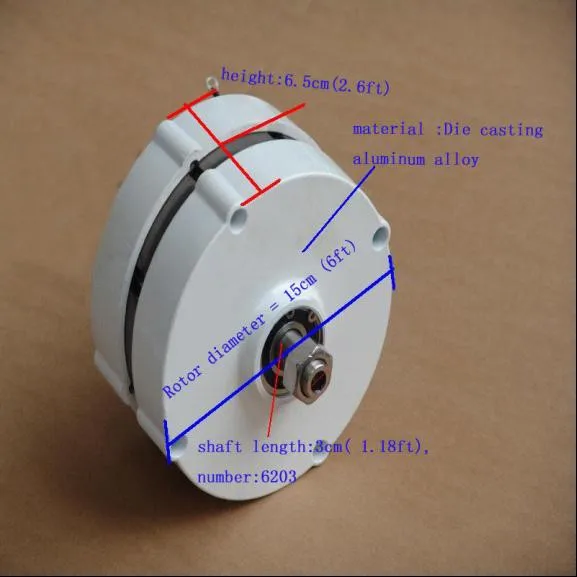

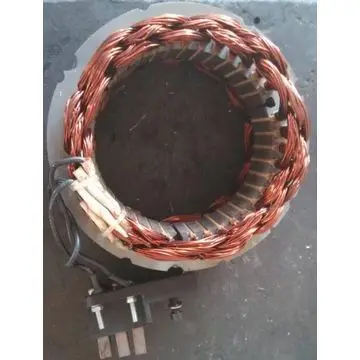

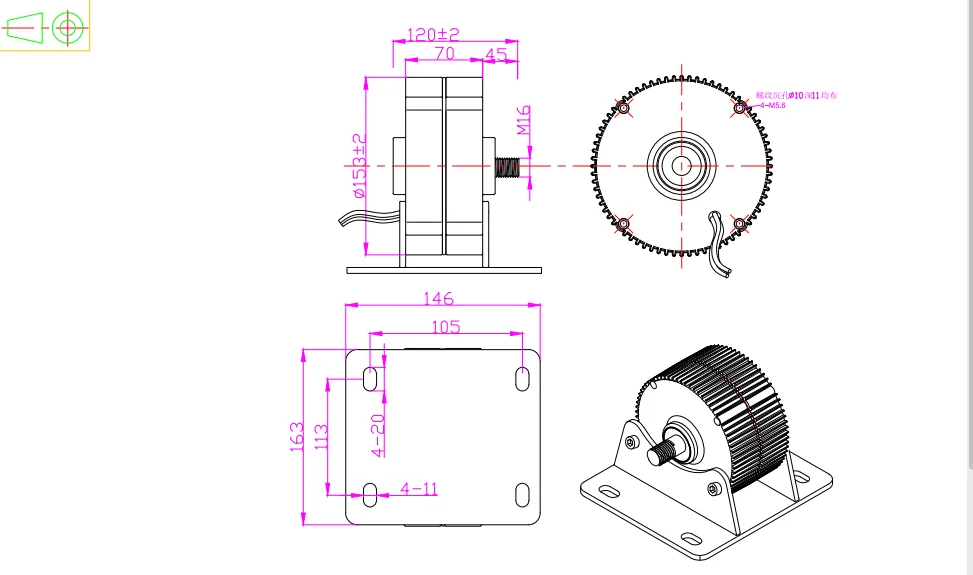

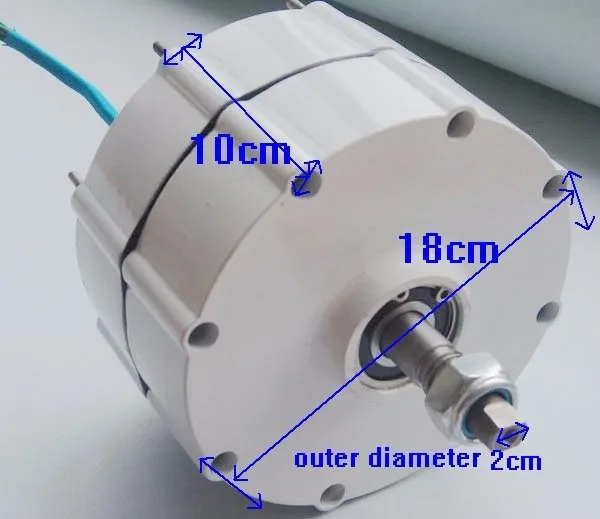

Product Details
FAQ
1) What are the major components of a standalone wind energy system?
Ans.: A standalone wind energy system usually consists of a small wind turbine and its supporting structure (e.g. pole fixed in position by guywires), a charge controller and a battery bank If the loads demand AC supply, an inverter for converting DC to AC will be necessary
2) Are small wind turbines noisy?
Ans.: Small wind turbines usually have DC generators, and they need to rotate rather fast in order to produce sufficient output This causes a bit of noise when the wind is strong. Depending on the our special design, our turbines are quieter than the others
3)How can I connect small wind turbine to the AC distribution system of a building or a site?
Ans.: A grid-tie inverter with specifications meeting the guidelines given in the technical guidelines on grid connection of small scale renewable energy power systems and the requirements of the power company, is needed for converting DC output of the small wind turbine into AC for grid connection
4)Do I have to lower a small wind turbine when typhoon is approaching?
Ans.: If small wind turbine has a low survival wind speed, you may have to lower it when a typhoon is approaching On other hand, if survival wind speed is high and if the manufacturer suggests that there is no need to lower the turbine, then such kind of procedure will not be necessary
Why Choose Us
CE
ISO 9001:2008
ISO 14001:2004
Our company.
Shanghai Laisa New Energy Technology Co., LTD is locating in NO.3568 Caoying Road, Qingpu District, Shanghai city, China. Our company is mainly devoted to 100w-100kw small wind turbine, solar system and some new energy products' research, design, integration, sales, project construction and services. At present, our products have been sold to the Europe and America, Italy, Saudi, Brazil and other 63 countries. Our products are applied in the wind and solar hybrid street light, yachting, remote villas, farms schools, portable mobile tents and supporting stands and so on. Our products have won a high admiration at home and abroad. What's more, all products have certificated with ISO and CE.
Our Servise
1. Provide professional wind turbine technical support
2. Provide on/off grid system design, wind solar hybrid system design service
3. Complete system provider and designer
4. Wind turbine type, model, capacity selection professional support
5. Provide OEM service, customized service
