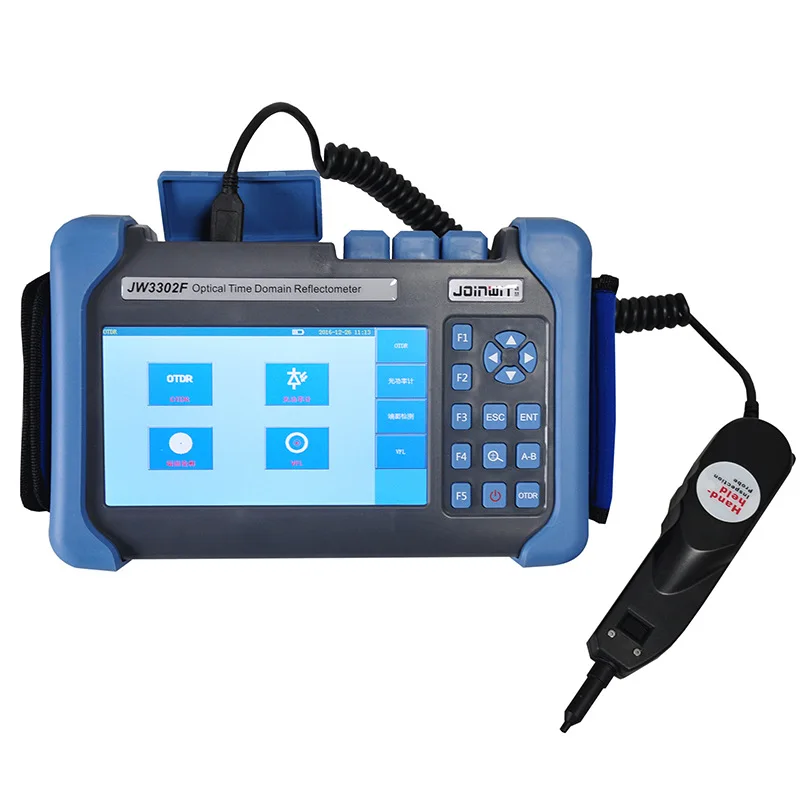

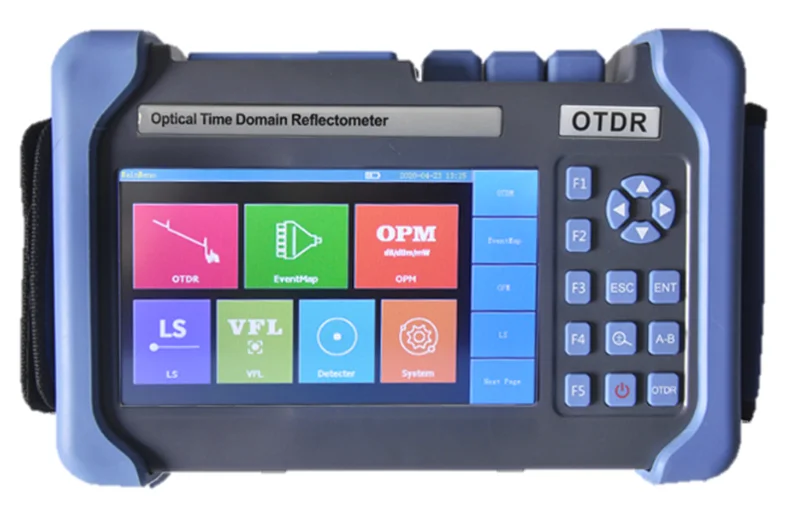

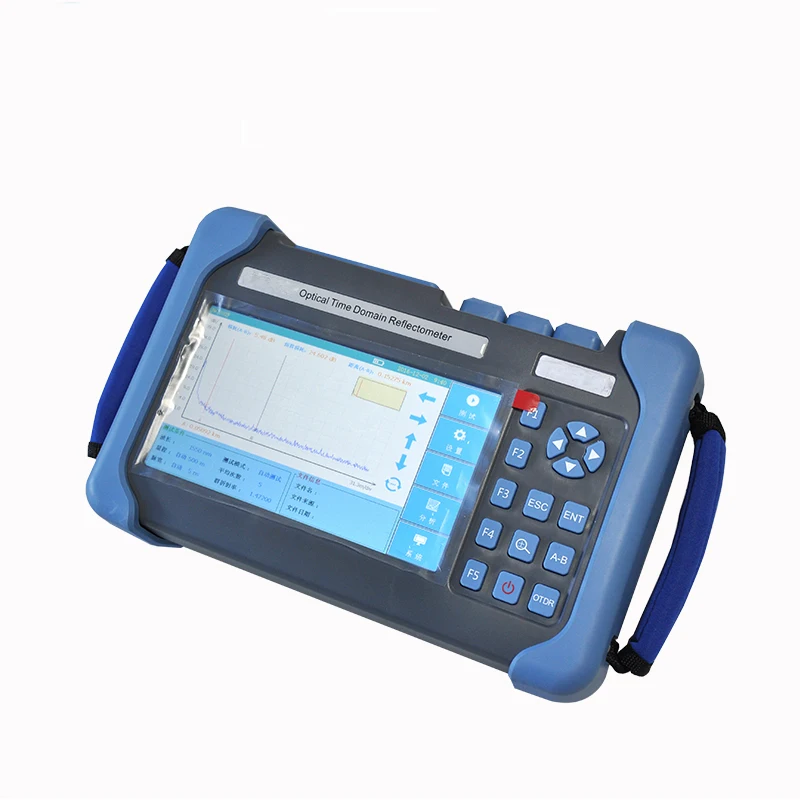

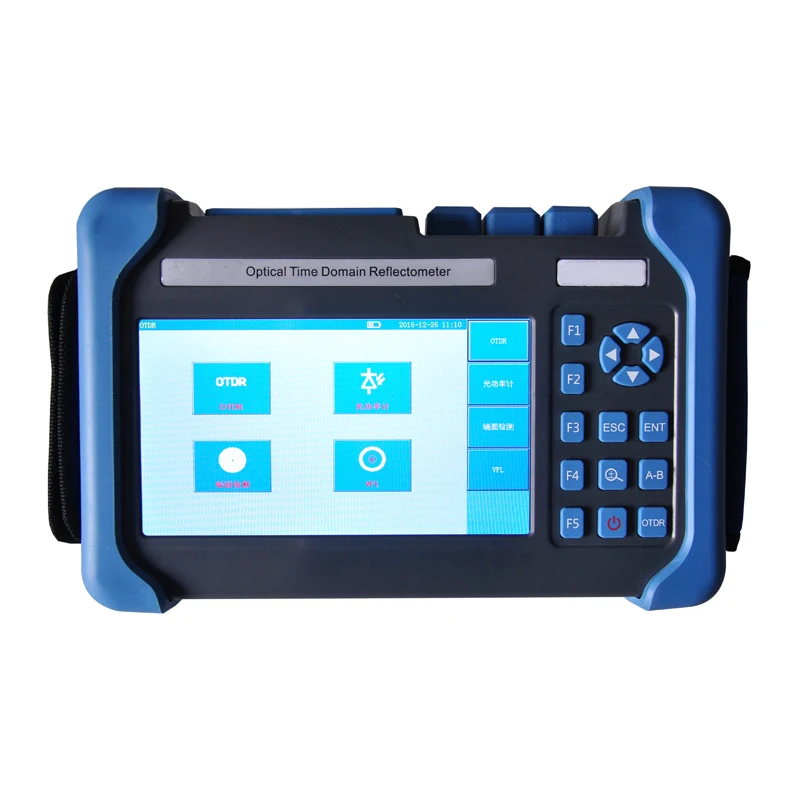

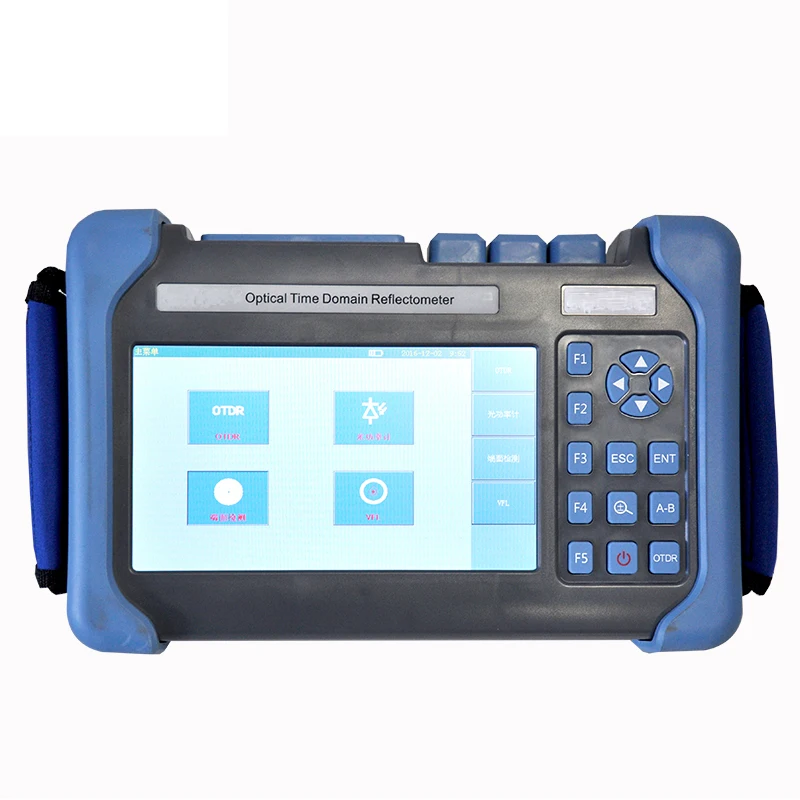

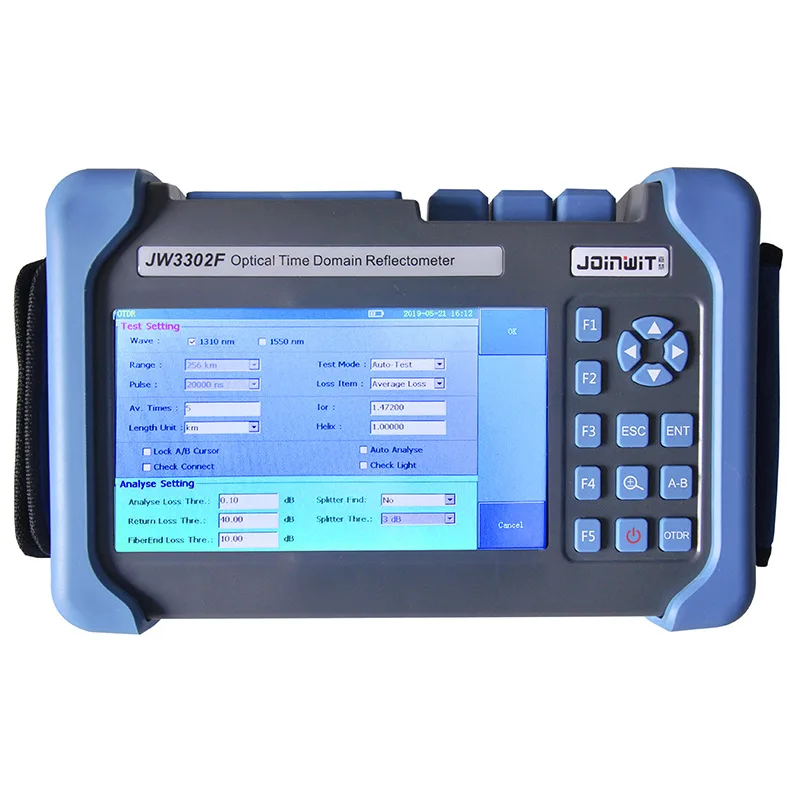

JW3302F OTDR
JW3302F series Optical Time Domain Reflectometer (OTDR) is an intelligent meter of a new generation for the detection of fiber communications systems. With the popularization of optical network construction in cities and countrysides, the measurement of optical network becomes short and disperse;
3302F is specially designed for that kind of application. It’s economic, having outstanding performance.
3302F is specially designed for that kind of application. It’s economic, having outstanding performance.
3302F is manufactured with patience and carefulness, following the national standards to combine the rich experience and modern technology, subject to stringent mechanical, electronic and optical testing and quality assurance; in the other way, the new design makes 3302F more smart and compact and multi-purpose.
Features:
- Integrated design, smart and rugged
- IP65 protection level, outdoor enhanced
-7-inch anti-reflection LCD screen
-PON online test module (1625nm) is optional
-MMF test module (850/1300nm) is optional
-Support multi-language display and input
Application:
-FTTX test with PON networks
-CATV network testing
-Access network testing
-LAN network testing
-Metro network testing
-Lab and Factory testing
-Live fiber troubleshooting
- Integrated design, smart and rugged
- IP65 protection level, outdoor enhanced
-7-inch anti-reflection LCD screen
-PON online test module (1625nm) is optional
-MMF test module (850/1300nm) is optional
-Support multi-language display and input
Application:
-FTTX test with PON networks
-CATV network testing
-Access network testing
-LAN network testing
-Metro network testing
-Lab and Factory testing
-Live fiber troubleshooting
Specification
Dimension | 253×168×73.6mm 1.5kg (battery included) |
Display | 7 inch TFT-LCD with LED backlight (touch screen function is optional) |

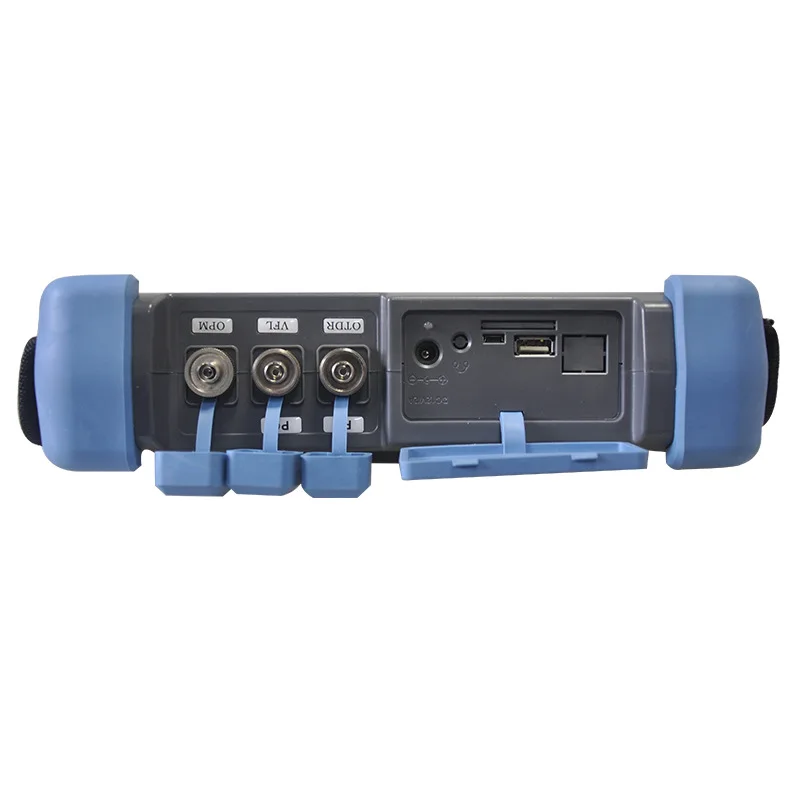

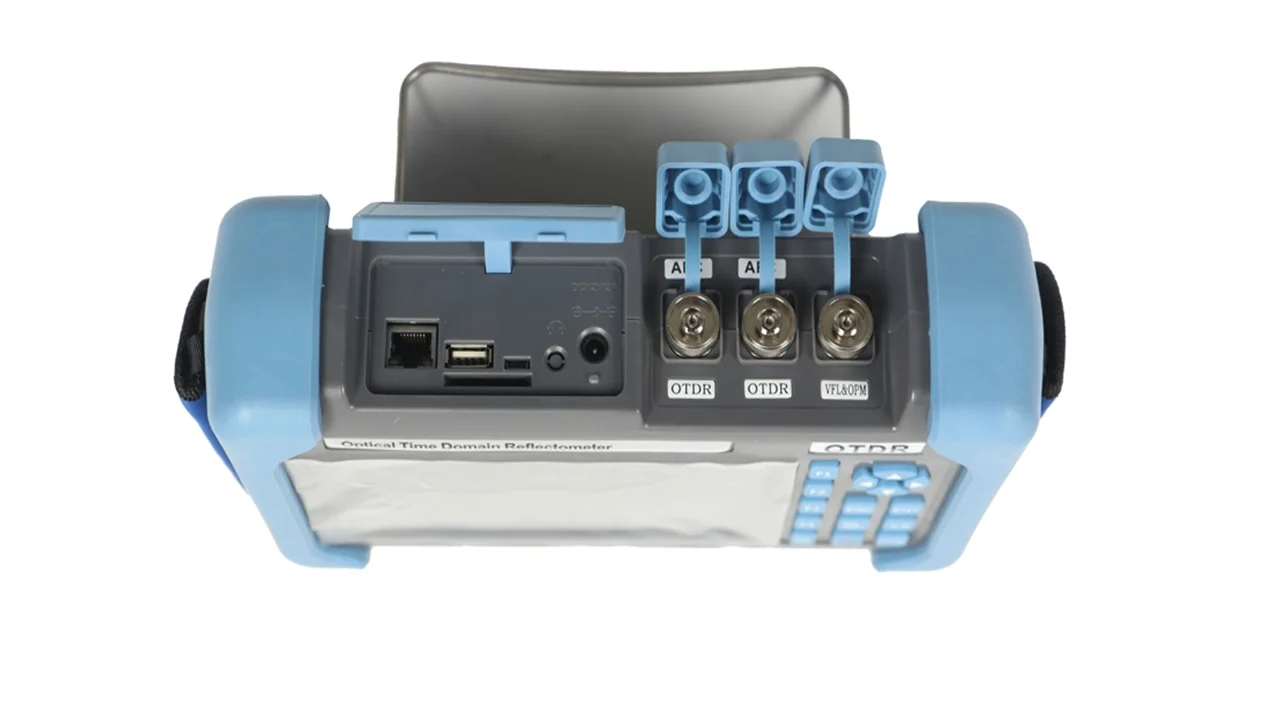

Interface | 1×RJ45 port, 3×USB port (USB 2.0, Type A USB×2, Type B USB×1) |
Power Supply | 10V(dc), 100V(ac) to 240V(ac), 50~60Hz |
Battery | 7.4V(dc)/4.4Ah lithium battery (with air traffic certification) Operating time: 12 hours, Telcordia GR-196-CORE Charging time: <4 hours (power off) |
Power Saving | Backlight off: Disable/1 to 99 minutes Auto shutdown: Disable/1 to 99 minutes |
Data Storage | Internal memory: 4GB (about 40,000 groups of curves) |
Language | User selectable (English, Simplified Chinese, traditional Chinese, French, Korean, Russian, Spanish and Portuguese-contact us for availability of others) |
Environmental Conditions | Operating temperature and humidity: -10℃~+50℃, ≤95% (non-condensation) Storage temperature and humidity: -20℃~+75℃, ≤95% (non-condensation) Proof: IP65 (IEC60529) |
Accessories | Standard: Main unit, power adapter, Lithium battery, FC adapter, USB cord, User guide, CD disk, carrying case Optional: SC/ST/LC adapter, Bare fiber adapter |
Technical parameter:
Type | Testing Wavelength (MM: ±20nm, SM: ±10nm) | Dynamic Range (dB) | Event Dead-zone (m) | Attenuation Dead-zone (m) |
3302F-S1 | 1310/1550 | 32/30 | 1 | 8/8 |
3302F-S2 | 1310/1550 | 37/35 | 1 | 8/8 |
3302F-S3 | 1310/1550 | 42/40 | 0.8 | 8/8 |
3302F-S4 | 1310/1550 | 45/42 | 0.8 | 8/8 |
3302F-T1 | 1310/1490/1550 | 30/28/28 | 1.5 | 8/8/8 |
3302F-T2 | 1310/1550/1625 | 30/28/28 | 1.5 | 8/8/8 |
3302F-T3 | 1310/1490/1550 | 37/36/36 | 0.8 | 8/8/8 |
3302F-T4 | 1310/1550/1625 | 37/36/36 | 0.8 | 8/8/8 |
