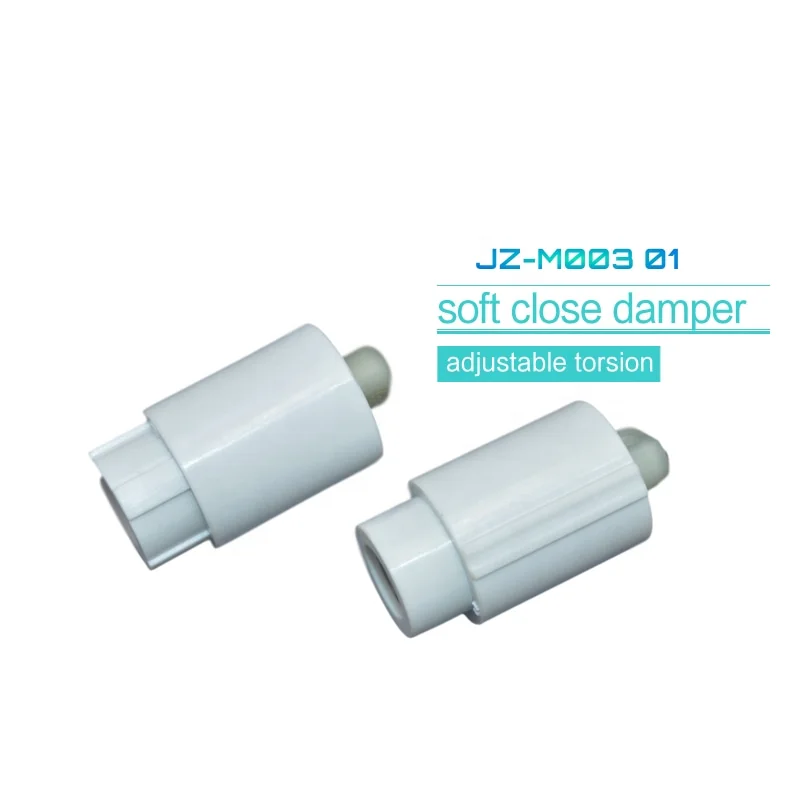

Easylift JZ M003 rotary dampers soft close hinge
- Category: >>>
- Supplier: Xiamen Jingzhong Mold Co. Ltd.
Share on (60788582940):
Product Overview
Description
Product Description
| Model | Torsion | damping direction | Max. angle | Operating temperature | Weight (set) | Body material | Oil type |
| JZ-M003 | 1Nm~ 3Nm (10kgfcm)~ (30kgfcm) | clockwise | 115° | -5~50℃ | 32.65± 1g | PA66+50%GF 50%Glass Fiber) | Silicone oil |
Product features
Max. angle 115°
Rotor shaft material PA66+50%GF (Nylon PA66+50%Glass Fiber)
Operating temperature -5 - 50°C
Weight(set) 32.65±1g
Body material PA66+50%GF (Nylon PA66+50%Glass Fiber)
This product is manufactured in Xiamen,China.
Characteristics
| Damper characteristics vary according to the ambient temperature.In general, | ||||
| the damper characterics become weaker as rhe temperature increase,and become | ||||
| stronger as the tempereture decrease.This is because the viscosity of the oil inside | ||||
| the damper varies according to the temperature.When the temperature return to | ||||
| normal,the damper characteristics will return to normal as well. The changes in the | ||||
| time it takes for the lid to close are shown in the graph down below. | ||||
| The JZ-M003 series is a fixed type,its torque is non-adjustable.However,a customized | ||||
| order for torque between the range of 1~3Nm is possible by changing the oil viscosity. | ||||
| The damper's working angle is 115°,as shown below. | ||||
| Rotating the damper beyond this angle will cause damage to the damper.Pls ensure | ||||
| that an external stopper is in place.The working angle based on the width across flat | ||||
| for fixing,located towards the rear end of the main body.The position where the rotation | ||||
| is complete is at 90° with respect to the width accross flat. |

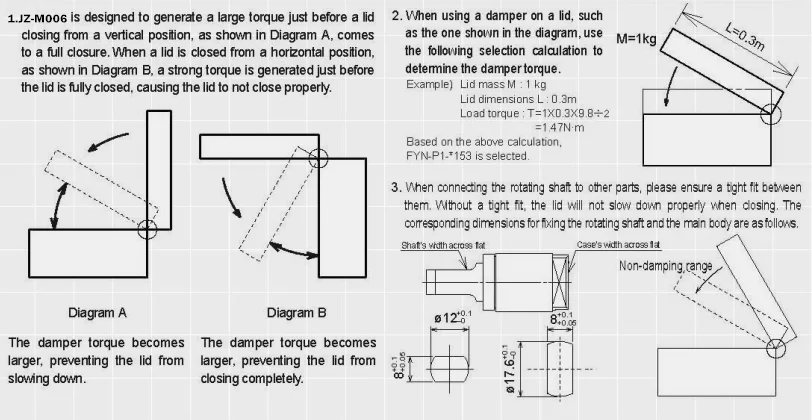

How to Use Damper
Production process
Packaging & Shipping
