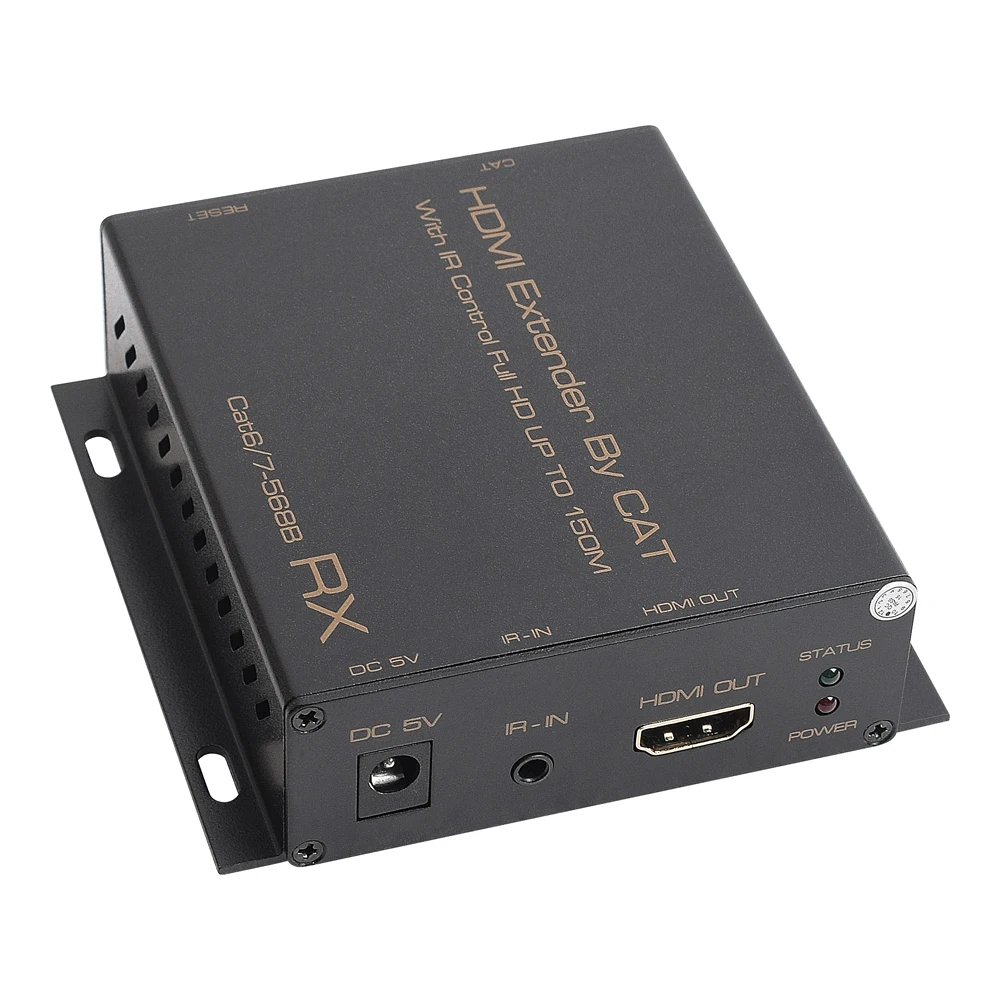

One to more 1080p over ip powerline hdmi extender

Product Overview

Description

One to more 1080p over ip powerline hdmi extender

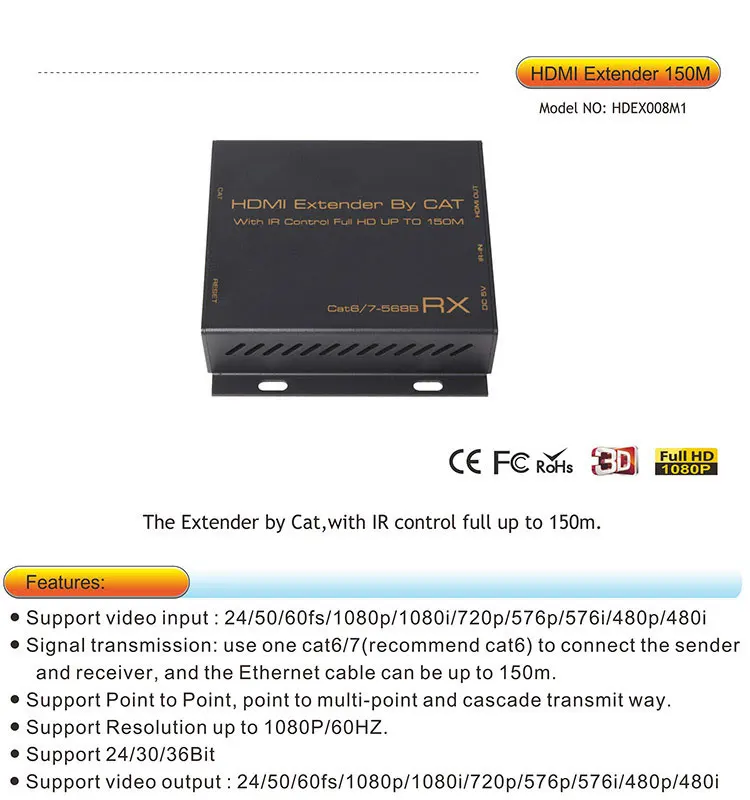

one to more hdmi extender Key feature

• Support video input : 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
• Use one cat5e/cat6 cable to transmit the HDMI Signal and IR signal, the max cat cable length can be up to 50m.
• Support video output : 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
• Support Resolution up to 1080P/60HZ.

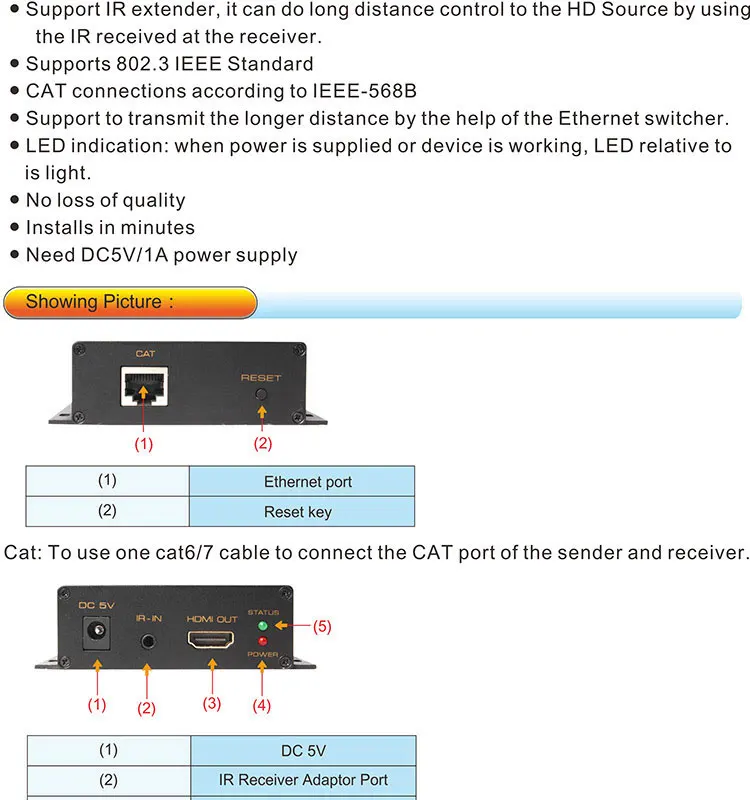

• Support IR extender, it can do long distance control to the HD Source by using the IR received at the receiver.
• Support EDID Management and Control
• CAT connections according to IEEE-568B
• LED indication: when power is supplied or device is working, LED relative to is light.
• No loss of quality
• Installs in minutes
• Need DC5V/1A power supply

one to more hdmi extender Main Techinical Specification



HDMI Details
Length of CAT-6 cable between Rx and TX	Up to 50 meters
HDMI Input	24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
HDMI Output	24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
HDMI Max bandwidth	165MHz
HDMI Max baud rate	4.95Gbps
Power
TX/RX Max working current	1A
Power adapter format Input	AC 100V~240V 50HZ/60Hz, DC5V/2A
Environment
Operation Temperature	-5 to +45℃
Operation Humidity	10 to 90%RH (No Condensation)
Storage Temperature	-20 to +60℃
Storage Humidity range	5 to 95%RH (No Condensation)

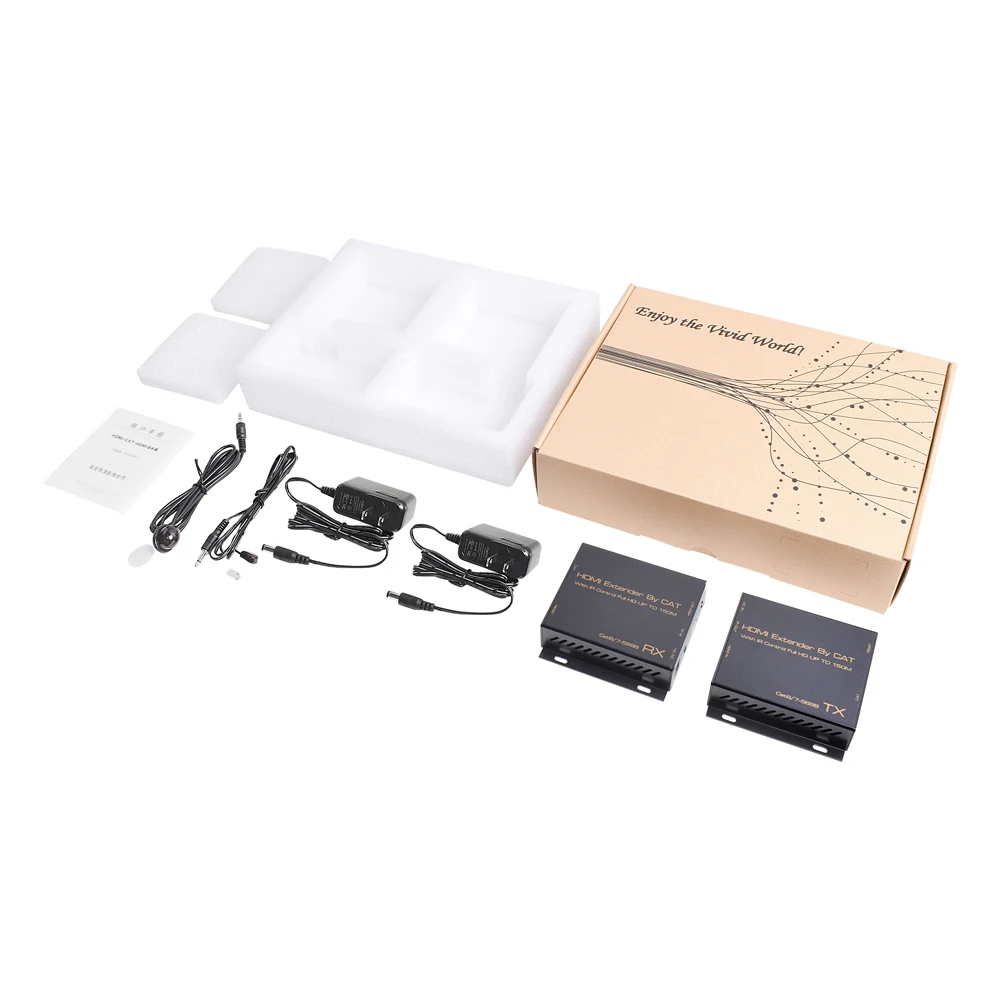

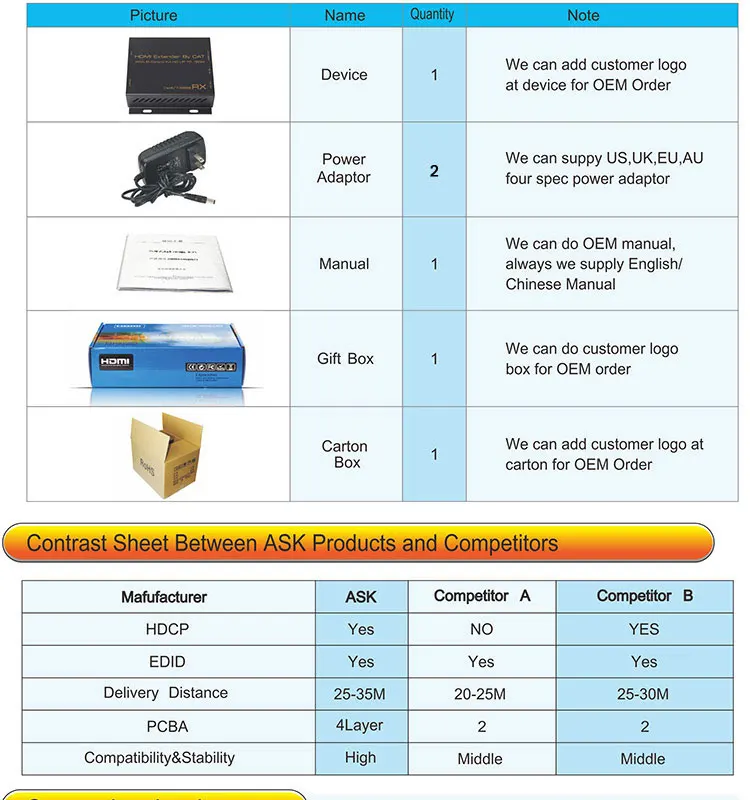

one to more hdmi extender Package Includes

1,HDMI Transmitter           1PCS

2,HDMI Receiver             1PCS

3,Windband IR Tx cable       1PCS

4,windband IR Rx cable       1PCS

5,5V/1A power adapter          1PCS

6,User manual                 1PCS

Packing Detail for carton
Width	295mm
Height	280mm
Length	365mm
Weight	6.55kg













Company information

We are the earliest developers and manufacturers committed to HDMI audio and video application system in China since 2004 with holding 20 patents.



By service our customers all over the world, we have consisted a super strong R&D team make up by 30 engineers which most with 6-10 years experience in HDMI and HDMI accessories products. Backed with vast experiences in design, engineering, manufacturing, we have build long term business with Samsung, Song, LG, Skyworth, TCL and Hair. We are not just manufactory for HDMI products, we are also provide HDMI application resolution for customer.

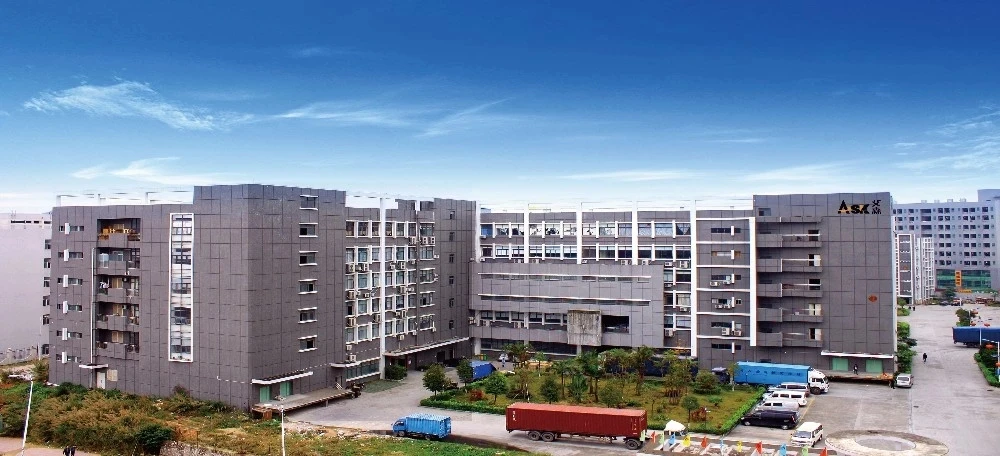

Factory
