100kg lpg cylinder cooking gas filling machine
- Category: >>>
- Supplier: Changzhou Yubo Electronic Scale Co. Ltd.
Share on (60788616460):
Product Overview
Description
lpg cylinder cooking gas filling machine
Quick Detail:
This scale adopts big bore resistant to pollution automatic cutting valve, which solves the problem of being blocked in electric magnetic valves.
Product Description
Applications:
Liquefied Petroleum Gas Filling Machine, explosion-proof.
Specification:
GY7170A-2 - Wireless communicationAuto LPG Gas Filling Scale
• Capacity x Accuracy: 150kg x 50g - standard
• Wireless communication to PC
• Precision / Accuracy: Class III
• Quantitative Filling
• Automatically cut off
• Intrinsically-safe Explosive-proof approved
• Safe and reliable
• One key set / preset weights
• Simple and convenient
• Automatic tare of the filling gun and bottle weight, filling operation convenient
• Platform dimensions: 45cm x 50cm – spring loaded to absorb shocks with 6mm rubber matt
• Weight of scale: 70kg
• Pressure:0 - 1.6MPa
• Valve life: +/- 2 years
•
• Battery operation: 45 hours minimum.

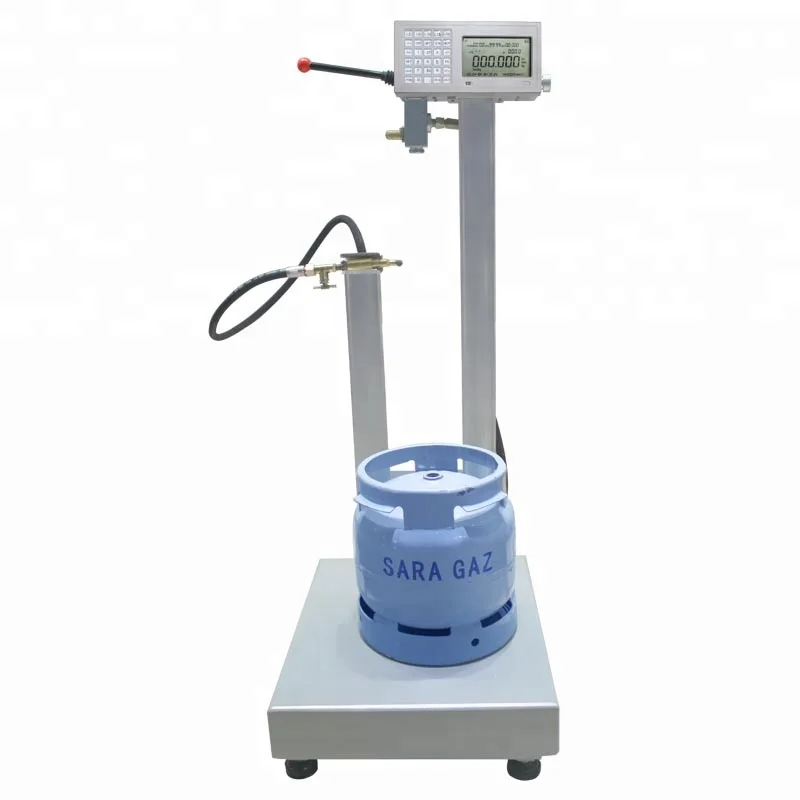

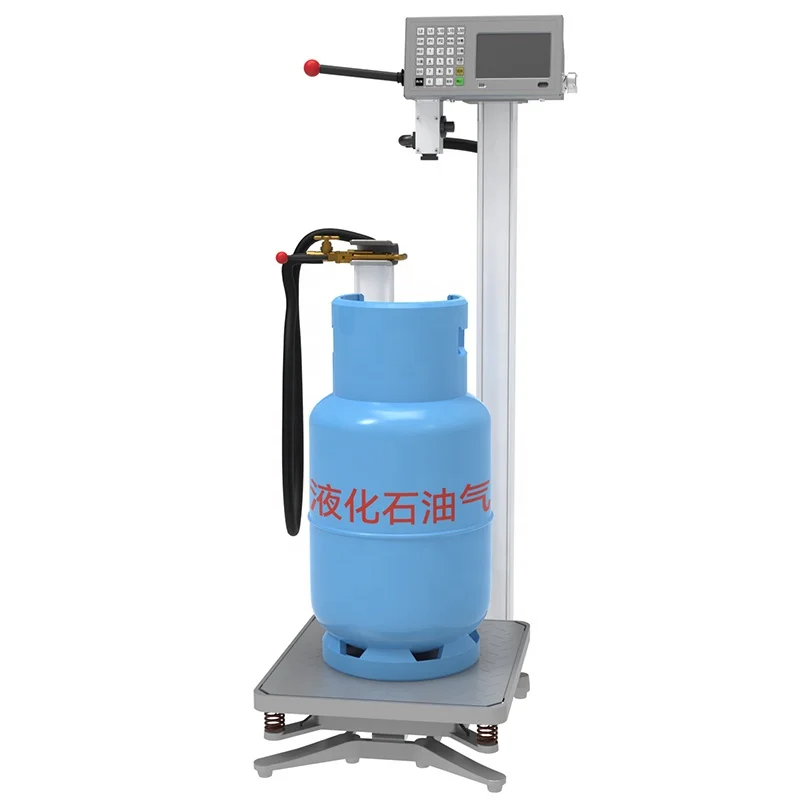

Pictures of LPG filling machine:

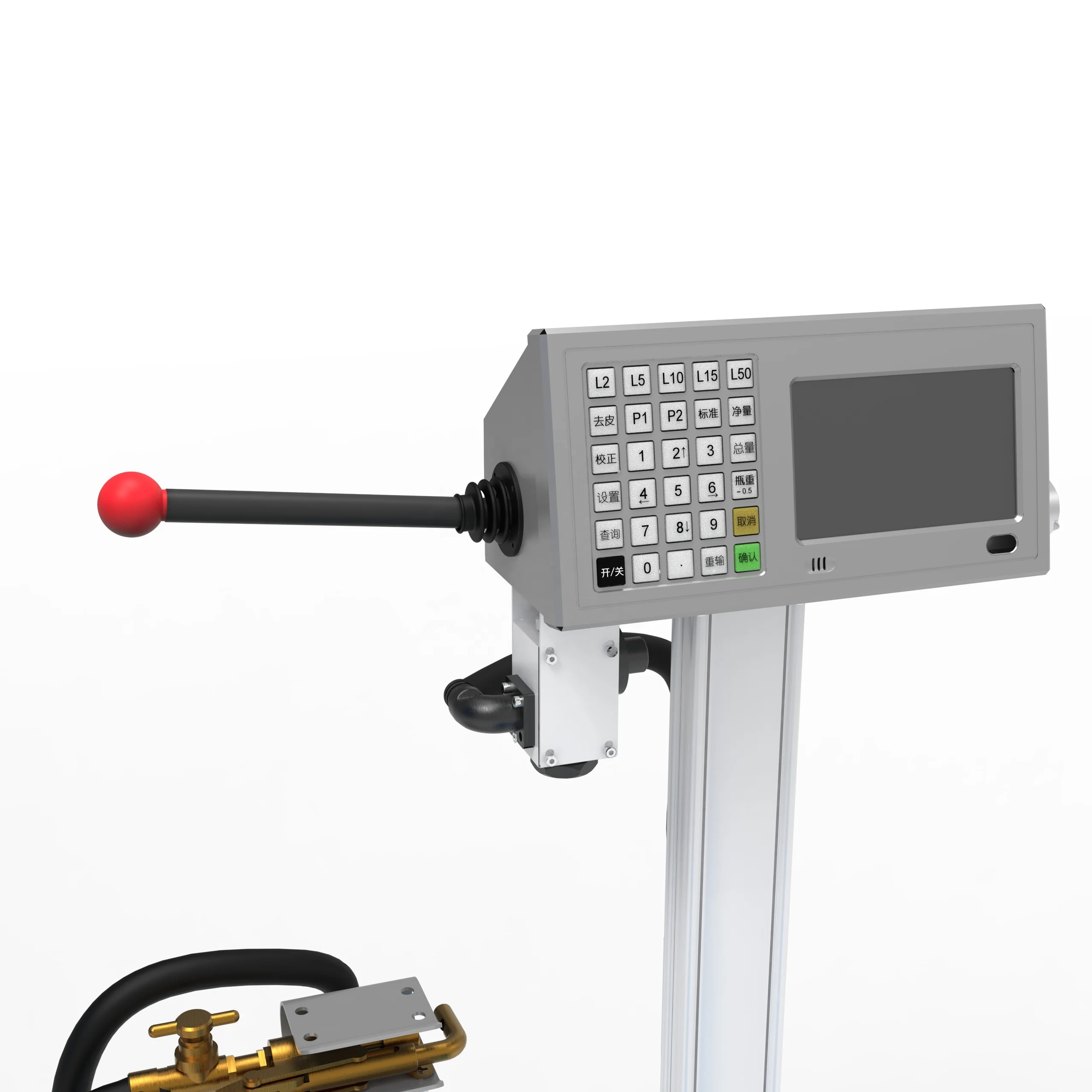

Indicator English version optional:
Performance and parameters:
l Precision class:Class III
l Min. capacity:2kg
l Max. capacity:300kg
l Resolution:3000
l Division:100g
l Pressure:0~1.6MPa
l Valve life:Less than 2 years
l Suit for filling material:liquefied petroleum gas (LPG) and other liquefied gas with less than Class ExibⅡCT4
User site of LPG filling machine:
Component of LPG filling machine:
Components
1) ——Scale platform:For placing gas cylinder for filling
2) ——Air gun: for connecting with the cylinder valve
3) ——Gun support:For placing air gun
4) ——Handle:Controlling air valve opening. Press the handle, the air valve is opened for filling gas
5) ——Function keys
6) ——Display controlling part: For cutting charging valve and display control
7) —— Liquid crystal display (LCD) : display filling information
8) ——Battery drum: placed explosion-proof lithium battery
9) ——Wireless module: storage filling data, the data wireless transmitting mode sent to the base station
10) ——Fixed support: for fixed display control components and weighing platform
11) ——U type connection tube: used for connection gas gun and valve out of the trachea
12) ——Emergency cut-off button: artificial control charging valve closure, filling process according to the button, charging valve closed
13) ——AD communication interface: 9 core aviation socket, used to connect AD box
14) ——Wireless communication interface: 7 core aviation socket, used to connect to wireless communication module
15) ——Charging valve outlet
16) ——Charging valve: control cylinder gas valve
17) ——Connecting pipe (short) : used for connection U type pipe and valve
18) ——Charging valve inlet port
19) ——AD box: connect the sensor and display control unit
20) ——And hat: used to adjust line joint, ensure that U connecting pipe two head parallel
21) ——Line joint: one of the connection U hose and barrel, and the other a connection U hose and short connection tube.
Packaging & Shipping
Wooden Case
1250x300x800mm for 2 units
1250x1150x900mm for 5 units
Our Services
1.Quality & service: at YUBO, our No.1 priority is always providing our clients with great quality prducts and superior customer service;
2. Quick leadtime: we are dedicated to providing the quickest turnaround times and work very hard to ensure that all of your deadlines are met;
3. Unbeatable prices: we continuously strive to find ways of reducing our production costs, and passing the savings over to you;
4. Brand awareness: the goal of any strong brand is to achieve a level of awareness that instills the idea of quality and value into all of our potential customer.
5. Special offers: in order to maintain our competitive edge, we are constantly running the special offers on our customer goods and design service.
Other products in YUBO scale
Company Information
Changzhou YUBO Electronic Scale Co.,Ltd , founded in 2006, is a well-known comprehensive scale manufacturer. We are a member of China Weighing Association, and successfully obtains “top 10 best-selling brand of China weighing apparatus manufacturing”, “top 30 distributional firms of China weighing apparatus manufacturing ” and many other honors.

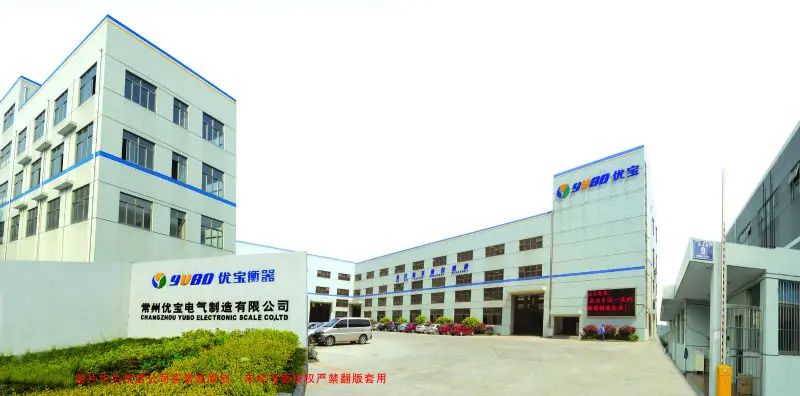

YUBO Workshop pictures:
FAQ
1. What is the payment terms?
40%T/T in advance,the balance 60% to be paid based on the copy of B/L
2. What is the delivery time?
Within 15 days after receipt of your deposit.
3. What is the validity time of the quotation?
15 days since quotation date
4. What is the product certificate?
ISO9001, CE, OIML
5. What is the MOQ?
1 sets
6. Are you a manufacturer?
Yes, we are a manufacturer, and we can provide the competitive price and good quality.
7. Will you have some discount?
Yes, we will provide a good discount to customers who bring repeat orders or large orders.
8. What is the warranty?
It is 14 months.
