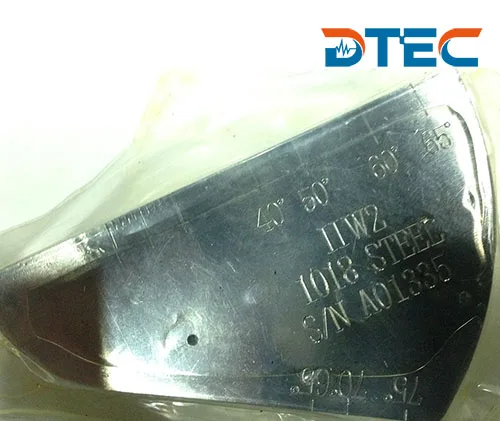

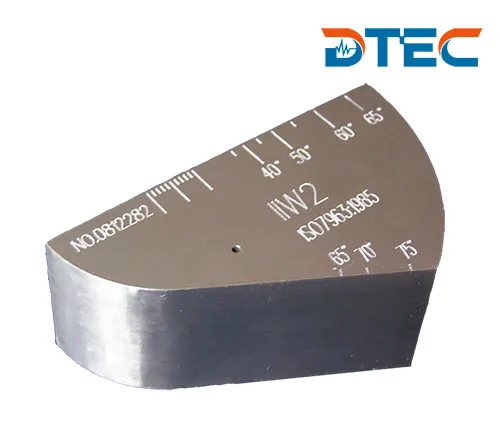

DTEC V2 Ultrasonic Calibration Block, UT block ,Calibration block
- Category: >>>
- Supplier: Deity Testing Equipment Co. Ltd.
Share on (60788641468):
Product Overview
Description
Product Description
Application:
Used for calibration of shear and longitudinal transducers, and verification of shear wedge exit point and refracted angle. It can also be used for resolution and sensitivity checking.
All specification can be customized according to your special requirement.
Specification
Name | UT Calibration Block |
Model | IIW2 (V2) |
Thickness | Four Types: 12.5mm, 20mm, 25mm, 50mm. |
Hole Diameter | Two Types: 1.5mm, 5mm |
Block Radius | 25mm & 50mm |
Scales | 40°to 75° |
Standard Followed | EN 27963:1992, ISO 7963:1985 |
Material | S355JO, 1018 Steel or Stainless Steel |
Packing Weight | 2KG |
Dimension | 75x43x12.5 mm |

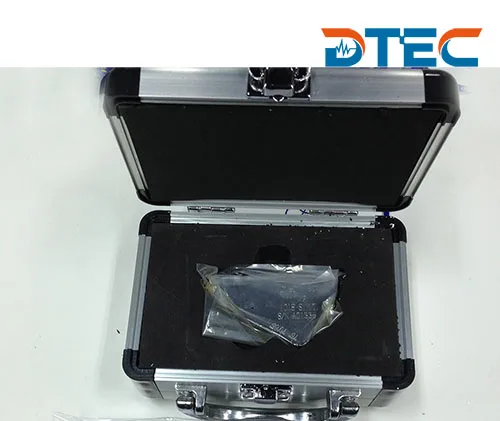

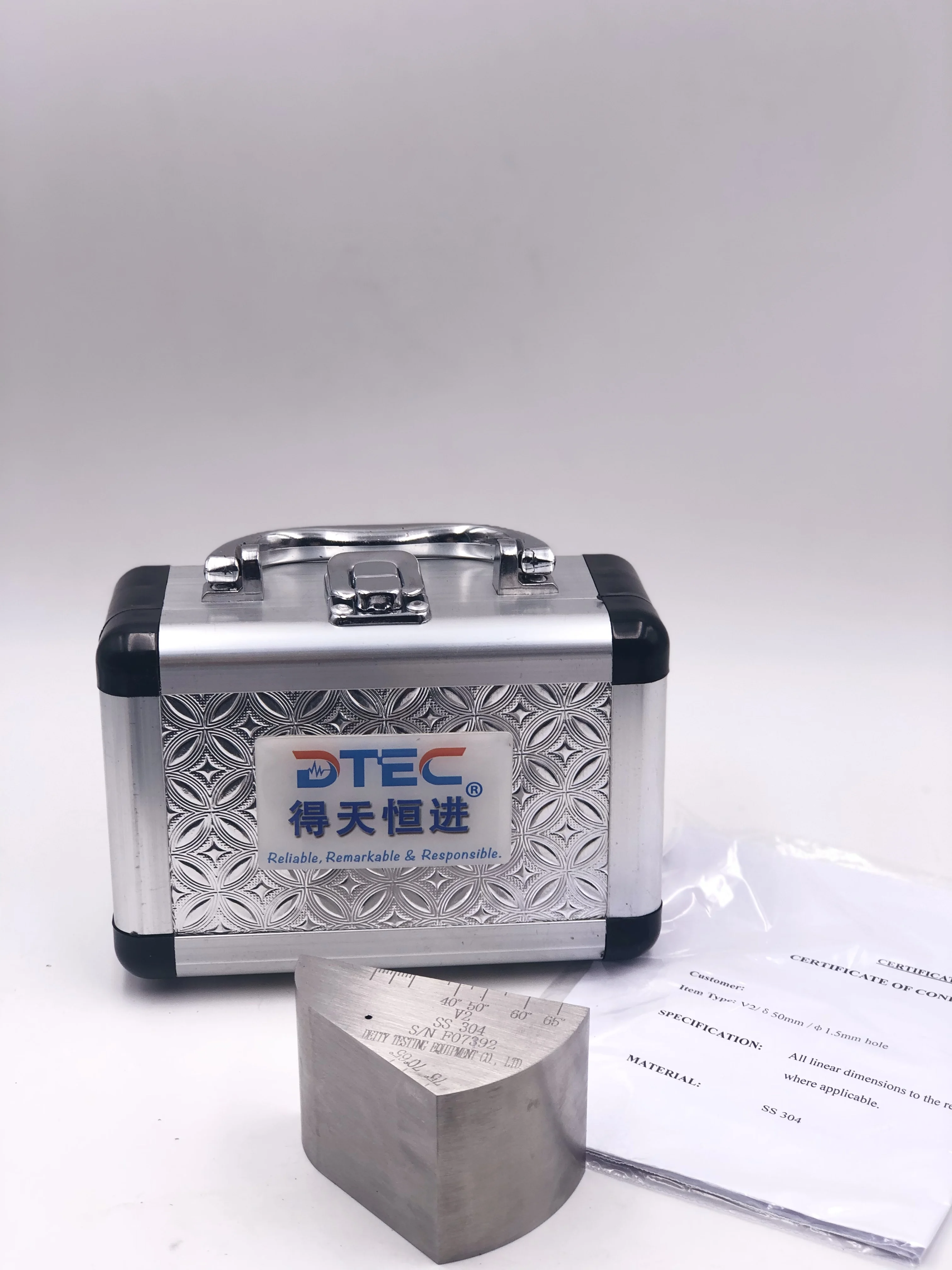

Packing Case | Aluminum Case |
Packaging & Shipping
Every set of our equipement will be carefully tested and double checked steps by steps before being packed and delivery,as we all know that among such fierce international competition,only 100% good quality and stable performance can finally attain the customer's trust.Hence,we will always put the equipment calibraton job in the first place while manufacturing.
