1 year warranty solar power dc submersible water pump price pakistan in uganda
- Category: >>>
- Supplier: Ningbo Cheers Water Pump Co. Ltd.
Share on (60788662815):
Product Overview
Description

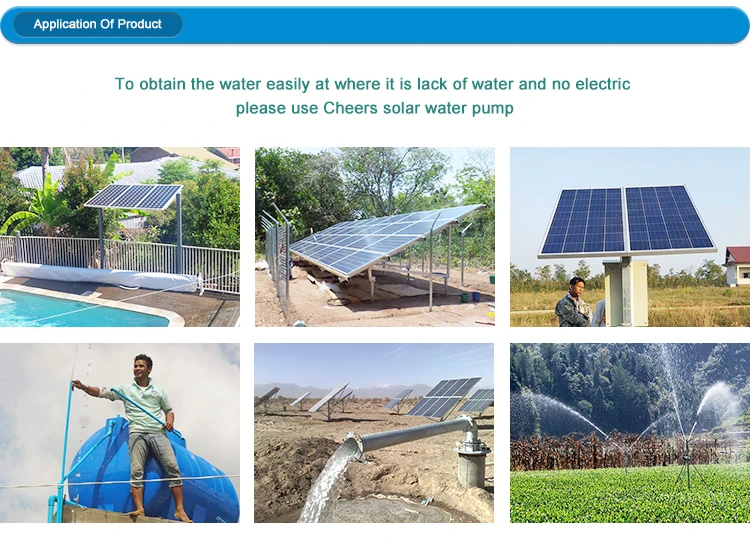

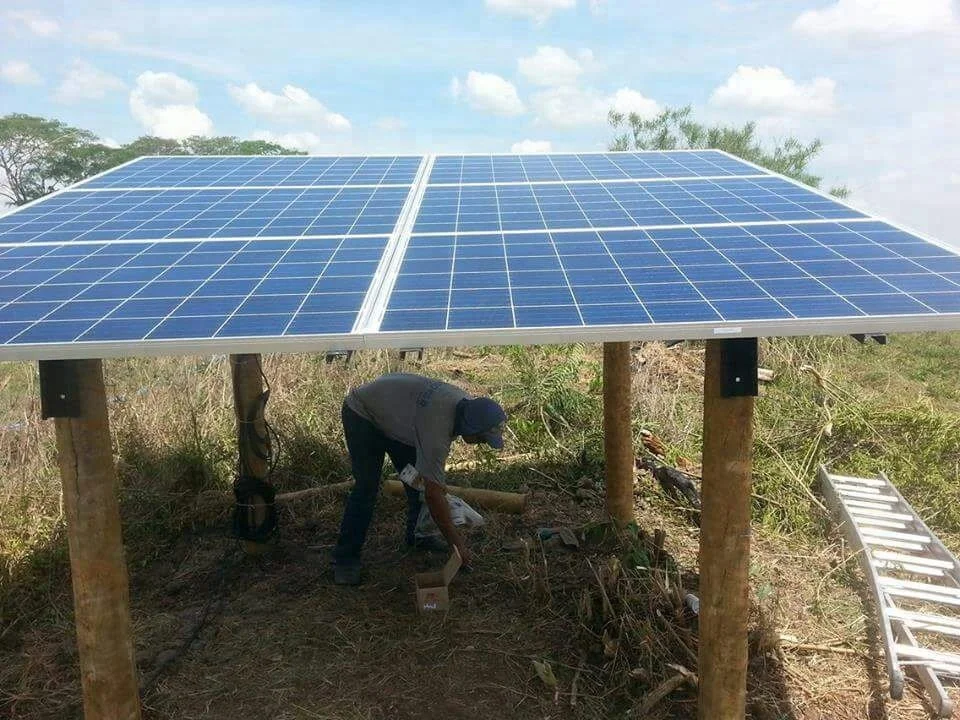

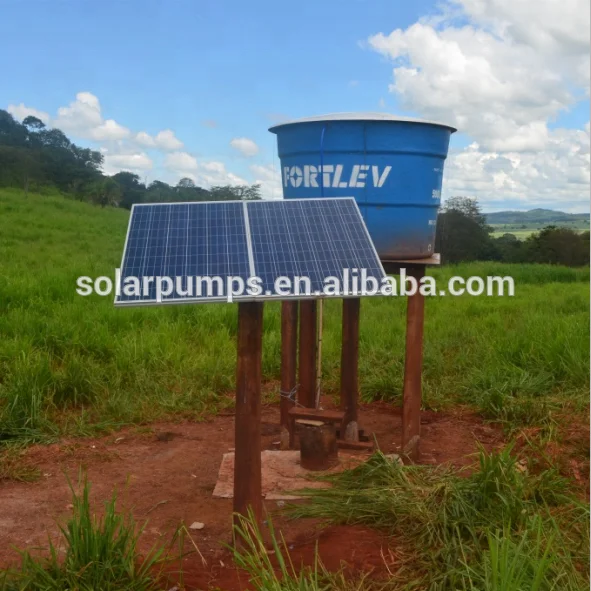

Solar powered water pump for home drinking, farm irrigation
Easy installation, just connect solar panels to the pump by MC4 plug.

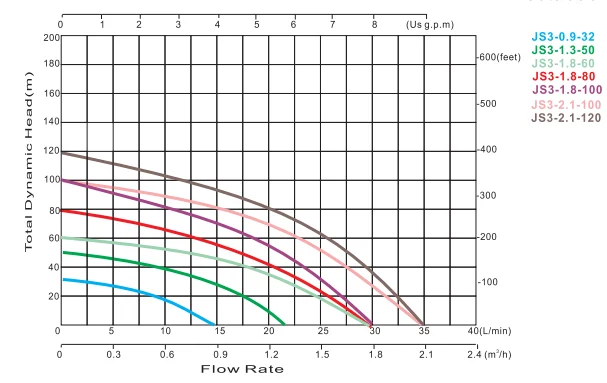

| Model No. | VOLTAGE (V) | POWER (W) | Daily water supply (Liters) | Depth of borehole (meters) | OUTLET (in) | DIAMETER (mm) |
JSE3-0.9-32 | 24 | 100 | 3000 L/day (775 gal/day) | 10-15m (30-50ft) | 0.75" | 76 |
JSE3-1.3-50
| 24 | 140 | 4000 L/day (1035 gal/day) | 20-30m (65-100ft) | 0.75" | 76 |
JSE3-1.8-60
| 24 | 180 | 5000 L/day (1290 gal/day) | 25-35m (80-115ft) | 0.75" | 76 |
JSE3-1.8-80
| 24 | 210 | 6000 L/day (1550 gal/day) | 35-50m (115-160ft) | 0.75" | 76 |
JSE3-1.8-100
| 24 | 270 | 6000 L/day (1800 gal/day) | 50-65m (160-210ft) | 0.75" | 76 |
JSE3-2.1-100
| 48 | 450 | 7000 L/day (1800 gal/day) | 50-65m (160-210ft) | 0.75" | 76 |
JSE3-2.1-120
| 48 | 540 | 7000 L/day (1800 gal/day) | 65-80m (210-260ft) | 0.75" | 76 |
Firstly we should know from you to select the right pump for you, thanks.
Daily Water Supply: ______m3
Static haed(vertical height from the pump to the highest point of delivery):________ m
Motor Cable length( the cable between controller and pump) :__________m
Pipeline length(Entire pipeline from the pump outlet to the point of delivery) :____________m
Pipeline between borehole and tank slope or horizonal ?
ADVANCED TECHNOLOGY:
1.Application innovation
Compared with the traditional alternating current
machine,the efficiency is improved 25% by the permanent magnetism,direct current,brushless,non-sensor motor.
2.Technics innovation
Adopt double plastic package for rotor and stator,
motor insulation≥300MΩ,the motor security was much improved.
3.Structure innovation
Oil filling,convenient installation and environmental protection.
