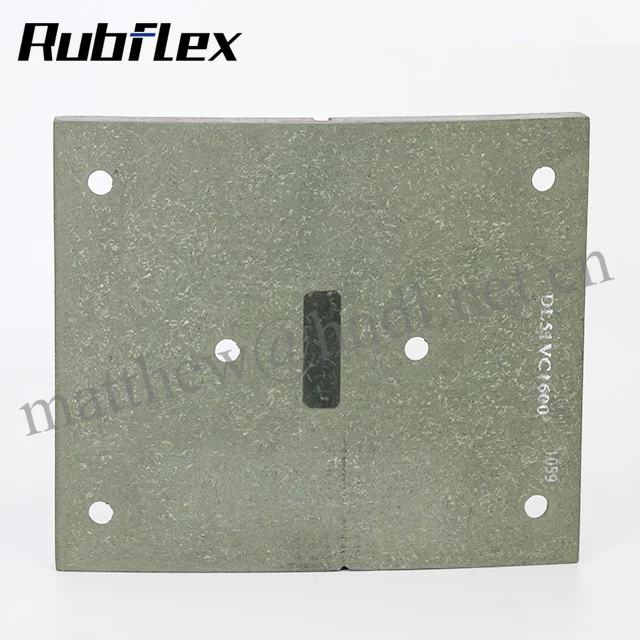

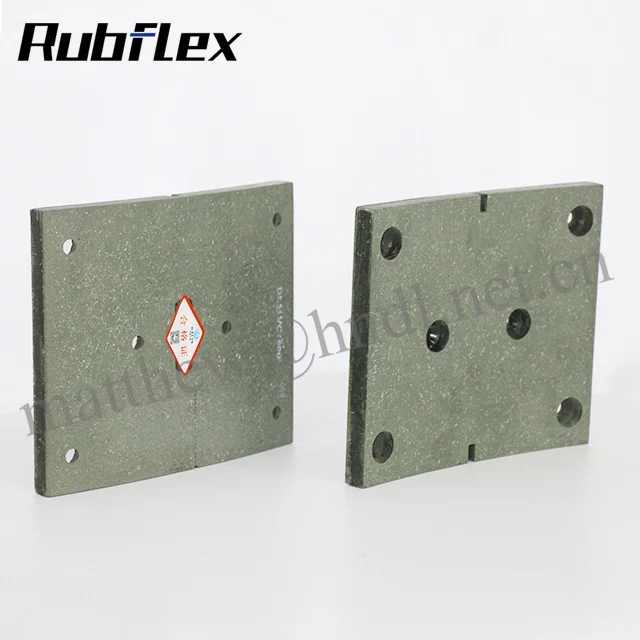

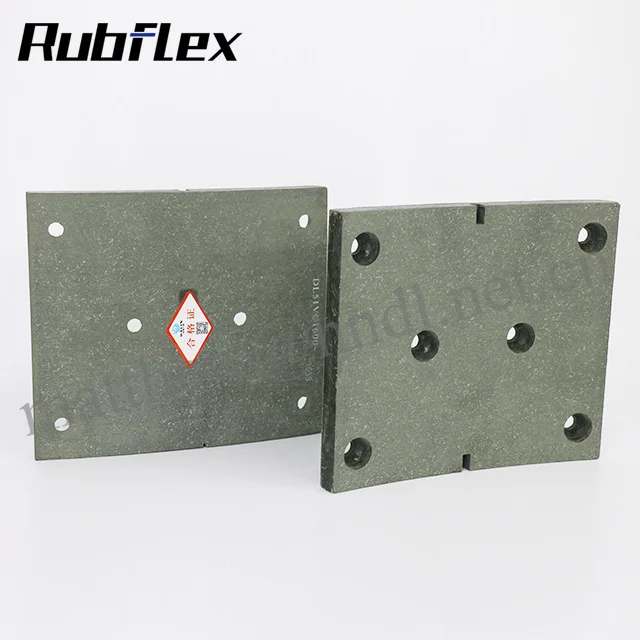

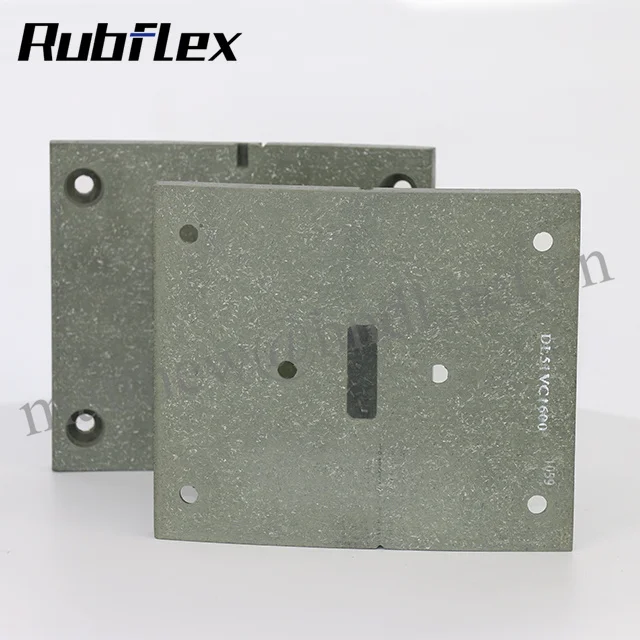

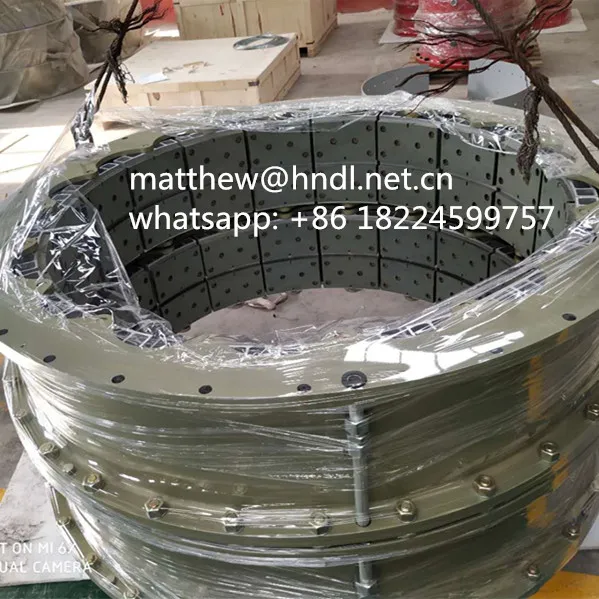

D51V1C600 409711 male and 409712 female drum parts rubflex clutch

The VC units are designed and built for severe clutch and brake applications where large-inertia loads are required.

The VC is ideal for severe, high-torque applications. VC brake serves as a durable, high-thermal- capacity drum clutch or brake. The unique design of the ventilated friction-shoe assembly allows for a high volume of air flow across the entire shoe length, enhancing heat dissipation, preserving the elastomeric actuator tube and extending overall clutch life. Virtually all components used in the VC design are replaceable.

High-torque, low-speed applications.

Reliable, large-inertia design.

Heavy-equipment and severe-operating applications.

High quality.

Replacement parts.

Oilfield machinery

Grinding mills

Marine propulsion

Paper equipment

Cement mills

11.5VC500 142639HA(P)/403089/403090/414576/414575/412123/201372/201373

14VC500 143829HA(P)/406273/406274/414513/414577/307353/307354

16VC600 142640HA(P)/402703/402704/414580/414579/201301/301352

20VC600 142641HA(P)/402732/402733/307369/307358/412126/2101301/301352

24VC650 142642HA(P)/402803/402804/414582/414581/412127/201285/301352

28VC650 142643HA(P)/402694/402693/414584/414583/412128/202185/301352

33VC650 142644HA(P)/402821/402822/414586/414585/412129/201283/301333

37VC650 142645HA(P)402671/402670/414586/414585/201283/301333/412130

42VC650 142647HA(P)/402829/402830/ 414590/414589/412131/201283/301333

14VC1000 142838HA(HP)/409141-01/406978/414592/414591/412124/303567/303150

16VC1000 142821HA(HP/HC)/405950-01/405954/414594/414593/412156/301831/301832

20VC1000 142832HA(HP/HC)/503302-01/406544/414596/414595/412157/301831/301832

24VC1000 142675HA(HP/HC)/404666-01/404675/414598/414597/412158/301831/301832

28VC1000 142674HA(HP/HC)405503-01/403745/414600/414599/412159/301831/301832

32VC1000 142673HA(HP/HC)/402330-01/402327/414602/414601/412160/301839/301718

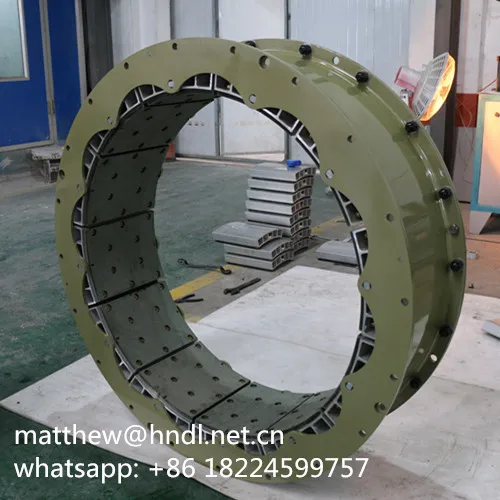

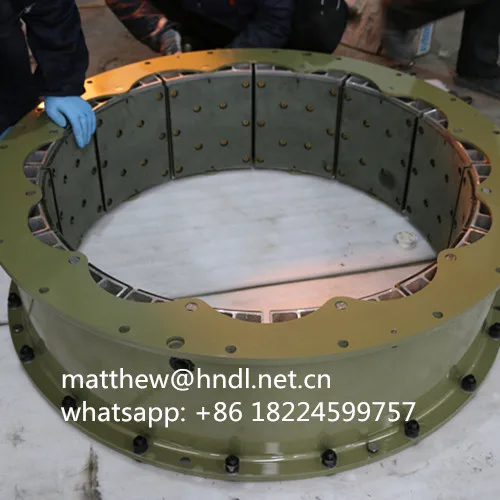

38VC1200 142739HA(HP/HC)/404503-01/404504/511640/511639/412161/302115/301908

42VC1200 142677HA(HP/HC)/403800-01/403799/511642/511641/412162/302115/301908

46VC1200 142671HA(HP/HC)/404602/403901/414439/414438/412163/302115/301908

52VC1200 142841HA(HP/HC)/503985/503986/414439/414438/412164/303929/301908

51VC1600 142835HA(HP/HC)/506874/505580/511644/511643/412165/304214/304215

60VC1600 142915MB(MA/HC)/510829/511348/511646/511645/412166/304214/304215

66VC1600 142097HA(HC)/509548/511350/511648/511645/509527/304214/304215
