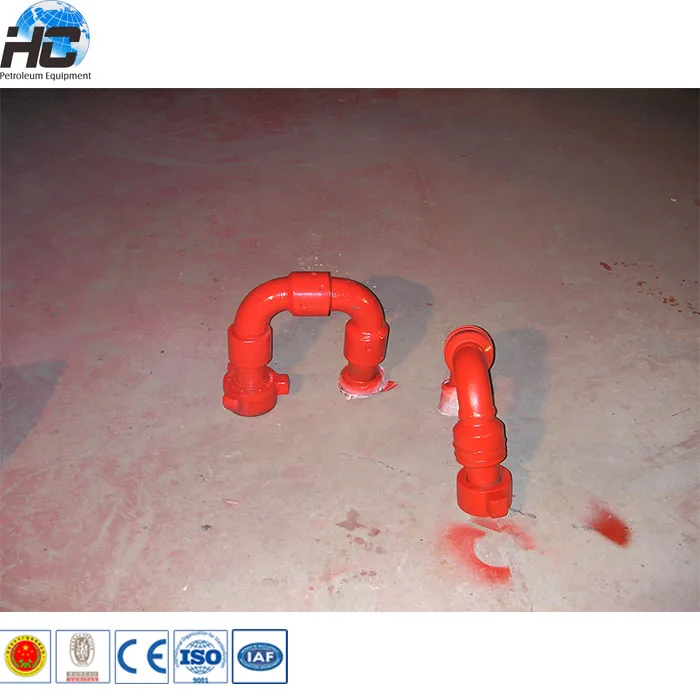

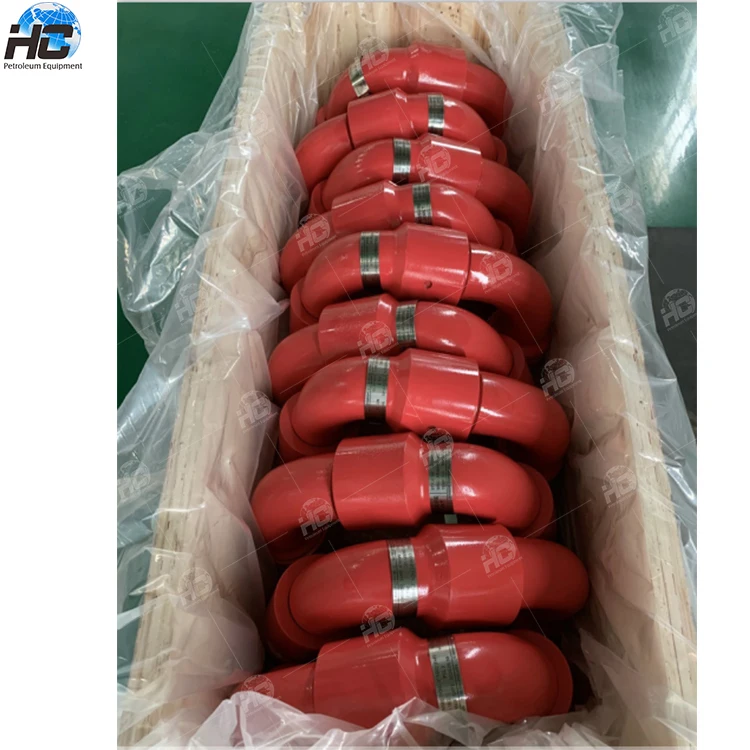

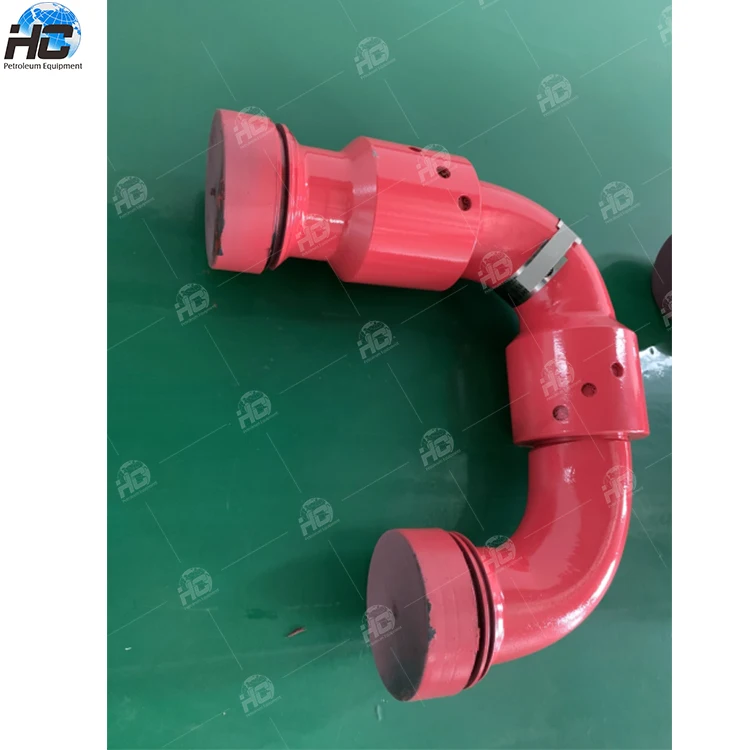

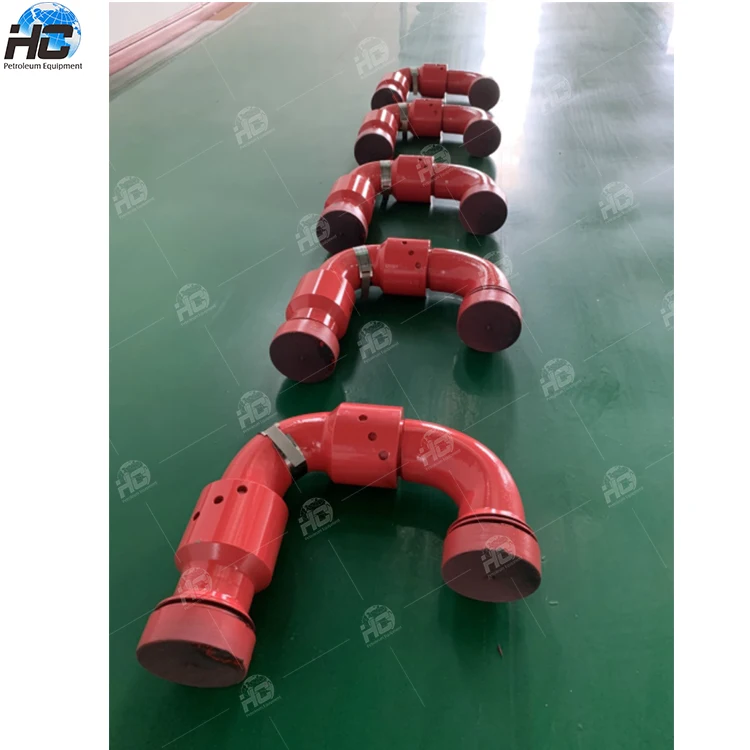

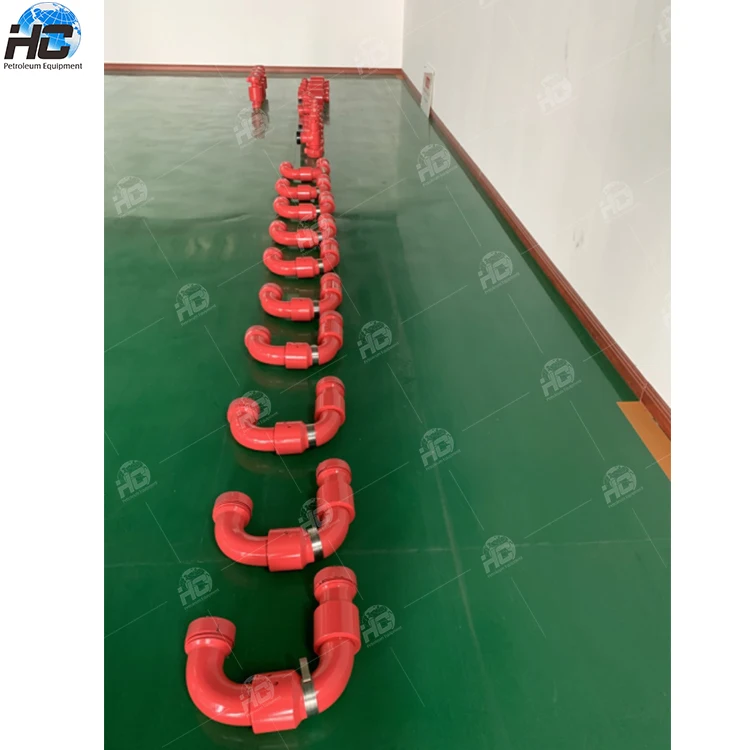

Long radius swivel joint / FMC chiksan joint / high pressure chiksan swivel joints
Product Description
Chiksan swivel joint is the kind of metal pipeline joint with ball bearings. A variety of swivel joints and repair kits of size 1 "~ 4", rated working pressure 25MPa ~ 140MPa (3629 psi ~ 20000 psi) under normal temperature, low temperature and sour (H2S) environments can be provided. There are long radius type and short radius type. Long radius elbow has a smooth pass which can minimize the resistance when fluids pass through.
| 10 type Long radius swivel joint | ||||||
| Size | Working pressure | Overall dimension(mm) | Connection type | Applied condition | ||
| A | B | C | ||||
| 2" | 42 Mpa | 279 | 277 | 273 | FIG602(F x M) | Standard |
| 3" | 368 | 368 | 416 | FIG602(F x M) | Standard | |
| 3" | 368 | 368 | 416 | FIG602(M x M) | Standard | |
| 4" | 408 | 408 | 484 | FIG602(F x M) | Standard | |
| 2" | 70 Mpa | 279 | 277 | 273 | FIG1002(F x M) | Standard |
| 3" | 368 | 368 | 416 | FIG1002(F x M) | Standard | |
| 4" | 408 | 408 | 484 | FIG1002(F x M) | Standard | |
| 2" | 105 Mpa | 279 | 277 | 273 | FIG1502(F x M) | Standard |
| 2" | 279 | 279 | 273 | FIG1502(M x M) | Standard | |
| 3" | 368 | 368 | 416 | FIG1502(F x M) | Standard | |
| 3" | 368 | 368 | 416 | FIG1502(M x M) | Standard | |
| 3" | 140 Mpa | 514 | 516 | 540 | FIG2002(F x M) | Standard |
| 2" | 42 Mpa | 279 | 277 | 273 | FIG602(F x M) | H2S |
| 3" | 368 | 368 | 416 | FIG602(F x M) | H2S | |
| 2" | 70 Mpa | 279 | 277 | 273 | FIG1502(F x M) | H2S |
| 3" | 368 | 368 | 416 | FIG1502(F x M) | H2S | |
Main features of our Long radius swivel joint / FMC chiksan joint / high pressure chiksan swivel joints as below:
1.Uniform wall thickness, increase the wall thickness and strength of easy erosion positions, improve the erosion resistance, prolong the service life;
2.Three-channel design, which can more effectively bear the heavy load and radial load, so that pressure is stable, when bearing the variable load, the vibration of pipeline is small;
3.Connection size is in full accordance with American standards. Can replace foreign similar products;
4.Because seal part is adopted synthetic rubber with a metal support ring and the design of pressure relief hole, the swivel joint can automatically reduce the pressure to prevent the pressure accumulation in the channel when there's leakage in the seal part. The safety performance is greatly improved;
5.Fast and reliable connection;
6.Long radius elbow 10, 20,30,50,60,80,100 types for option, short radius elbow 10,20,30,40,50,60,70,80 types for option;
