Automatic Gate Opener Electric Lock
US $110.00-$156.00

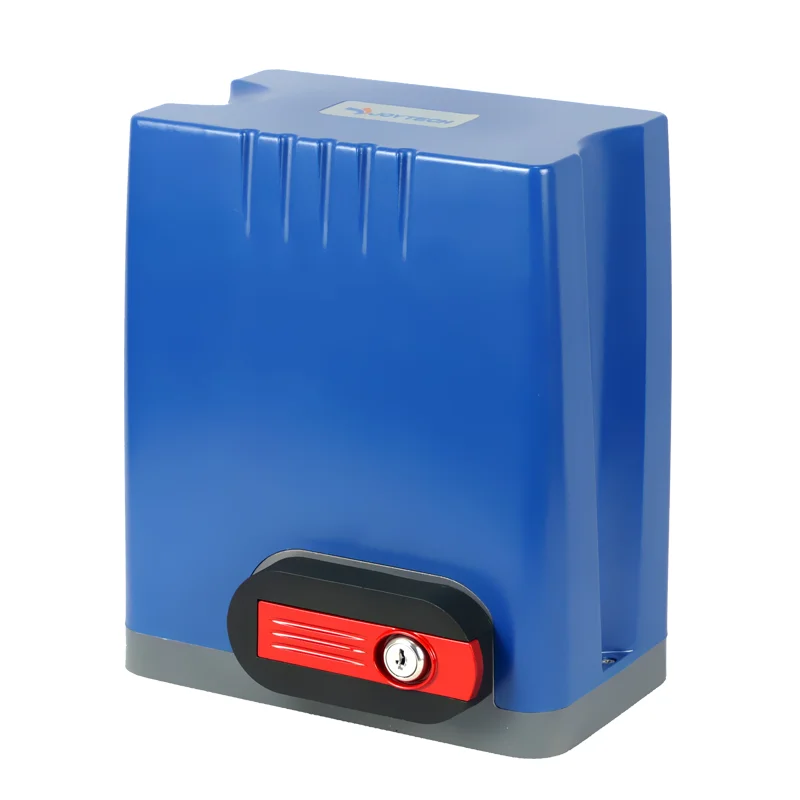

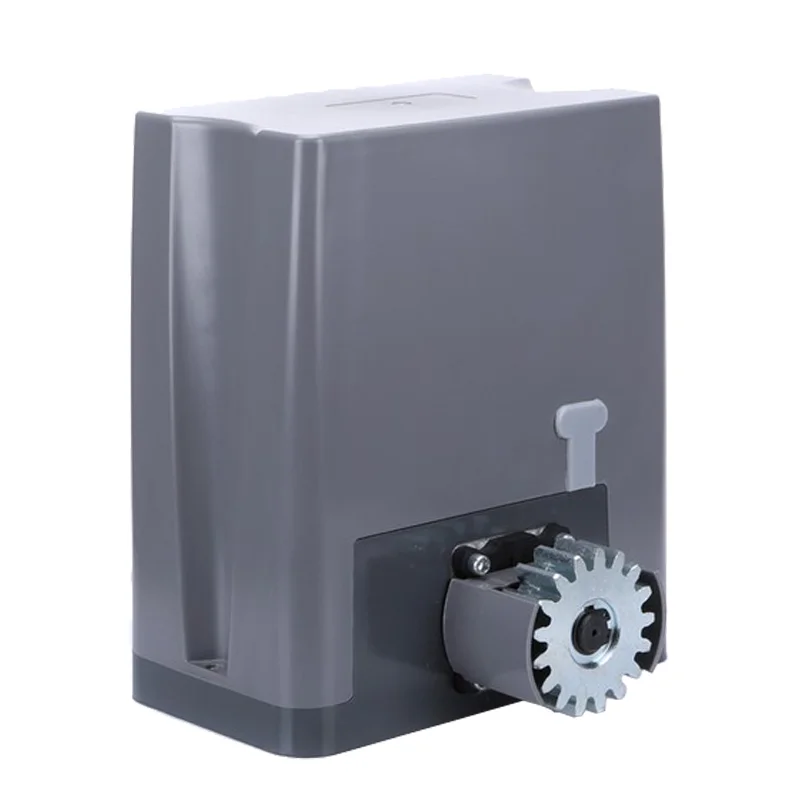

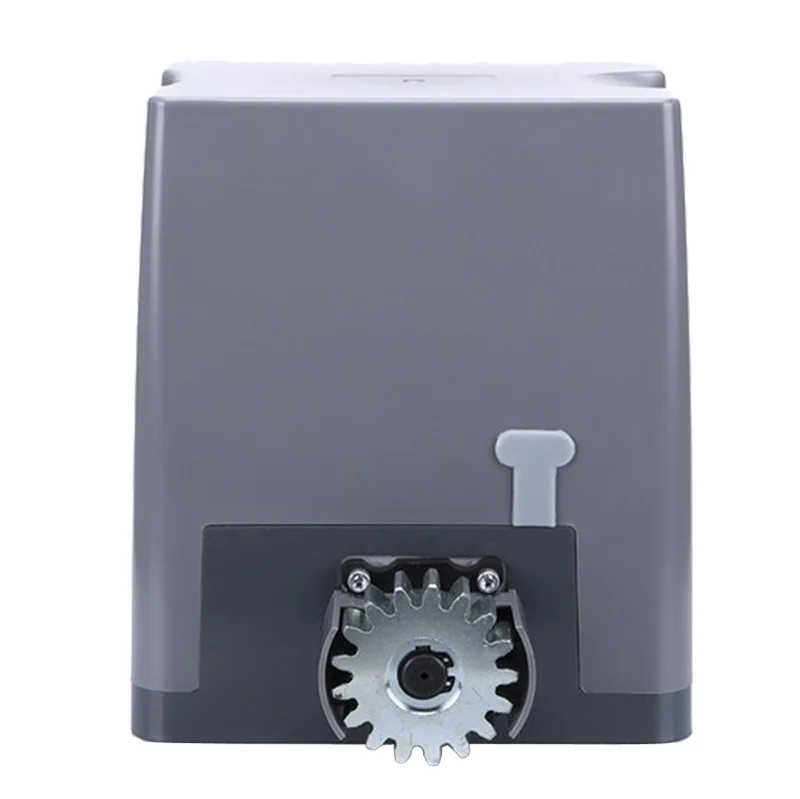

Hot Sale DC 800kg Automatic Sliding Garage Gate rolling Door Opener Remote shutter side motor.
- Category: >>>
- Supplier: Fujian Anlin Intelligent Science And Technology Co. Ltd.
Share on (60788725102):
Product Overview
Description
Product Description
Specification
Model | DKC800DC |
Voltage Frequency | 110V/220V,50HZ/60HZ |
Motor voltage | 24V DC |
Motor speed | 1400rpm |
Engine speed | 54rpm |
Output power | 150W |
Remote control operating distance | 30m |
Remote control mode | Single button |
Output shaft height | 48.5mm |
Maximum gate weight | 800kg |
Output torque | 14Nm |
Limit switch | Magnetic limit switch |
Noise development | less than 56dB |
Duty cycle | Max.10Minutes |
Remote Control settings | 25PCS |
Gate move speed | 13m/min |
Back up Battery(optional) | 4.5AH or 8AH |
Sliding gate motor product introduction
All copper motor, high temperature resistant, durable
All copper motor, high temperature resistant, durable

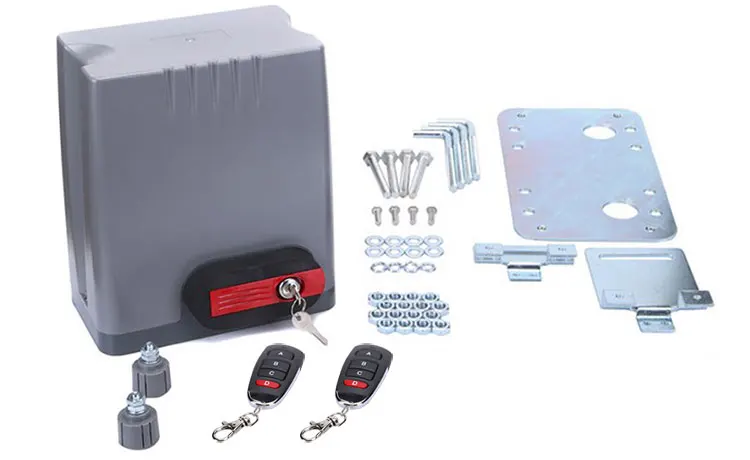

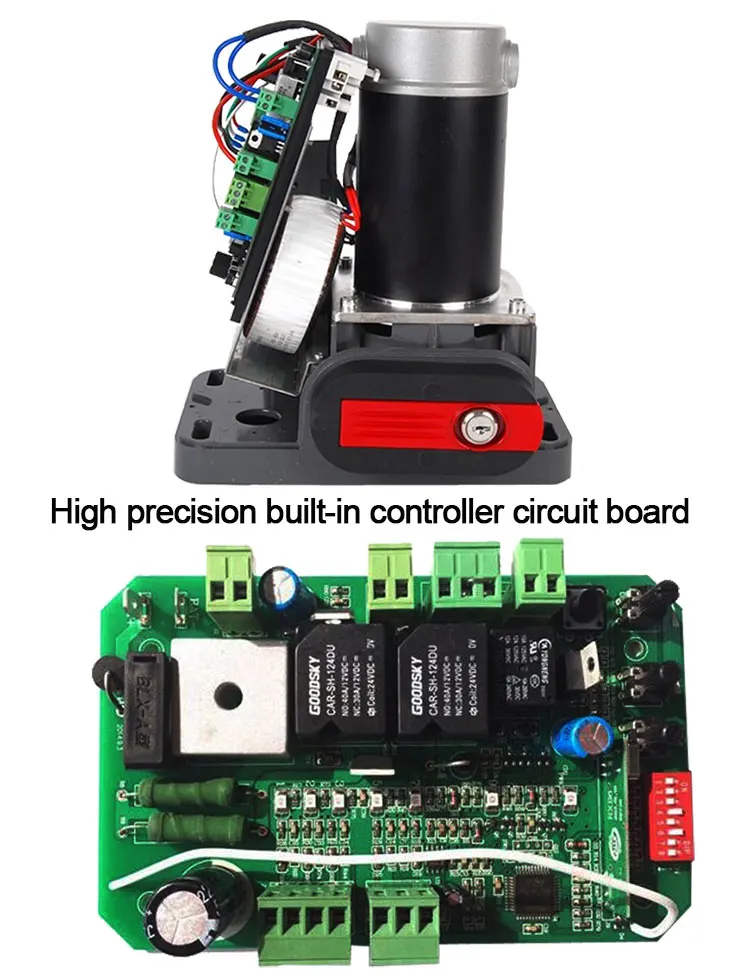

Automatic sliding door opener 800DC is 24V DC motor, for maximum 800 KGS residential gate, with control board insert. Soft start.slow stop, automatic close, automatic reverse function. Each kit includes motor and 2 remote controls1. In case of power of failure, the DC operator can be powered by extra batter.
2. Intelligent charging system supplied
3. Keypad/single button interfacephoto beam safety beam interface
User can select Auto-close feature
Soft start soft stop
Manual key release design for emergency purposes
This gate operator has auto-reverse function, and the reverse power can be adjustedby user
3. Keypad/single button interfacephoto beam safety beam interface
User can select Auto-close feature
Soft start soft stop
Manual key release design for emergency purposes
This gate operator has auto-reverse function, and the reverse power can be adjustedby user
Fujian Anlin inteligent science andtechnology Co, Ltd,is a Fujian
province National High TechnologyEnterprises which is engaging
in researching, manufacturing.
province National High TechnologyEnterprises which is engaging
in researching, manufacturing.
Established in 1992, after 28 years, has more than 100 patents, including .more than 30 invention patents, the annual sales performance of nearly .200 million, with 310 employees, the factory covers an area of 50 acres.with the whole automation production line equipment, the company is the main editor unit of the rolling door motor standard .
Anlin rolling door motor
Fujian Anlin intelligent science andtechnology Co , Ltd ( Zhangzhou Kylin electronics co , td ) is a Fujian province National High TechnologyEnterprises which is engaging in researching , manufacturing , selling and offering service of intelligentelectric doors and windows Have import and export right .
Anlin rolling door motor
The ANLIN-Customized leading the whole industry with innovation and has developed customized motors for the UK, South Korea,Dubai, Vietnam, Malaysia and other countries .
Anlin rolling door motor
Every year we take part in many exhibition of door and window industry & R+T and Canton Fair.(Beijing)International Construction , Decoration and Materials .exhibition.Canton Window and Shading exhibition .
Anlin rolling door motor
It has the strict product inspecting system ,our company’s motor’s service life use the.standard of 10000 working times instead of the 8000 times.of the ordinary standard of the.roller door motor industry , The New Product-All aluminum shell motor, warranty for three years, the motor has the thermal protection,when the shell temperature is not higher than 78 degrees and the outdoor temperature is 28 degree,after the thermal protection works, the waiting time for the motor restart is 2-3 minutes.
An lin rolling door motor
Our products are exported to more than 60 countries, and has cooperated with more than 10 overseas Listed companies for more than five years.
