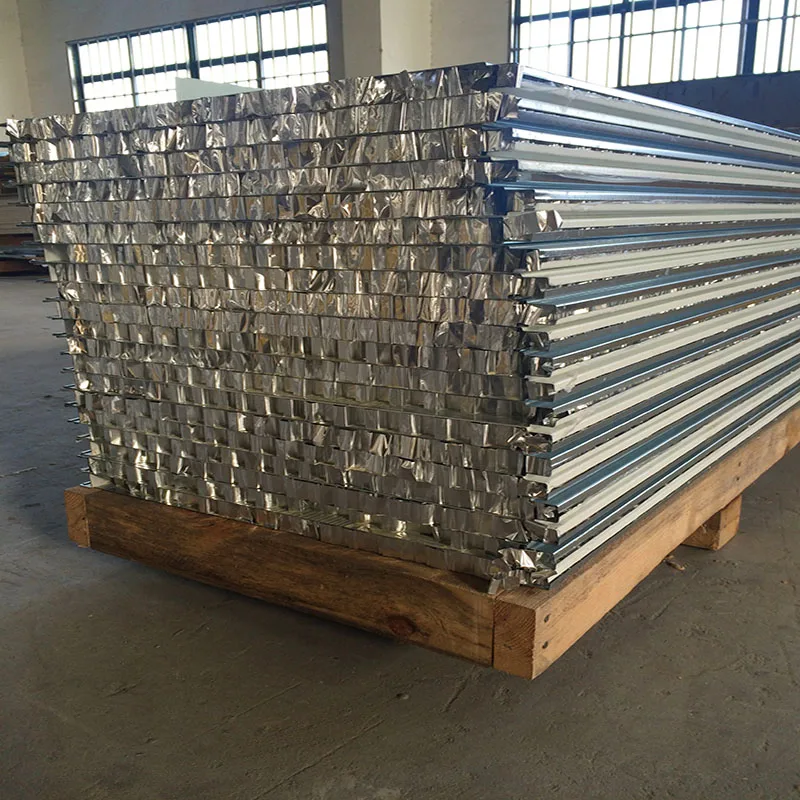

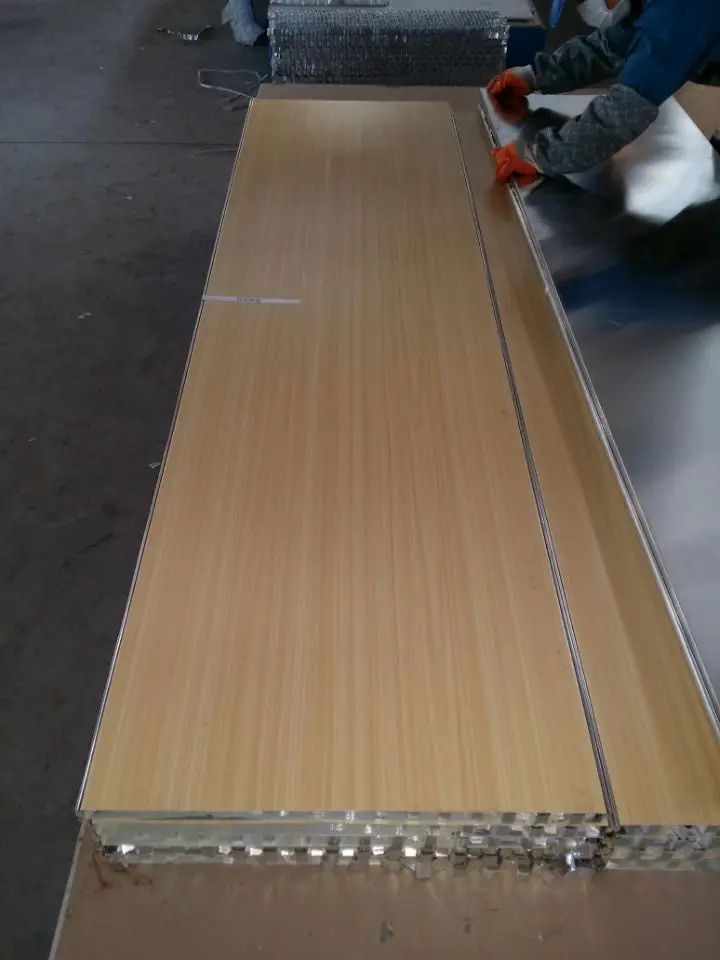

Best quality Marine Type A Composite Aluminum Fireproof panel

Type

CLP-P3

CLP-L5

CLP-L6

Fire Class

B-15

B-0

B-0

Dimension

50mm Thickness×550mm Width × Required Length(Max 3000mm)

30mm Thickness×550mm Width × Required Length(Max 3000mm)

25mm Thickness×550mm Width × Required Length(Max 3000mm)

Weight

18 kg/ square meters

11..6 kg/ square meters

12.3 kg/ square meters

Sound Reduction

33dB(A)

30dB(A)

29dB(A)

Thermal Transmittance

3.35 Kcal/ cubic meters h℃

3.25 Kcal/ cubic meters h℃

2.25 Kcal/ cubic meters h℃

Surface Finish

PVC film (150μ, low flame spread) or galvanized steel

Core Material

Aluminum Honeycomb

Tolerances

Width(-1,0), Height ±3, Thickness(-1,0)
