CAYKEN  Hydraulic and Automatic Concrete Wall Cutter

Our company Shanghai Chengxiang (Hanyue) marketing center and factory both located in Shanghai city, China. Started since 1996, with "CAYKEN" brand top in China, to creat the most influential international drilling machinery--insisted powerful, comfortable and safe operating experience. Together with the international drilling market quickly update and develop, we are creating a competitive industry force for workers with high efficiency.

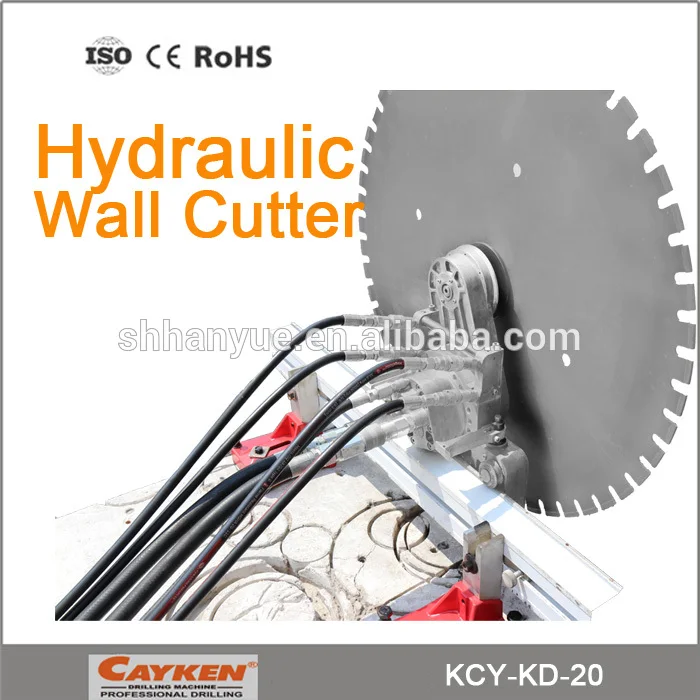

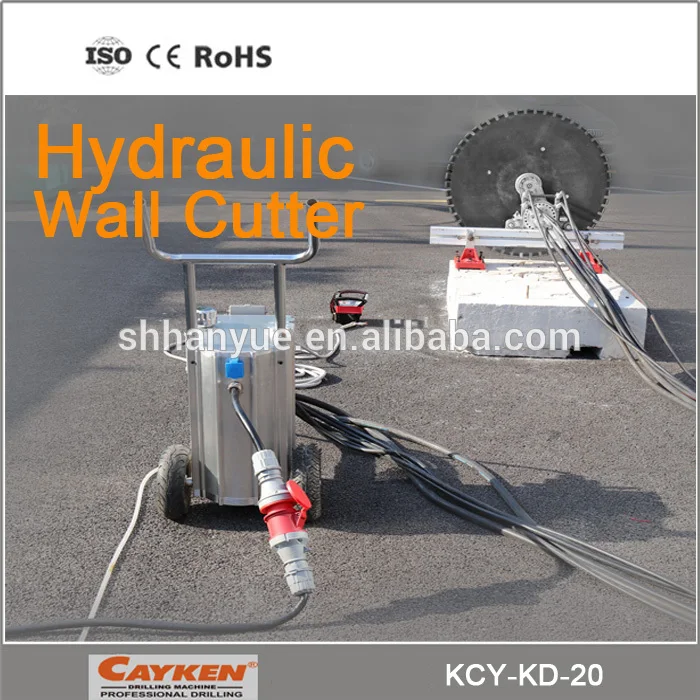

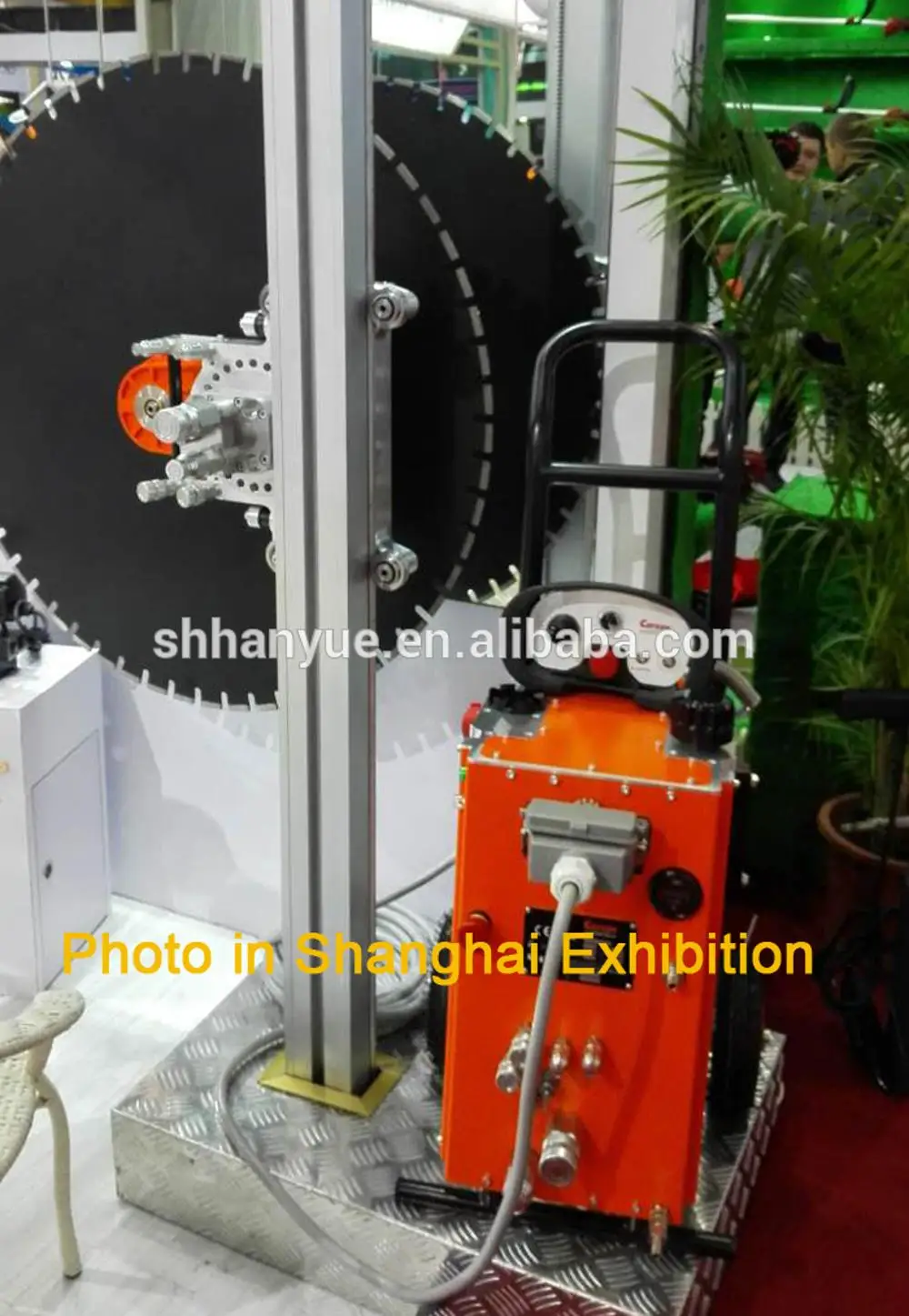

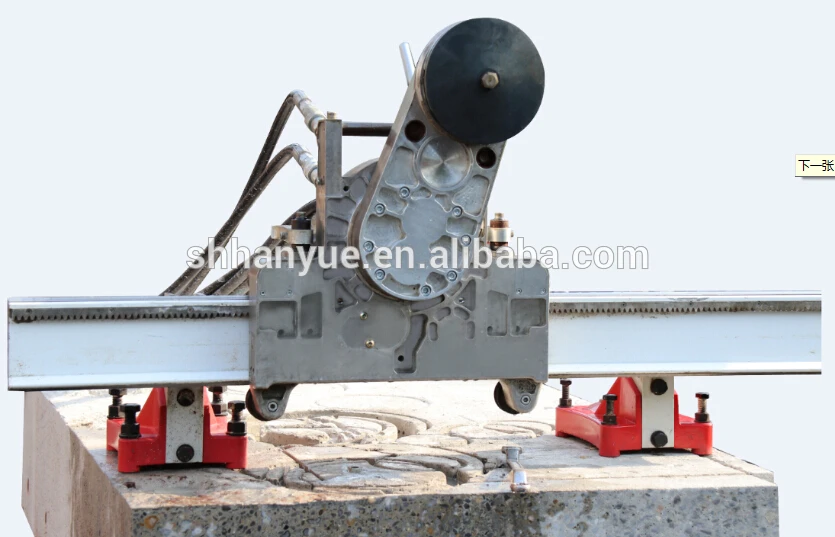

    This is a new product HYDRAULIC WALL CUTTER, model KCY-KD-20, totally new with strong hydraulic power and stable performance.

Cutting Motor/ Cutting Head Parameters

Model No.
   KCY-KD-20 (Cutting head)
   KCY-KD-22 (Cutting head)
      Max. blade diameter:
1800mm
2200mm
Max cutting depth:
815mm
1015mm
Max. start blade diameter
1000mm
1200mm
Blade assembling type:
Fast
Fast
Blade center hole diameter:
60mm
60mm
Boom angle:
360
360
Torsion:
340Nm
400Nm
Speed Level 1
590
590
Speed Level 2
850
850
Speed Level 3
1020
1020
Speed Level 4
1300
1300
Weight:
27kg
29kg
    Option blade base
130mm, 6*M8
110mm, 6*M10
108mm, 6*M10
