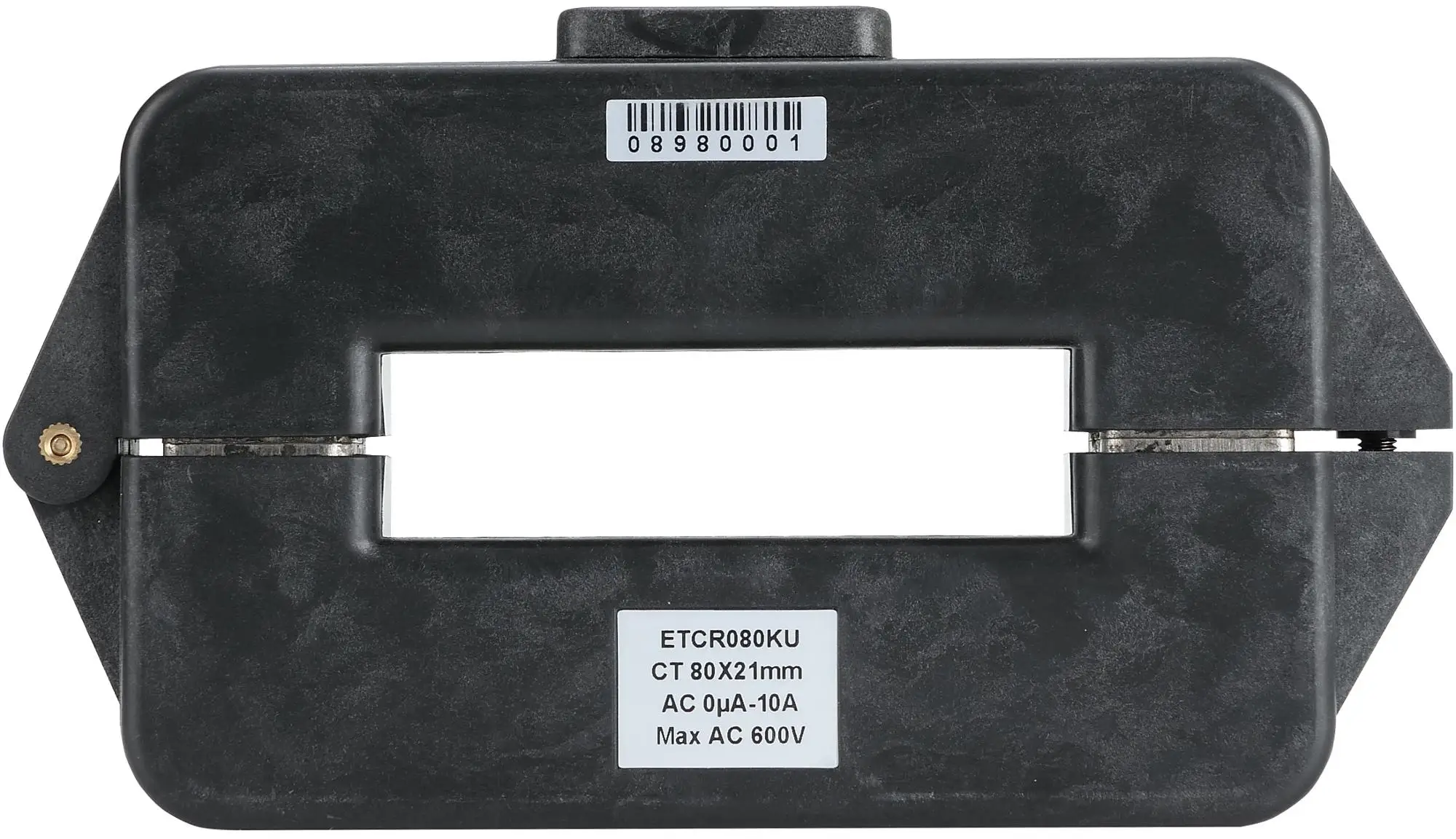

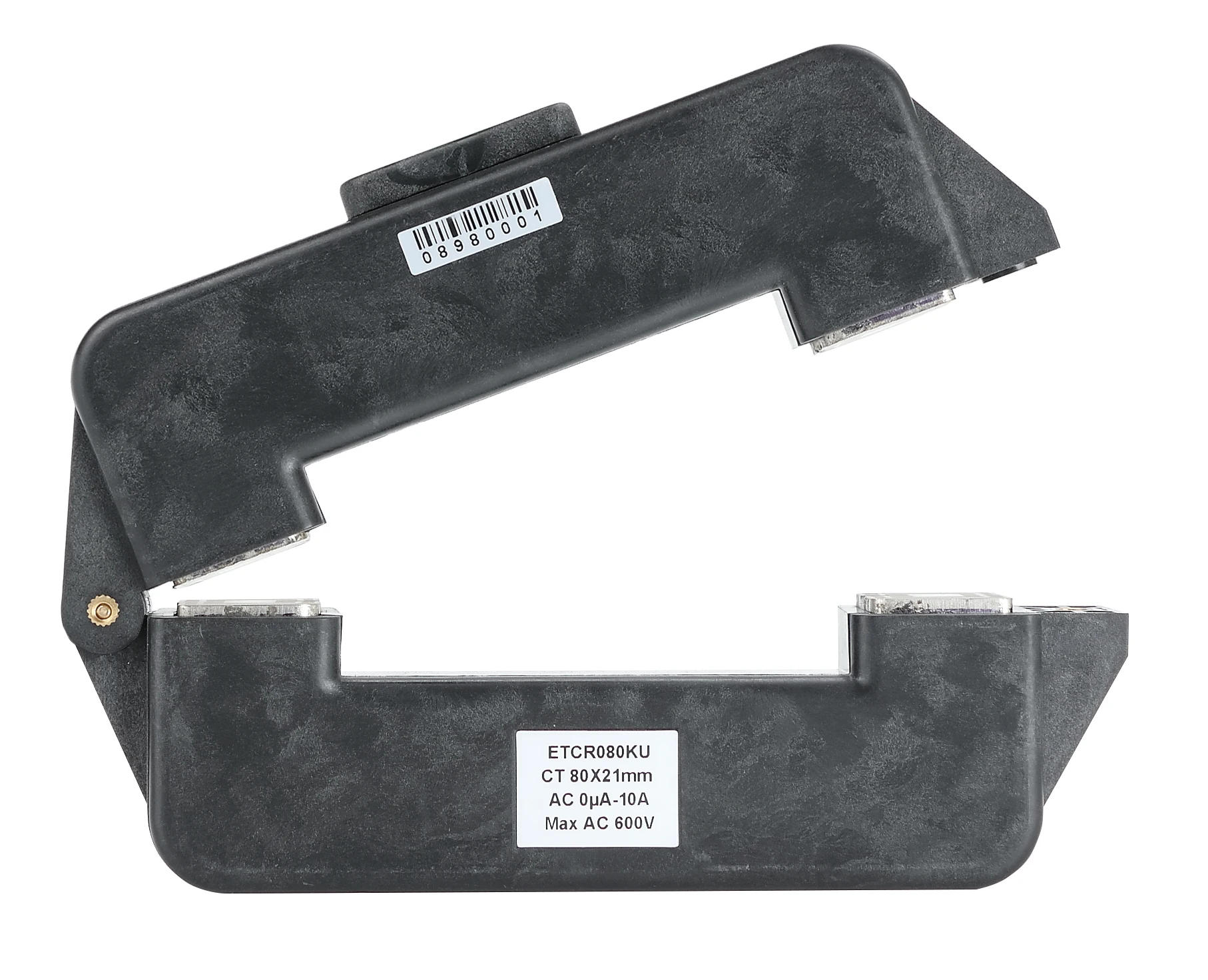

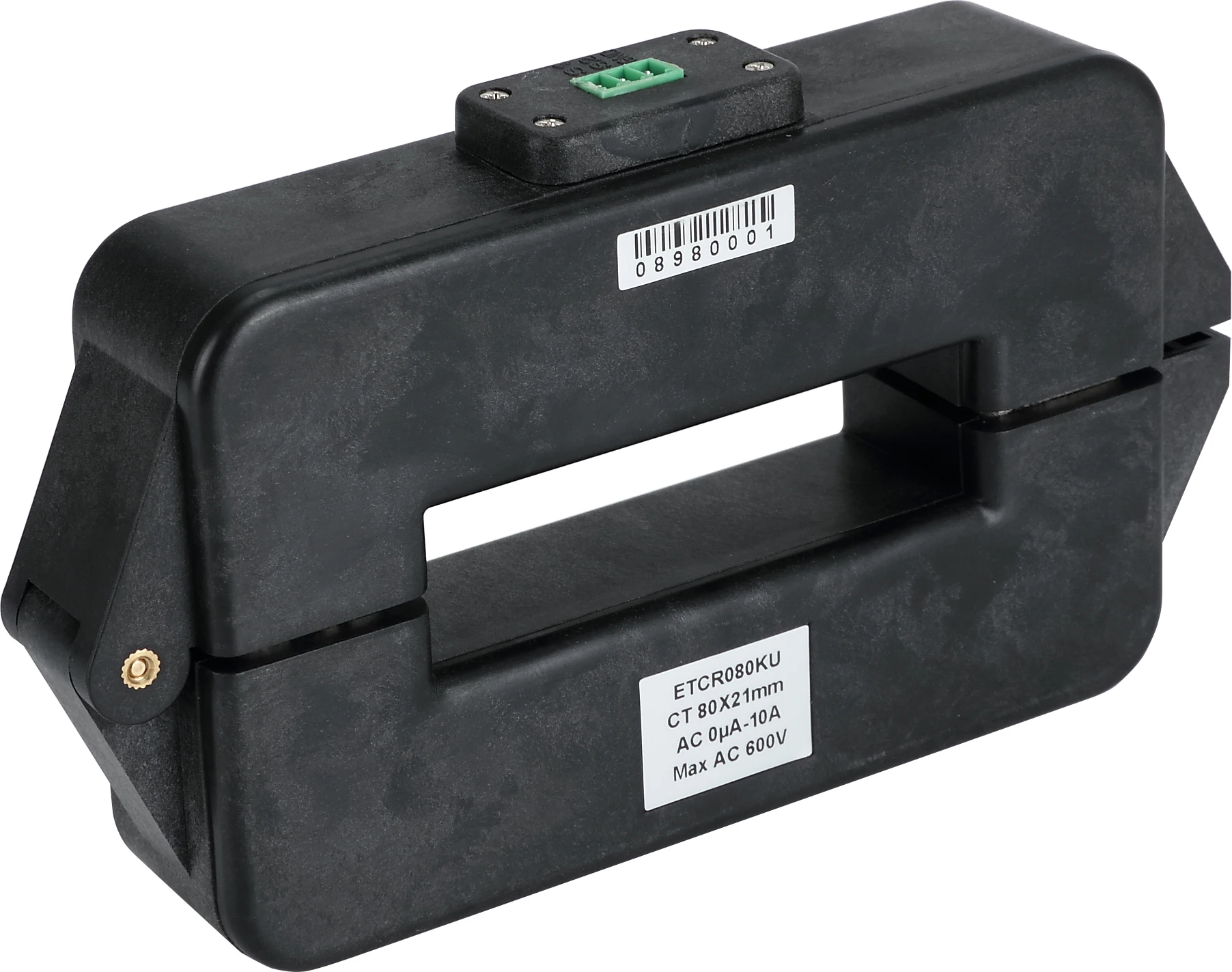

ETCR080KU MicroAmpere Split core Leakage Current Sensor 0.000mA~ 10A(AC)
- Category: >>>
- Supplier: Guangzhou ETCR Electronic Technology Co. Ltd.
Share on (60788830899):
Product Overview
Description
ETCR080KU MicroAmpere Split Type Leakage Current Sensor
0.000mA~ 10A(AC)
Product Description
| Function | Detect AC leakage current, current, harmonic current, phase, power, power, power factor, etc. |
| Detection method | Split Type CT, suitable for online installation |
| CT size | 80mmX20mm |
| Range | 0.000mA~10A AC |
| Resolution | 1uA AC |
| Accuracy Class | 0.5 |
| Turn ratio | 1000:1(Can be customized on request) |
| Phase error | ≤1°(50Hz/60Hz;23℃±2℃) |
| Reference load | RL:0~1000mA≤300Ω; 0~10A≤30Ω |
| Shield | Double shield suitable for complex interference environments |
| Output | The current sense output can be externally connected to the RL to take the voltage. |
| Output Interface | 3P plug-in terminal output (S1, S2 coil tap , GND shield ) |
| Wire position | The tested wire is at the center of the jaw |
| Response frequency | 10Hz~100KHz |
| Line voltage | below AC 600V |

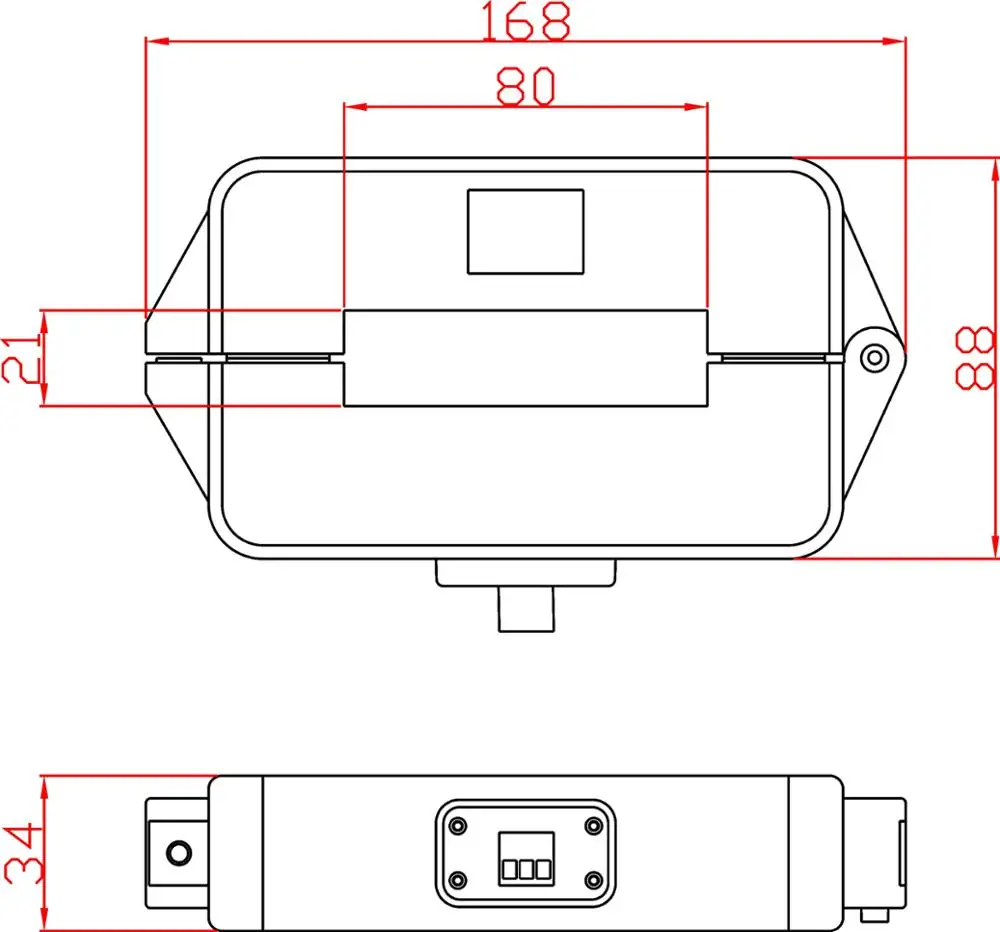

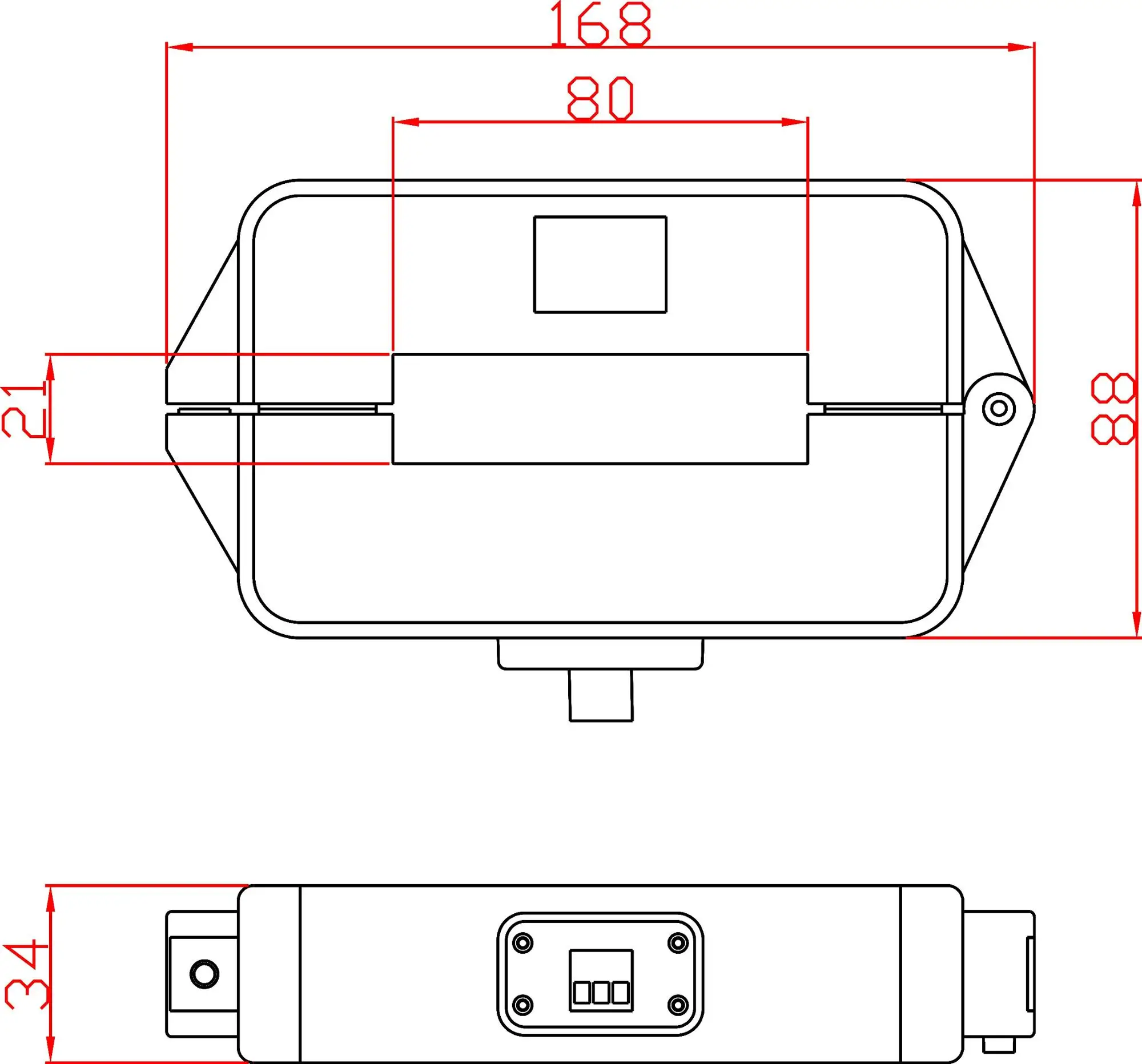

| Dimensions | 168mm×88mm×34mm |
| Weight | About 820g |
| Working environment | -15℃~50℃; below 80%Rh |
| Storage environment | -10℃~60℃; below 70%Rh |
| Insulation | AC 2kV/rms (Between core and shell) |
| Protection Type | IEC1010-1,IEC1010-2-032,Pollution 2,CAT Ⅲ(600V) |
