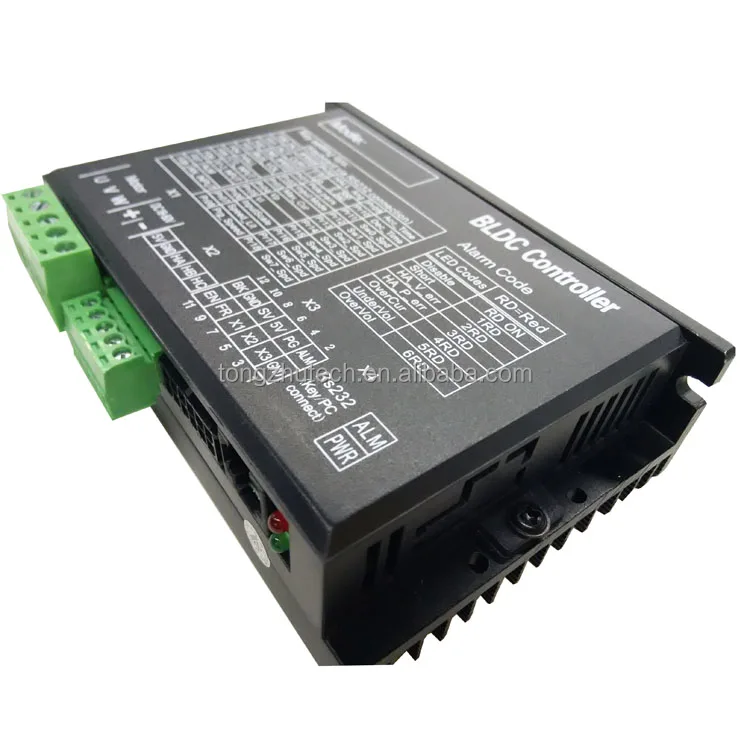

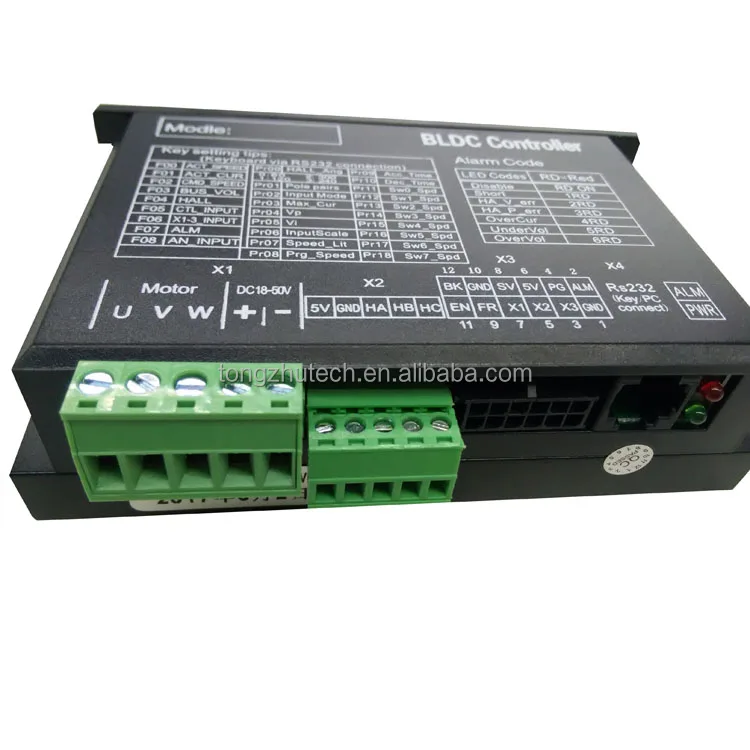

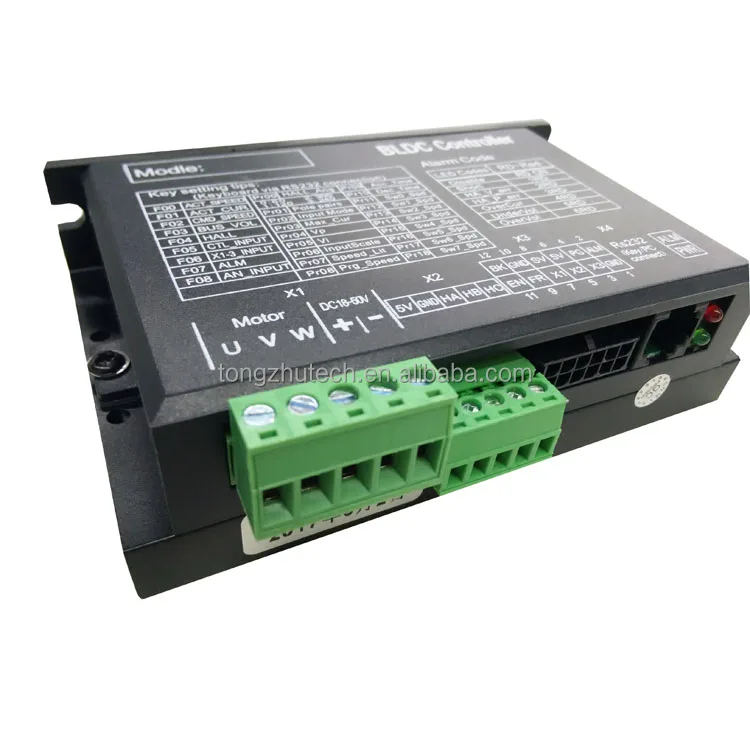

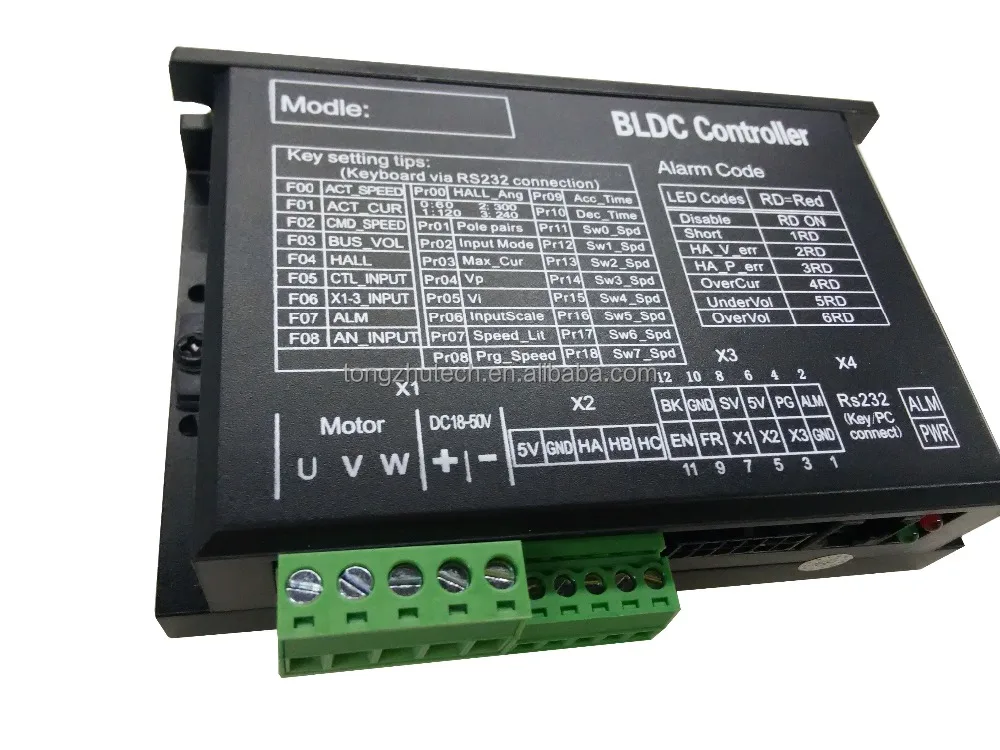

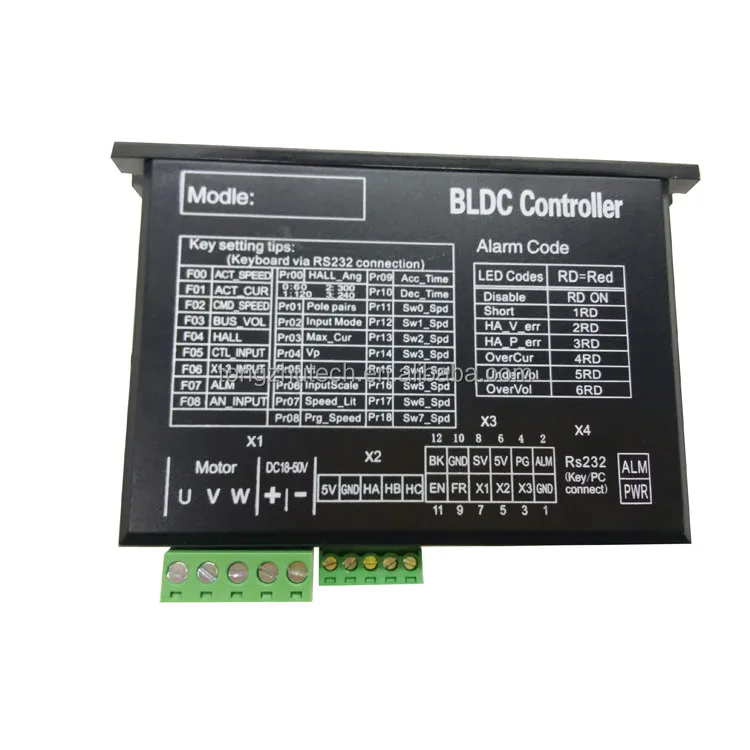

24v 100w DC Motor Controller BLDC Motor Control Kit Pulse Motor Driver
- Category: >>>
- Supplier: Zhejiang Tongzhu Technology Co. Ltd.
Share on (60788855268):
Product Overview
Description
Product Overview
DC Motor Speed Controller 24V Brushless Motor Controller AGV Drive System
PRODUCT SPECIFICATIONS
Input voltage | DC18-50V |
Work current | <=10A |
Motor hall type | 240degree |
Operating mode | Hall speed closed loop |
Speed mode | 0-5v analog input 0-100PWM input(PWM frequency scope 1KHz-20KHz) Internal given multi-sections of speeds 1, multi-sections of speeds 2, |
Speed range | 0-6000RPM |
Protective function | Short circuit: When abnormal current is greater than 50A, short circuit protection is produced. Overcurrent: Overcurrent protection occurs when the current exceeds the operating current setting value and continues for a set time. Overvoltage: Overvoltage protection occurs when the voltage exceeds 55V. Under voltage: Under voltage protection when the voltage is below 55V. Hall anomaly: includes phase anomalies and abnormal values. |
Dimensions | 120*76*33(unit: mm) |
Weight | 250g |

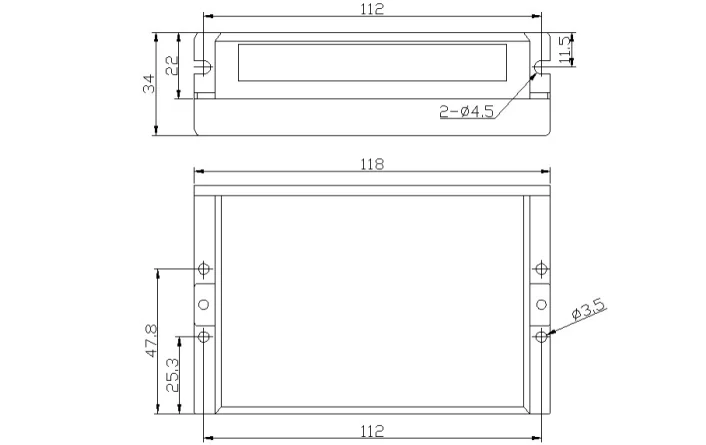

Dimensions
Advantages
Easy to Control
Simply Control.Achieving the PC control,parameter adjustment and on-line debugging through analogue input or RS232 and CAN.
Stabilization&Accuracy
The continuous working hours are extremely long and stable performance.It is accurate to control motor in closed loop.
Security
To drive power supply in inner and to control the power photoelectric isolation;the external input to control signal photoelectric isolation; to provide protection of temperature monitor, over-current and over-voltage so on.

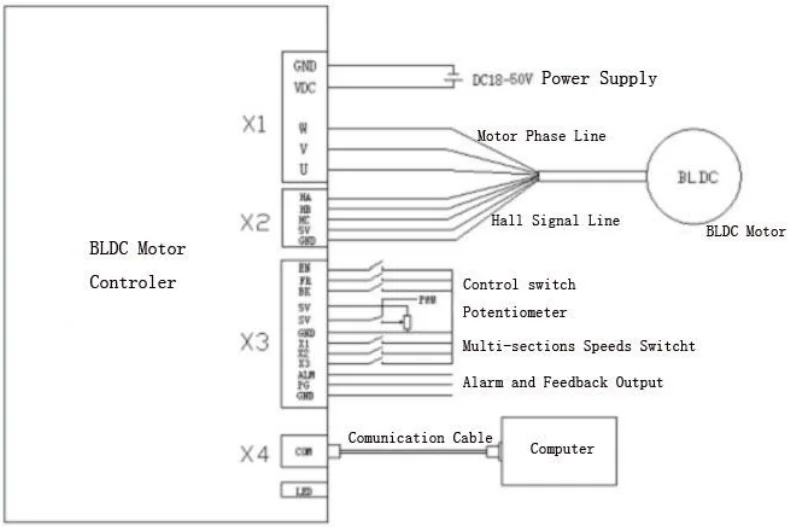

Structure Diagram
Recommend Products
Company Profile
Zhejiang Tongzhu Technology Co., Ltd founded 2015, in ZHEJIANG designs, manufactures and sells agv, driving wheel assembly, DC/AC motors, encoder, reducer, controller, caster wheel, gear, Pu wheel, motor in wheel units and all over the world.
TZBOT continues to bring excellent products, technological innovation and ease of customizing to the automated equipment.
The factory, is 1000 sq. feet, and employs 50 people. The company is certified to ISO9001:2015.
The core to TZBOT's growth is the constant dedication to the pursuit of full customer satisfaction. They have a strong presence in domestic and international markets, as well as, great production flexibility. TZBOT has come to be recognized as one of the biggest suppliers of electric drive.
Continued investment in the most modern machinery has further increased and developed the quality and flexibility of each product.
Today, TZBOT can quickly design and produce engines and special parts request from customers.
TZBOT's product are used in a myriad of application, including but not limited to: Forklifts, AGV, Aerial Platforms, Airport Machines, Agricultural Machines, Hydraulic Applications, Floor Scrubbers, Sweepers, Wind Energy, Marine, and in the field of Medical Devices.
All prototypes are tested for extended periods of time to verify the quality and the duration will work perfectly before sending production parts to customers. Due diligence is paramount to the satisfaction of our customers.
