Product Description


Rack mount GIGABIT Passive 24v 48v 56v poe injector 16 port

USE 10/100/1000M Gigabit Ethernet;
Flexible power (DC 12V TO 57V);
Built-in LED Indicator;
Use with any Ethernet Switch;
650mA automatic resettable fuse on each port;
Support IEEE 802.3af 802.3at or 802.3bt devices
        --Mode A operation-minus on pins 1/2, plus on 3/6 (802.3af/at)
        --Mode B operation-minus on pins 7/8, plus on 4/5 (MikroTik,UBNT)
Ideal for IP Cameras, VoIP Phone systems, WiFi/Wireless Access Points and other devices.



OVERVIEW

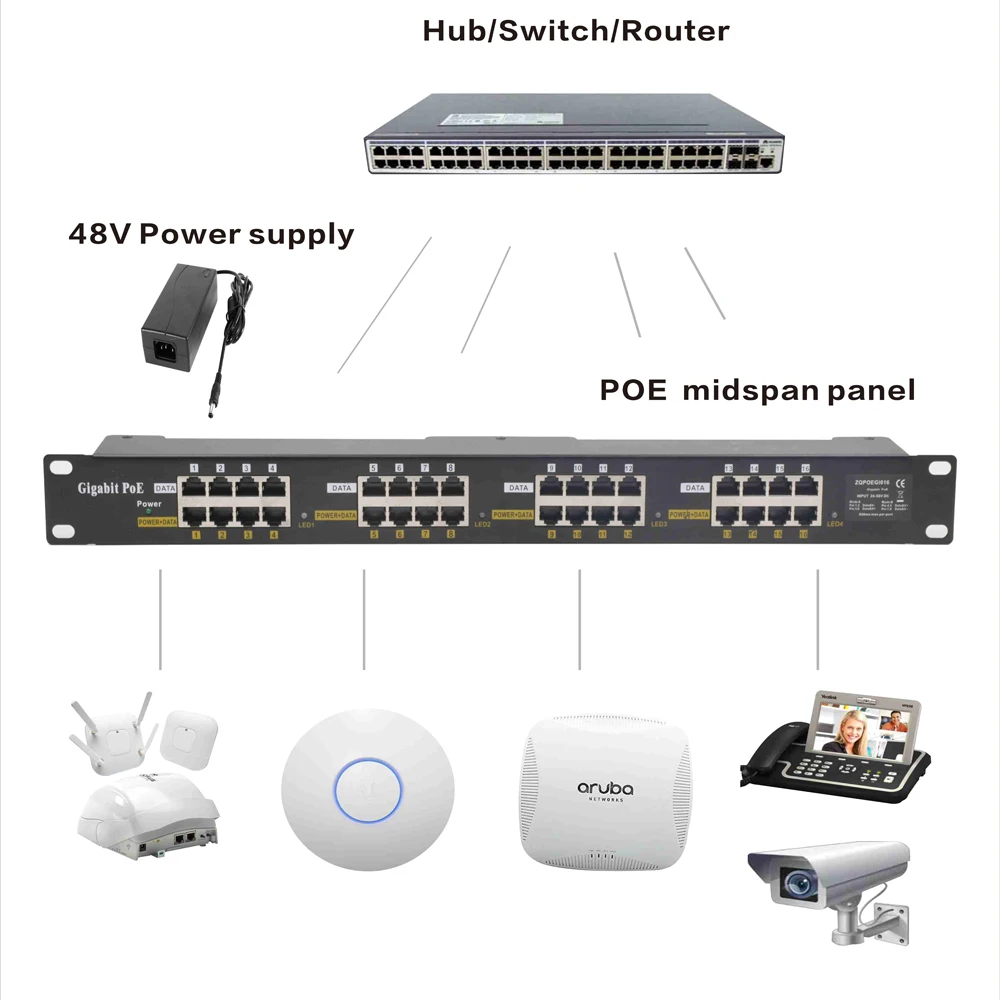

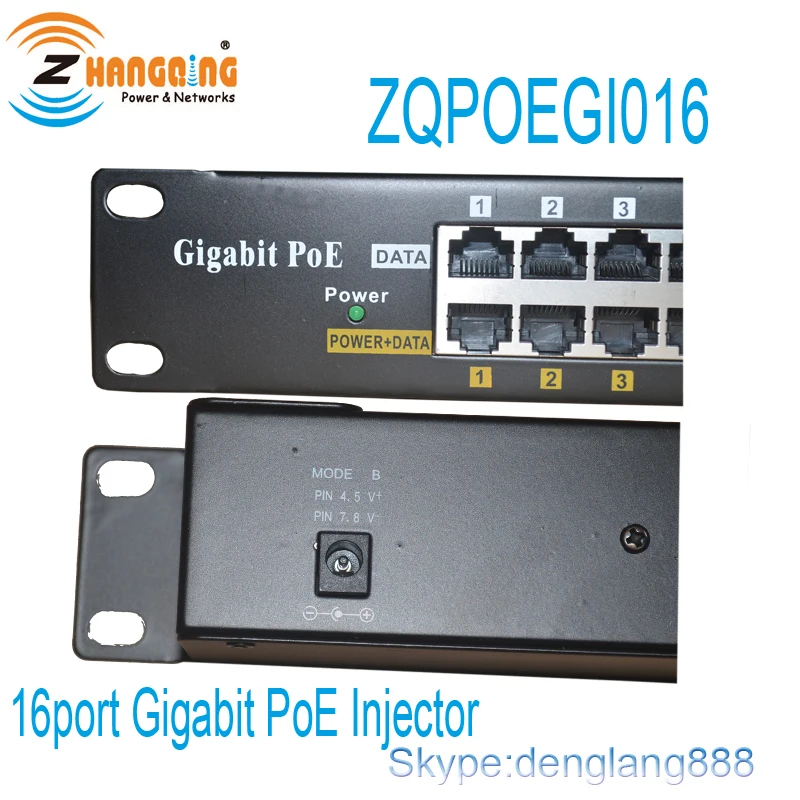

 The 16 ports gigabit PoE panel is used 10/100/1000M Ethernet, the upper Rj45 sockets is for “LAN/Switch/PC” 1/2&3/6&4/5&7/8 are transmitting data. The under RJ45(power + data) socket is to deliver data and power: Mode A- 1/2&3/6 Mode B-4/5&7/8.Passive POE is composed of 16 set of Rj45 sockets and two 60V DC power jack. Input power requests160W or more ac/dc power. Standard power connector - 2.1mm x 5.5mm


Each socket provides protection against short overflow (current protection 650mA). The sum total output power must be lower than the MAX input power of ac/dc power converter. If not, it is necessary to consider taking higher ac/dc power converter. There commended formula for ac/dc power converter is: 15W per RJ45 set (1 set = 2 x RJ45sockets). For example, 16 x 15W = 240W for 16 port Passive PoE panel.

The configuration size of panel is 1U (height), 19” (width) and 52mm (thickness), as is available to answer market demand and convenient to be installed directly.



LED Indicator

5 LED status indicators
       --Master power LED
       --For each group of 4 sockets


1-4 socket of LED 1
5-8 socket of LED 2
9-12 socket of LED 3
13-16 socket of LED 4
Port current 0~20mA
OFF
OFF
OFF
OFF
Port Current 0-400mA
GREEN
GREEN
GREEN
GREEN
Port current >400mA
YELLOW
YELLOW
YELLOW
YELLOW


Specification

Input: 18volt to 48volt DC, UP to 57v
Output: 18v to 48v DC, up to 57v, 60w Max each Port (48v~57V).
Data 1/2&3/6&4/5&7/8
Power3/6&4/5+,1/2-&7/8-
Data In Connects PC/HUB/Switch
Weight 16 Port 1.3kg
Dimensions 150mm×65mm×26mm
Case of material: metal work material
Ethernet Cable TIA/EIA 568 Cat. 5/6/7
Data rate 10/100/1000Mbps
Connector RJ-45
Operating Temperature 0°C ~ 40°C
Storage Temperature -40°C~+70°C
Operating Humidity 10%~80%RH
Storage Humidity 5%~90%RH
Certificate: CE FCC



HOW TO ORDER

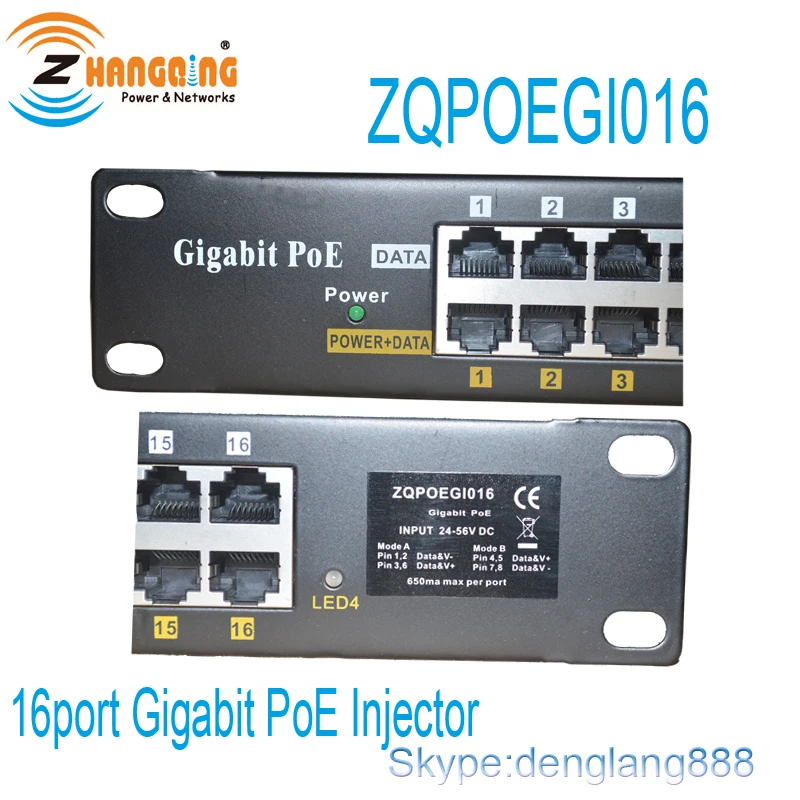

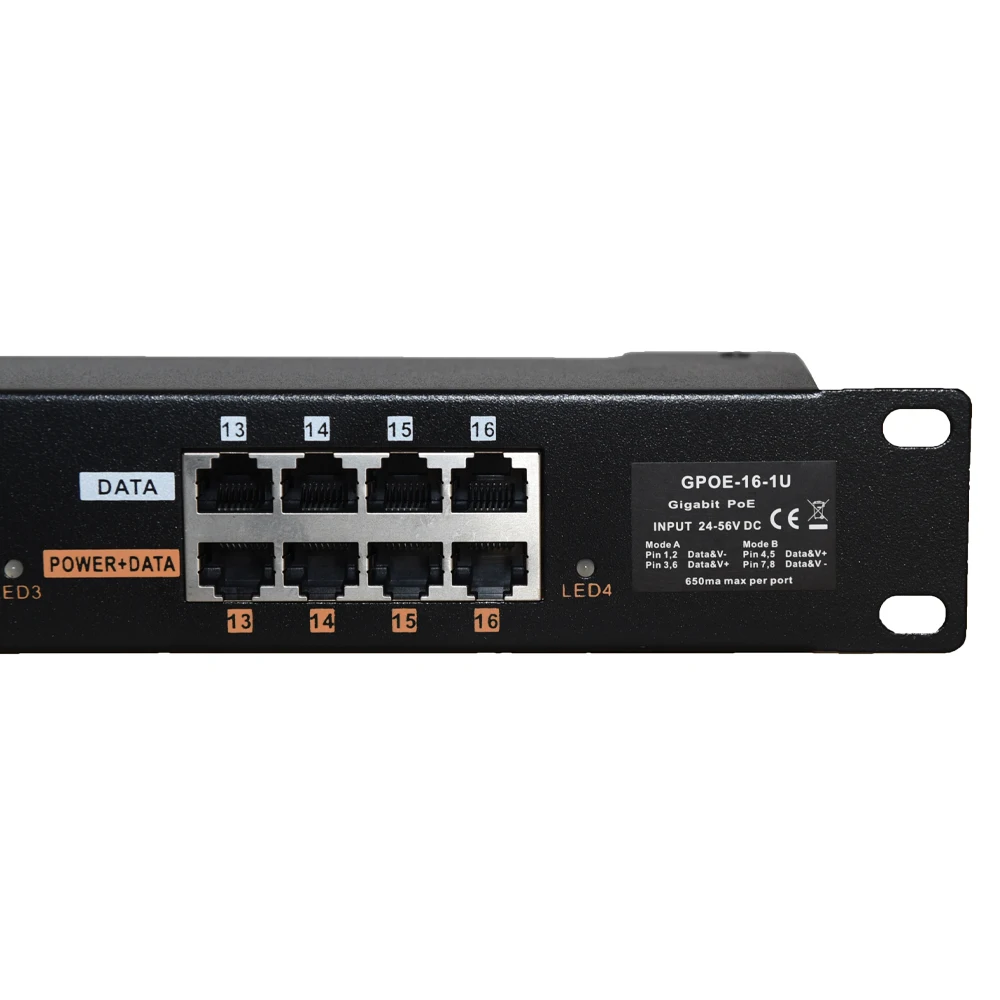

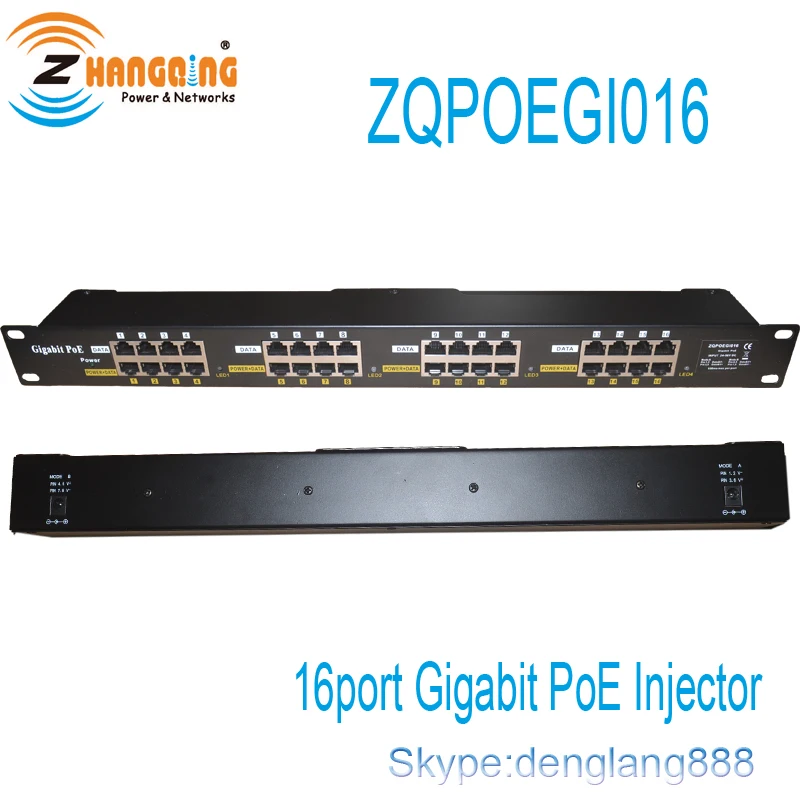

GPOE-16-1U     16 Port Gigabit POE Panel

(MODE A:1/2-&3/6+ MODE B:4/5+&7/8-)

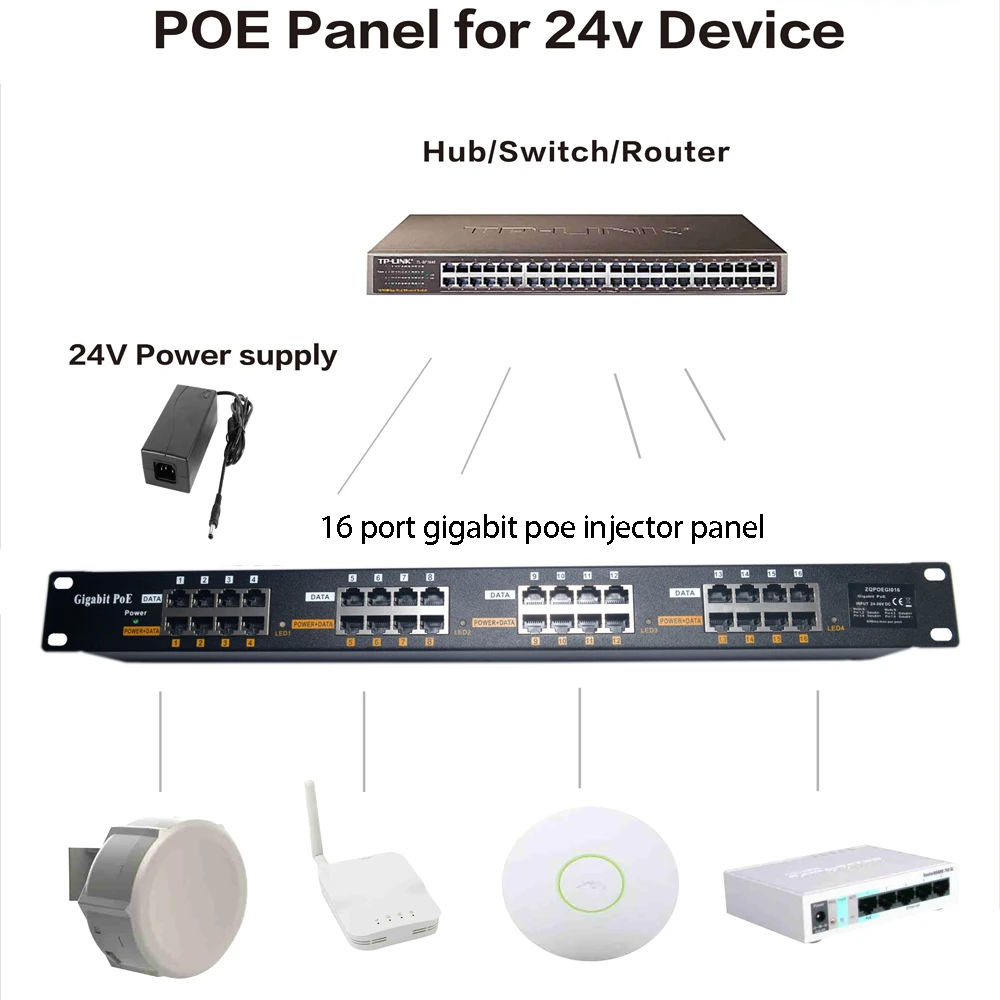

APPLICATION

IP Phone
Wireless Access Point (WiFi AP), such as MikroTik, Ubiquiti, OpenMesh etc
WiMAX Basestation
IP Survellance Camera
Door Security

POS

Netbook/mini Notebook



Detailed Images














POE Detector - DISCOVER POE  PORTS

You can use it with passive injectors, 802.3af , 802.3at, 802.3bt with 568A, 568B or reverse PoE polarity. Mode A and Mode B PoE is supported. If you are far from the PoE switch or injector – this device will show if a port has power.



Packing & Delivery


2pcs a box, 18pcs a carton, 19KGS, 51*44.5*17cm

Usually have some in stock
