plastering tools concrete spraying shotcrete machine price
Product Description
plastering tools concrete spraying shotcrete machine price Description:

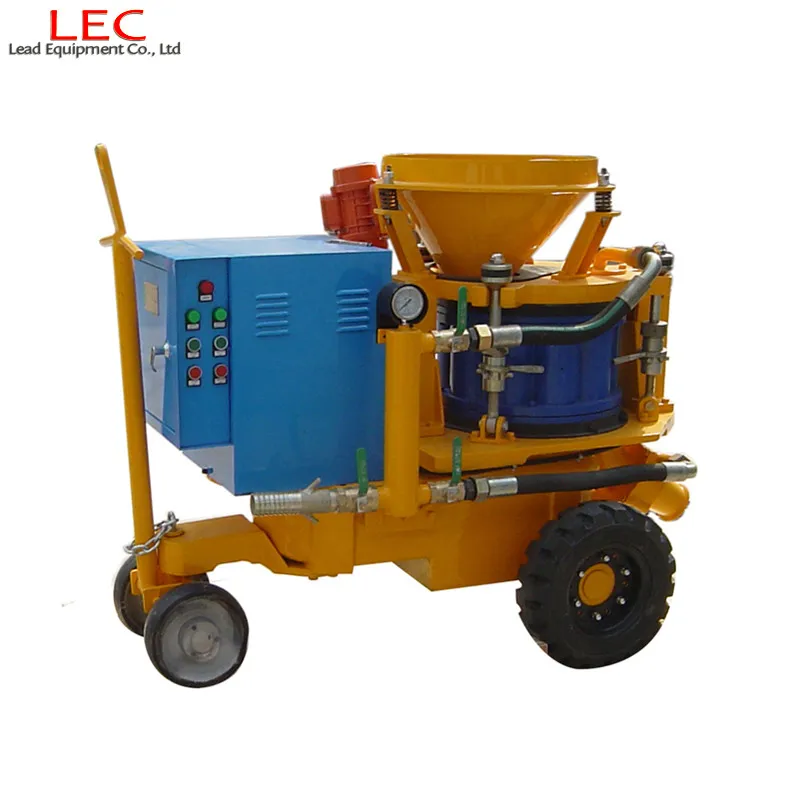

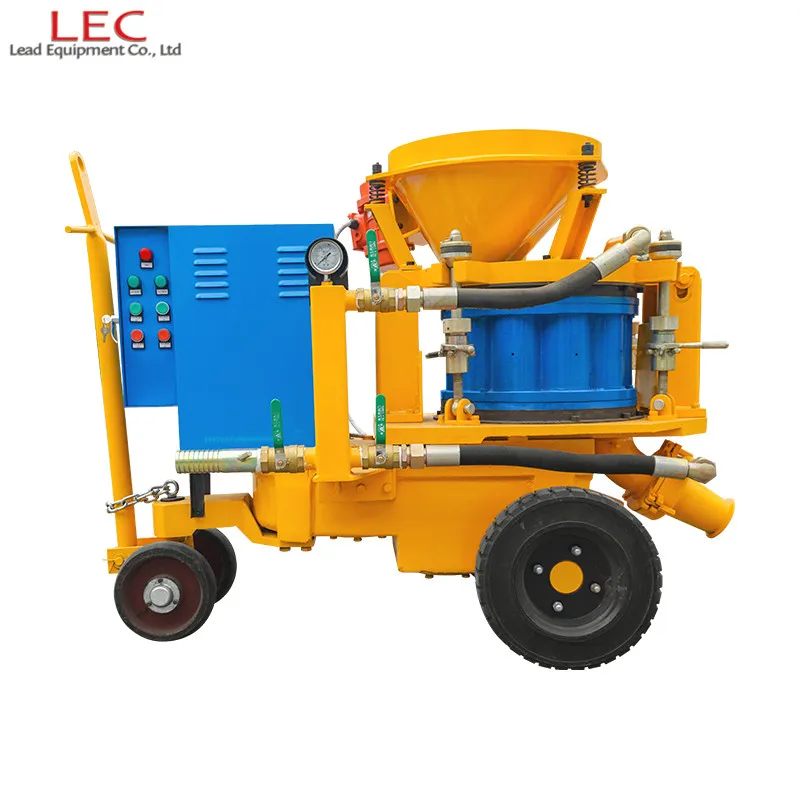

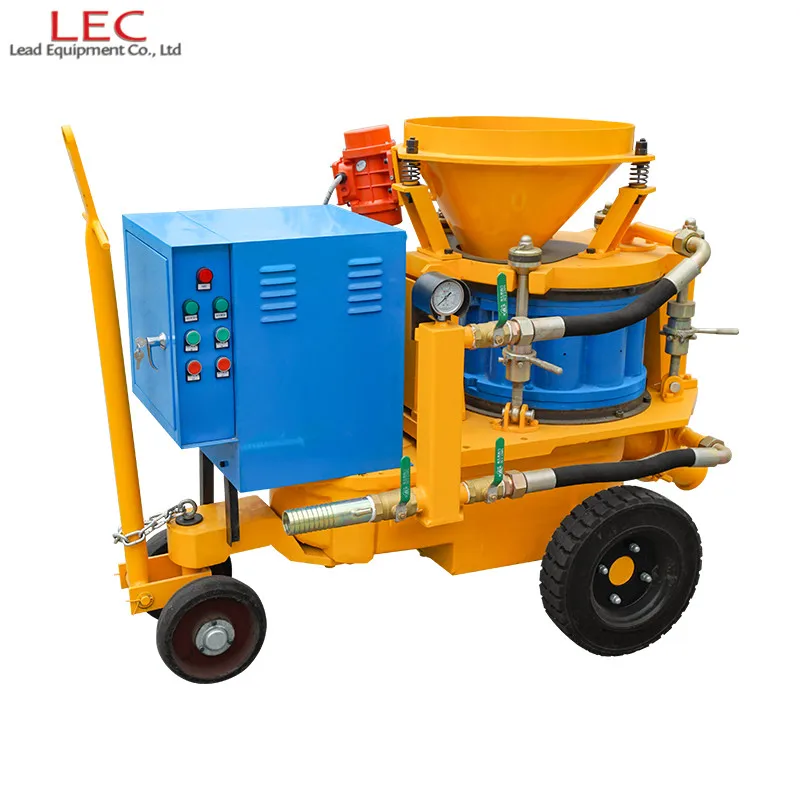

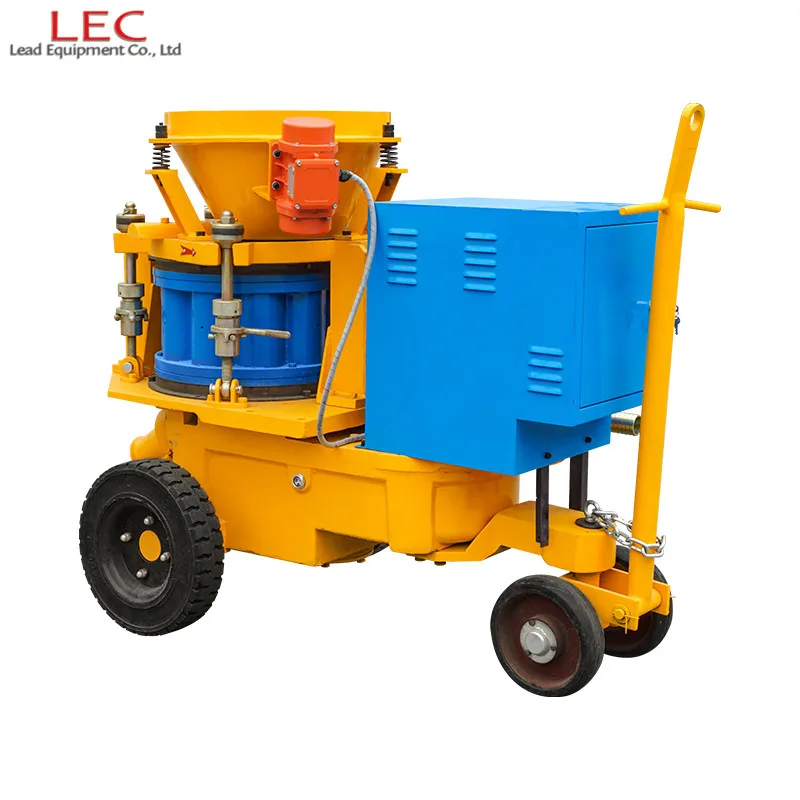

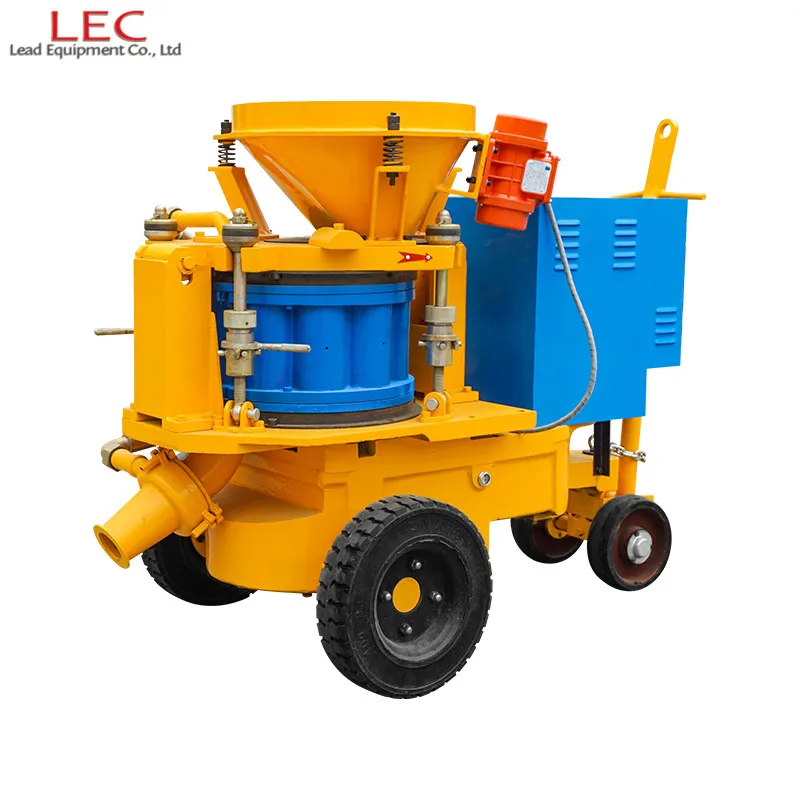

LZ-9E electric drive dry mix concrete spraying machine is LEC large-sized shotcrete machine for the spraying process.
LZ-9E electric drive dry mix concrete spraying machine can be used for large-section tunnel building, mine, etc
LZ-9 dry mix concrete spraying machine is available in following versions:
Basic: Electric drive can be combined with tyre chassis
Extended (optional): Air motor drive or diesel drive combined with Skid or Rail-wheel
LZ-9E electric drive dry mix concrete spraying machine is LEC large-sized shotcrete machine for the spraying process.
LZ-9E electric drive dry mix concrete spraying machine can be used for large-section tunnel building, mine, etc
LZ-9 dry mix concrete spraying machine is available in following versions:
Basic: Electric drive can be combined with tyre chassis
Extended (optional): Air motor drive or diesel drive combined with Skid or Rail-wheel
Technical parameters
Specification (with Electric motor drive): | ||
Output Capacity | 9m3 /h | |
Max. Horizontal Conveying Distance | 200m | |
Suitable Mix Ratio(Cement/Sand) | ≤1:4~5 | |
Max. Aggregate Size | Dia.20 mm | |
Conveying Hose Inner Diameter | Dia.64 mm | |
Conveying Pressure | 0.2-0.4MPa(29-58PSI) | |
Air Consumption | 10~12m3/min(357-430CFM) | |
Material Charging Height | 1.1m | |
Rotor Speed | 11r/min | |
Electric Motor | 7.5kW,Y132M-4,IP55 | |
Vibrator Electric Motor | 0.15kW,XVM-A1.5-2 | |
Available Voltage | 220V,380V, 440V,660V 50Hz/60Hz | |
Overall Dimension(length×width×height) | 1.65×0.9×1.25m | |
Net Weight | 900kg | |
Product Details
Related products

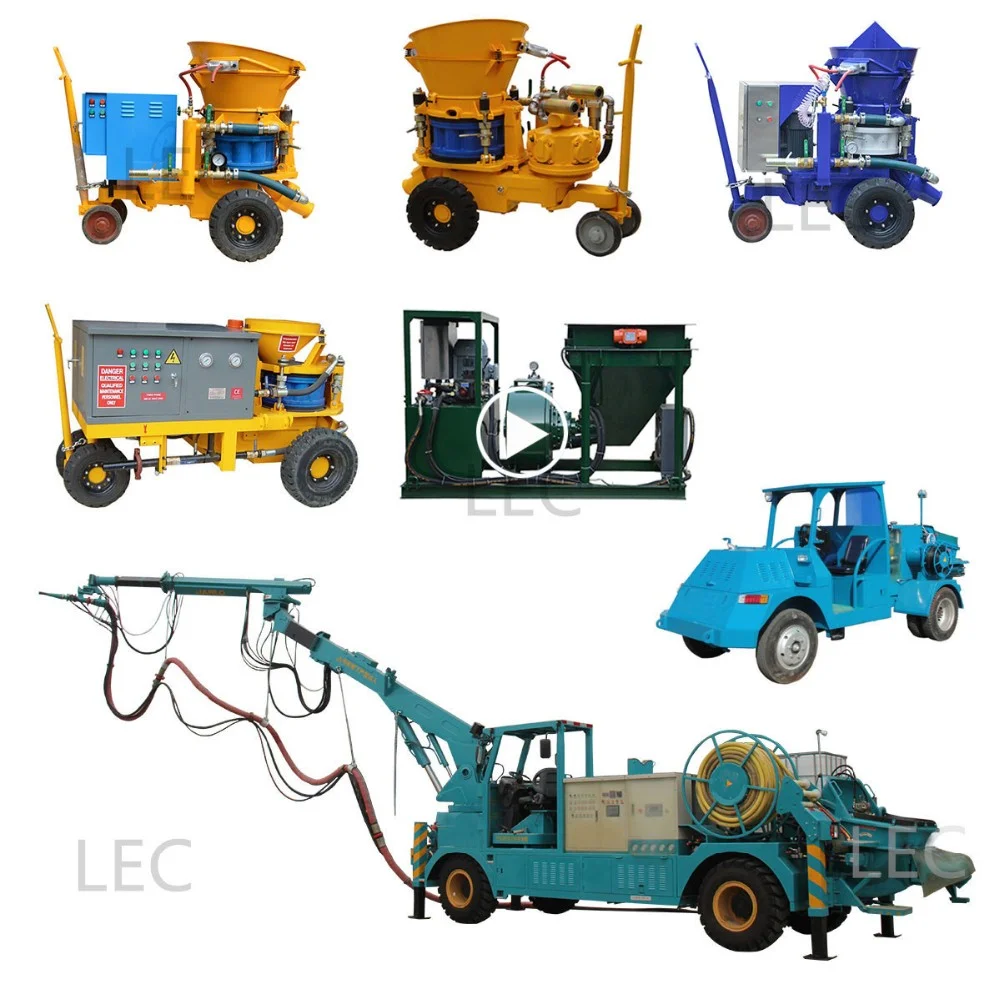

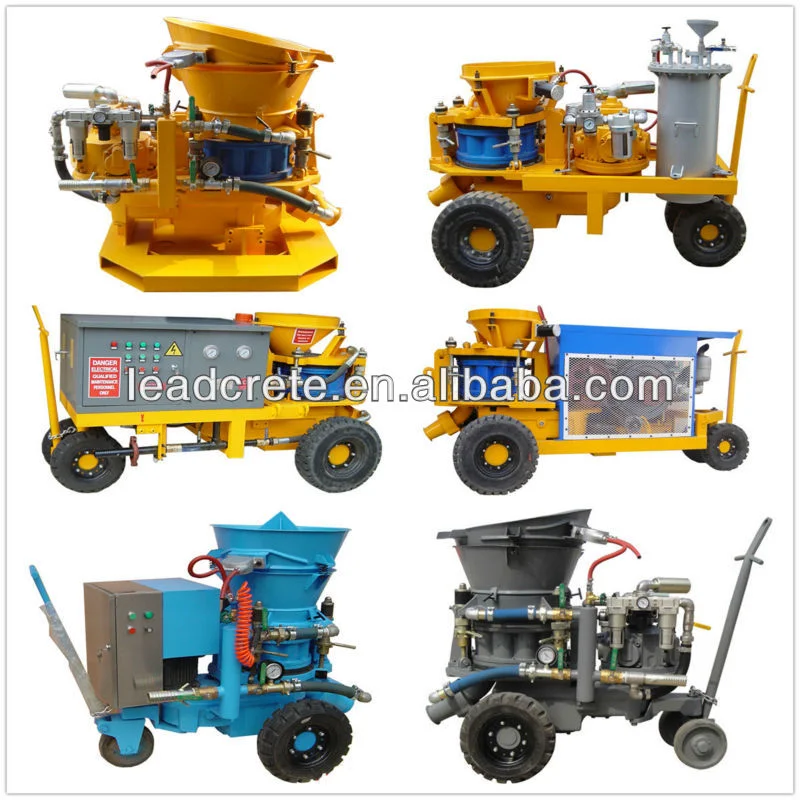

We have developed full series of dry-mix shotcrete machines and wet-mix shotcrete machines, output from 1.5m3/h to 9m3/h, electric motor, diesel engine, air motor and gasoline engine are available options for customization.
Now we offer a video for full series of shotcrete machines.
Now we offer a video for full series of shotcrete machines.
Advantage
1. High quality, reliable performance.
2. Good seal performance, little dust.
3. Reasonable design, convenient to move.
4. Convenient operation and longevity of service.
5. Non-adhesion going-through rotor with new material chamber, completely eliminate bonding and blocking during operation so as to reduce clearance and maintenance period.
6. Thin flow conveying method with vortex flow, so the spraying flow is even, continuous and steady, to improve the shotcrete quality.
7. Four-point clamping device make it easy to adjust the press between sealing plate and rotor disk so as to no air and dusk leak and prolong consumption parts life.
8. Widely used in mining, tunnel, culvert, revetment etc.
2. Good seal performance, little dust.
3. Reasonable design, convenient to move.
4. Convenient operation and longevity of service.
5. Non-adhesion going-through rotor with new material chamber, completely eliminate bonding and blocking during operation so as to reduce clearance and maintenance period.
6. Thin flow conveying method with vortex flow, so the spraying flow is even, continuous and steady, to improve the shotcrete quality.
7. Four-point clamping device make it easy to adjust the press between sealing plate and rotor disk so as to no air and dusk leak and prolong consumption parts life.
8. Widely used in mining, tunnel, culvert, revetment etc.

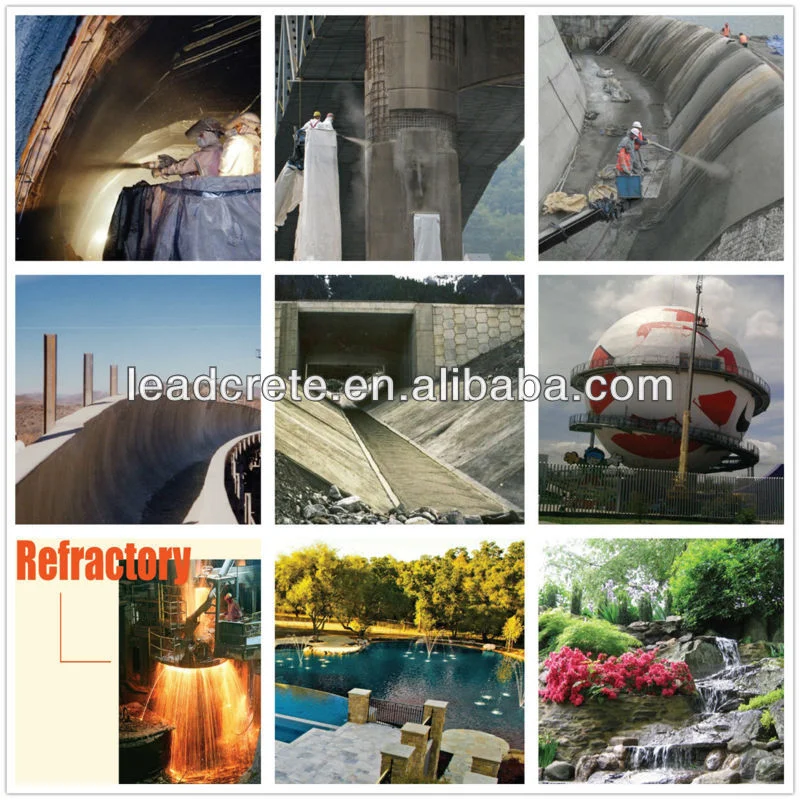

Application
Trade assurance advantages:
1. Quickly lock trusted seller, saving time and energy;
2. Reduce the risk of online purchasing;
3. If there is a trade disputes, you can complain to Alibaba and get benefits compensation.
We are a member of trade assurance on Alibaba, and our trade assurance amount is USD99000.00 Through trade assurance you can 100%
payment refund up to trade assurance amount for orders not meeting agreed Delivery or Quality terms.
1. Quickly lock trusted seller, saving time and energy;
2. Reduce the risk of online purchasing;
3. If there is a trade disputes, you can complain to Alibaba and get benefits compensation.
We are a member of trade assurance on Alibaba, and our trade assurance amount is USD99000.00 Through trade assurance you can 100%
payment refund up to trade assurance amount for orders not meeting agreed Delivery or Quality terms.

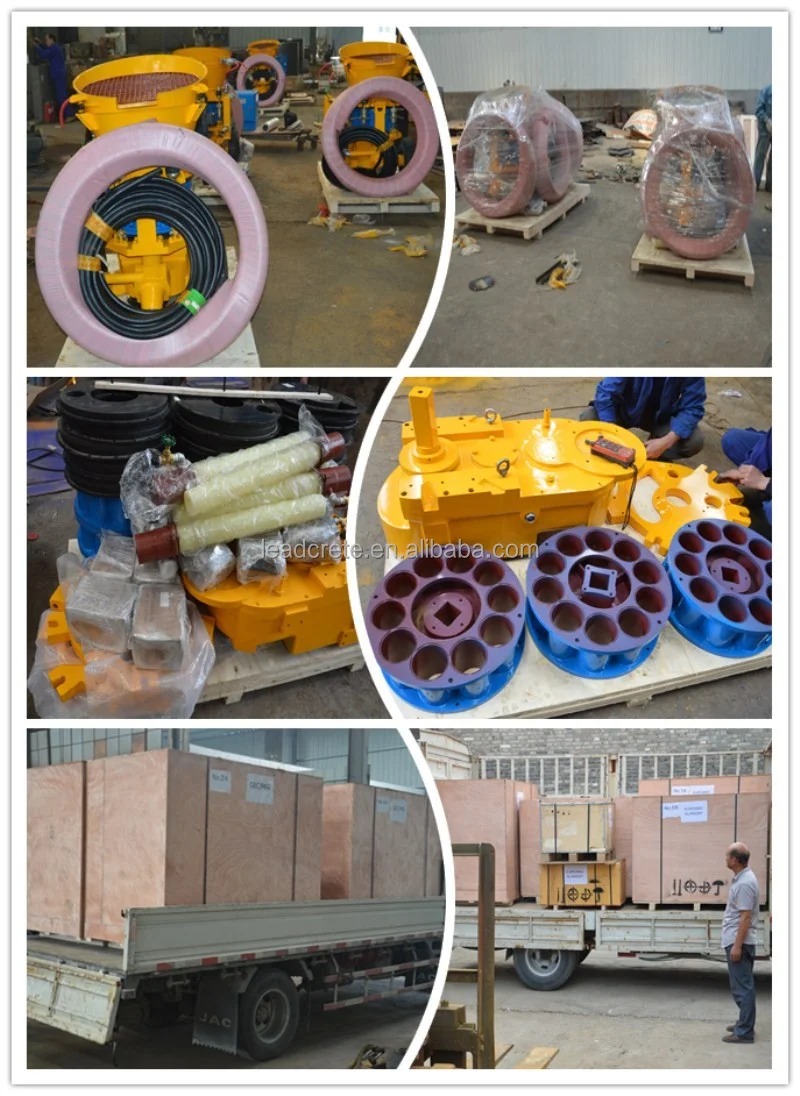

Product Packaging
