Visual Fault Locator 50mw fiber checker 5mW 10mW 20mW 30mW Visual Locator Fiber 50mw Ftth Optic Tool Kit

Product Overview

Description

Visual Fault Locator 50mw fiber checker 5mW 10mW 20mW 30mW Visual Locator Fiber 50mw Ftth Optic Tool Kit

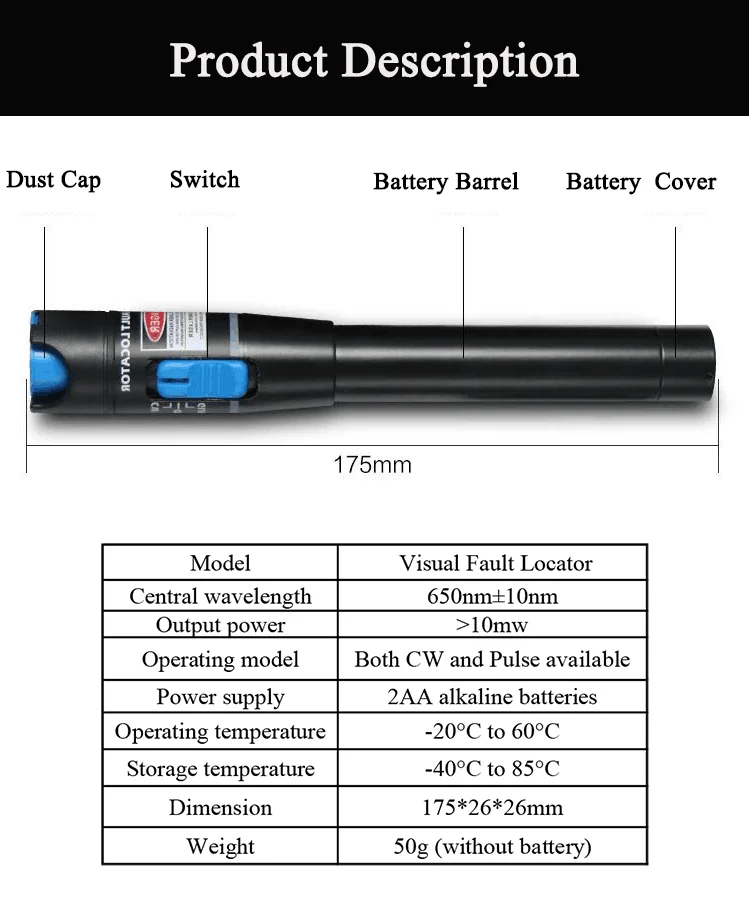

  Product Description:

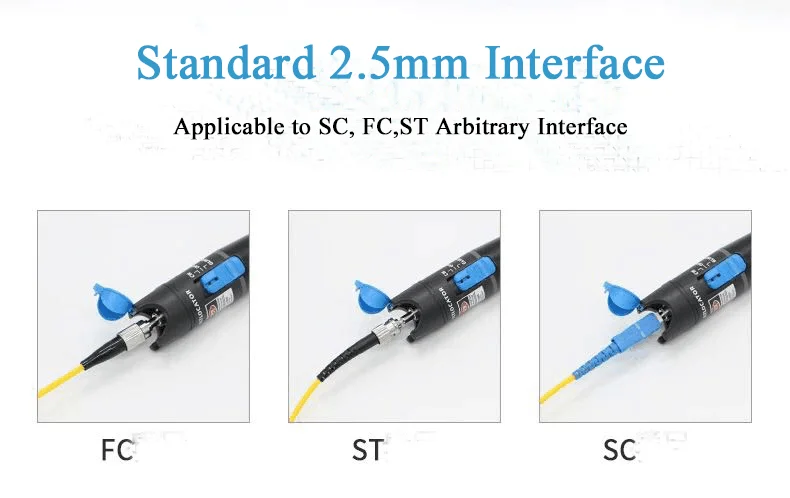

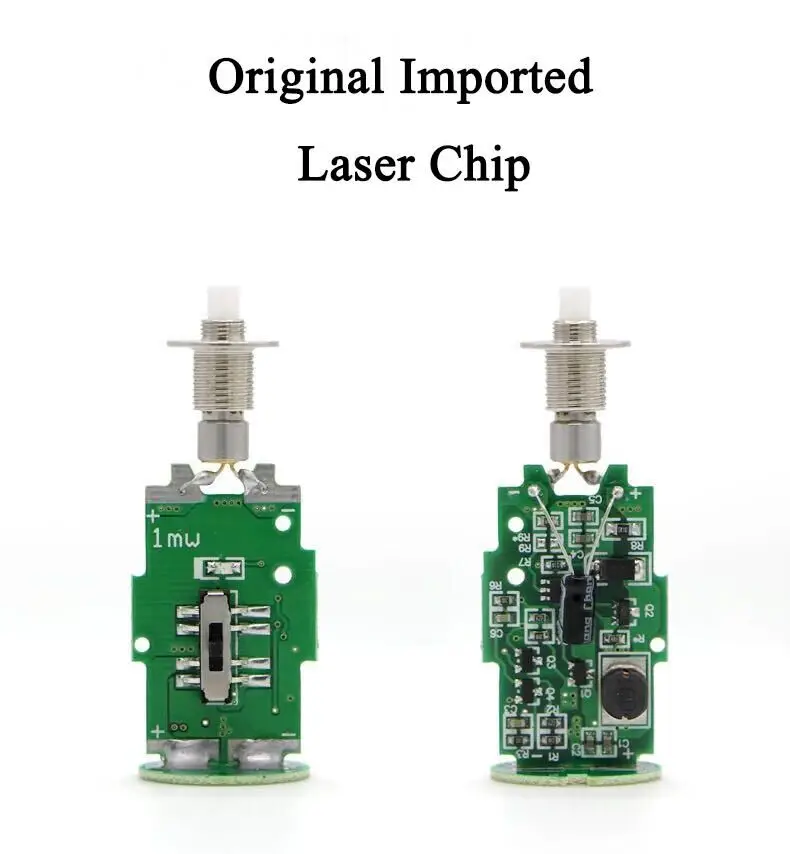

fiber optic visual fault locator adopts 650nm laser diode as a light emitting device,the output power can be up to 1mw-20mw. It’s applied to single-mode or multi-mode fiber measurements.In the meantime, you can use SC / ST adapter and do not need to configure the conversion interface furthermore, it can optionally connect all frequently-used joint.It is an ideal tool to test various types of optic fiber patch cord, ribbon, bundle fiber optic pigtail and maintain a variety of fiber optic lines for you.

Applications



 -Telecommunications Engineering and Maintenance

 -CATV engineering and maintenance

 -Cabling System

 -Other fiber-optic project





	TM191-1	TM191-10	TM191-15	TM191-20	TM191-25
Wavelength	650nm ± 20nm

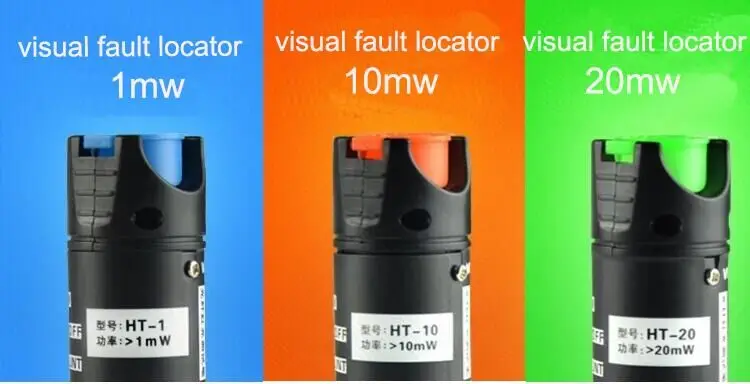

Output Power *	> 1mW	> 10mW	> 15mW	> 20mW	>25mW
Dynamic Distance **	> 5 km	> 10 km	> 13 km	> 15 km	>17 km
Connector ***	2.5mm or 1.25mm Universal connector
Storage Temperature	-20 -- +60 °C, < 90%RH
Operating Temperature	-10 -- +50 °C, < 90%RH
Power Supply	AA * 2
Weight	About 80g

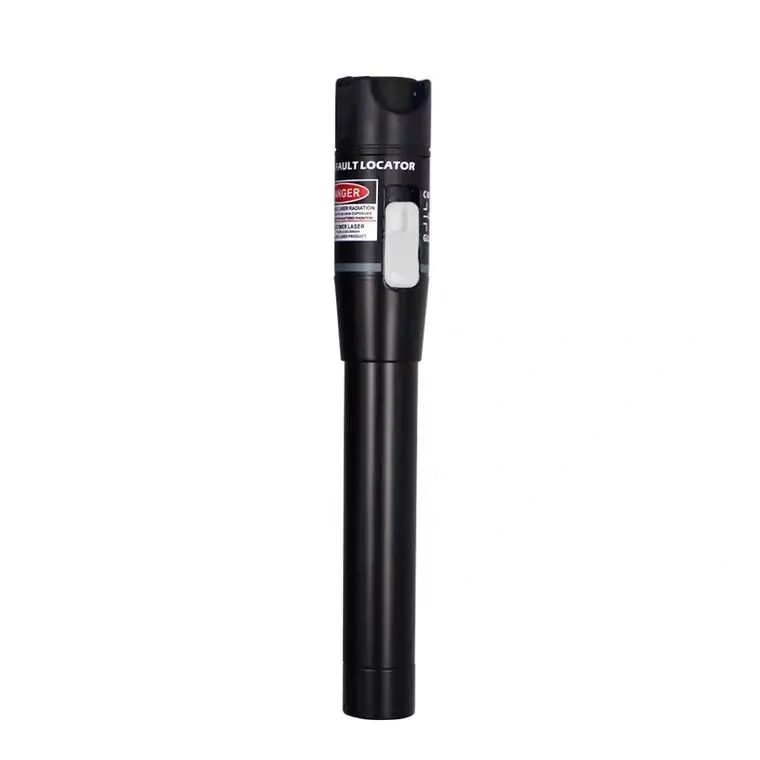

5mW 650nm Pen-type Visual Fault Fiber

The 650nm Pen-type Visual Fault Finder is specially designed for field personnel who need an efficient and economical tool for fiber tracing, fiber routing and continuity cheching in an optical network during and after installation.
