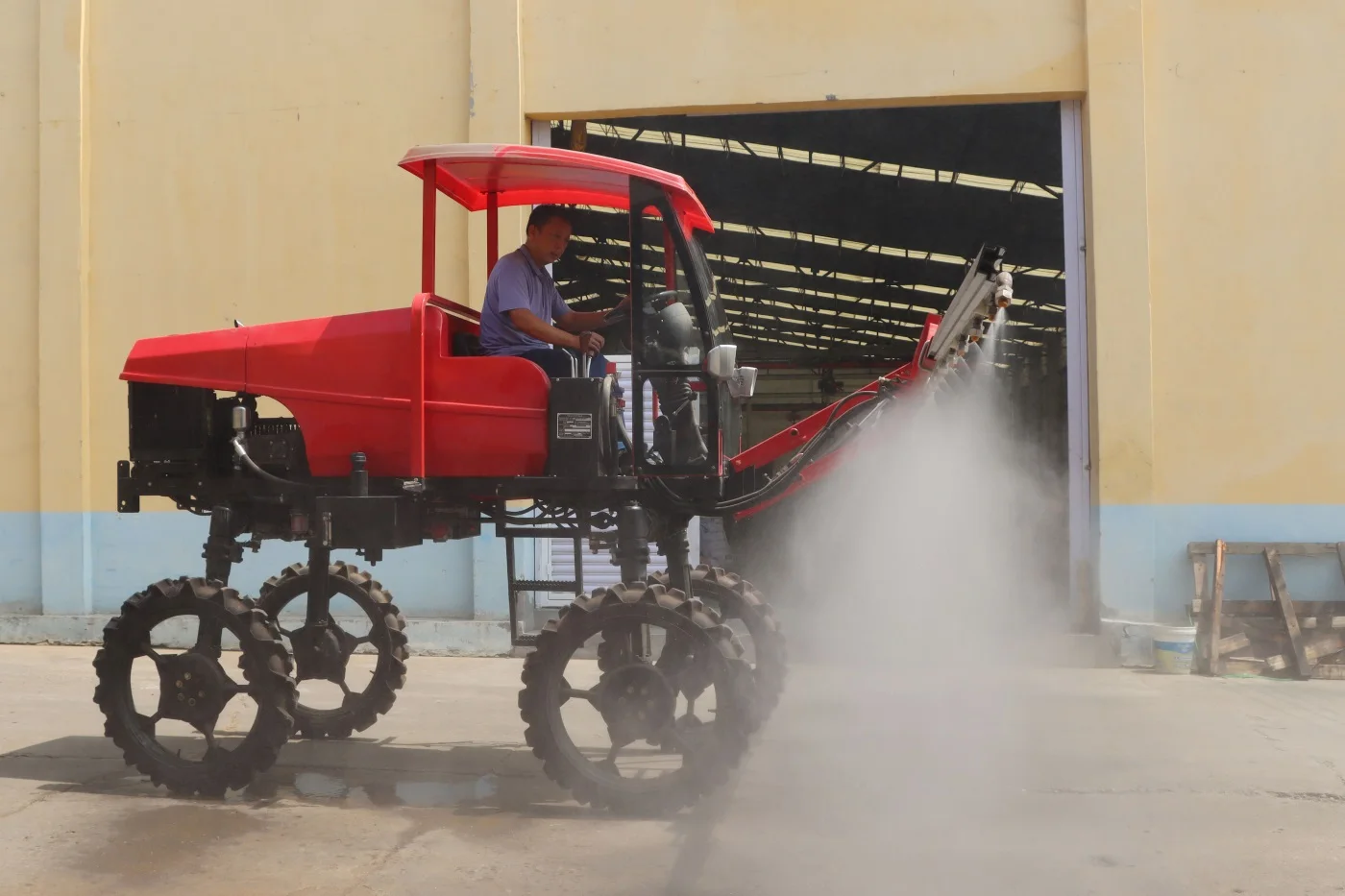

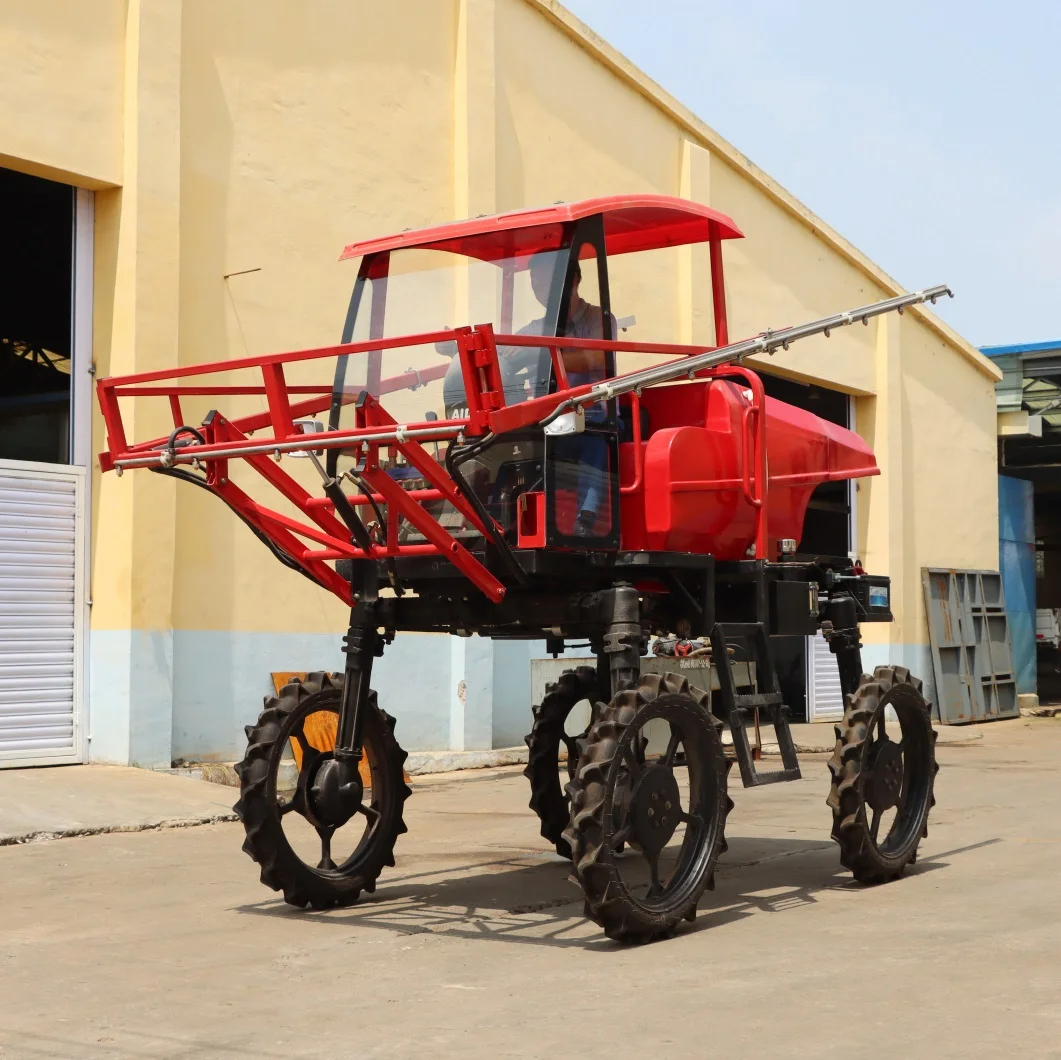

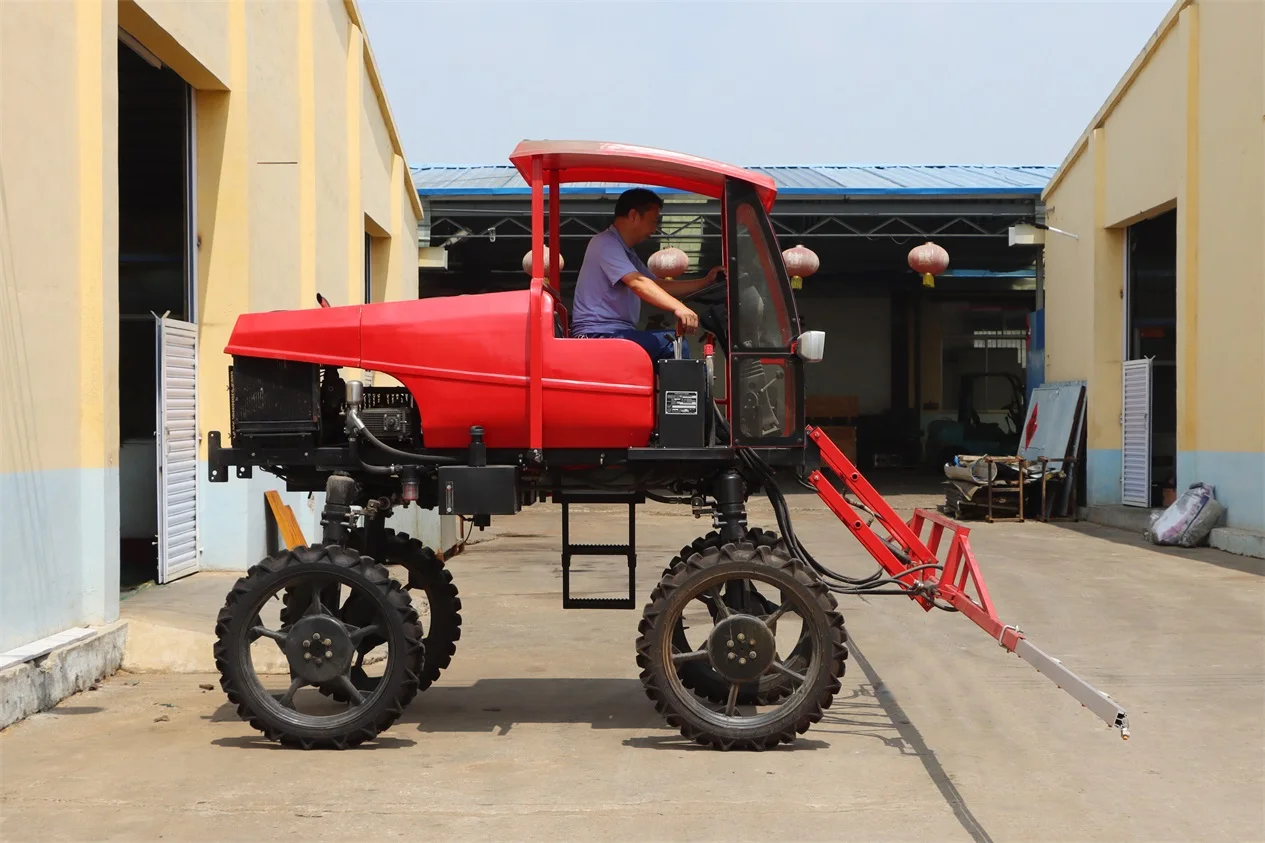

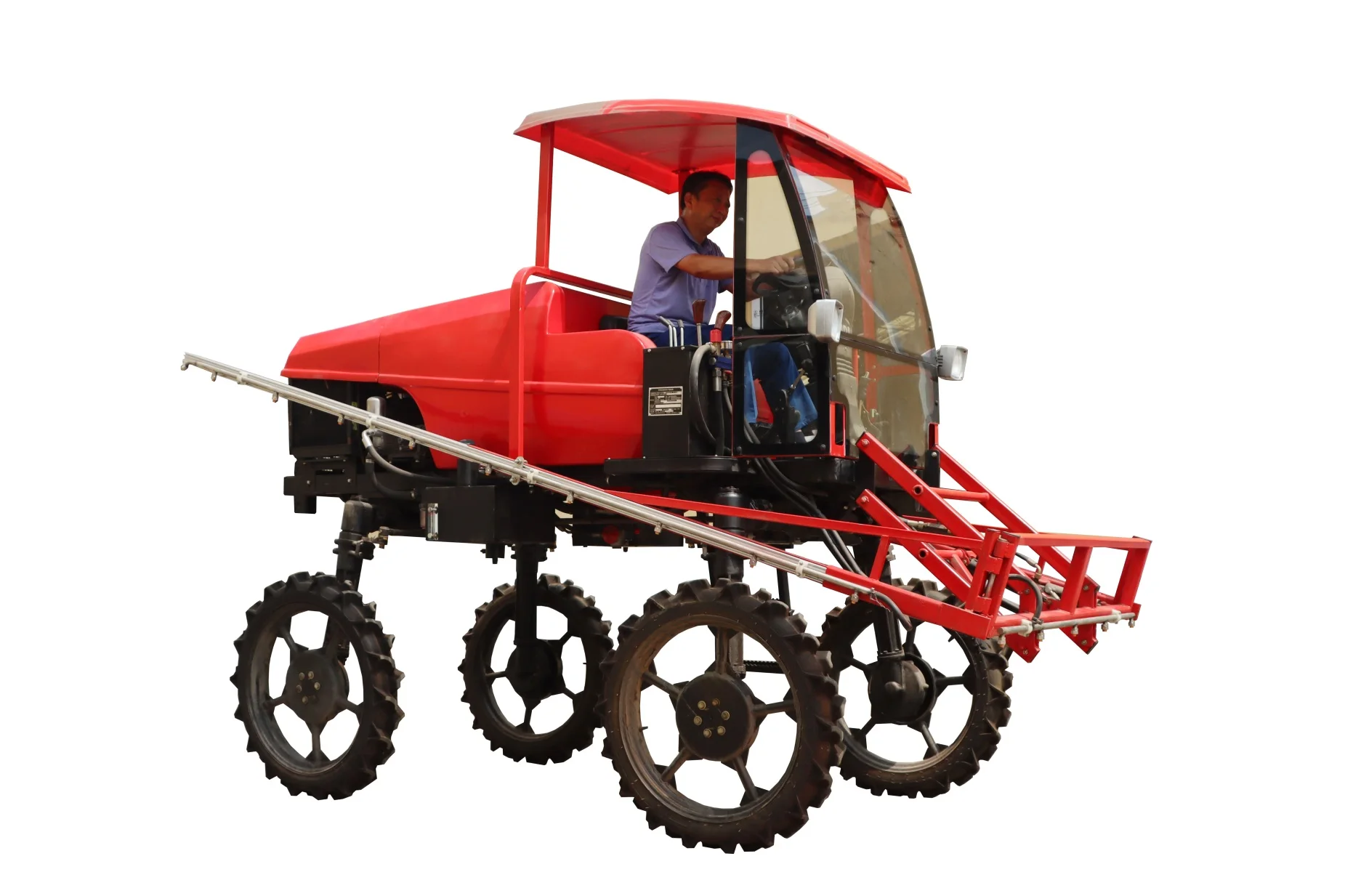

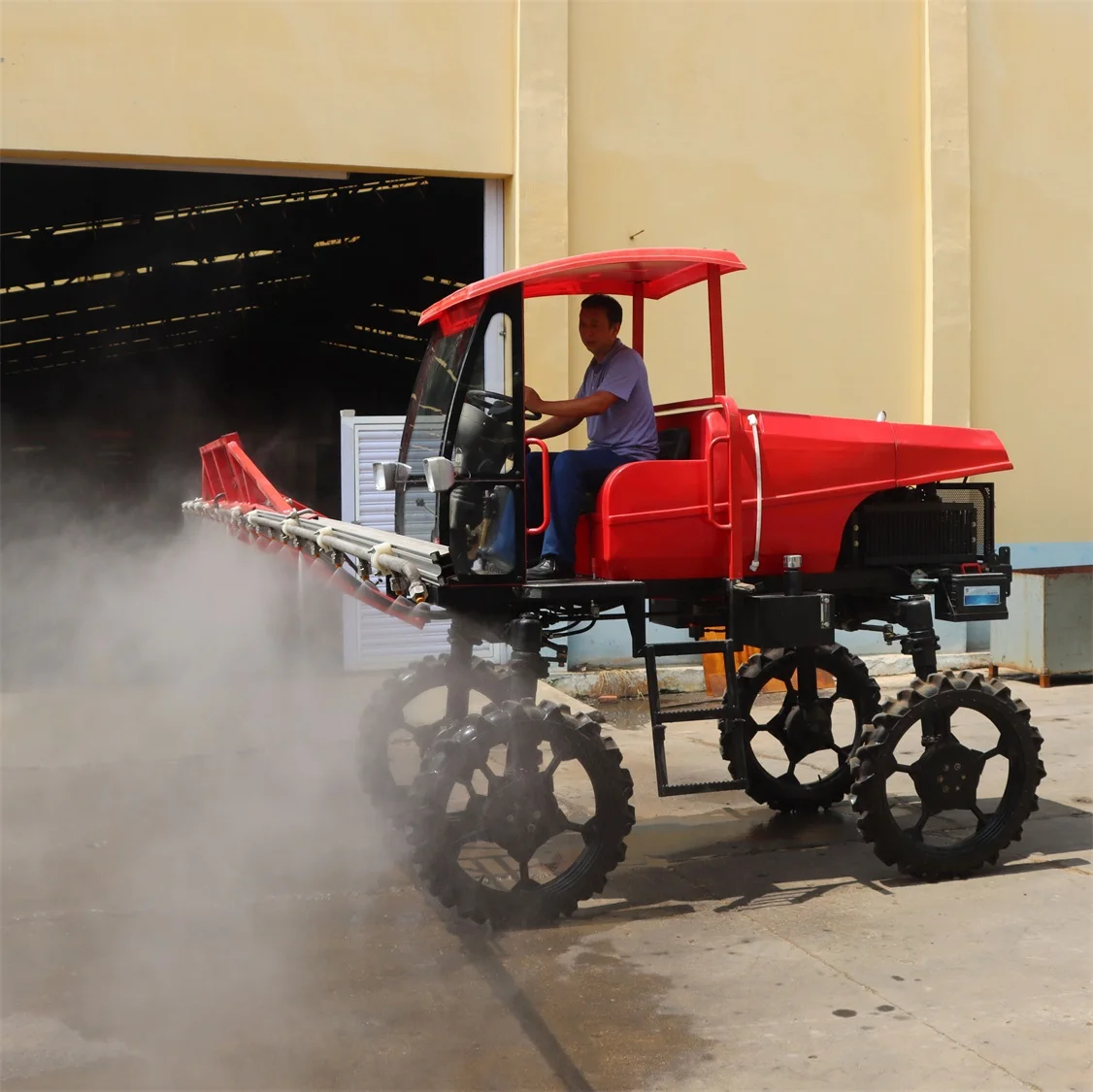

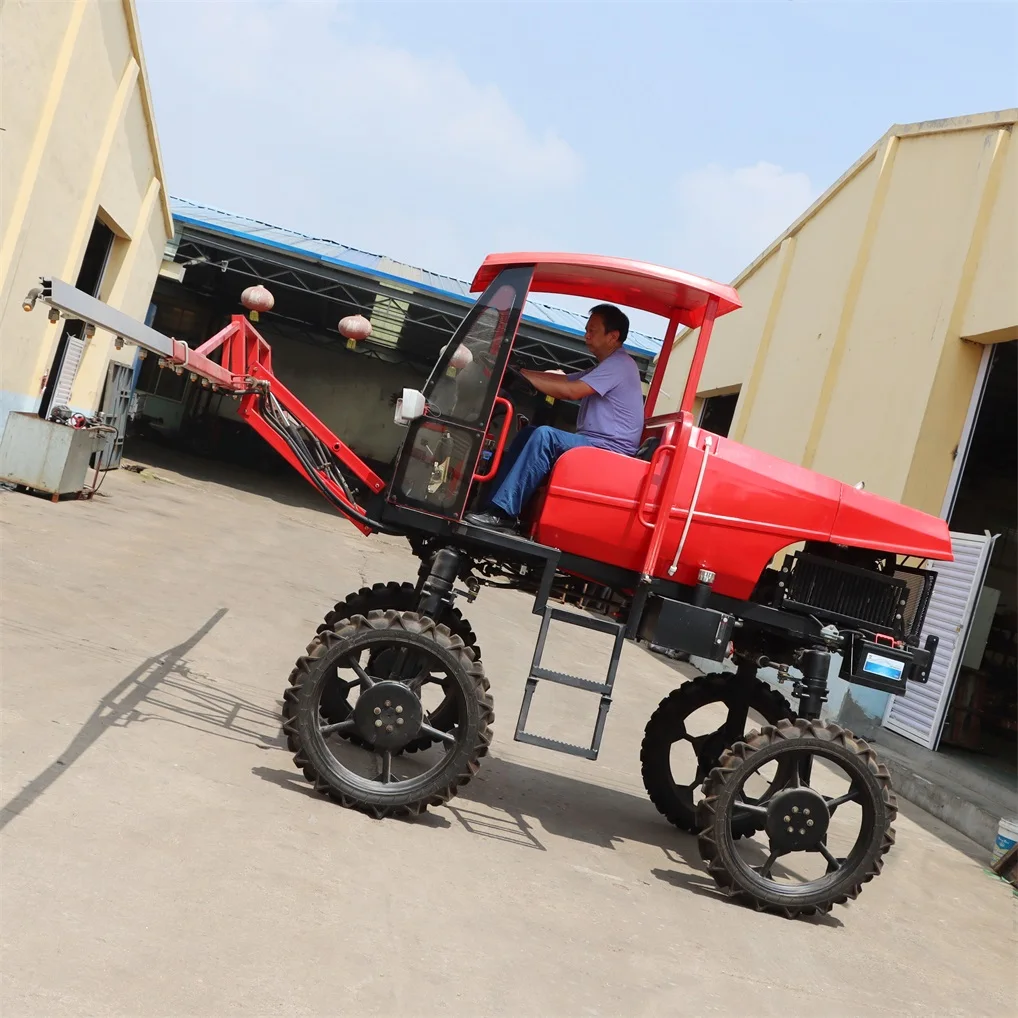

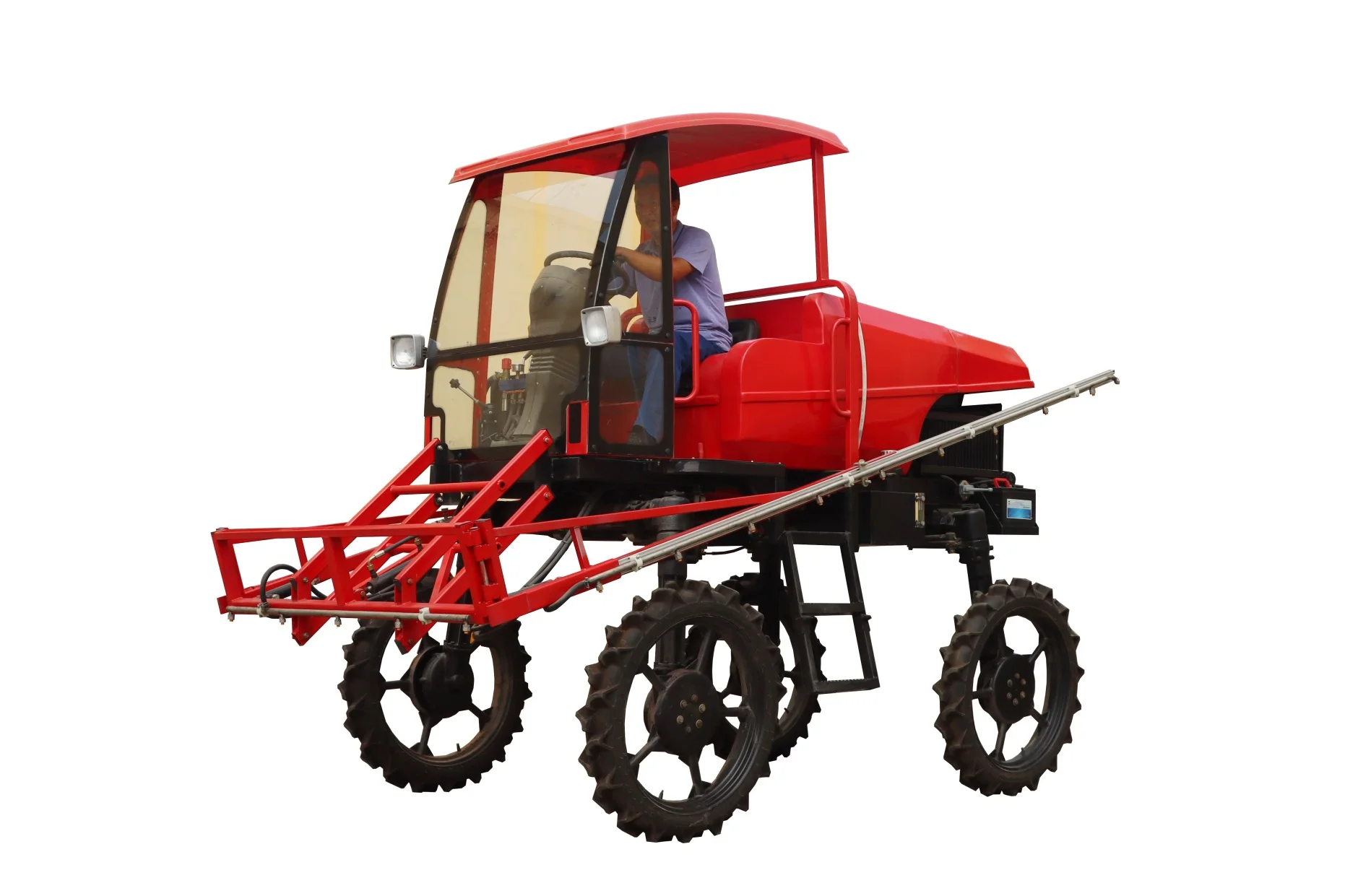

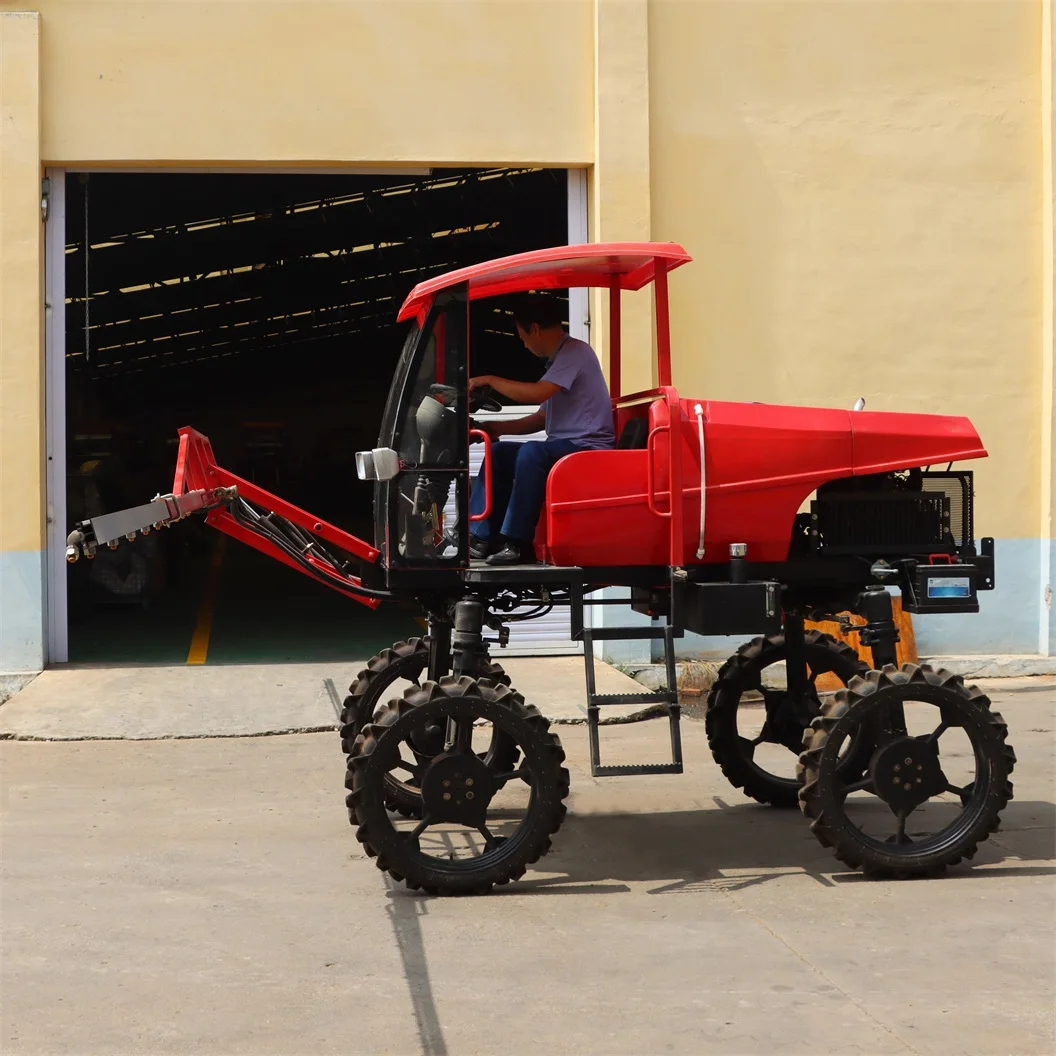

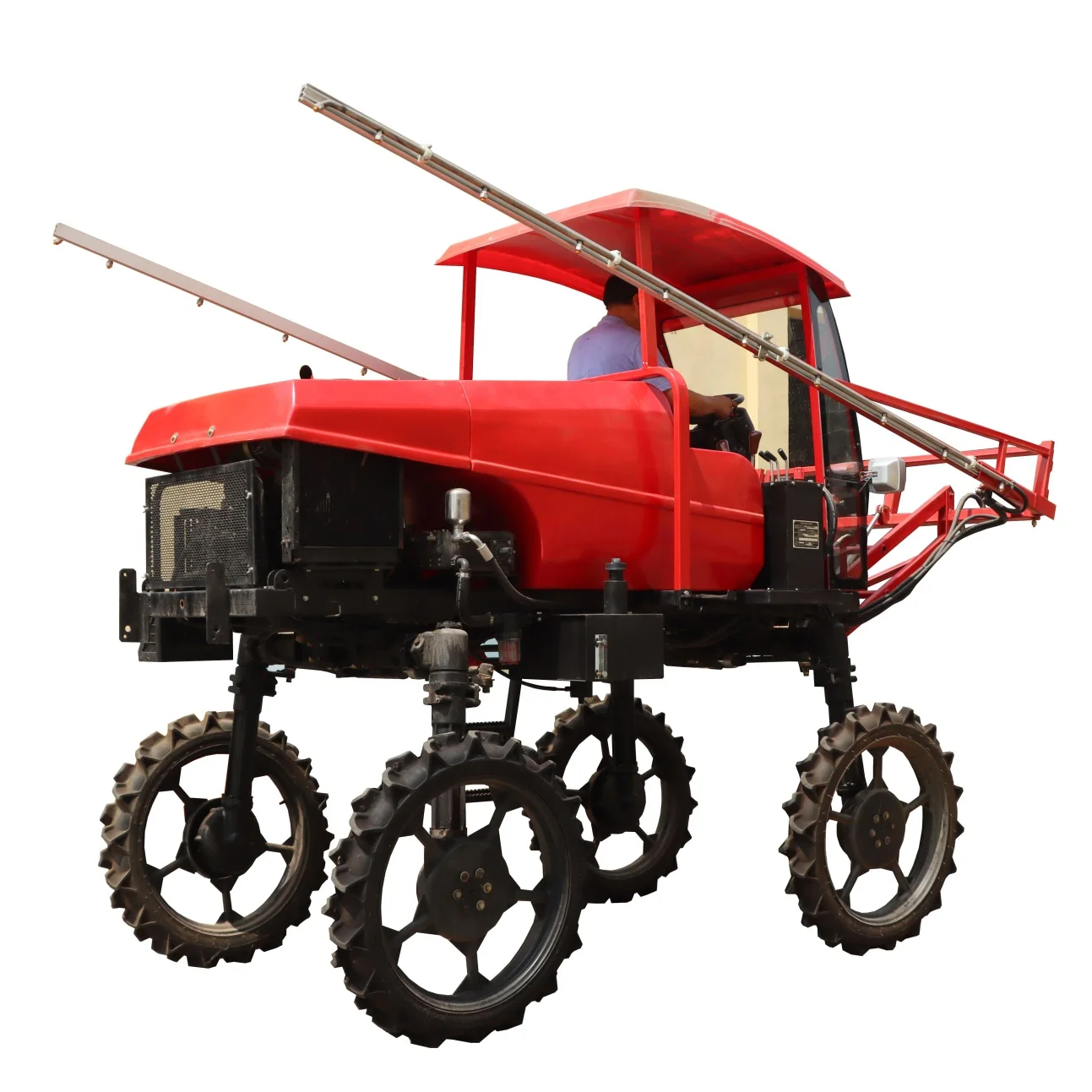

agricultural self propelled boom sprayer

3WPZ-700 series of sprayer is suitable for spraying the medicament for the planter of bean, Maize, Broom corn, Sugarcane, cotton, grain. Also for lawn,fruiter,vegetable, road side tree. The capacity could be 700L-1000L, the spraying width could be 12m.

Advantages:
•Drive and steering system: 4 Wheel Drive and 4 Wheel Steering is suitable more small farmland work.

•Engine: China famous Changchai diesel engine 4 cylinder 16.8kw/32HP.

•Max work widht 10-12m.

•Drive axle and big diameter wheel: high axle and low axle suitable dry farmland and wet farmland.

Model 3WPZ-700H

Overall size 5000x2070x2350 mm

Wheelbase 1540 mm

Drive type four wheel drive four steering

Distance between shafts 1980 mm

Start type electric

Spray range 10M

Engine diesel engine 16.5KW

Work pressure 0.3~0.5 Mpa

Nozzle quantity 24 pcs

Ground Clarence 1350 mm

Spray pump three plunger cylinder pump

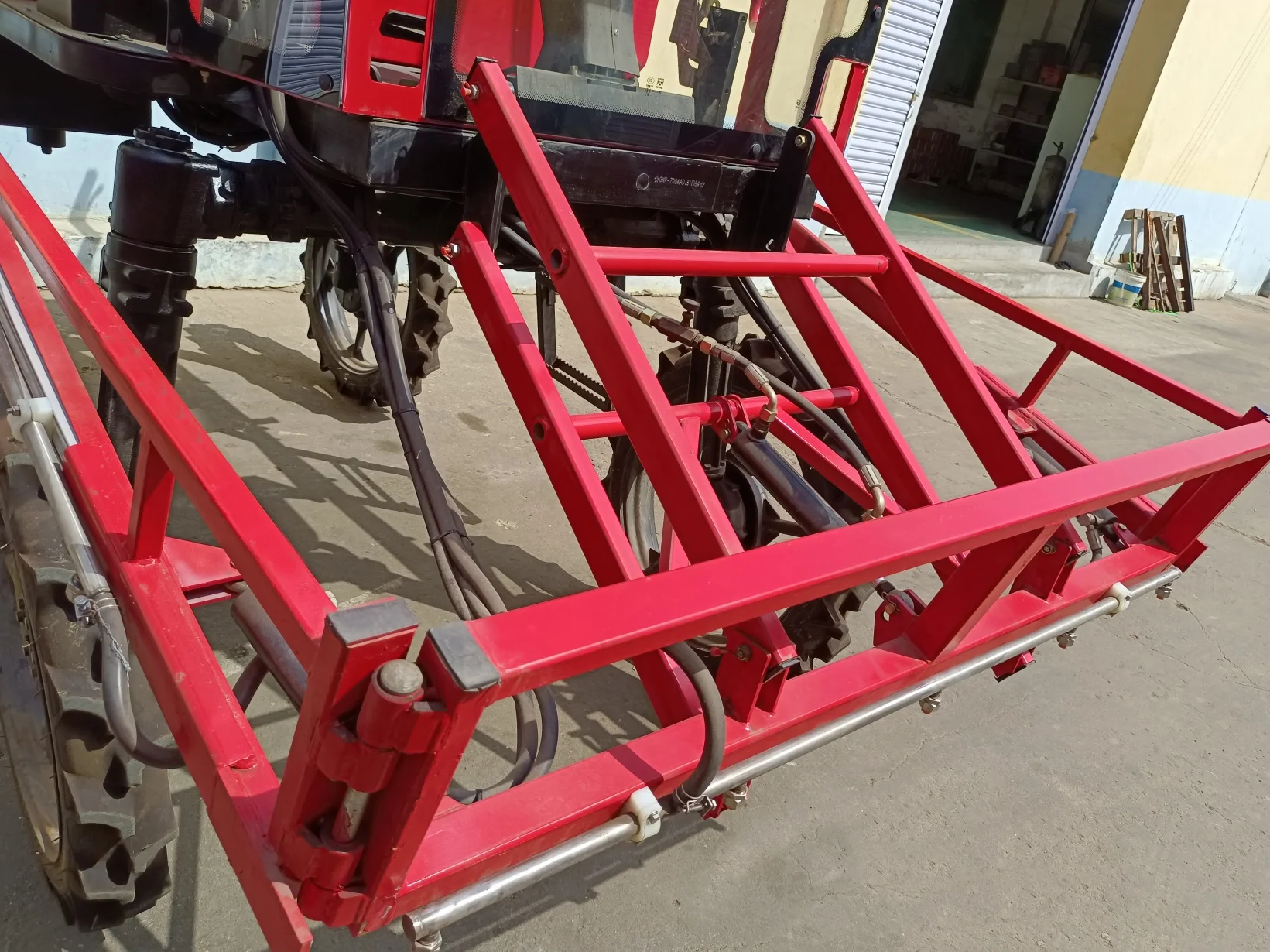

Height range of boom 700-1600 mm

Nozzle quantity 24 pcs

Tank Volume 700L

Work Speed 15Km/h (Road) / 3-6Km/h (working)

Work efficiency 3-5 hectare/ hours

Fertilizer capacity 200 L

1)Drive and steering system: 4WD and 4WS

2) Engine: high quality engine offer enought power to work.

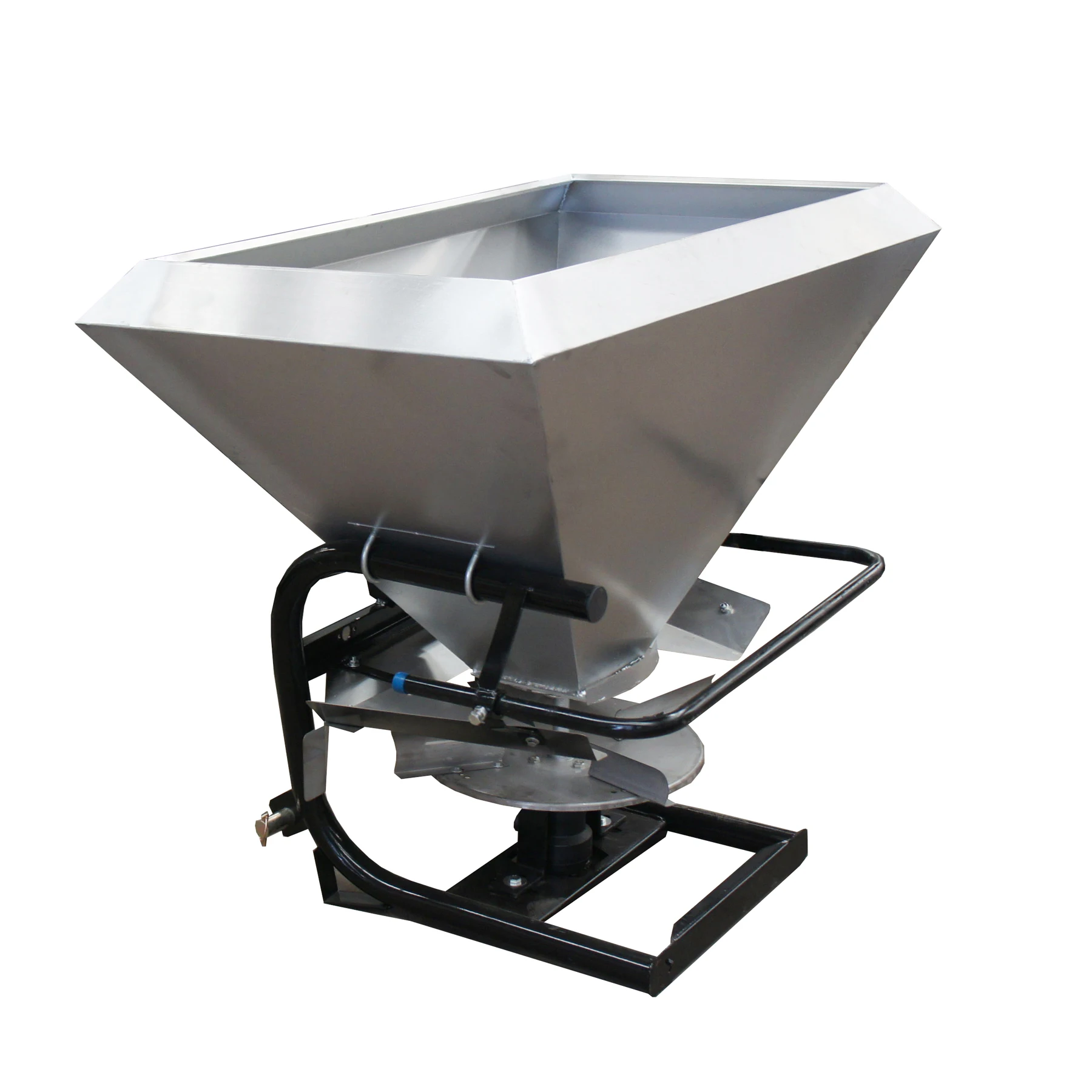

3) Attachment: Fertilizer spreader

4) Work environment: Paddy field operation and Dry farmland

5) Work width: 19-11m

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.
