50L 100L 200L пива подвижная машина очистки на месте блок CIP система очистки для пивоварни

50L 100L 200L пива подвижная машина очистки на месте блок CIP система очистки для пивоварни

Category: Washer >>>
Supplier: Jinan NFE Machinery Co. Ltd.

Price:

Quantity:

Product Overview

Description

Product Description

\t SPECIFICATIONS FOR COMPLETE SET 10 BBL BEER BREWING EQUIPMENT
\t Grain Milling Unit	\t Rolling Miller	\t 300-500 kg/h
\t Brewhouse Unit	\t Mash/Lauter tun	\t Grain rake with VFD Laser cutting V-wire False Bottom Easy clean and detachable sparging spray ring Multihole wort collect ring Anti-rinser
	\t Kettle/Whirlpool Tun	\t Steam Jacket on bottom and side/direct gas fired heating/electric heating Steam vent with condensate ring for kettle stack
	\t Hot Liquor Tank	\t Steam Jacket heating/direct gas fired heating/electric heating
\t Fermentation & Bright Beer Tank Unit	\t Fermenter	\t Glycol cooling jacket on cone and bottom; Side or top manway; CIP arm and CO2 blow off arm; Germany import Kieselmann Mechanical relief valve; Shockproof pressure gauge; Rotating racking arm; Dry hopping port; Carbonation stone; Sight level.
\t Glycol Chilling Unit	\t Glycol Tank Glycol Chiller	\t Insulated conical top and sloped bottom Dimple plate on side wall
\t Control Unit	\t Brewing and fermetation process Controlling	\t Manual button control panel or PLC control with touch screen for special
\t CIP Unit	\t Caustic Tank; Sterilization Tank; Transfer&Control.	\t Electric heating element inside

Main Features

1) UL & CE Rated Controls and Components.

2) Tanks conform to all ASME pressure vessel ratings and standards.

3) 100% Pressure & , leak testing of all tanks, jackets, and hardpiping. All eletronics and brewhouses pre-assembled and tested before shipping.

4) All brewhouse piping is stainless hardpiping. No plastic piping used in the brewhouse for wort or beer.

5) All control panels are pre-wired and pre-tested.

6)PLC Siemens color touch screens control system.

7)Complete mechanical engineering support, on-site installation, start-up and training support for all systems.

Certifications

Detailed Images

Grain Milling Unit

Name: Malt Miller

Brand: NFE

Original: China

With CE certified motor,Double rollers,Rollers distance adjustable.

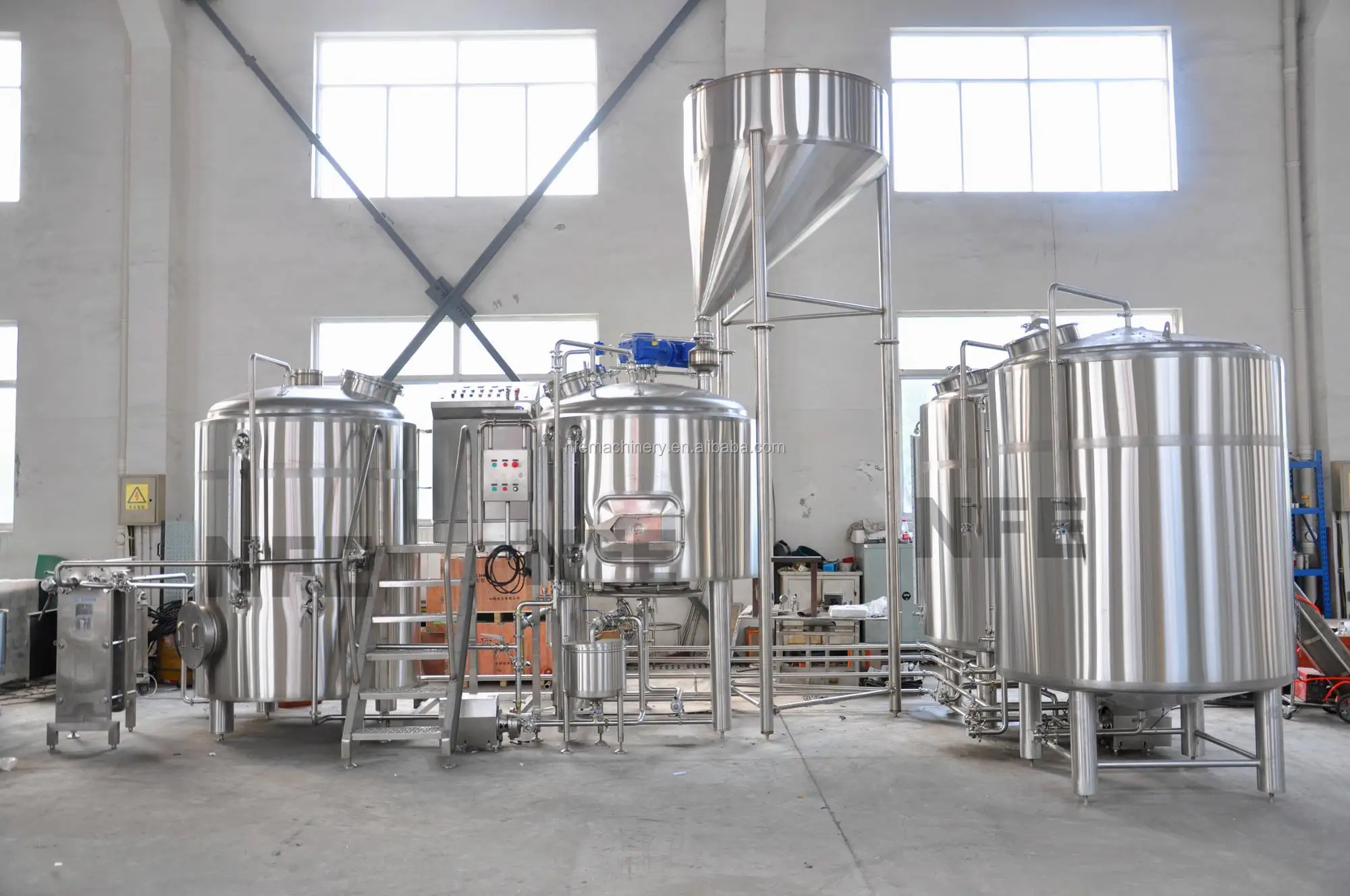

Brewhouse Unit

Name: Brewhouse system
Brand: NFE
Original: China
2~4 vessels brewhouse for choose.

Heating way:steam/ electric/ direct gas fired heating.

Rock wool insulation and the thickness of insulation:100mm;

Mash tank: hydrator, mixer, steam heating jacket.

Lauter tun: rake, agitator, false bottom, hydrator.

Brewkettle: steam heating jacket, inner steam heating deivce.

Whirlpool tun: whirlpool entry.

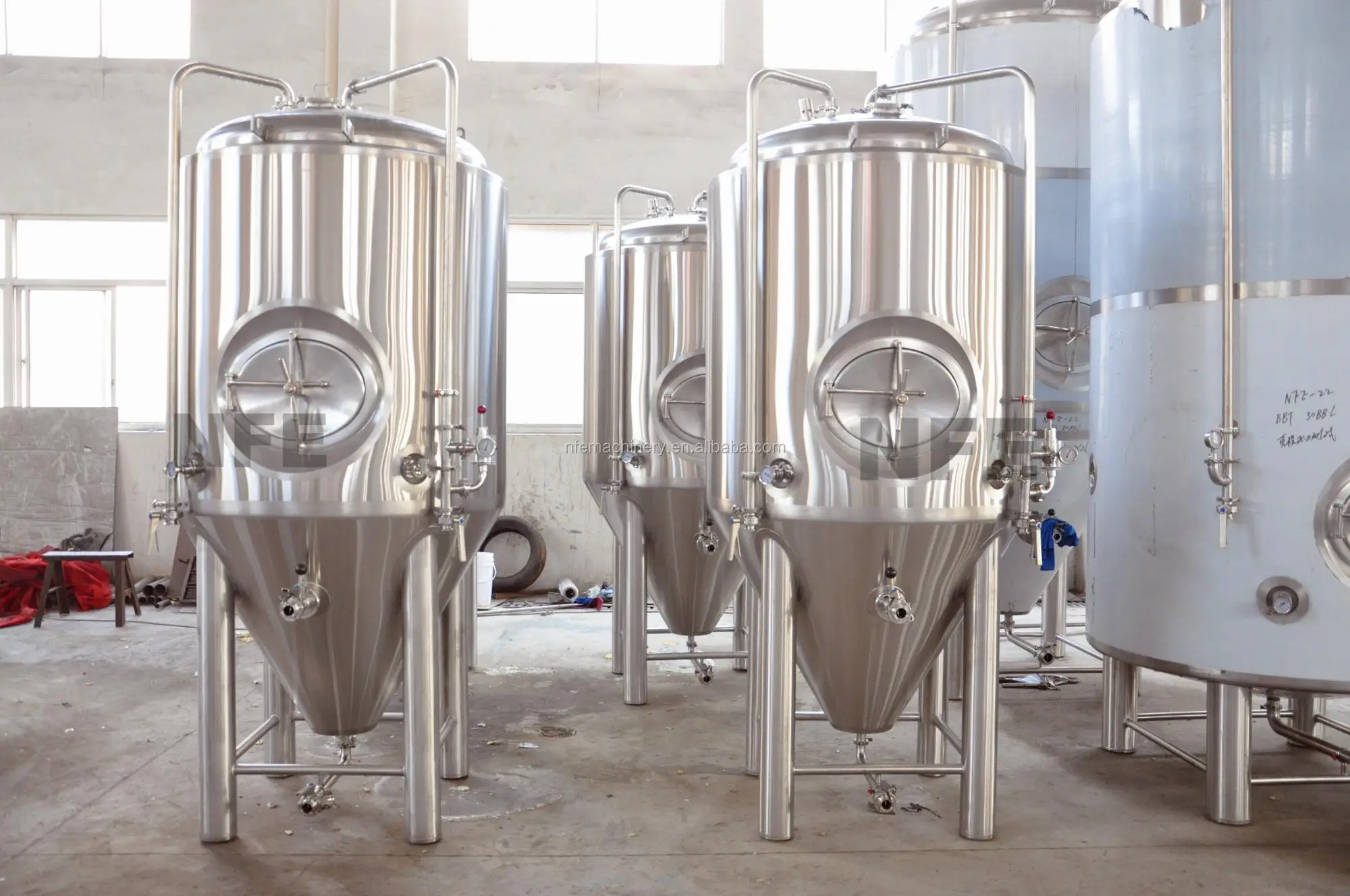

Fermentation Unit

Name: Fermenters
Brand: NFE
Original: China
Stainless steel 304, side man way or top manway;
PU insulation, insulation thickness: 80-100mm;
Inside wall thickness: 3mm, outer shell thickness: 2mm;
CIP Rotary Spray Ball;
Relief valve, mechanical pressure regulating valve, sample valve, butterfly valves;
PT100 temperature sensor, with temperature controller;
2 sections dimple plate cooling jacket;
Complete with associated valves and fittings;

Glycol tank Unit

Name: Glycol tank

Brand: NFE
Original: China

Hot/Cold water tank, Glycol tank
Stainless steel 304,
Steam jacket heating or electric heating or direct gas fired heating,
Rock wool insulation, and the thickness of insulation is 80-100mm;
The thickness of inner body is 3mm,
With glass level tube.

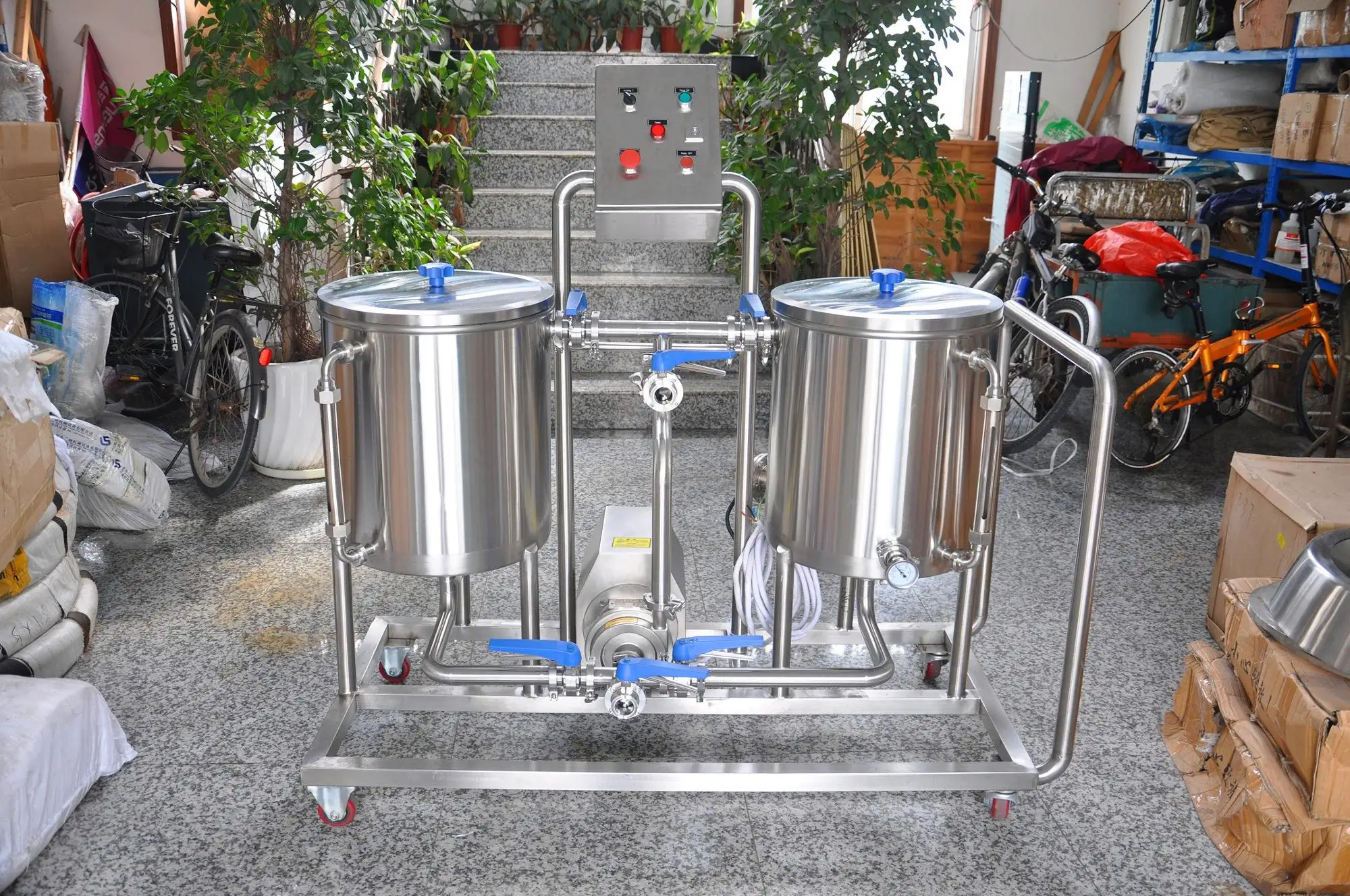

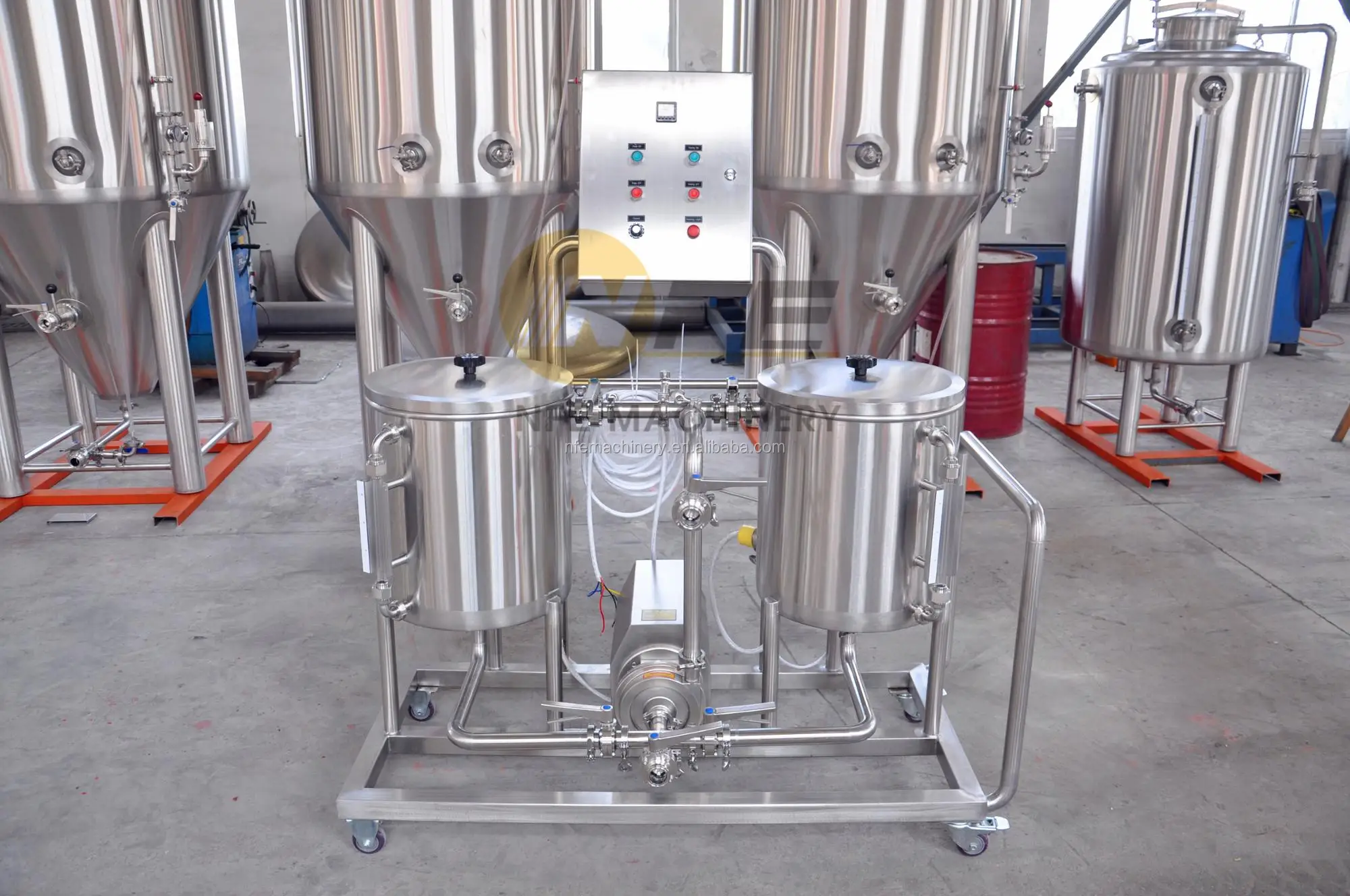

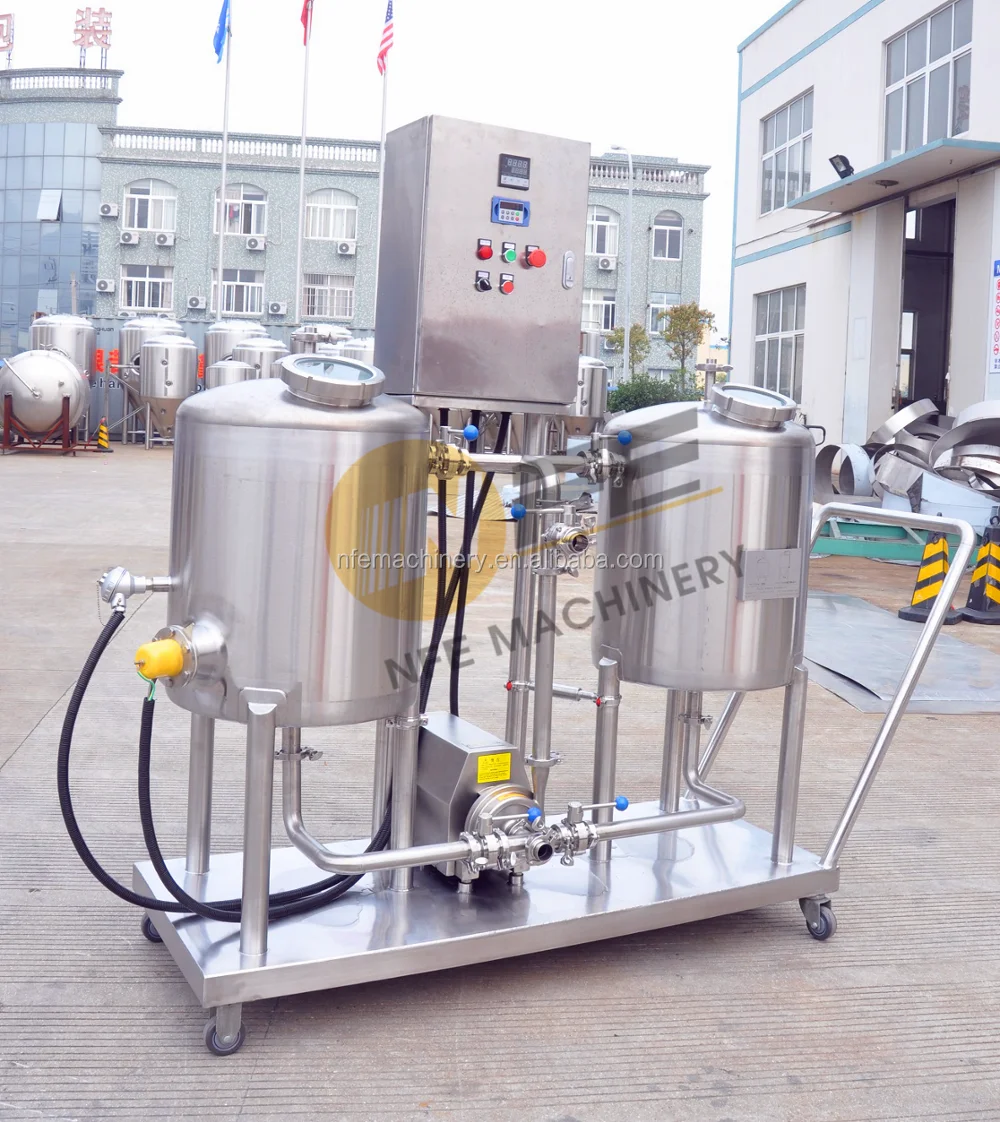

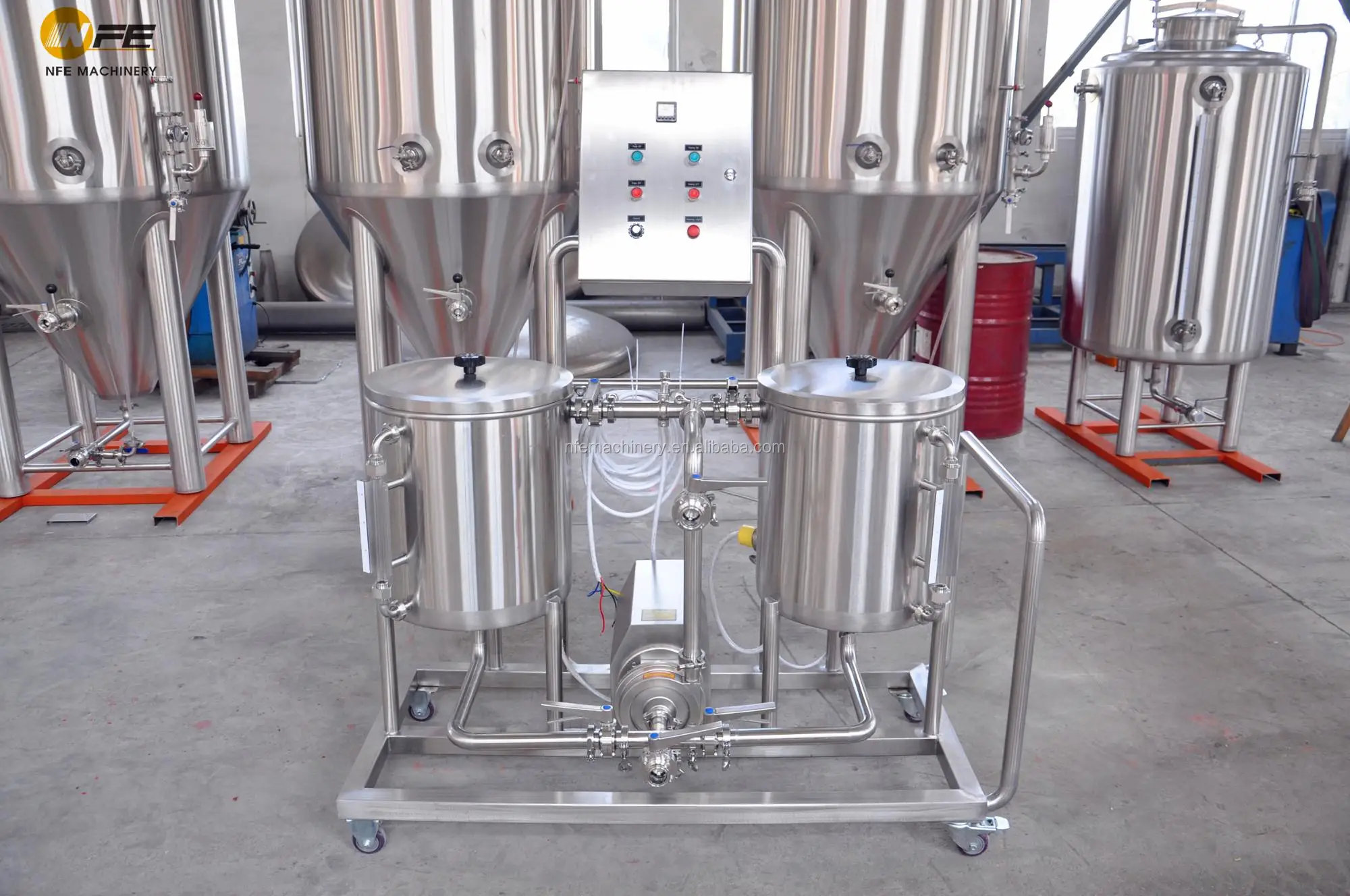

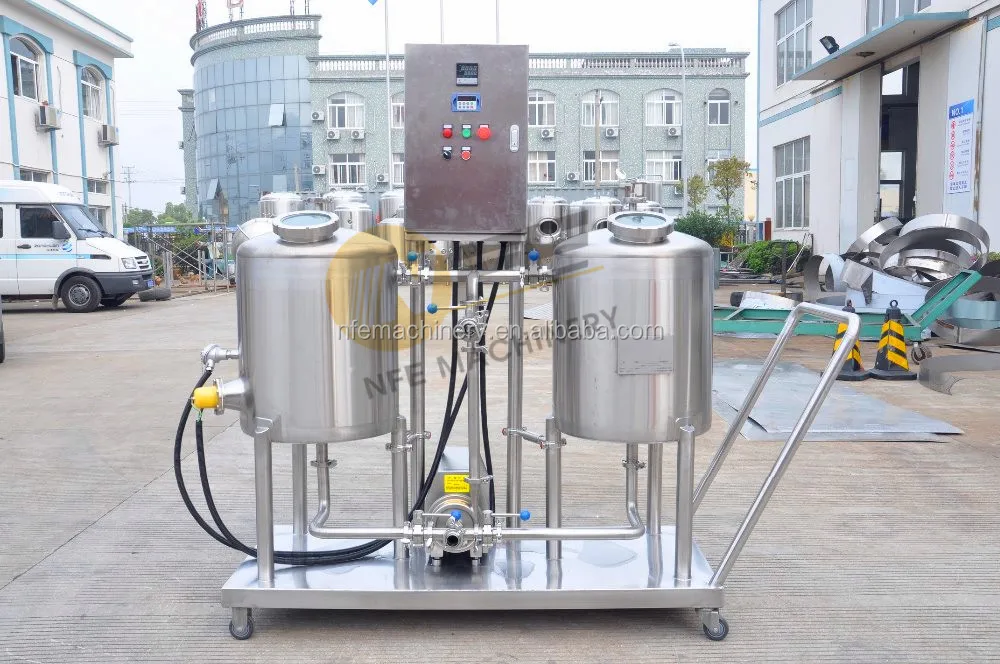

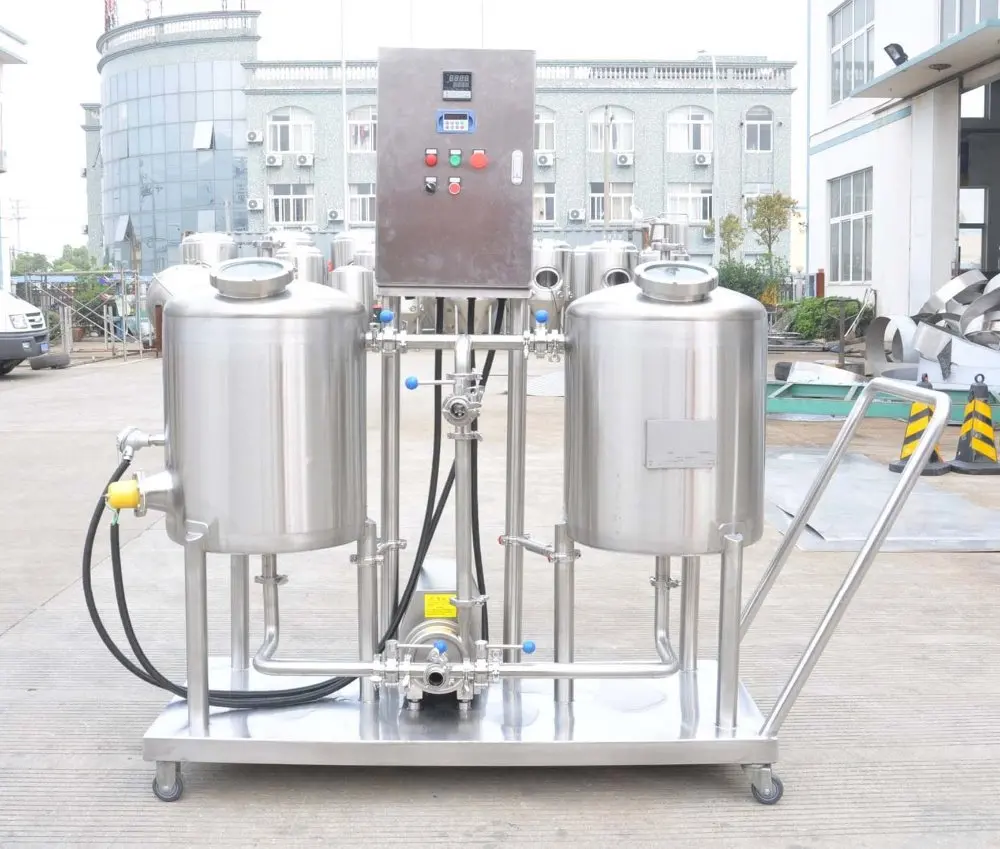

CIP Unit

Name: Bright beer tank
Brand: NFE
Original: China

Sterilization tank;
Alkali liquor tank;
Sterilize vehicle;
CIP pump;
Pipes and valves;
Control box.

Control Unit

Name: Control System

Brand: NFE

Original: China

Manual button control or PLC control;

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* View our Factory.

After-Sales Service

* Instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

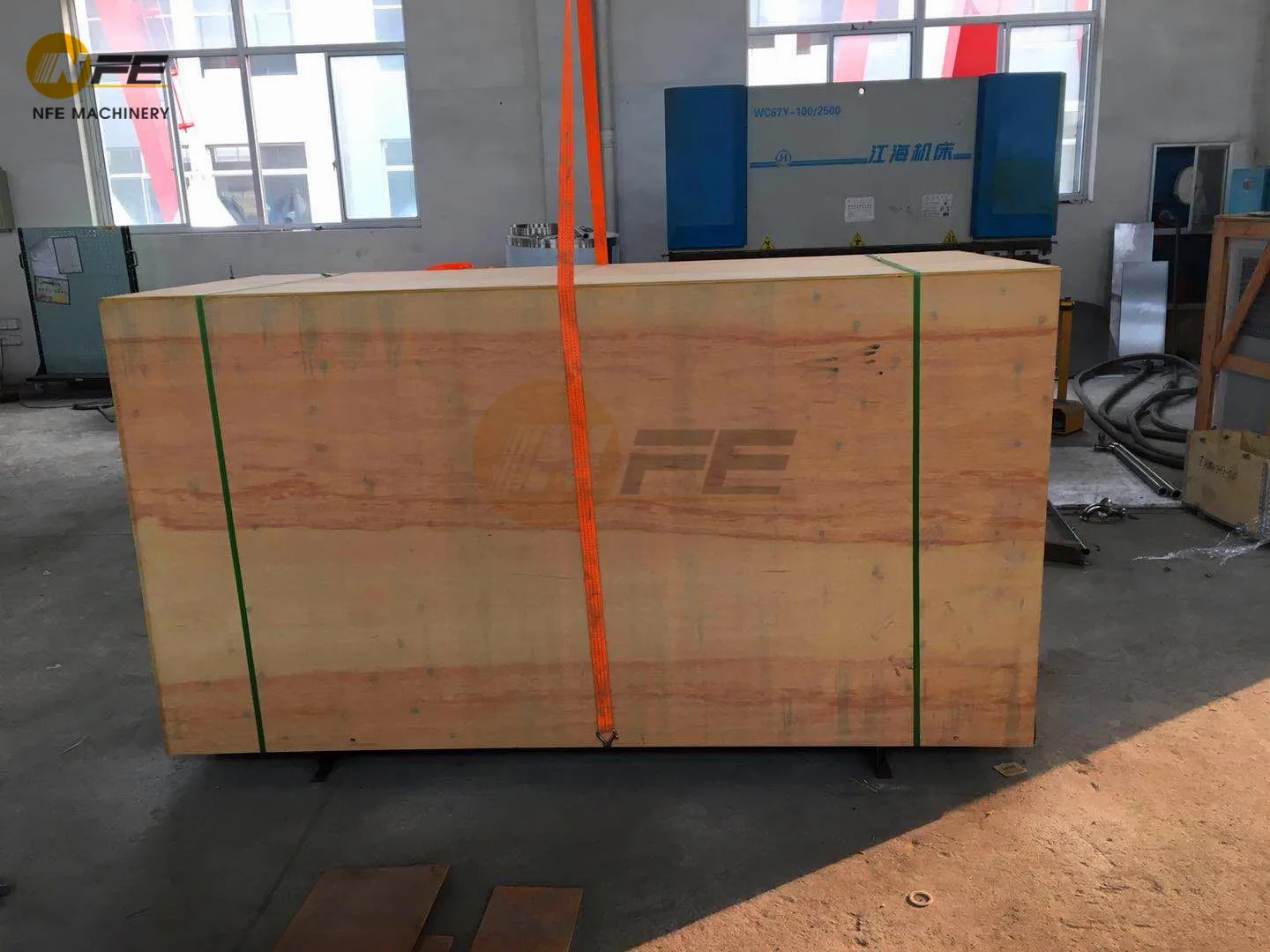

Packing & Delivery

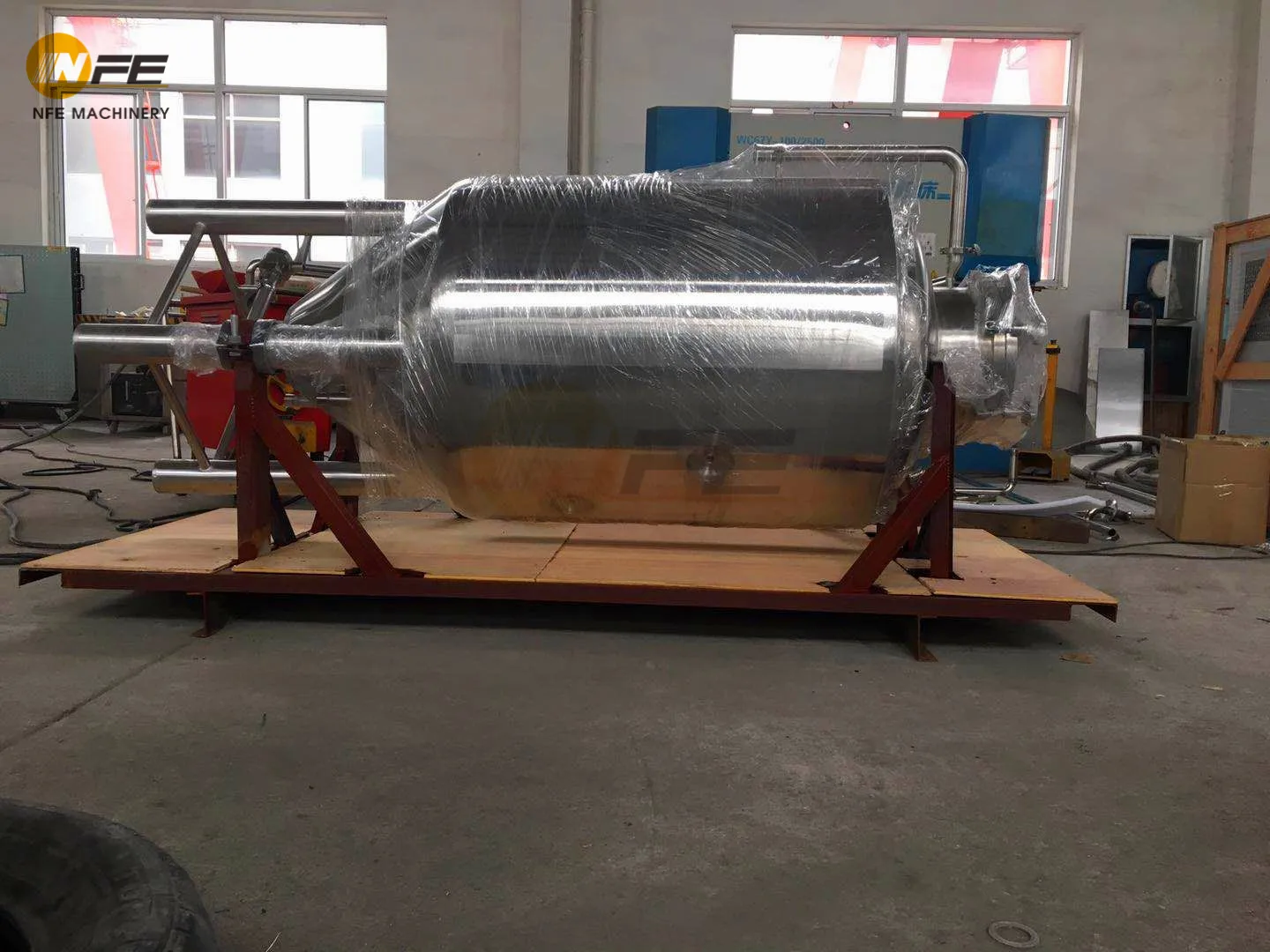

* All tanks will be packaged with soft protection material and mounted on strong carbon steel frame.

* All accessories and spare parts will be packaged with seperated box.
* After loaded into containers, all equipments will be well fixed to the containers.
