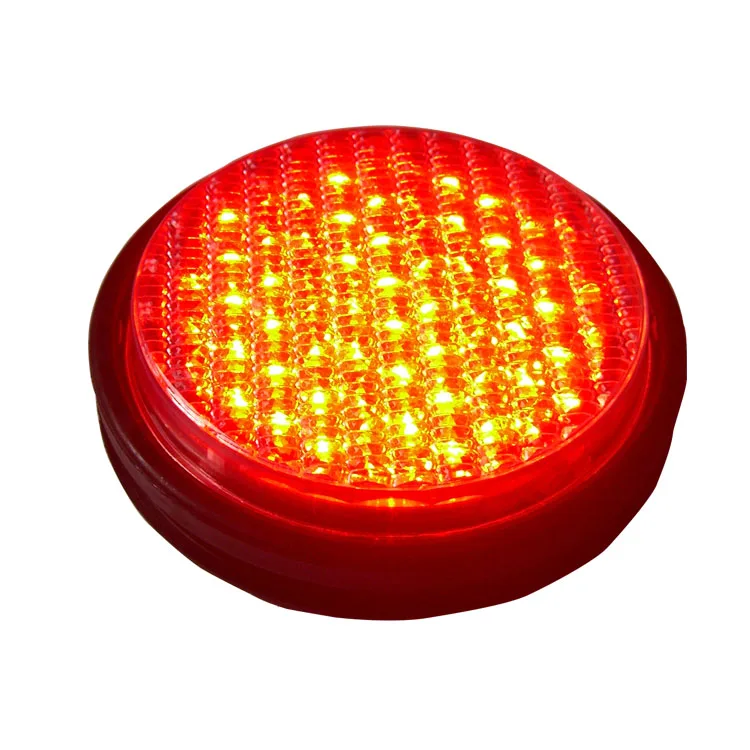

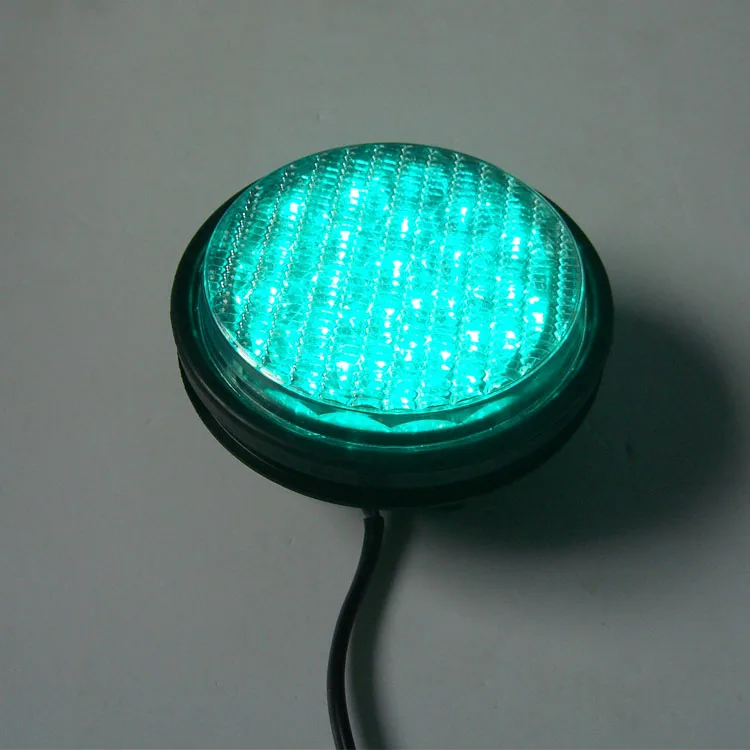

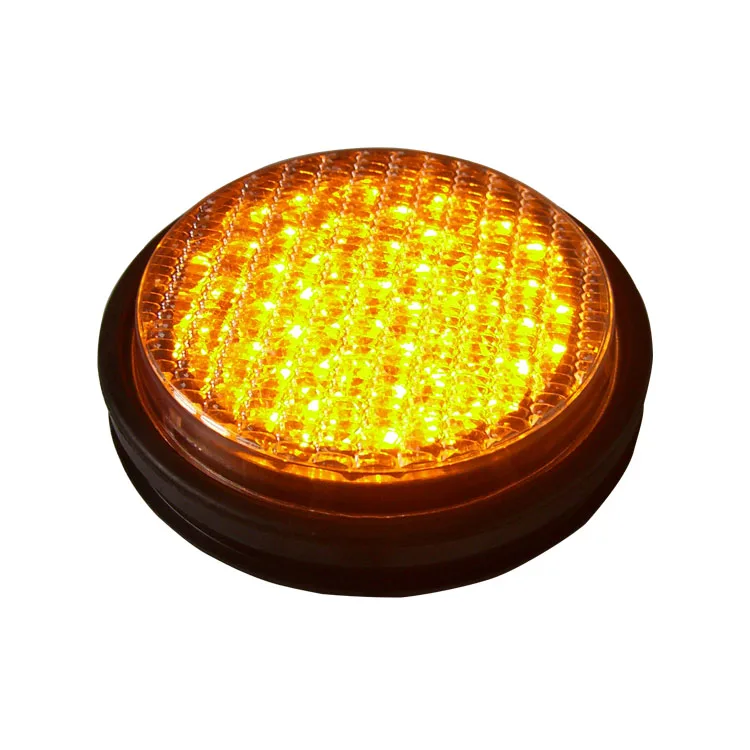

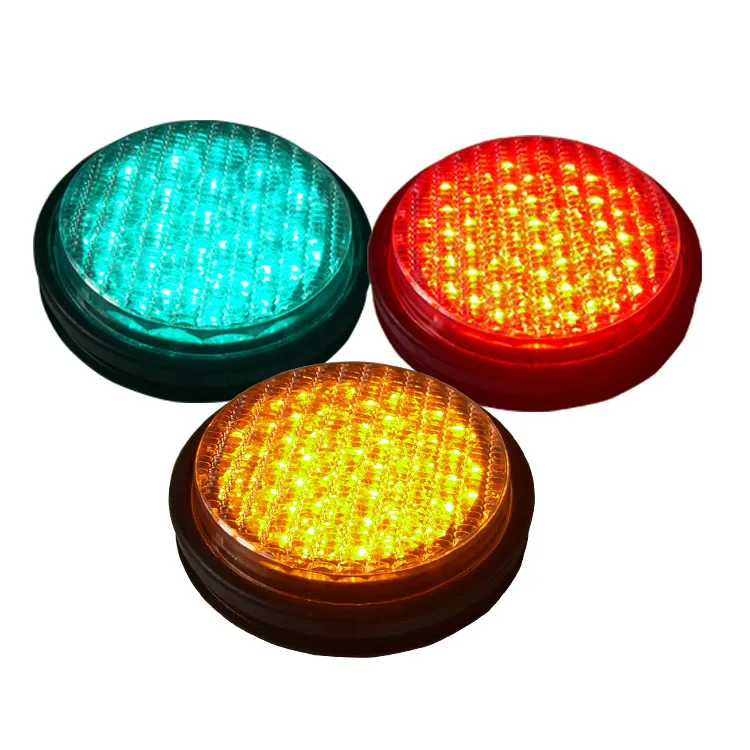

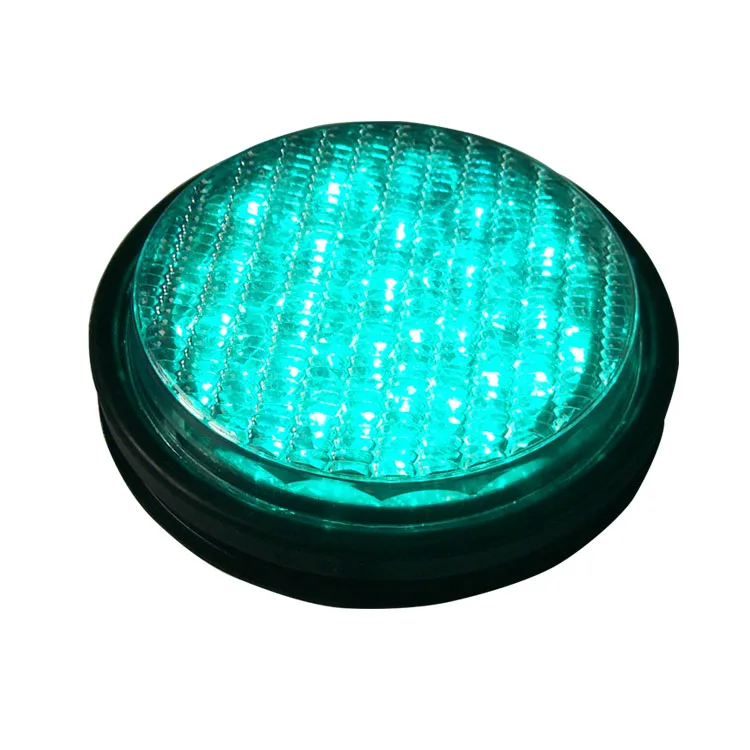

100mm Led Incandescent Look Full Ball Traffic Light
Features & Benefits
ØOperating at the temperature of -40℃ to +74℃
ØWide viewing angles& low power consumption
ØEven brightness & standard chromatogram
ØCompatibility with most traffic housings and controllers
Specification
o
Model:
XH100-CO2RD/YD/GD-2A
1
Color:
Red, Yellow, Green
2
LED quantity:
Red-1pc, Yellow-1pc, Green-1pc (Hi-flux LEDs)
3
Light Intensity
R>100cd, Y>100cd, G>100cd
4
Wavelength:
Red:620~630nm,Yellow: 590~595nm, Green:500~510nm
5
Power Consumption
R≤6W Y≤6W G≤6W
6
Operation Voltage
12vdc, 24vdc,42vac, 110vac,220vac
7
Packages
30pcs/carton 70*40*16cm
8
Gross weight:
7.50kgs/carton
9
Housing: material
Polycarbonate – UV resistant
10
Life time & IP Grade:
>85,000 hours IP65

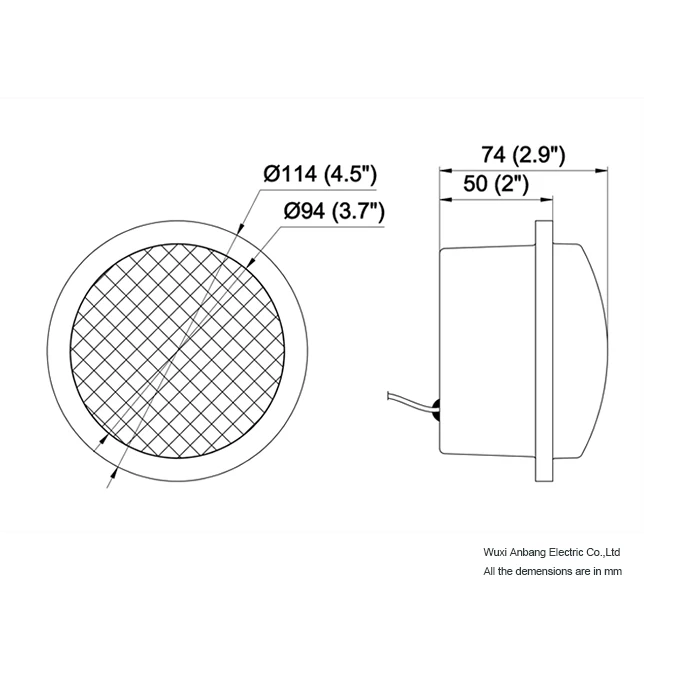

Product Size

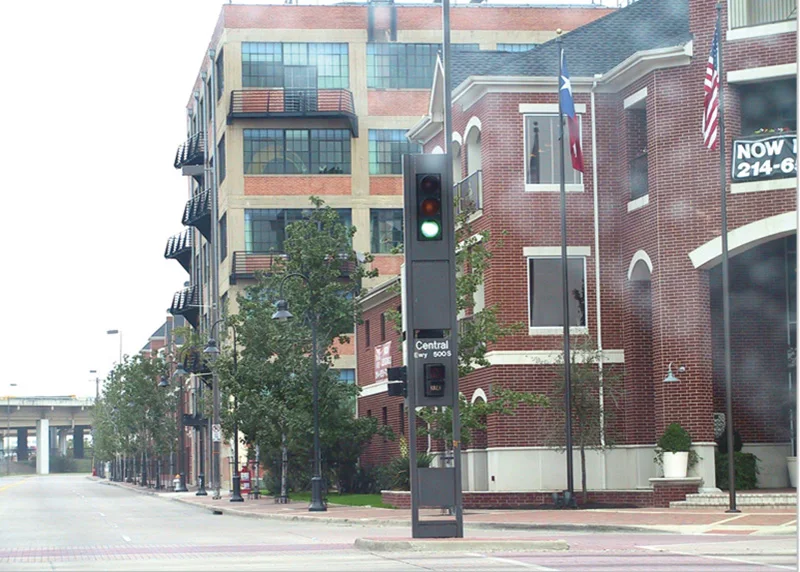

Application
EN12368 100mm Hi-flux Led Traffic Signal Module mainly replace and are installed in existing 100mm traffic lights.
Packaging
Quantity
Dimension
Net weight (kgs)
Gross Weight (kgs)
Volumn (m3)
30pc/carton
70*40*16cm
7.0kg
9kg
0.045
Company information
Wuxi Anbang Electric Co.,Ltd created 1998, is a high-tech enterprise specializing in researchi& develop led traffic light, include led traffic signal light(100mm/200mm/300mm), traffic signal light modules, pedestrian traffic signal light, traffic countdown, arrow traffic light, fullball solar traffic light, led street light of different Specifications.All our traffic lights comply with ITE, EN12368, CE, RoHS, ISO9001: 2008 standards.
