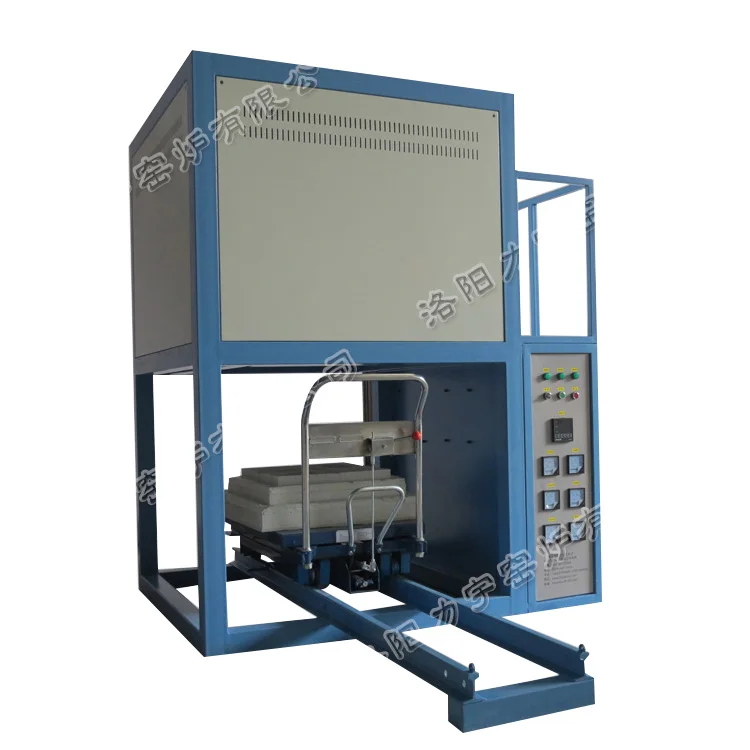

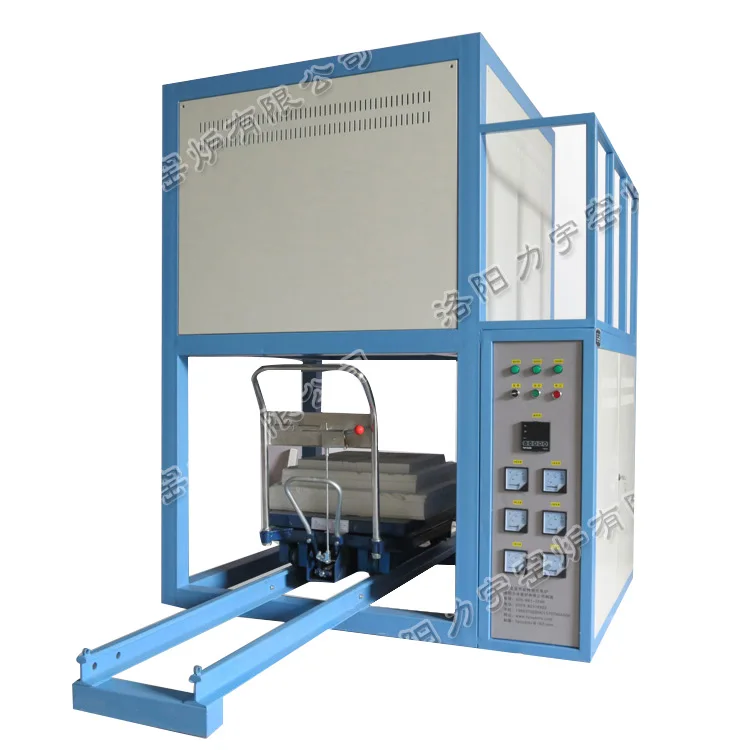

High temperature induction heating vacuum melting lift bottom loading furnace
Product Show
Product Description
Main technical parameter
Term project
It refers to the standard value
Rated voltage
380V 50 / 60Hz
Heating rate
≤1-40 ℃ / min (user- friendly adjustable)
Temperature control accuracy
± 1 ℃
Temperature control method
PID regulation, microcomputer control, programmable temperature curve, without caretaker (automatic heating, insulation, cooling)
Double circuit protection
Over-temperature, over-voltage, super-current, short circuit, broken even, power, leakage and so on
Thermocouple type
B type
Heating element
U -shaped silicon molybdenum rods
Furnace material
Furnace imported composite high-temperature fiber material built by the numerical control technology, thermal shock resistance, corrosion resistance, non-collapse, no crystallization, no residue, no pollution, long life
Lifting structure
Electric screw up and down, smooth vibration-free, mouth down, heat loss, high temperature state can open the door for recycling
The screw lift electric furnace is widely used in universities, research institutes, industrial and mining enterprises such as powder, military, electronics, metallurgy, medicine, ceramics, glass, machinery, new material development, special materials, refractories, building materials, chemicals, metal sintering and metal heat treatment Other experiments and production.
Technical characteristics
JNL-1800℃ Series High Temperature Elevating Furnace Introduce advanced technology, independent research and development of energy-saving, environmental protection, new electric furnace, with advanced and reasonable structure, nice appearance, the shell of high-quality cold-rolled steel, the advanced CNC machining, Luxury, beautiful two-color imported epoxy powder electrostatic spray process, processed, high temperature, corrosion resistance, the use of high-quality heating elements, double furnace shell with air cooling system, can quickly cool down; the furnace has a temperature equilibrium , The furnace surface temperature is low, fast cooling temperature rate, energy saving and so on. Furnace imported composite high temperature fiber material built by the numerical control technology, thermal shock resistance, corrosion resistance, non-collapse, no crystallization, no residue, no pollution, long service life. The control system adopts microcomputer artificial intelligence adjustment technology, with PID regulation, automatic control, self-tuning function, multi-section programming, and can be programmed a variety of heating, insulation, cooling program, high temperature control accuracy; integrated module SCR control, phase shift Trigger, protect the system: the use of independent over-temperature protection, over-voltage, ultra-current, leakage, short circuit protection. High degree of automation, the indicators reached the advanced level.
Our products mainly include high temperature muffle furnace, frit furnace, vacuum atmosphere furnace, tube furnace, box furnace and vertical furnace, etc. These products are widely used in universities, research institutes, industrial and mining enterprises forexperiment and production of powder, military, electronics, metallurgy, medicine, ceramics, glass, machinery, new material development, special materials, refractory materials, building materials, chemicals,metal sintering and metal heat treatment.
We continually develop the new products, and have developed a series of energy-saving JNL furnace, furnace products with more excellent conditions of fast heating, high energy, high precision, high stability, good thermal insulation performance, full microcomputer control, programmable automatic warming, cooling, heat preservation, furnace surface temperature near room temperature etc.
In recent years, Liyu has passed ISO 9001:2008 quality management system certification in 2015, and in product safety, we passed the CE certification.
Sincerely welcome new and old customers to visit and negotiate.
Our Services
Packaging & Shipping
FAQ
Q: Can I use our country's plug?
A: Yes, we can provide following standard plugs in different countries.
Q: Usually I only need 900℃ to conduct my experiment, can I have a furnace with max temperature of 1000℃?
A: Yes, we can custom-made the furnace according to your need.
Q: How about the temperature/time control?
A: the furnace's temperature and time is controlled by PID touch panel,it is a programmable control type.Easy to operate.
Q: How about the delivery period?
A: The delivery period is depends on the order quantity, in ordinary we have 1~3 sets in stock.It can be delivery within 10 working days.
