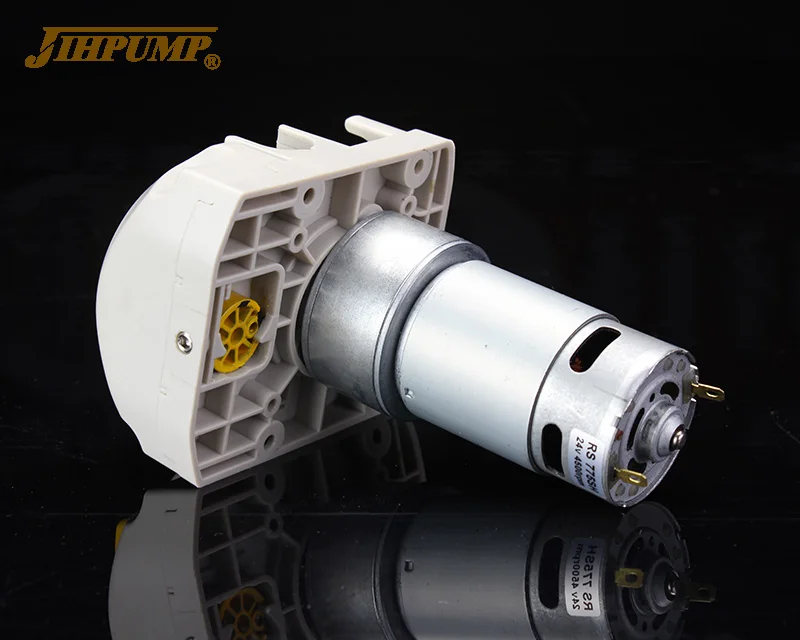

JIHPUMP 2185mL/min Small Mini Micro Easy Load Peristaltic Pump Water Liquid Dosing Transfer Hose Pumps

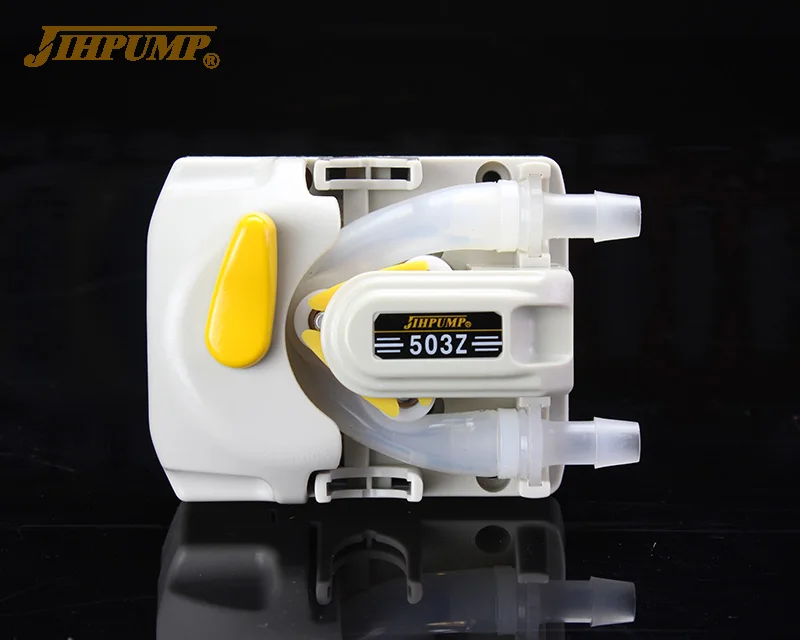

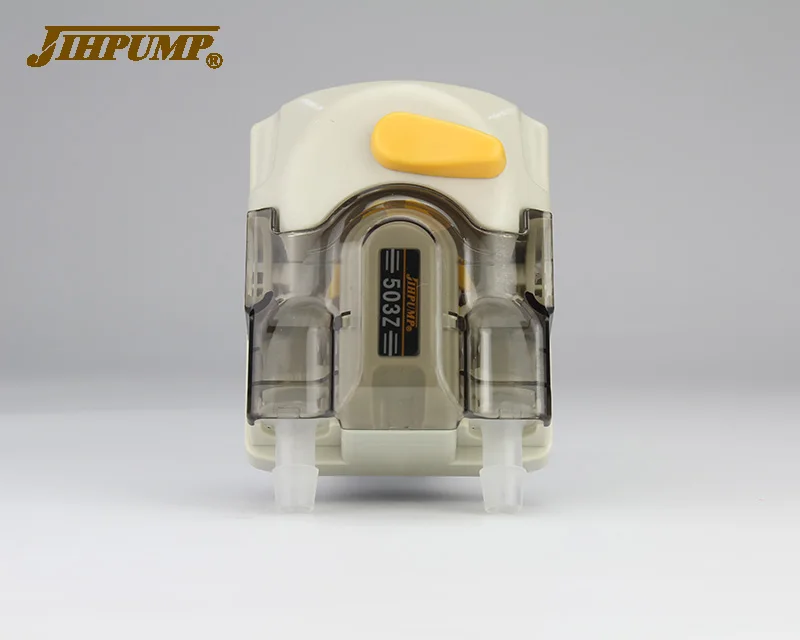

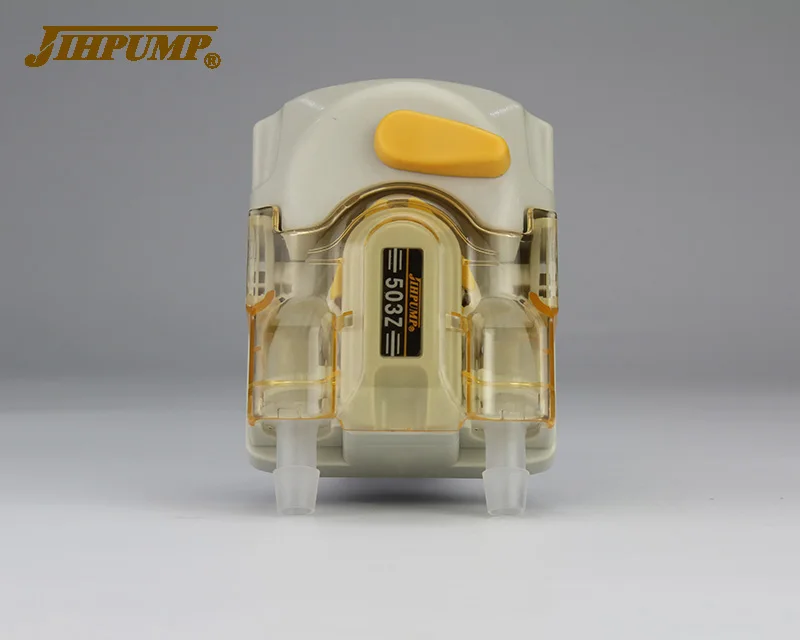

Details of 503Z/ZLX
Features
Model | 503Z/ZLX |
Speed | 150r~300rpm |
Tube | 24#,35#,36# |
Flow range | 330~1240ml/min |
Motor power | ≤32W |
Motor type | DC planetary motor |
Mounting panel | Pump included panel (mounting hole 4-Φ4.5) |
Voltage | 24V (12V for option) |
Weight | 594g |
Selection Guide for Tube Size and Speed
503Z/ZLX | Silicone Tube | |
Speed | 150rpm | 300rpm |
24# | 355 | 725 |
35# | 500 | 1025 |
36# | 600 | 1175 |
Tube | A-60-F Tube | |
Speed | 150rpm | 300rpm |
24# | 290 | 620 |
35# | 420 | 850 |
36# | 515 | 1035 |
Tube | Chemical-Durance Tube | |
Speed | 150rpm | 300rpm |
24# | 290 | 605 |
35# | 370 | 785 |
Remarks | 1.Flow data in the above table is measured at JIHPUMP laboratory using water at room temperature, for reference purposes only; 2.Tube material, tube size tolerances, delivered media viscosity, suction &lift height etc. will affect the flow rate; 3.Please kindly choose suitable tube type for different liquid. Please refer to Chemical compatibility table; 4.Please kindly confirm your required operation life for tube, refer to tube life table. | |

503Z load with other motor type


Accessories
