Full frame 4096Mbps,6 classes image quality optional
Audio bit rate
8KB/s
Storage media
SD card + HDD/SSD storage
Video inquiry
Inquiry by channel/Recording type
Local playback
Playback by file
Firmware upgrading
Upgrading mode
Manual/Automatical/Remote/Emergency Recovery
Upgrading method
USB disk/Wireless network/SD card

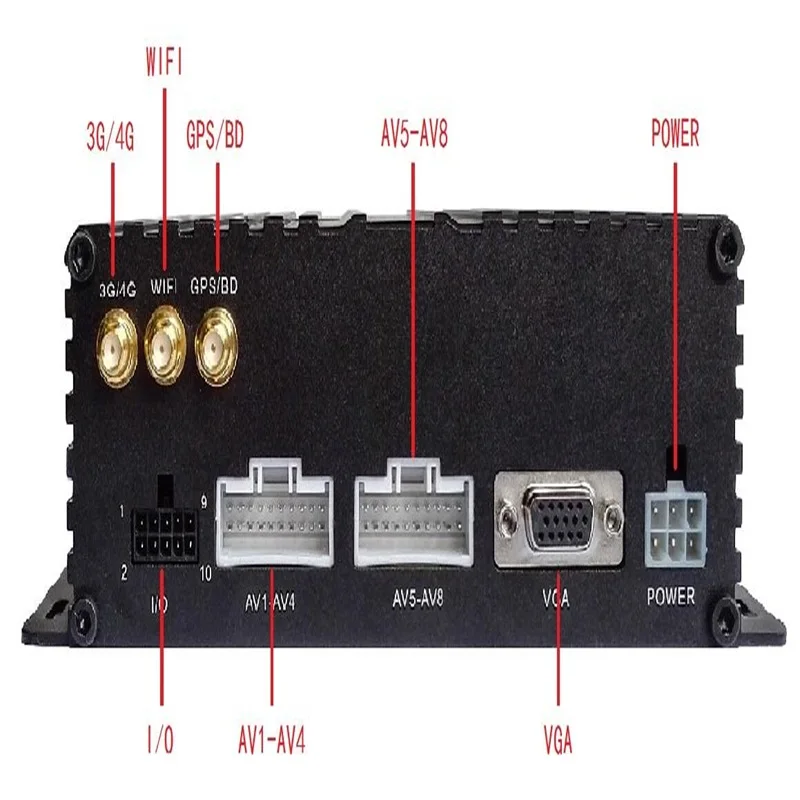

Interface

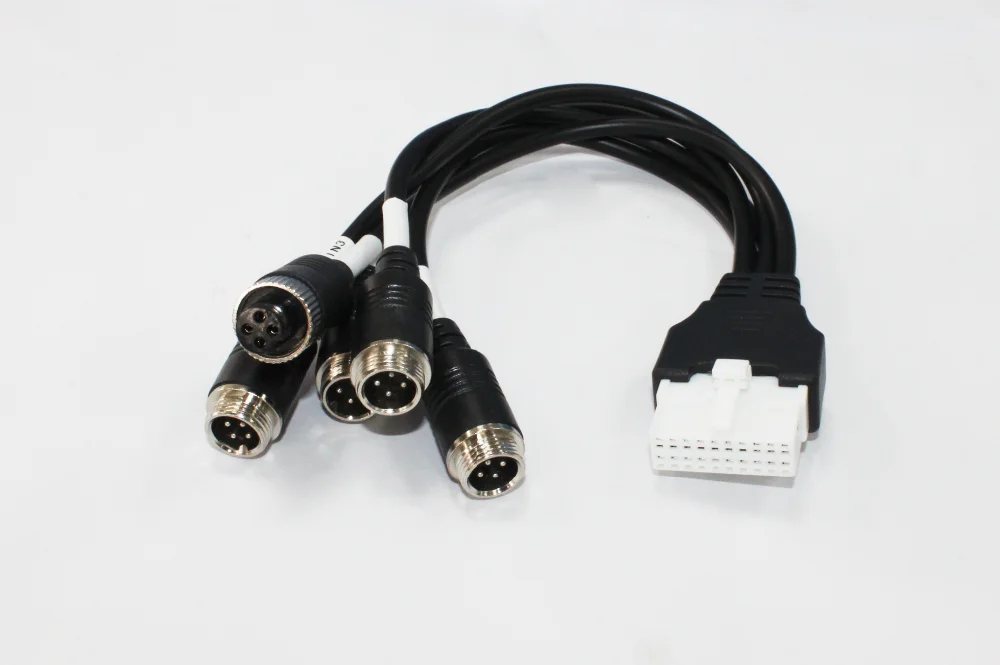

AV input
8ch aviation interface
AV output
1ch VGA video output, 1ch aviation AV output
Alarm input
4 digital inputs (4 Positive/Negative trigger)
HDD/SSD
1 HDD/SSD (up to 2TB, support hot plug/unplug)
SD card
1 SDXC High speed card (up to 256GB)
USB interface
1 USB 2.0 (support U disk/mouse)
Ignition input
1 ACC signal
UART
1 LVTTL Level

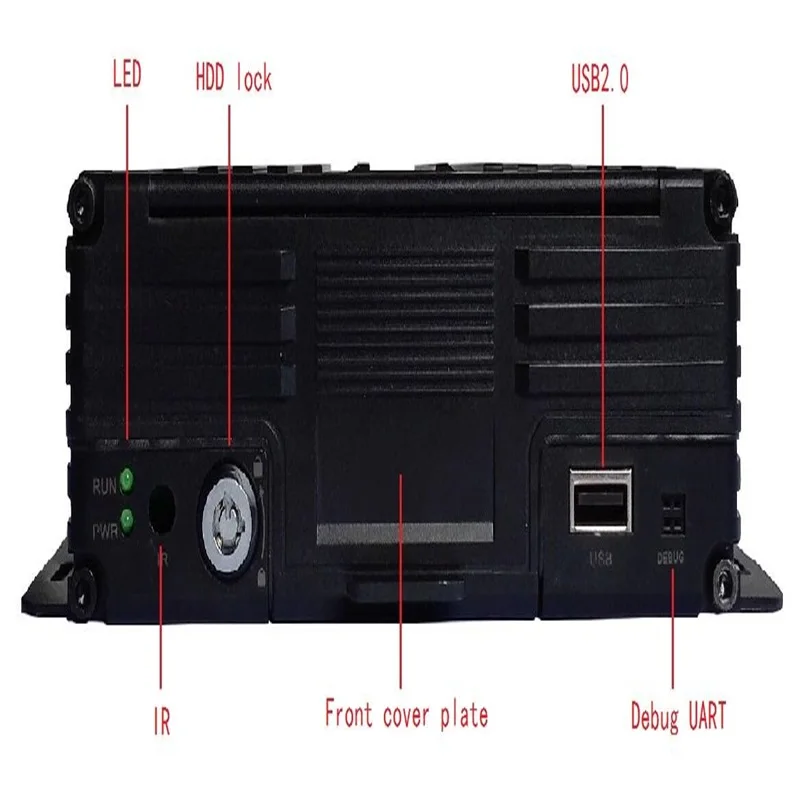

LED Indication
PWR/RUN
Disk lock
1
Debug port
1
Function extention

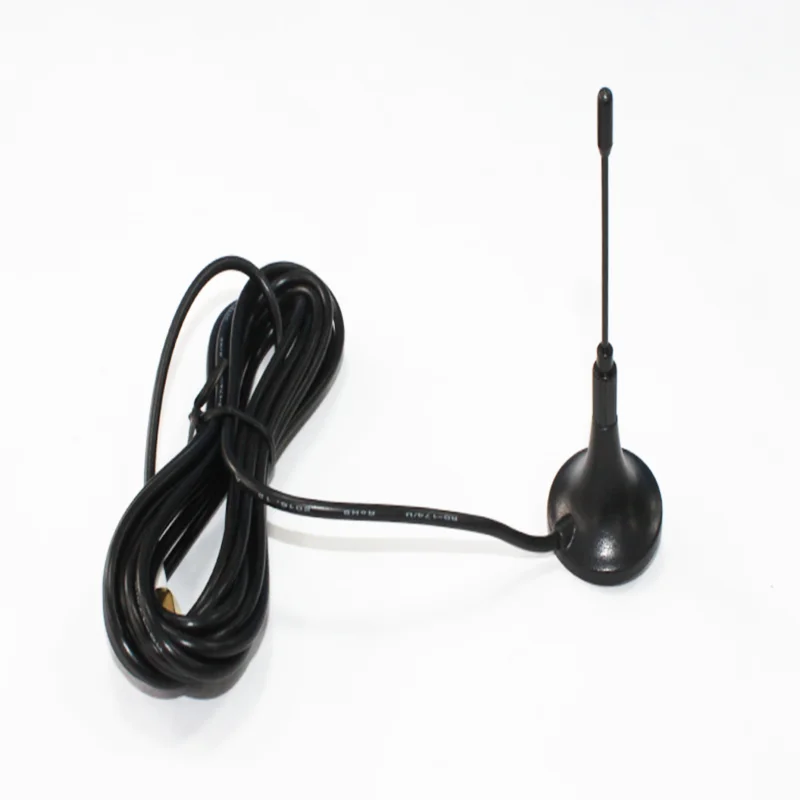

GPS/BD
Support detecting antenna Plug in/Unplug/Short circuit
3G/4G
Supports CDMA/EVDO/GPRS/WCDMA/FDD LTE/TDD LTE
WIFI
802.11b/g/n, 2.4GHz
Others

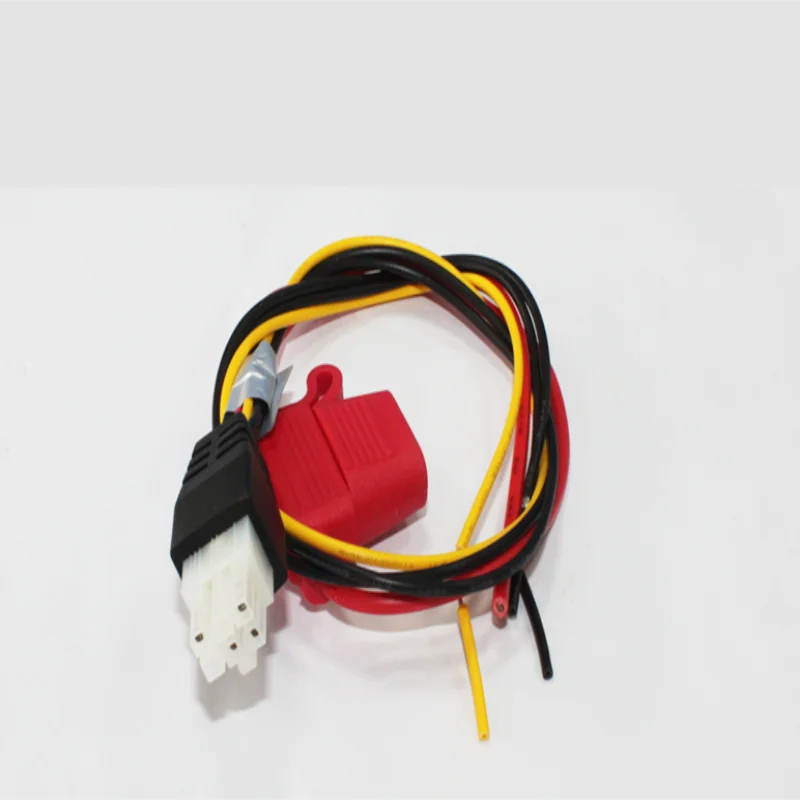

Power input
8~32V DC
Power output
5V 300mA
Power consumption
Standby 3mA
Maximum consumption 30W @12V 2.5A @24V 1.25A
Working temperature
-20 --- 70℃
Storage
1080N 1.2G/h/channel
720P 1G/h/channel
960H 750M/h/channel
Dimension
162mm*180mm*50.5mm

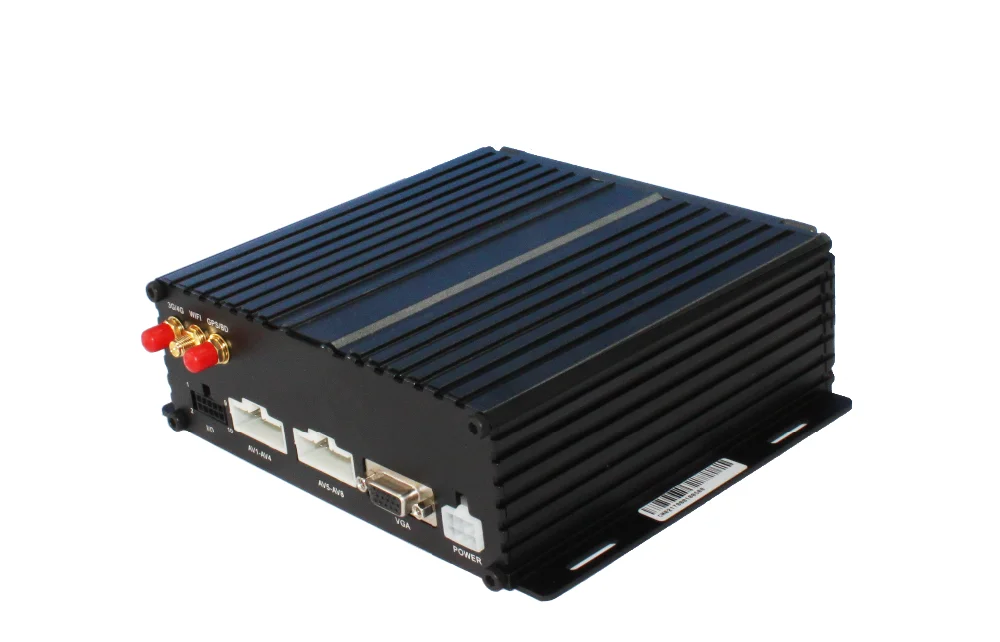

FEATURES:
Built-in high performance Hisilicon chipsets, coded with H.264 standard, high compression rate and image Qulity:
8CH AV Inputs with AHD 1080N/720P/960H/D1/CIF optional, 1CH synchronized AV output, 1CH VGA output
8CH local recording with 1080N resolution in real time
Power:
Professional In-Vehicle power design,8-32V DC Wide Voltage Range
Multi protection circuits like under-voltage, short, reversed plug-in
Smart power management system, shutdown under low voltage, low consumption
Data Storage:
Special file management system to encrypt and protect the data
Proprietary technology to detect the bad track of the hard drive which can make sure the continuity of video and long service life of the hard drive
Built-in ultracapacitor, avoid data loss and sd card damage caused by sudden outage
Support 2.5 inch HDD/SSD, maximum 2TB
Support SD card storage, maximum 256GB
Support hard disk heating
Transmission Interface:
Support 3G/4G transmission, LTE/HSUPA/HSDPA/WCDMA/EVDO/TD-SCDMA
Support GPS/BD optional, high sensitivity, fast positioning
Support wireless download by WiFi, 802.11b/g/n, 2.4GHz
