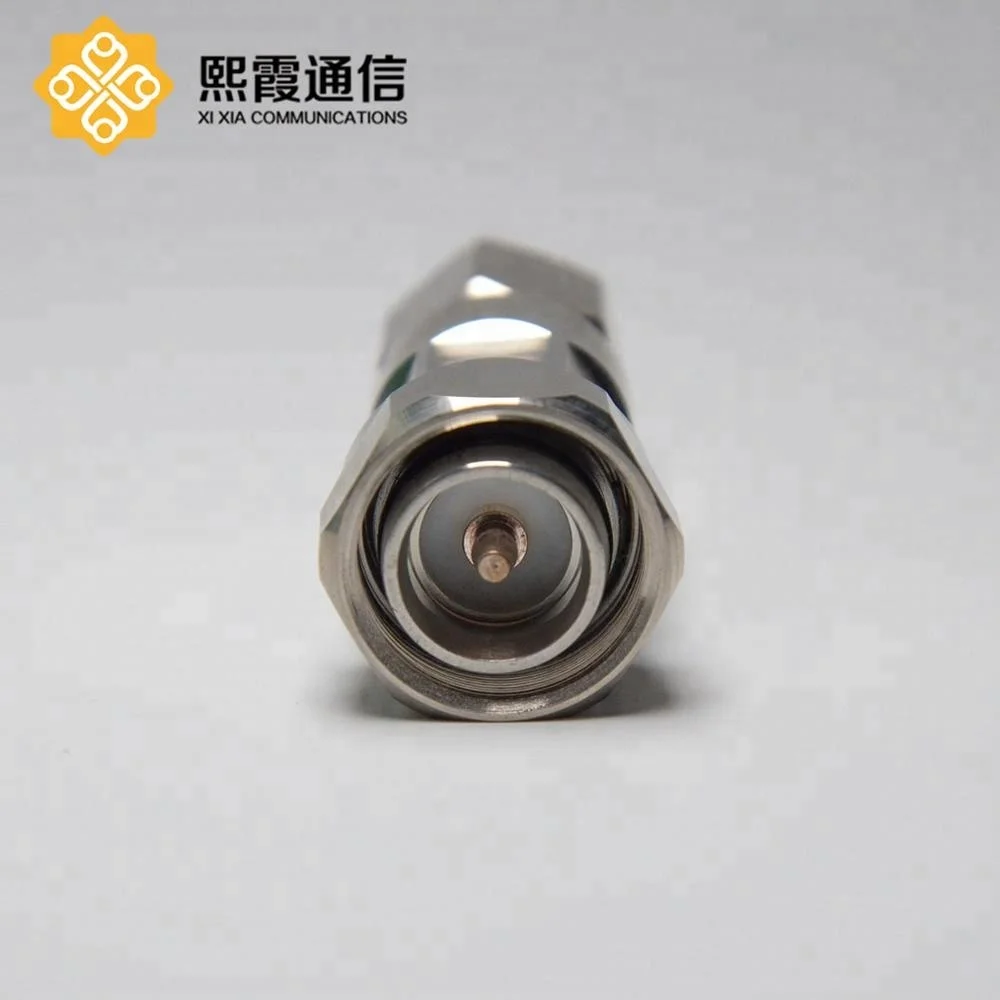

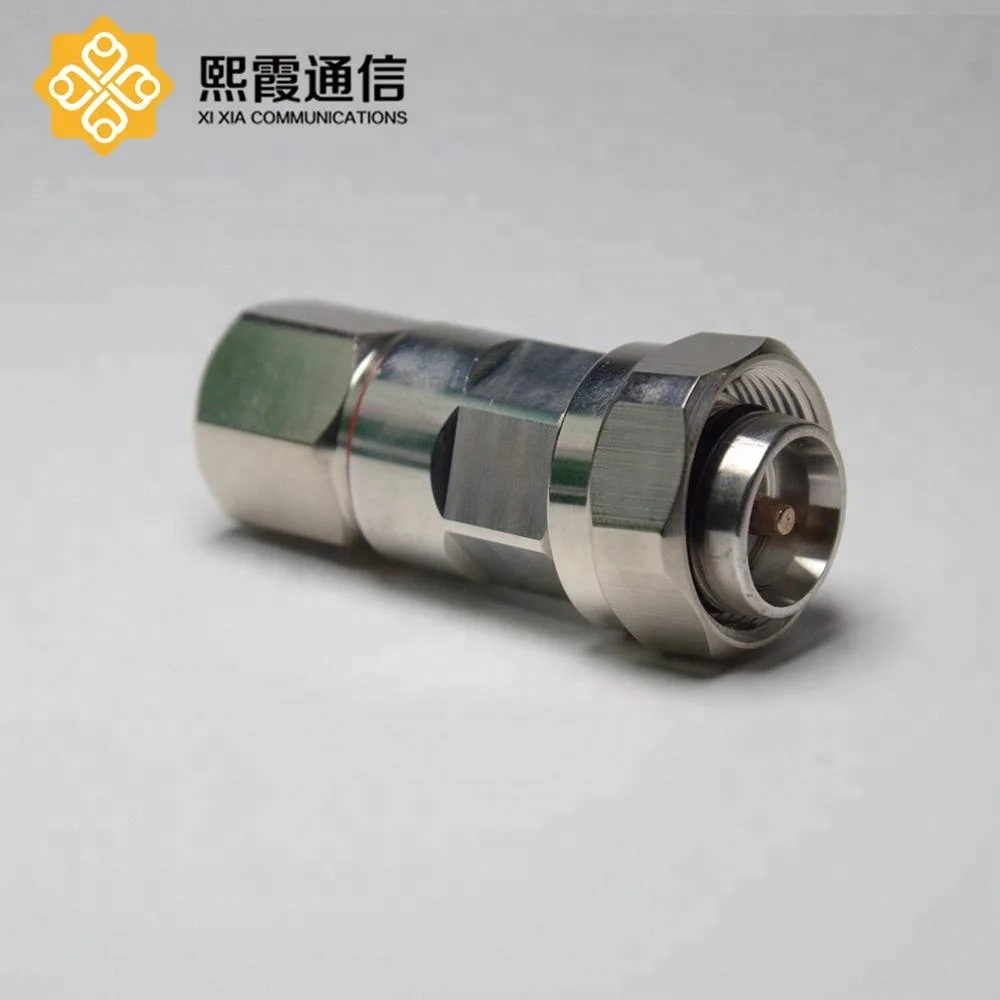

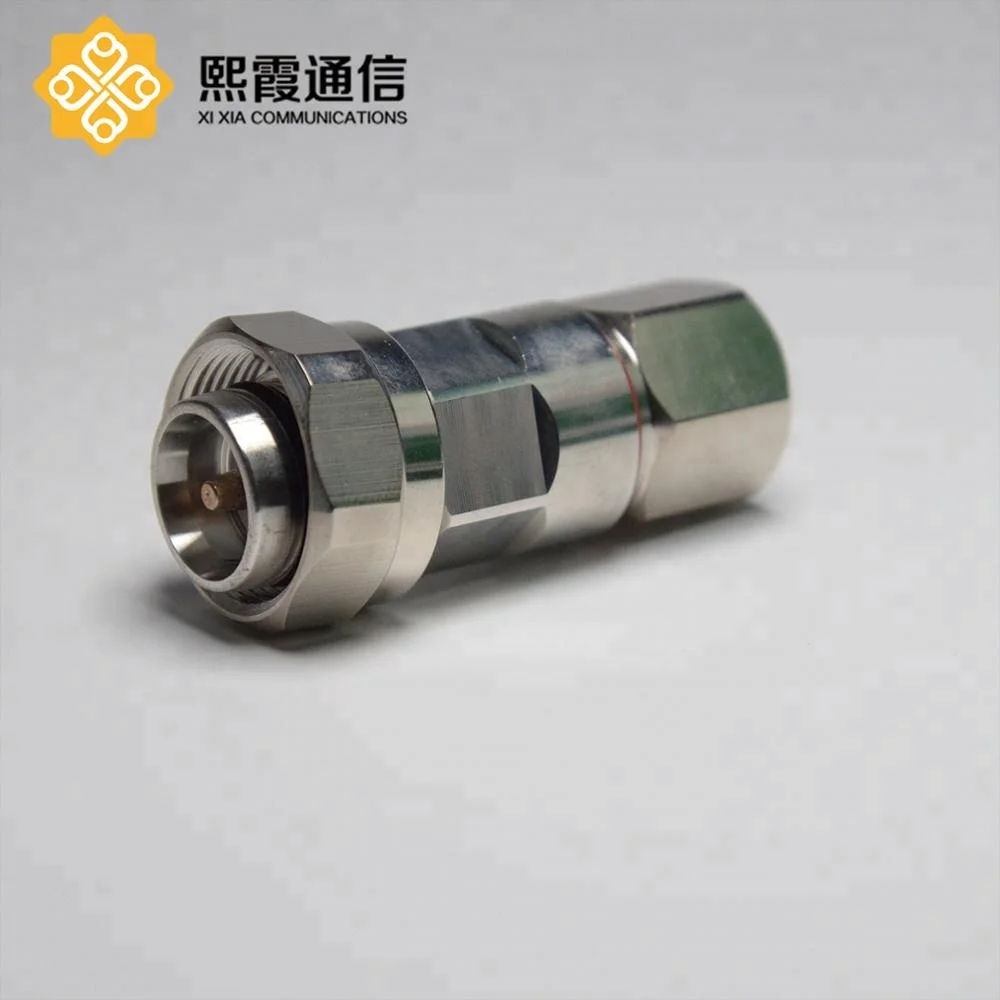

4.3 10 Mini DIN Male connector copper Connector 1/2' Super Flexible feeder cable
- Category: >>>
- Supplier: Jiangsu Xixia Communication Technology Co. Ltd. [Jiangsu China]Jiangsu
Share on (60789268701):
Product Overview
Description
OVERVIEW
Quick Details
| Place of Origin: | Jiangsu, China (Mainland) | Brand Name: | XIXIA |
| Model Number: | Mini din | Type: | Mini din |
| Application: | RF | Gender: | Male |
| Product Name: | 4.3-10M-9 | Color: | Argent/Golden |
| Material: | Brass | Certificate: | ISO9001/CE/ROHS/FCC |
| Connector type: | mini din | Plating: | Nickel /Golden Palting |
| MOQ: | 1 Piece | ODM/DEM: | Offered |
| Insulation Resistance: | ≥ 10000 MΩ | Temperature Range: | -40°C to +85°C |
Packaging & Delivery
Packaging Details: 1 piece in one plastic bag.
2 100 pieces in one paper carton.
3 Clear Plastic Bag/ Standard Export Carton.
4 According to customers requirement.
Delivery Time: 5-7 days
PRODUCT DESCRIPTION

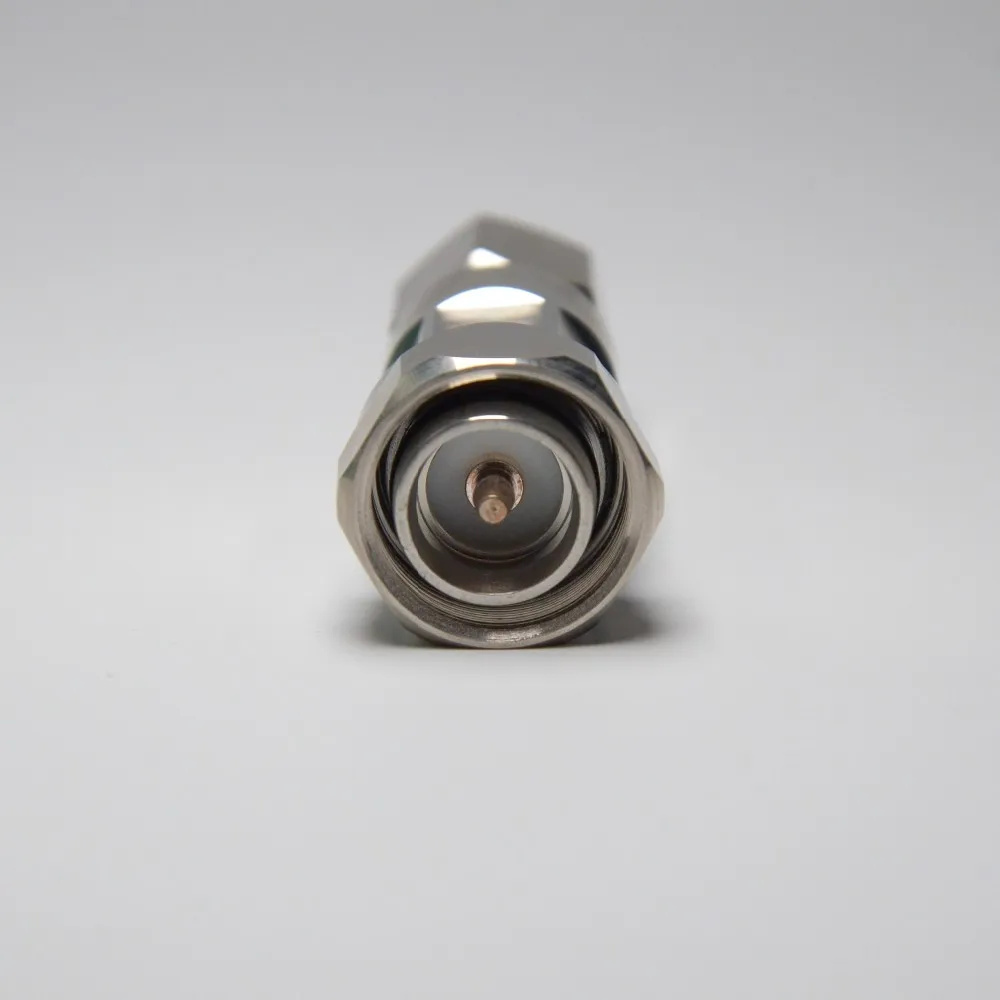

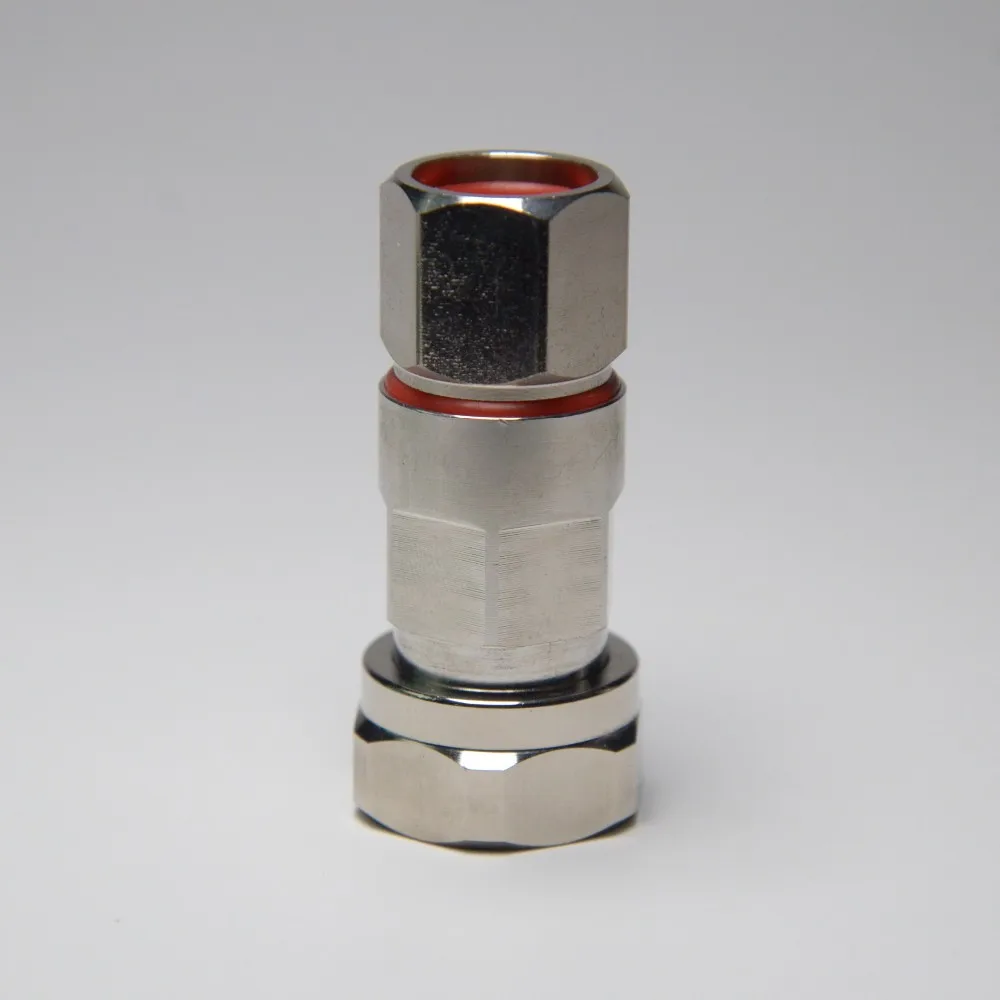

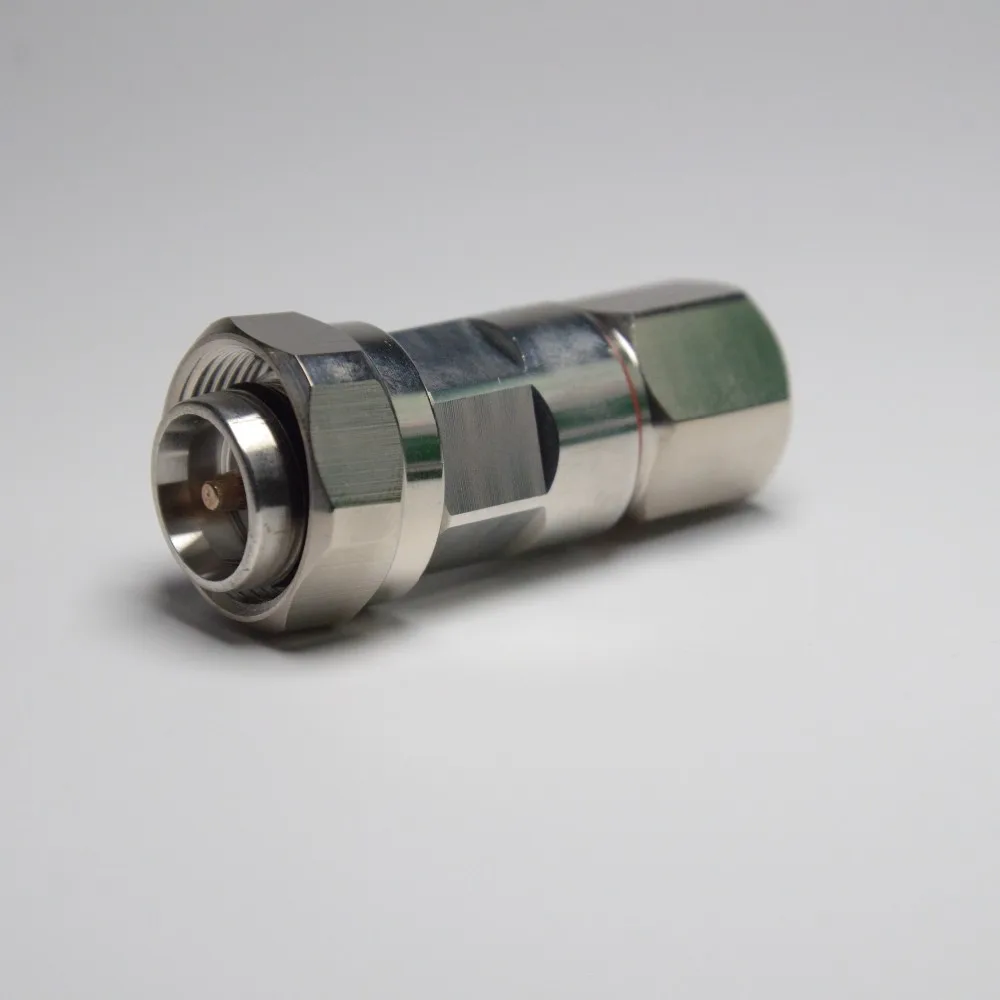

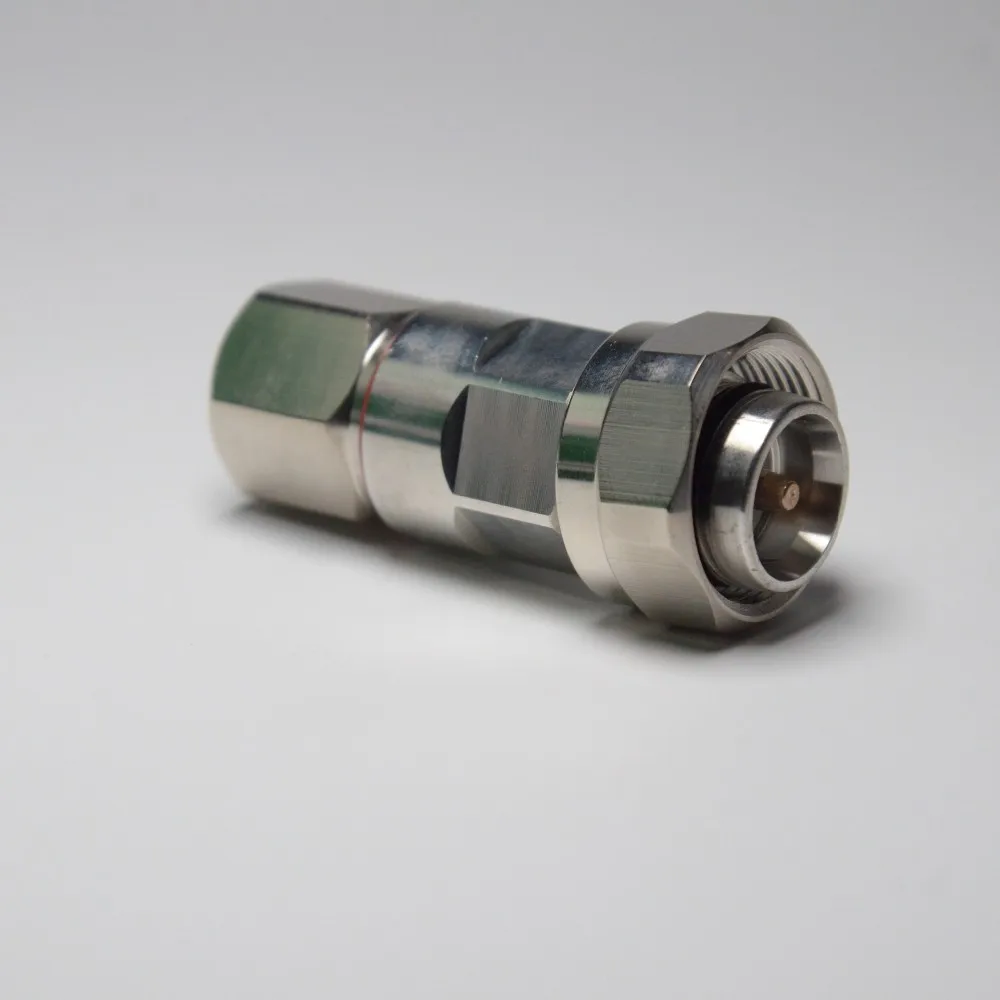

| Mini DIN 4.3/10 Straight Male Connector for 1/2" Super Flexible RF Cable | |||
| Inner Conductor Pin | Brass / Silver Plating | ||
| Inner Conductor Socket | Tin Bronze / Silver Plating | ||
| Insulator | PTFE/TPX | ||
| Body & Outer Conductor | Brass / Trimetal Plating | ||
| Gasket | Silicon Rubber | ||
| Characteristics Impedance | 50 Ohm | ||
| Frequency Range | DC~6GHz | ||
| Insulation Resistance | ≥10000MΩ | ||
| Dielectric Withstanding Voltage | 2500V rms | ||
| Center contact resistance | ≤1.0 mΩ | ||
| Outer contact resistance | ≤1.0 mΩ | ||
| Insertion Loss | @3 GHz | ≤0.10dB | |
| VSWR | @0.8-1.0 GHz | ≤1.10 | |
| @1.7-2.5 GHz | ≤1.10 | ||
| @2.5-3.0 GHz | ≤1.15 | ||
| PIM3 (2*20W) | ≤-155dBc | ||
| Durability (matings) | ≥500 cycles | ||
| Mechanical Shock Test Method | MIL-STD-202, Method 213, Test Condition D | ||
| Vibration Test Method | MIL-STD-202, Meth. 204, Cond. A | ||
| Temperature Range | -40°C to +85°C | ||
| RoHS | Compliant | ||
| Sealing Class | IP68 | ||
Note: We can provide other materials and plating specifications according to customers'requirements.
Lowest price 4.3/10 Male electric rf connector for 1/2'' super flex coaxial cable
☀ RF coaxial cable assembly (7/16 DIN/N/Mini DIN/4.3-10/OEM/ODM) .
☀ We focus on coaxial assemblies.
☀ Our custom RF cable assemblies are built-in and shipped worldwide.
☀ RF cable assemblies in 50 ohms can be ordered using the following connector types such as 7/16 DIN, BNC, FME, MCX, MMCX, N, QMA, SMA, SMB, SMC, SMP, SSMB, TNC, UHF, U.FL and 75 ohms cable assemblies can be made with the following 75 ohms connectors such as BNC, F, N, SMB, SMC, TNC and mini SMB .
☀ RF cable assemblies includes: RG141/RG142/RG174/ RG178/RG179/RG180/ RG187/RG196/RG213/RG214/RG218/RG219/ RG223/RG303/RG316/RG316-DS/RG393/RG400/RG401/RG402/RG405/RG58/U
☀ RF cable assemblies can be produced with many different connector types and custom lengths depending on your needs and applications.
☀ If you require a special RF cable assembly configuration not found here, you can create your own RF cable assembly configuration by calling our sales department.
OUR COMPANY
Factory Overview
Company Profile
Jiangsu Xixia Communication Technology Co.,Ltd.was founded in July,2006,located in Yixing City,Jiangsu Province,China.Xixia Communication is professional telecommunication products and devices provider.Products include connector,jumper,RF cable,antenna&accessories etc.
With our quality products,Xixia has already distributed its products to over 15 province in China and 16 different countries all over the world.
Our business philosophy is mutual cooperation and win-win solution.
We are sincere suppliers, by the good faith to win customers' trust in the world, protect the interests of the customers and can have a better and more long-term cooperation.
Factory Overview
Workshop Area:14000㎡
Ware-house Area:3000㎡
Out-door finish product sites Area:5000㎡
License & Patents
ISO 9001 Certificate
GJB 9001 Certificate
Out-door finish product sites Area:5000㎡
Let the quality become the sole measure of company strength.We are using the latest production technology, standardized management, strict censorship, standard packing, in order to meet the maximum needs of customers as the goal.
License & Patents
ISO 9001 Certificate
GJB 9001 Certificate
4.3/10 Connector Authorized Letter
PACKAGING & DELIVERY
Packaging:
The company strictly according to the standard process for packaging products, ensure transportation safety.We support customers a variety of customized requirements, according to customer requirements for packaging.
Delivery:
Our cooperation and professional international logistics company, quick safe, cheap, let the customer trust.
Logistics service:
DHL/TNT/UPS/FEDEX/ARAMEX.ETC.
FAQ
Q:what's your company MOQ?
A: In generally, if use customer brand, we will ask at least 500~800pcs, this we can negotiate.
Q: What's your delivery time?
A: This please ask our stock in first, products can send out once receive your deposit.If use customer brands, we will take a 3-5days to prepare materials and mass production.
Q: Can your company accept customize?
A: Welcome OEM & ODM.
Q: How do you solve after sale service?
A: This please ask us for technical support if you have workers know how to repair.If do not have engineers, please send back the items, we can repair the items for you.
Q: Can you send a sample for us to develop?
A: Yes, we can. Sample can send out once you ask for it, but will ask a sample fee. Sample fee will return back in future order.
