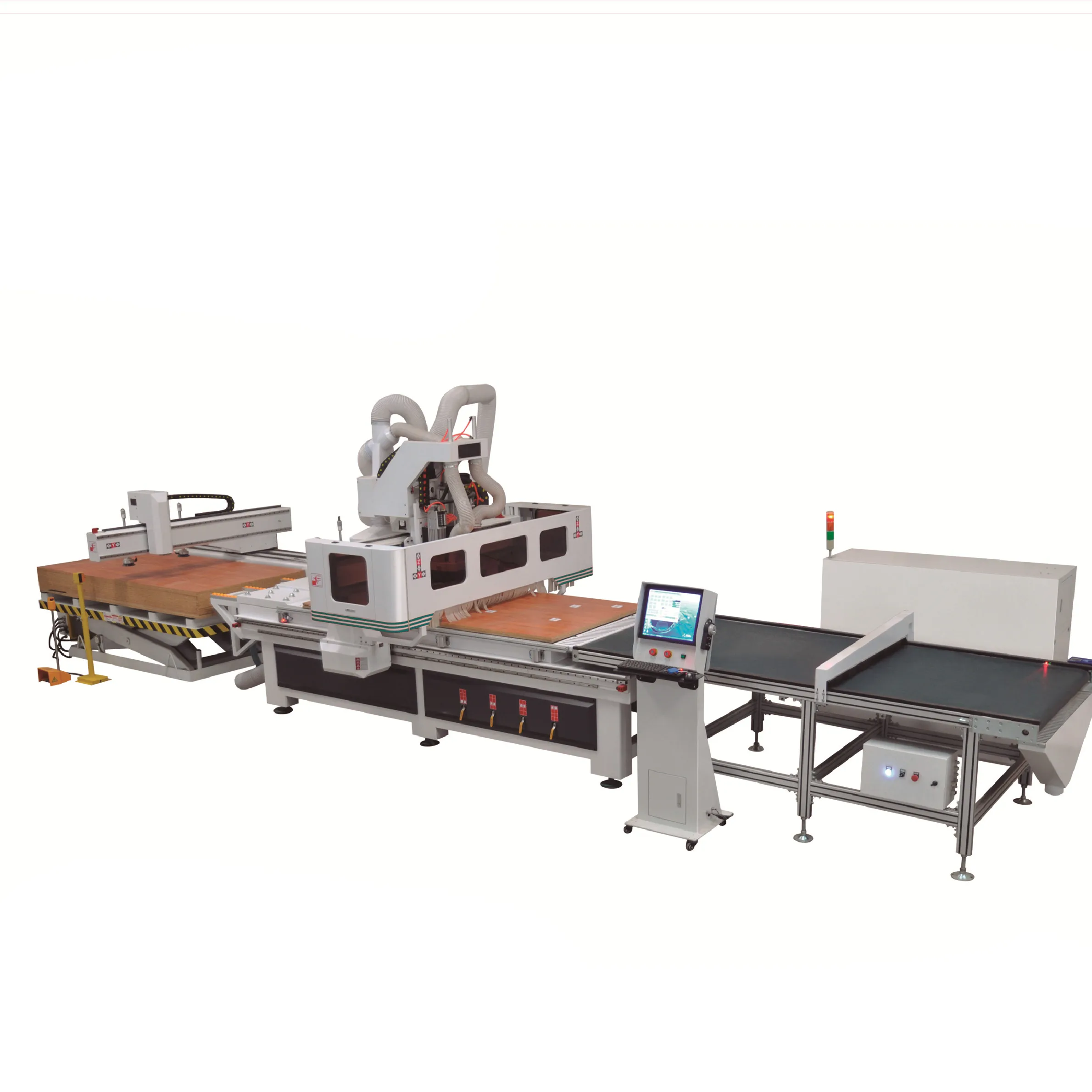

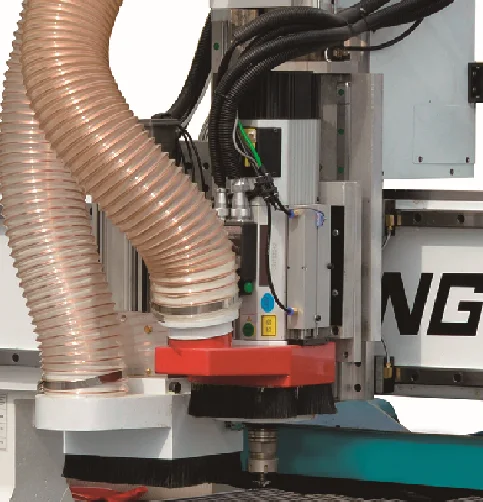

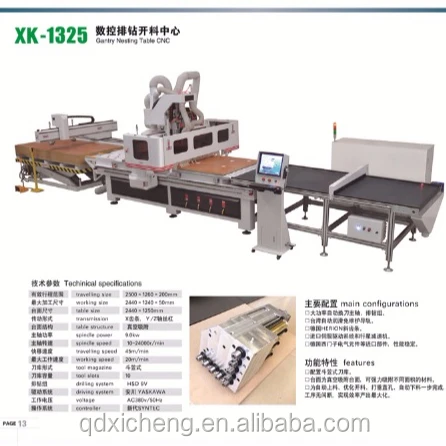

Cabinet CNC 1325 Gantry Nesting CNC/CNC Router/ woodworking machine
- Category: >>>
- Supplier: Qingdao Xicheng Weiye Machinery Equipments Co. Ltd.
Share on (60789349649):
Product Overview
Description
Product Description
Working area | 1300*2500*210mm |
Repeat positioning accuracy | 0.03 mm |
The worktable | Vacuum worktable |
Shaft drive mode | XY axis rack drive, Z axis screw drive |
Shaft power mode | servo motor (Z axis with brake function) |
Max. Travel speed | 60m/min |
Max. Working speed | 30m/min |
Spindle power | 4.5kw*2 |
Spindle speed | 18000 rpm |
Resolution | ±0.05mm |
System resolution | ±0.001mm |
Run command | G code |
Vacuum pump | 7.5 kw |
Weight | 4000kg |
Cabinet CNC-X6 Woodworking CNC/CNC Router/ woodworking machine

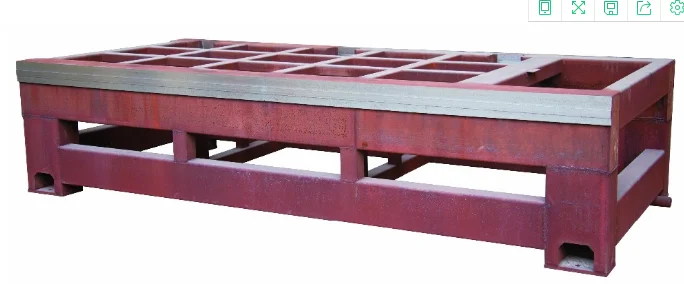

Annealing body
machine all under same hardness , never change in shipping or using

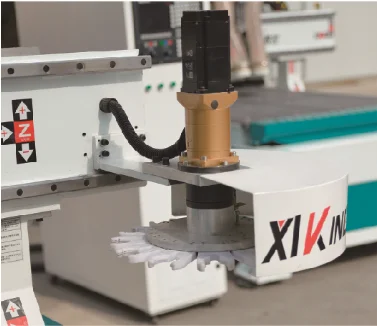

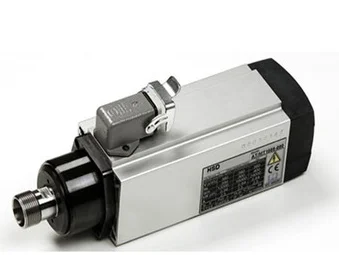

High speed spindle
Original Italy HSD spindle , precision , low noise and long service time

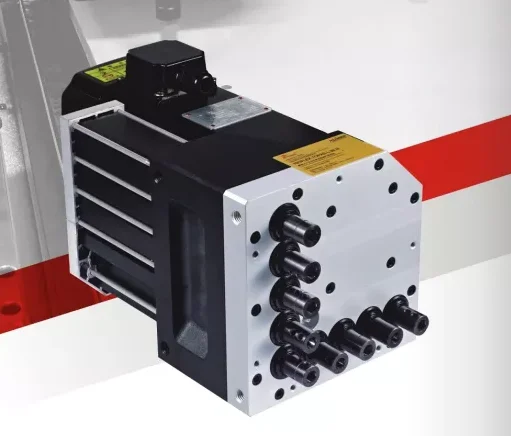

Driller
Using high level drilling unit supplier TAIWAN PROTEAN brand, 5+4 arrangement, high working speed and long life, easy operating.

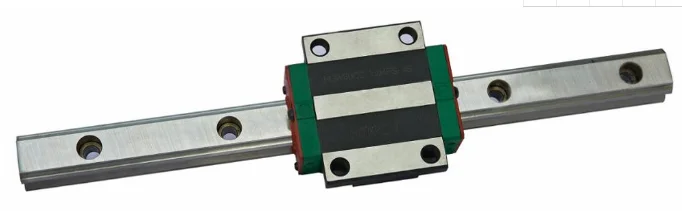

Guide Rail
Parallelism and high precision
The slider and the guide rail are interchangeable, saving cost
High rigidity in all directions
Reduce friction
The slider and the guide rail are interchangeable, saving cost
High rigidity in all directions
Reduce friction
Application
Wardrobe, wine cabinet, panel furniture,Cabinet door inside corner processing, process mini words for acrylic materials, and aluminum industrial panel processing

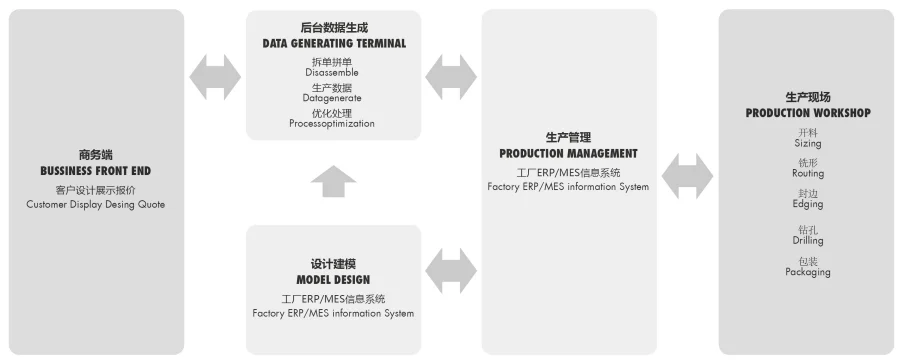

Software process: PERSONILIZED DESIGN
Convenient operation:adopt advanced USB interface DSP operation system, completely offline working, DSP system can be start and stop automatically.
Performance worry-free: the machine has broken point continued carving, power back continues carving, processing time prediction functions, it is the real user-friendly design.
Performance worry-free: the machine has broken point continued carving, power back continues carving, processing time prediction functions, it is the real user-friendly design.

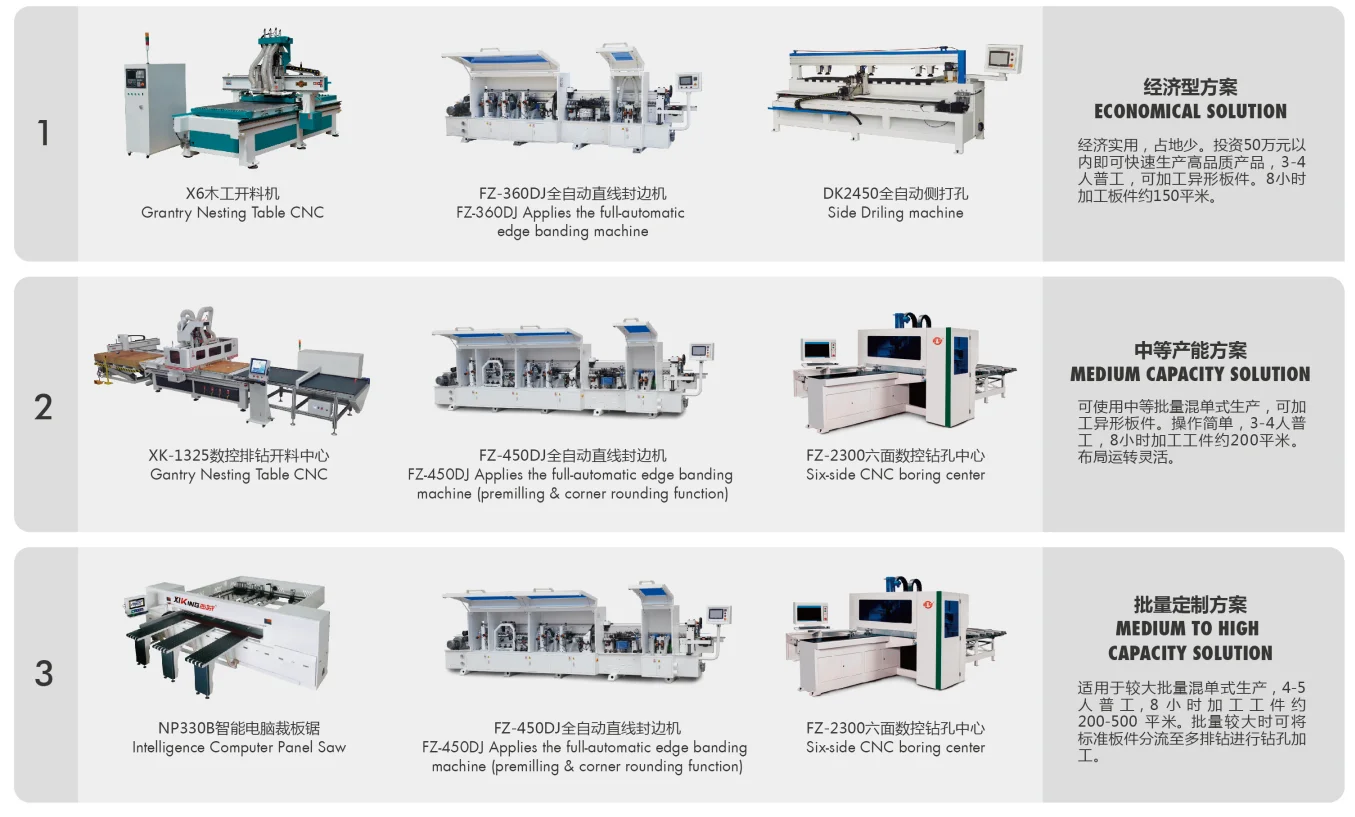

Solution:
Three solutions can be choosen base the different quantity of your production.
Features:
* Standard nesting CNC lathe has been enhanced processing, the structure is sturdy and durable.
* Imported spindle and drillunit (boring head) from Italy, racks from German, linear rails from Taiwan, with stable performance.
* Adopt two layers of grid type multi holes vacuum working table with very strong adsorption.
* Compared with traditional cutting mode (panel saw), it can save a lot of labor Only need one person to operate, even one person
can operate several devices. Simple operation and high efficiency.
* With automatic loading, optimally intelligent cutting, fast vertical drilling, automatic unloading, all in once time.
Uninterrupted processing achieves output maximum efficiency.
* Optional double working tables. Two working tables alternate work, save the feeding time and improve processing efficiency.
* Imported spindle and drillunit (boring head) from Italy, racks from German, linear rails from Taiwan, with stable performance.
* Adopt two layers of grid type multi holes vacuum working table with very strong adsorption.
* Compared with traditional cutting mode (panel saw), it can save a lot of labor Only need one person to operate, even one person
can operate several devices. Simple operation and high efficiency.
* With automatic loading, optimally intelligent cutting, fast vertical drilling, automatic unloading, all in once time.
Uninterrupted processing achieves output maximum efficiency.
* Optional double working tables. Two working tables alternate work, save the feeding time and improve processing efficiency.
Related Products
Packing&Shipping
After Sales Service
Service:
Equipped with professionals to give a detailed and comprehensive explanation of the products and answer the doubts and questions
that are raised by the customers about the products. * Free on-site processing demonstrations, making samples and visiting old
local users' production plants
that are raised by the customers about the products. * Free on-site processing demonstrations, making samples and visiting old
local users' production plants

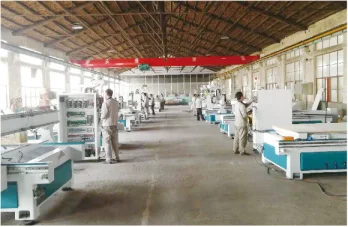

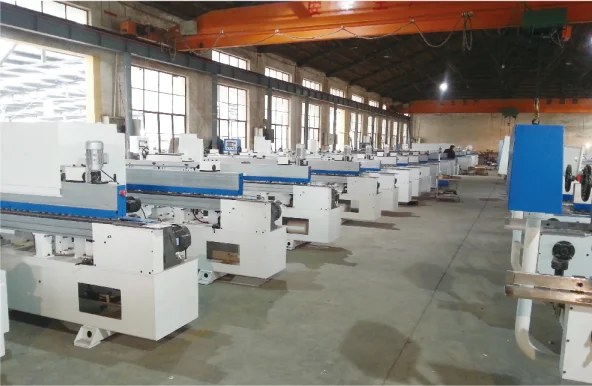

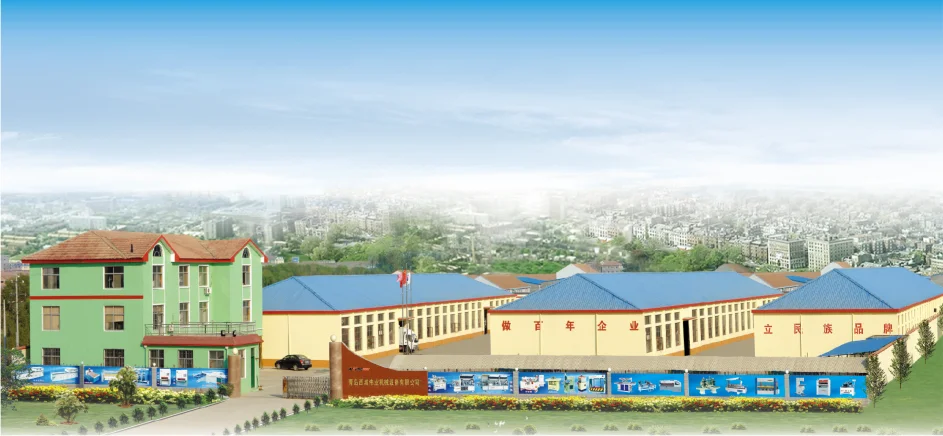

Company Introduction
