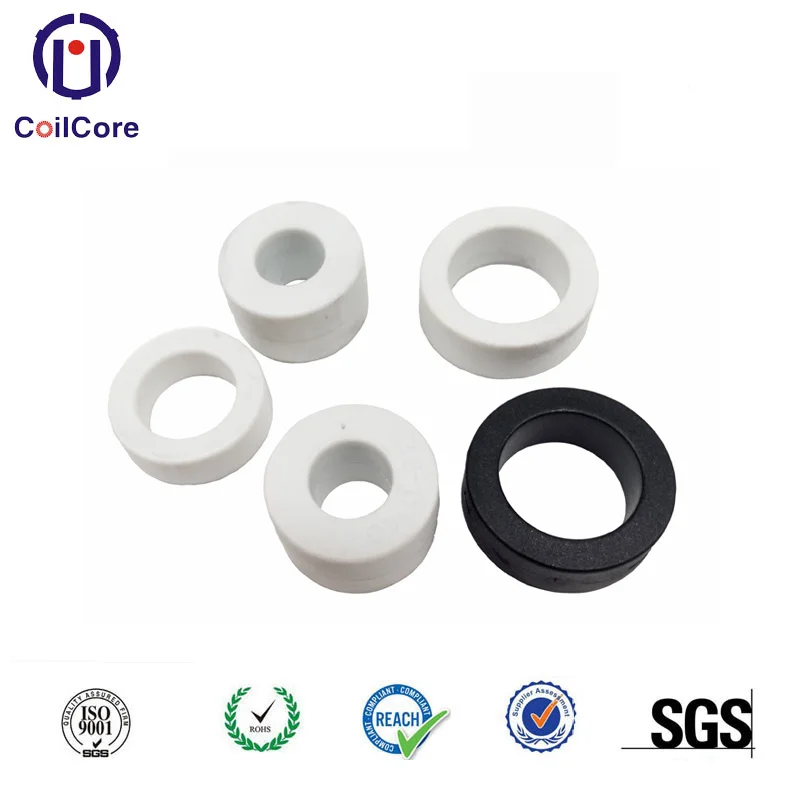

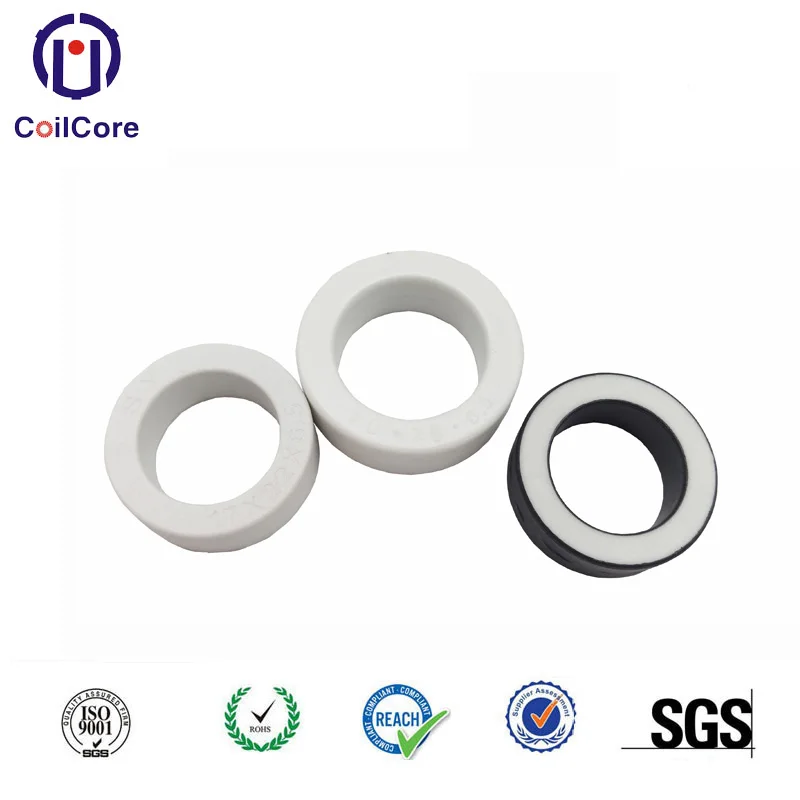

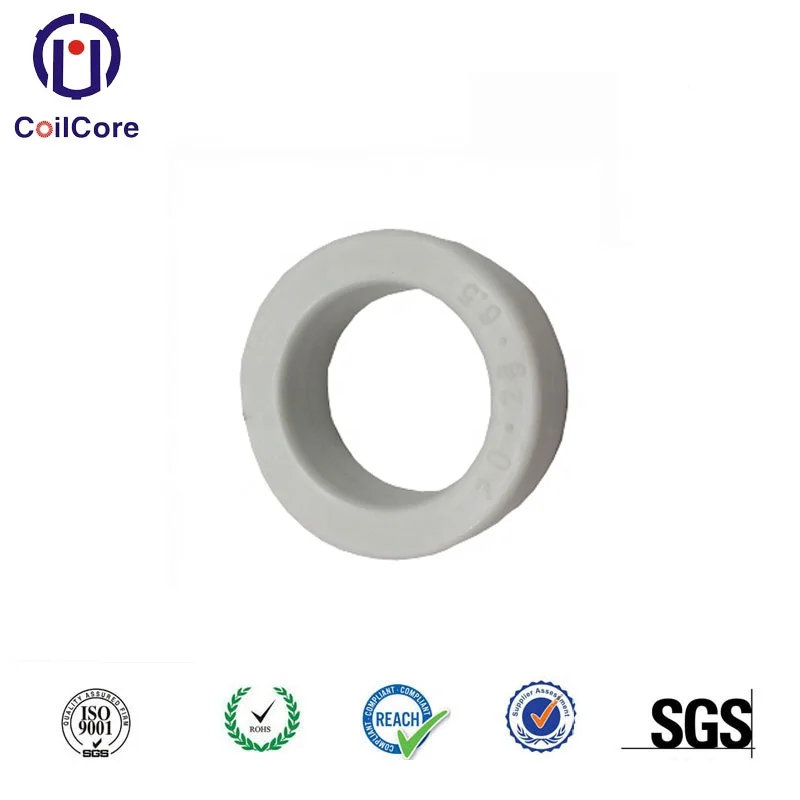

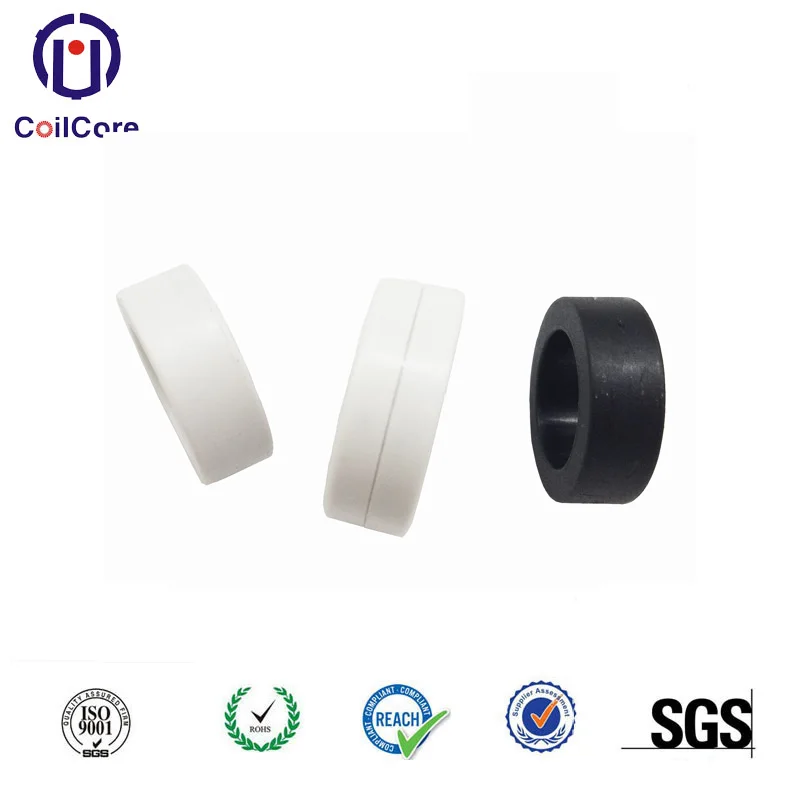

Toroidal Amorphous Nanocrystalline Composite Core for DC Immune CT

Product Overview

Description





DC Immune CT Core is widely used for DC resistent field, which guarantee cores will not be saturated when the original side passes a certain dc component. Currently, we have TWO Solutions for DC Immunity -- Co-Base Amorphous Single Core; Amorphous Nanocrystalline Composite Core.



 A. Amorphous & Nanocrystalline Dual Core for Energy Meter - Composite Cores

Key Properties:

· Unique patent hold, DC current immunity composite cores with amorphous & Nanocrystalline Cores together.

· Strong immunity for DC current

· Applicable current range 1.5-200A

· Good temperature stability

With competitive price & good quality Standard cores dimensions, applicable CT accuracy, Maximal DC current immunity range:



B. Co-base Amorphous Core for Energy Meter - Single Cores

Key Properties:

· Made by single magnetic materials- Co-base Amorphous, with constant permeability (µ=1400-2000)

· Strong immunity for DC current, applicable current 1.5A - 200A

· High linearity, high accuracy class, applicable transformer accuracy range 0.5-1.0 Class

· Good temperature stability

· Core size saving by Volume & Weight



Typical Parameter
Material	Co-Base Amorphous
Saturation flux density	Bs = 0.55 T
Initial Permeability	µo =2x104 Gs/Oe
Curie Temperature	Tc =210°C
Crystallization Temperature	210°C
Working Temperature	-40°C~+70°C
Tap Thickness	22-30µm
Saturation Magnetostriction	λs= <30x10-6
Density	ρ = 7.6 g/cm3



Standard cores dimensions, applicable CT accuracy, Maximal DC current immunity range:



We design & produce goods based on cients special drawing and specification, parameter needed including:

1-What is the rate current and max current at primary ?

2-Core size and hole of CT size

3-The accuracy of the transformer .
