ISO 4649 Din Abrader Abrasion Rubber Testing Machine
- Category: >>>
- Supplier: Quanzhou GESTER Instruments Co. Ltd.
Share on (60789403293):
Product Overview
Description
Product Overview
ISO 4649 Din Abrader Abrasion Rubber Testing Machine
It is used to determine wear performance test of materials like elastic material, rubber, tires, conveyor belts, conveyor belts, shoe soles.
Principle

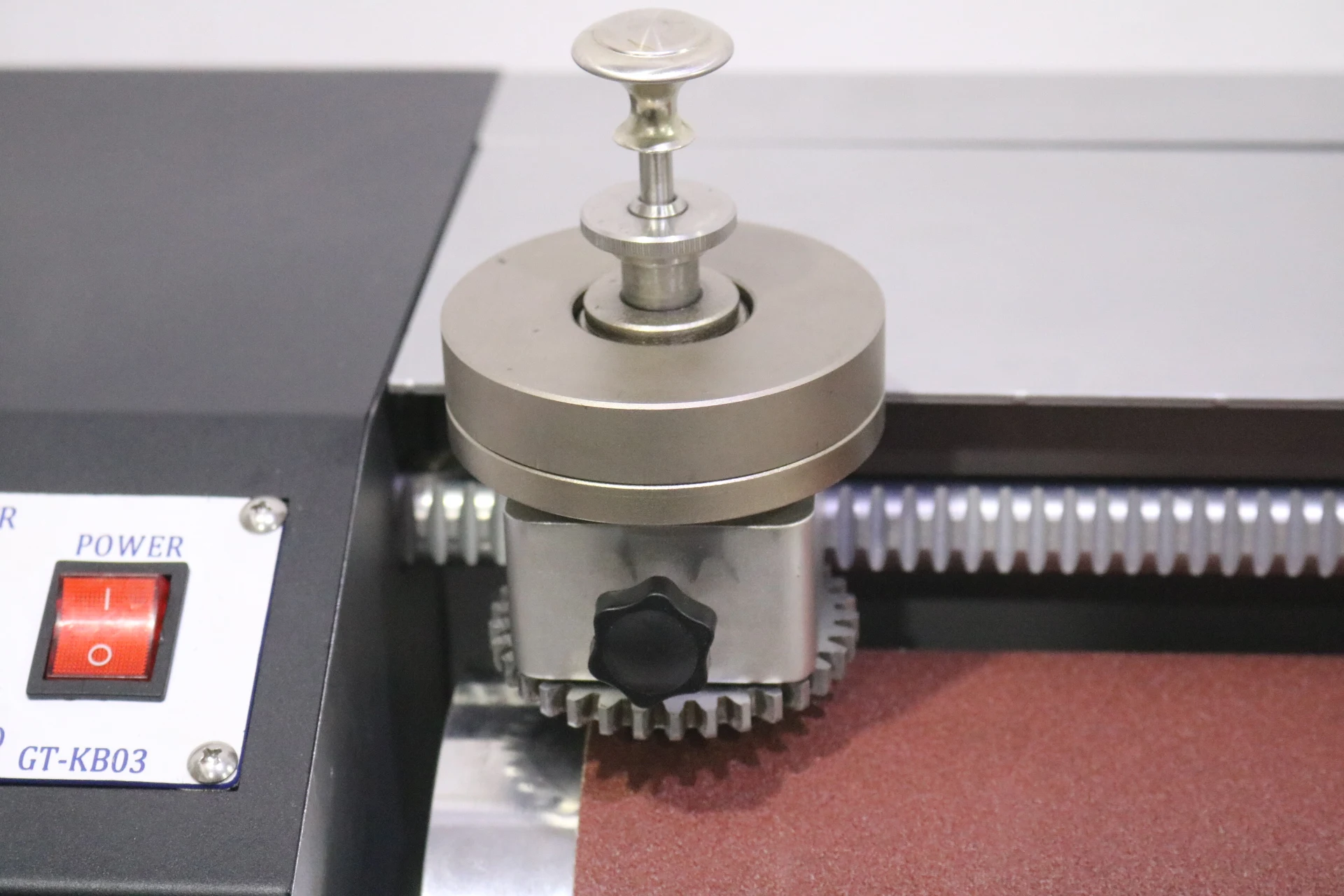

Under certain touching pressure and contact area, sample becomes a certain angle with sandpaper and determine its abrasion performance caused by a certain level of sandpaper. Pack sandpaper outside the surface of roller. The sample is pressed against the roller with sandpaper, which makes sample lateral moving along roller. Abrasion is caused under the other side of cylindrical specimens measuring the mass loss of sample value and count the wear amount by sample density.
Standards
DIN-53516, JIS-K6369, JIS K6264-2,GB/T 20991 section 8.3,GB/T 20265, GB20266-2006, GB/T 9867, EN ISO 20344 section 8.3, AS/NZS 2210.2 section 8.3, ISO 4649, BS903-A9 Method A, ASTM D5963, ISO20871, QB/T2884, EN 12770
DIN-53516, JIS-K6369, JIS K6264-2,GB/T 20991 section 8.3,GB/T 20265, GB20266-2006, GB/T 9867, EN ISO 20344 section 8.3, AS/NZS 2210.2 section 8.3, ISO 4649, BS903-A9 Method A, ASTM D5963, ISO20871, QB/T2884, EN 12770
FEATURE
ISO 4649 Din Abrader Abrasion Rubber Testing Machine
1. Body paint baking processed, easy for maintenance.

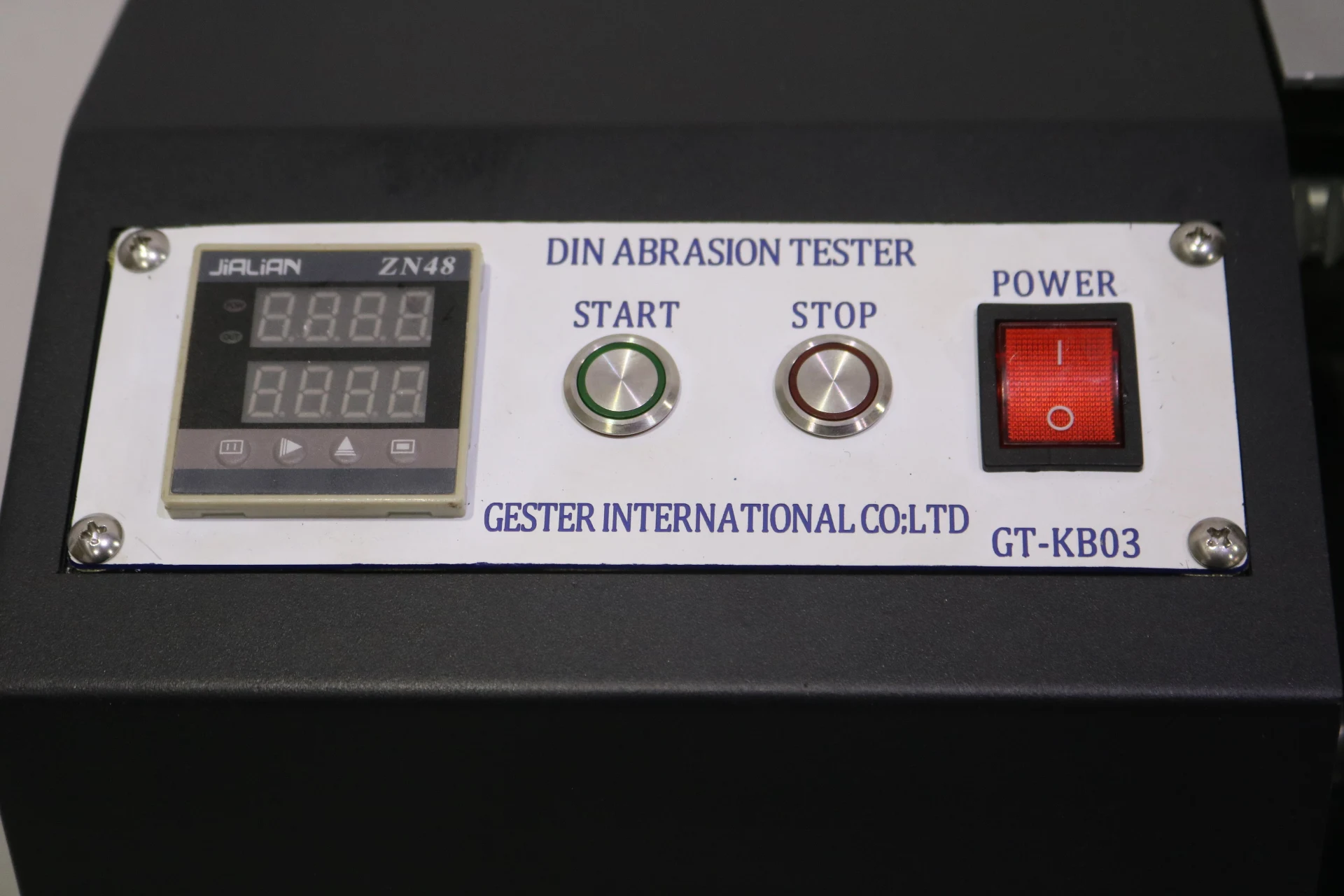

2. Equip with digital counter, automatically stop after test finished.
2. Equip with digital counter, automatically stop after test finished.
Right elevation

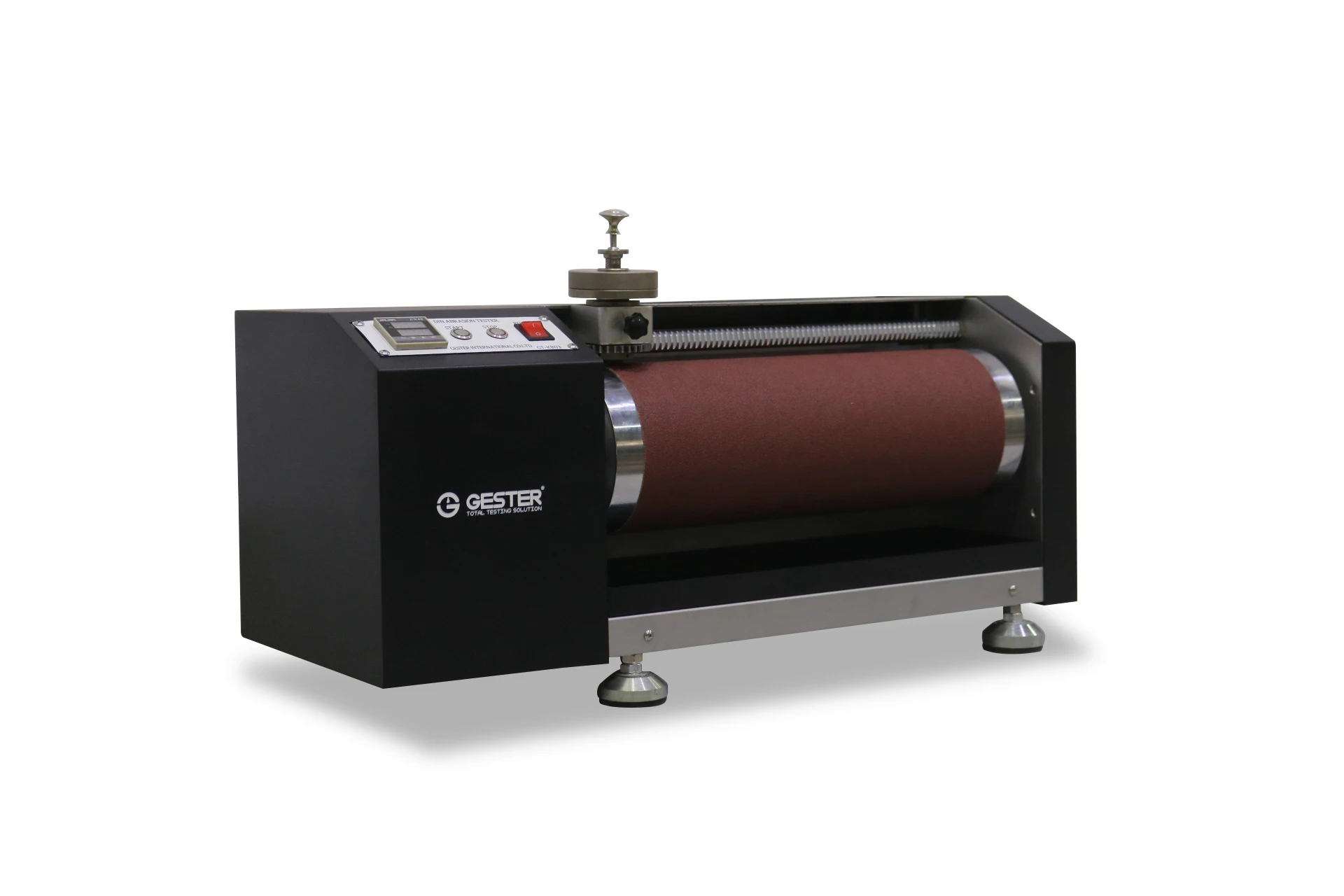

Left elevation

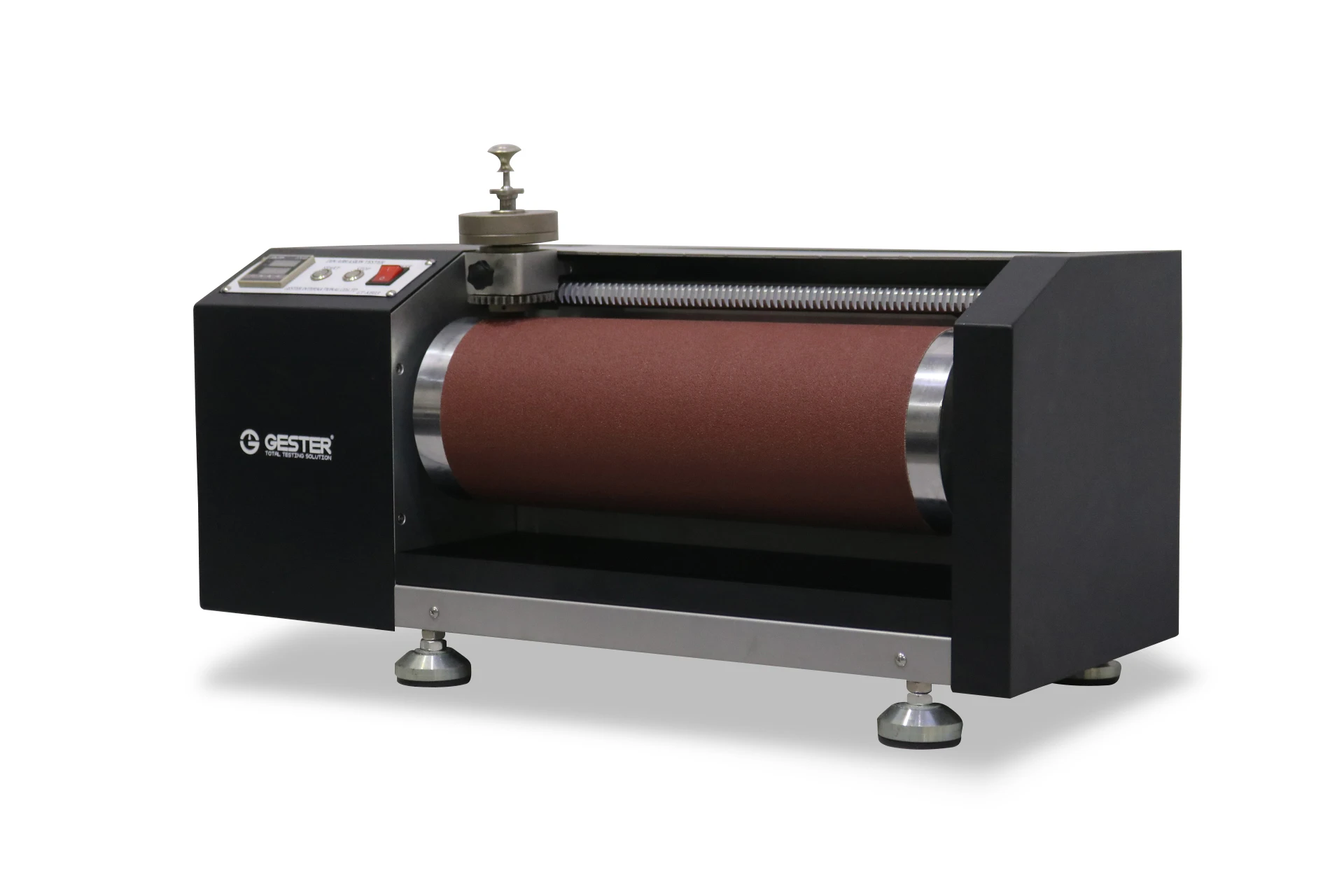

Front elevation
PRODUCT SPECIFICATIONS
Model | GT-KB03 | |||
Diameter of wear wheel | 150mm | |||
Specimen dimension | ø16.2 mm x thickness 6-10 mm | |||
Specimen moving speed | 4.2 mm/r | |||
Weights | Holder 2.5N, can be used arbitrarily with optional accessory 2.5N, 5N (each for one) | |||
Wear wheel speed | 40±1rpm | |||
Inclination angle | 3°, Test piece support shaft of test piece becomes vertical angle with roller. | |||
Grit size of sandpaper | #60 | |||
Roller length | 460mm | |||
Wear stroke | 40m | |||
Power supply | 1∮AC 220V 50/60HZ 3A | |||
Dimensions (L x W x H) | 700 x 300 x 300 mm | |||
Weight | 55kg | |||
Accessories | ||||
Standard accessories | 1pc | 2.5N weights | ||
1pc | 5N weights | |||
1pc | P60# standard abrasive paper | |||
1pc | Standard cutting die | |||
1pc | Metal blob(Grinding head) | |||
1pc | 2mm Guage | |||
1pc | Power line | |||
Option accessories | Optional | GT-G203H Electronic balance (210g,accuracy 1mg) | ||
Optional | Standard rubber | |||

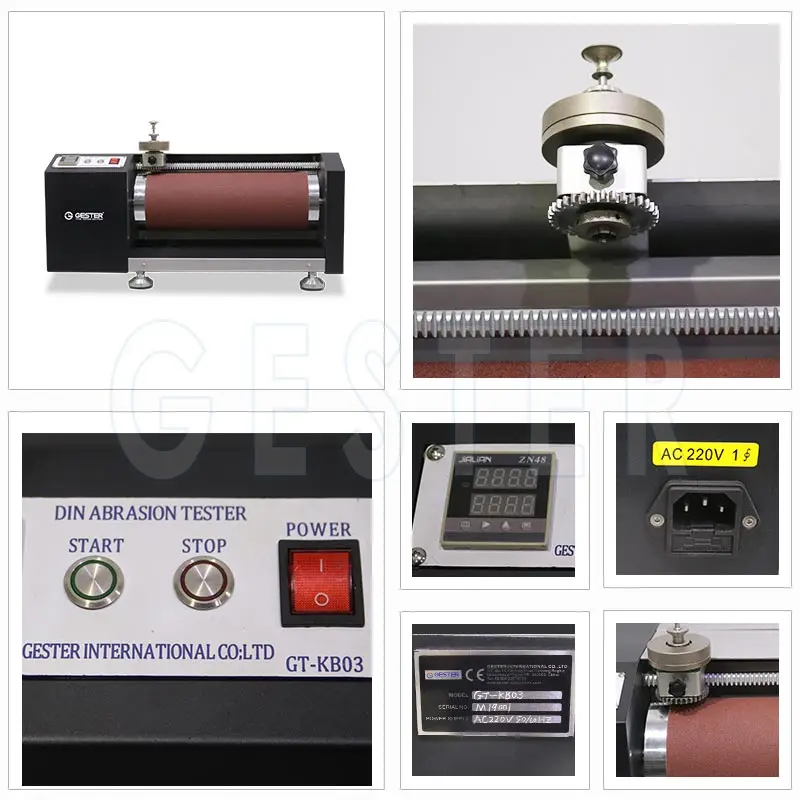

PRODUCT DETAILS IMAGE
