Product Overview
Description
Product Description

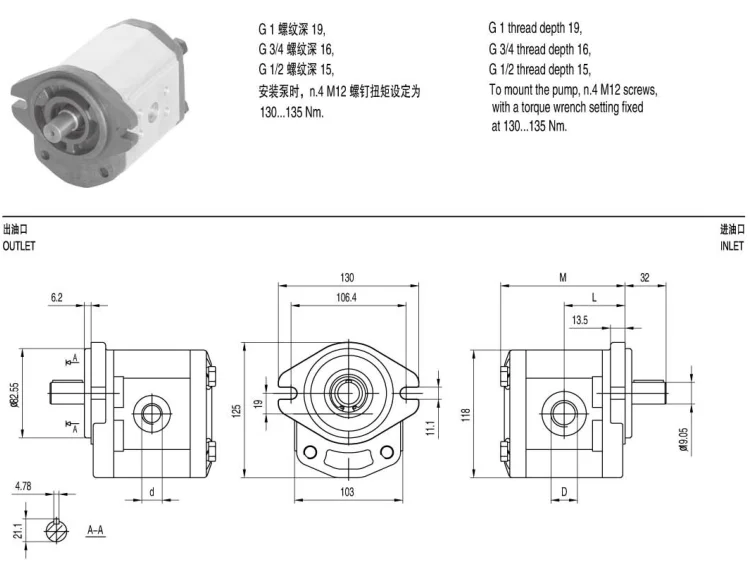

Technical information For BHP2.6A1 hydraulic gear pump
| Type | Displacement | Max.pressure | Max.speed | Min.speed | ||
| P1 | P2 | P3 | ||||
| cm3/rev | bar | bar | bar | r/min | r/min | |
| BHP2.6A1-D-6 | 6 | 250 | 280 | 300 | 4000 | 800 |
| BHP2.6A1-D-8 | 8 | 250 | 280 | 300 | 4000 | 800 |
| BHP2.6A1-D-10 | 10 | 250 | 280 | 300 | 4000 | 700 |
| BHP2.6A1-D-12 | 12 | 250 | 280 | 300 | 3500 | 700 |
| BHP2.6A1-D-14 | 14 | 250 | 280 | 300 | 3500 | 600 |
| BHP2.6A1-D-16 | 16 | 250 | 280 | 300 | 3500 | 600 |
| BHP2.6A1-D-19 | 19 | 250 | 280 | 300 | 3000 | 500 |
| BHP2.6A1-D-22 | 22 | 250 | 280 | 300 | 3000 | 500 |
| BHP2.6A1-D-25 | 25 | 250 | 280 | 300 | 3000 | 500 |
| BHP2.6A1-D-28 | 28 | 250 | 280 | 300 | 3000 | 500 |
| BHP2.6A1-D-30 | 30 | 230 | 250 | 260 | 3000 | 500 |
| BHP2.6A1-D-32 | 32 | 230 | 250 | 260 | 3000 | 400 |
| BHP2.6A1-D-36 | 36 | 200 | 230 | 250 | 2750 | 400 |
| BHP2.6A1-D-38 | 38 | 200 | 230 | 250 | 2750 | 400 |
| BHP2.6A1-D-40 | 40 | 170 | 190 | 210 | 2500 | 400 |
| BHP2.6A1-D-44 | 44 | 170 | 190 | 210 | 2500 | 400 |

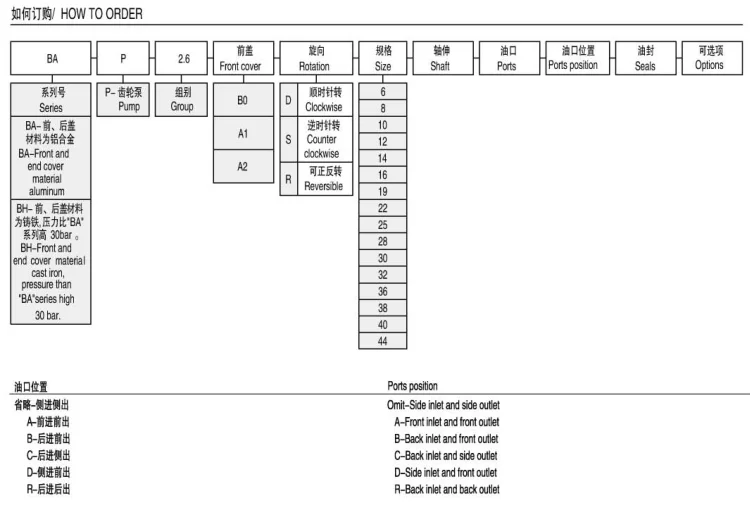

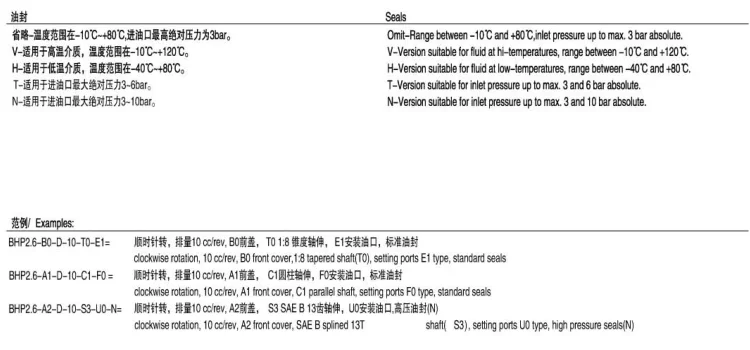

How to order to order Boden hydraulic gear motor
