cartesian high speed servo robot arm for injection molding machine
- Category: >>>
- Supplier: Dongguan Runma Intelligent Technology Co. Ltd.
Share on (60789514721):
Product Overview
Description
Product Description
Main explanation

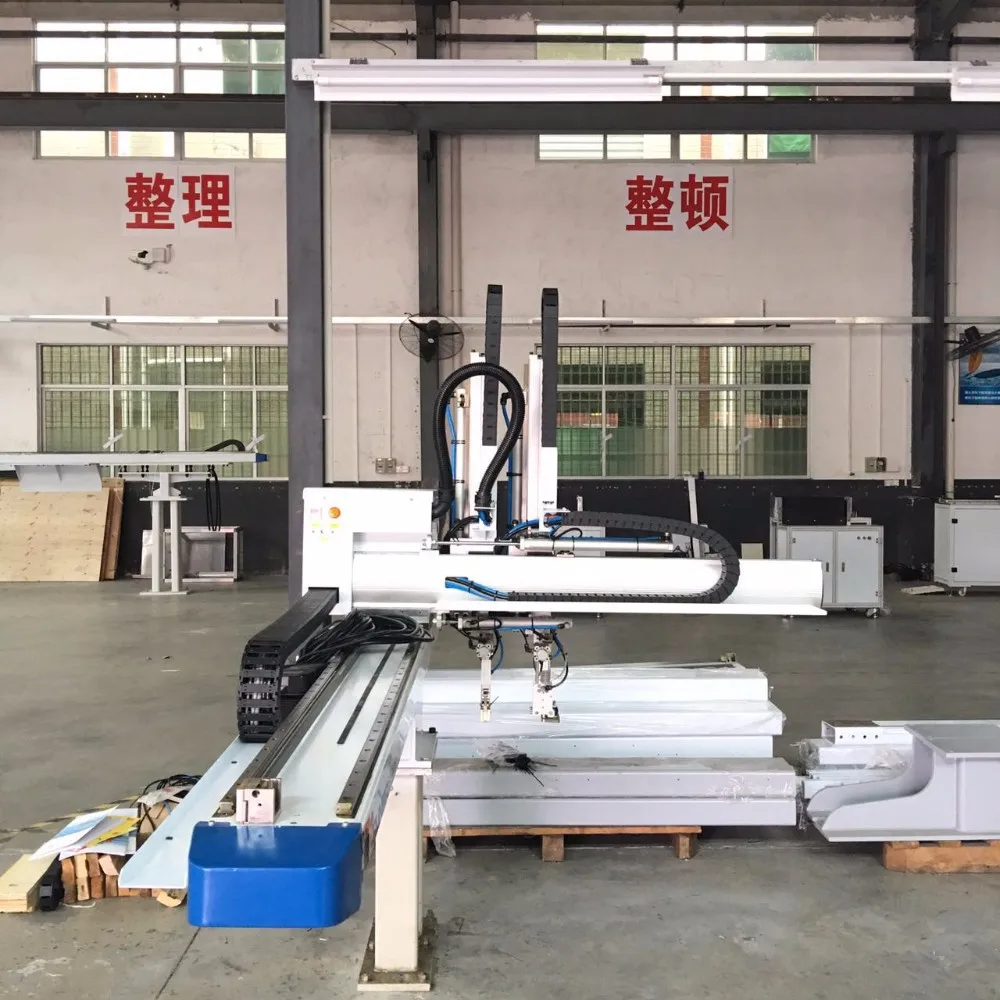

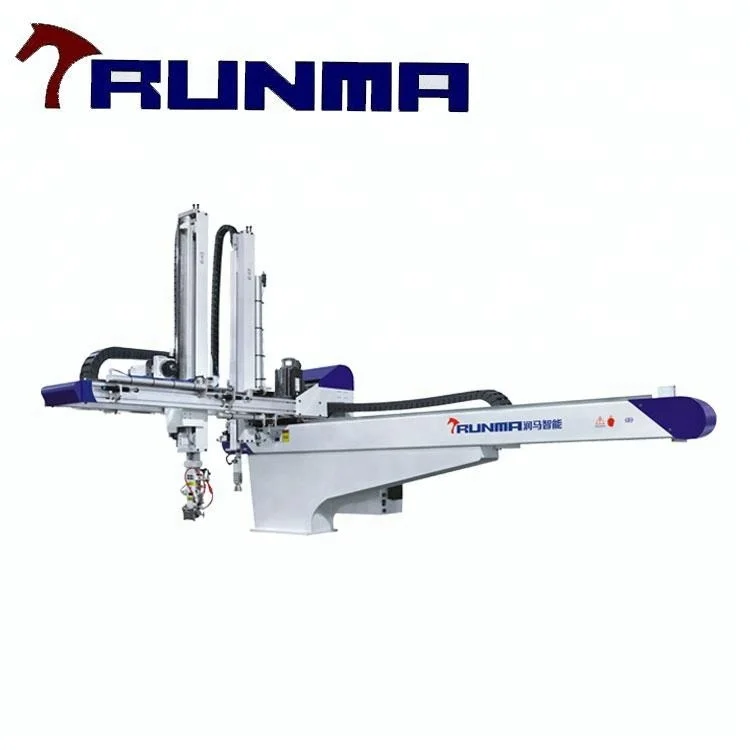

This pneumatic injection cartesian high speed 3 axis robot arm for injection molding machine is mainly applied to take-out of finished products from 100~280T Horizontal injection molding machine, it uses single-cut arm, three-axes of X/Y/Z axis is driven by AC servo motor, X axis is driven by Pneumatic. It is equiped with Japan THK low noise sliding track, quiet and smooth, and has standard configuration.
SPECIFICATIONS | ||||||
Applied to injection machine | ton | 100~280 | ||||
Travel | Up and down | mm | 800 | |||
In Mold Back and Forward | mm | 550 | ||||
Traverse Stroke | mm | 1450 | ||||
Time | Take-out | sec | 0.8 | |||
Dry Cycle Time | sec | 5 | ||||
Side posture angle( degree) | ° | 90 | ||||
Max load( including ceiling fixture) | 5kg | |||||
Driven way | X/Y/Z-AC servo motor | |||||
Working pressure | kgf/cm*2 | 5~7 | ||||
Air consumption | nl/cycle | 8 | ||||
Voltage | V | 220 | ||||
Power consumption | kva | 1.6 | ||||
NW | Kg | 250 | ||||
Main Features
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) Running in a high automation and intellectualization.
4) Low noise, save energy, long use life, and no pollution.
5) Optional CE compatible Euromap 12 or 67 and SPI standards with Standard ports.
6) Function: take out products from the mold, insert metals into the mold, do products pile up or stacking outside on conveyor, In Mould Labelling.

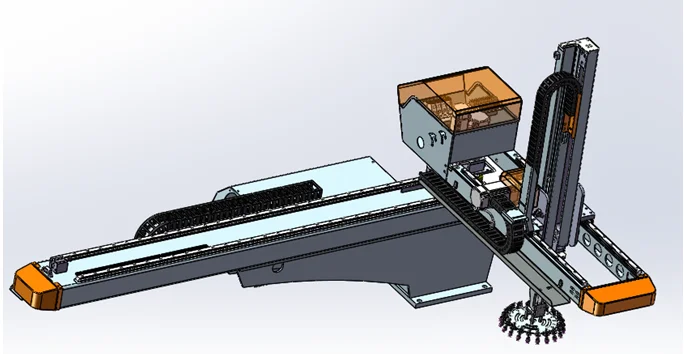

Detailed Images
Drive
Name: AC servo motor
Brand: DELTA
Original: Taiwan
Domestic famous engines, strong driving force, low fuel consumption, high economic benefits 12F+4R sliding sleeve shift.
Accessory
Name: control system
Brand: RUNMA
Original: China
-Color screen, single-sheet multi-line display, making it easy for users to set parameters and signal monitoring
-32-bit double-CPU control, fast action response, smoother page switching
-Open program teaching mode, easy to learn, provide common fixed programs, users can also self teach a variety of complex mold processes.
-Ac servo direction can have multi-point placement, up to 99 sets.
Accessory
Name: Linear guideway
Brand: PMI
Original: China
High precision and good repeatability.
Low friction resistance, long time maintenance accuracy.
Easy to assemble and interchangeable
Accessory
Name: control system
Brand: RUNMA
Original: China
-8-inch color touch screen hand controller, more simle, convenient, and user-friendly
-Open teaching way can easily realize embedding, stacking and other process requirements, and has assisting action with auxiliary equipment
-3-axis linkage function can plan a variety of complex take-out paths.
-Position setting can be accurately set with knob pulse spinner

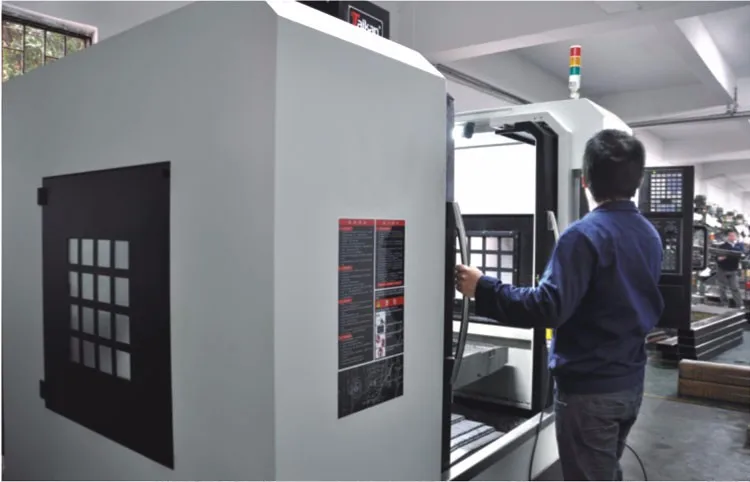

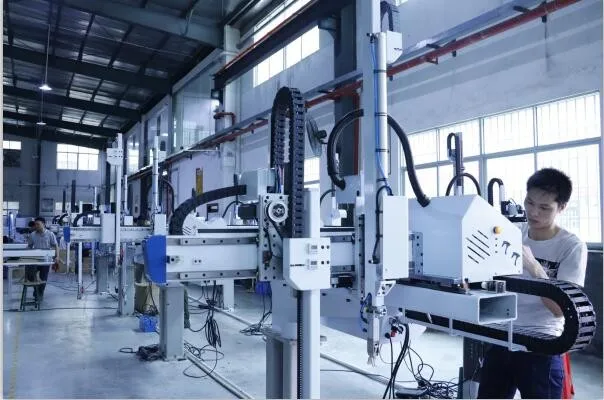

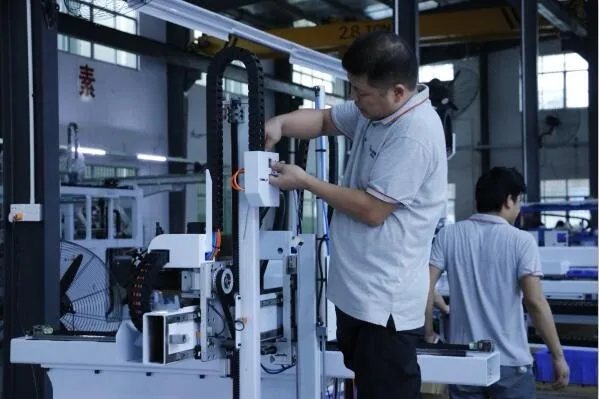

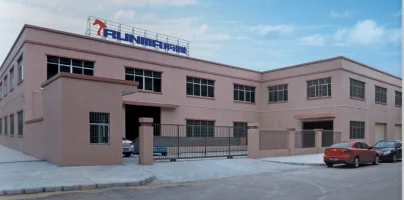

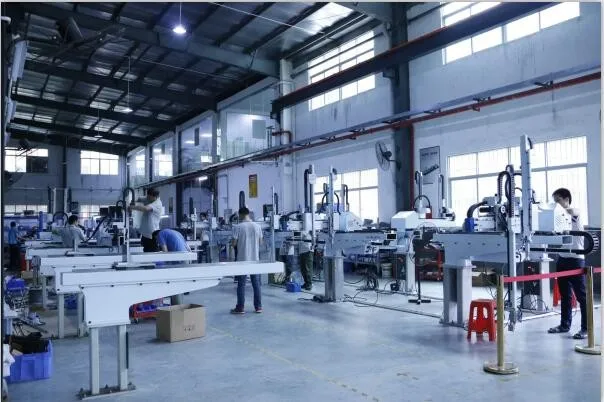

Our Company

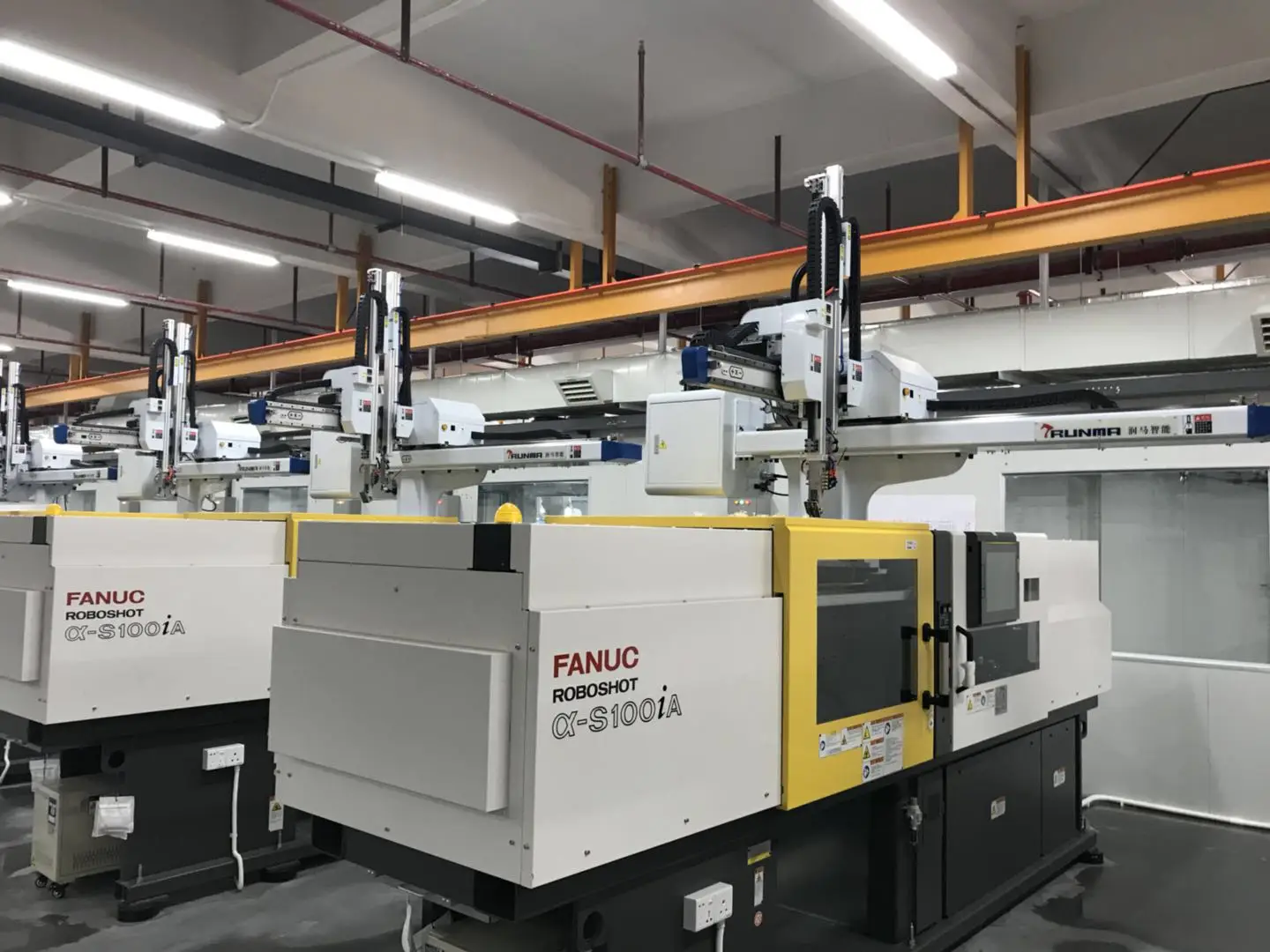

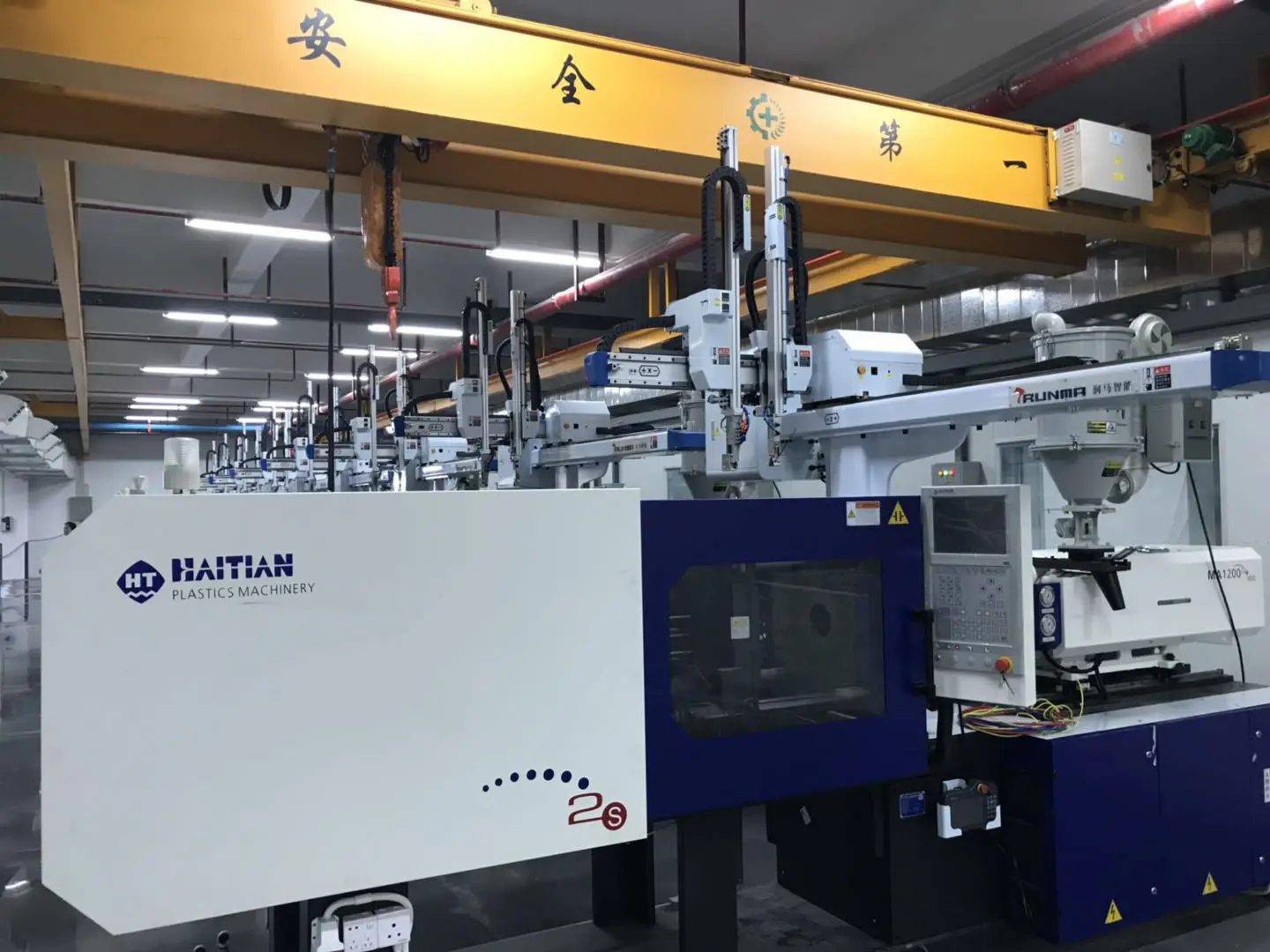

Product application
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.

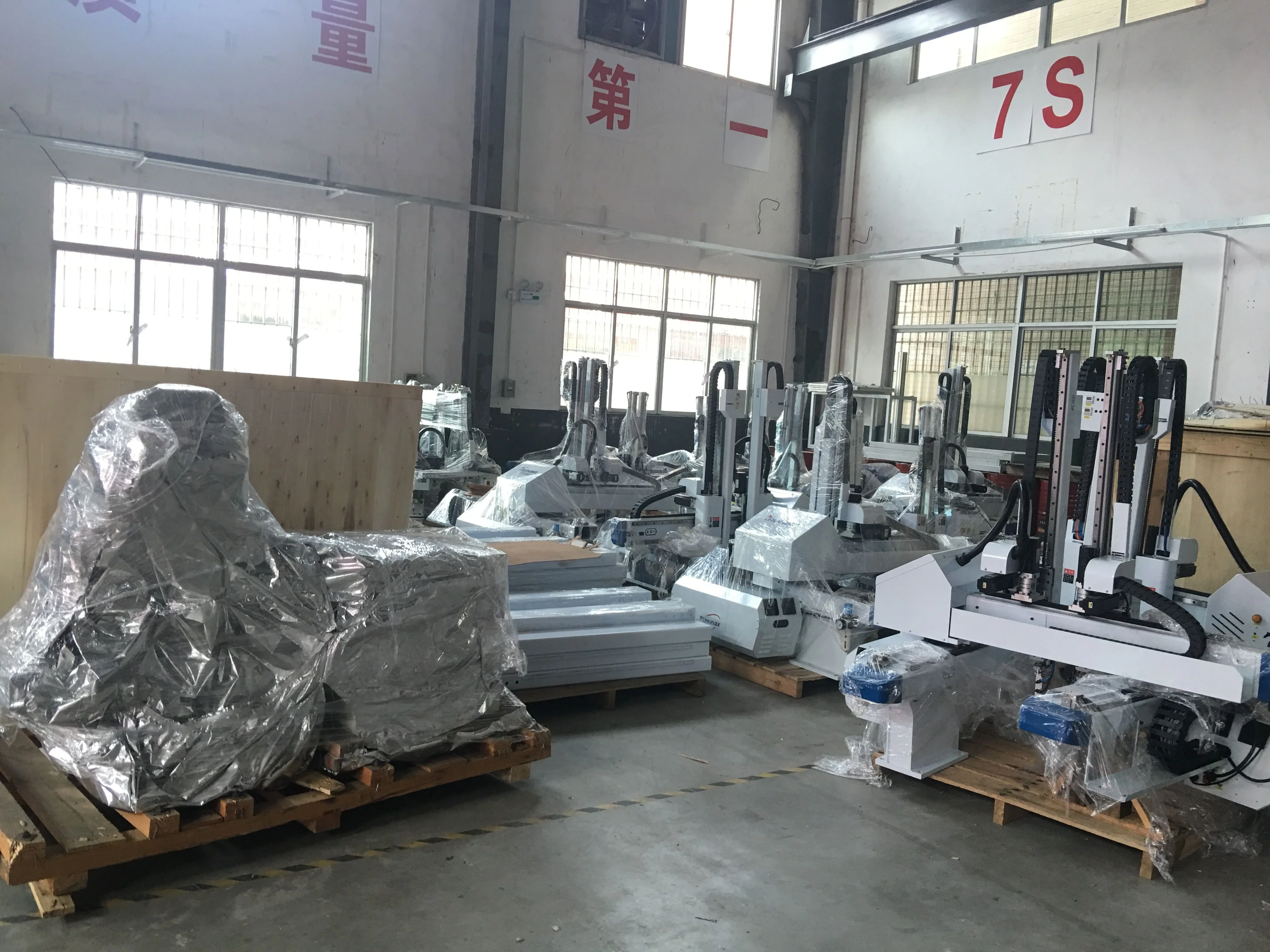

Packing & Delivery
Packaging | ||
Size | 2170 (L) x 1500 (W) x 1550mm (H) | |
Weight | About 900Kg | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
Packaging | ||
Size | 2170 (L) x 1500 (W) x 1550mm (H) | |
Weight | About 905Kg | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
FAQ
Q: How long is your delivery time?
A: It depends, if the robots you need we have in stock, then we can delivery in 10 days, if not, then 20 days normally, otherwise, it depends on the quantity.
Q: What is your terms of payment ?
A: 50% T/T in advance. balance before shippment.
If you have any another question, pls feel free to contact us.k.
Q:Are you factory or trading company?
A:We are professional manufacturer of robot machinery. Also we are trading for different customers in diffrent country.
