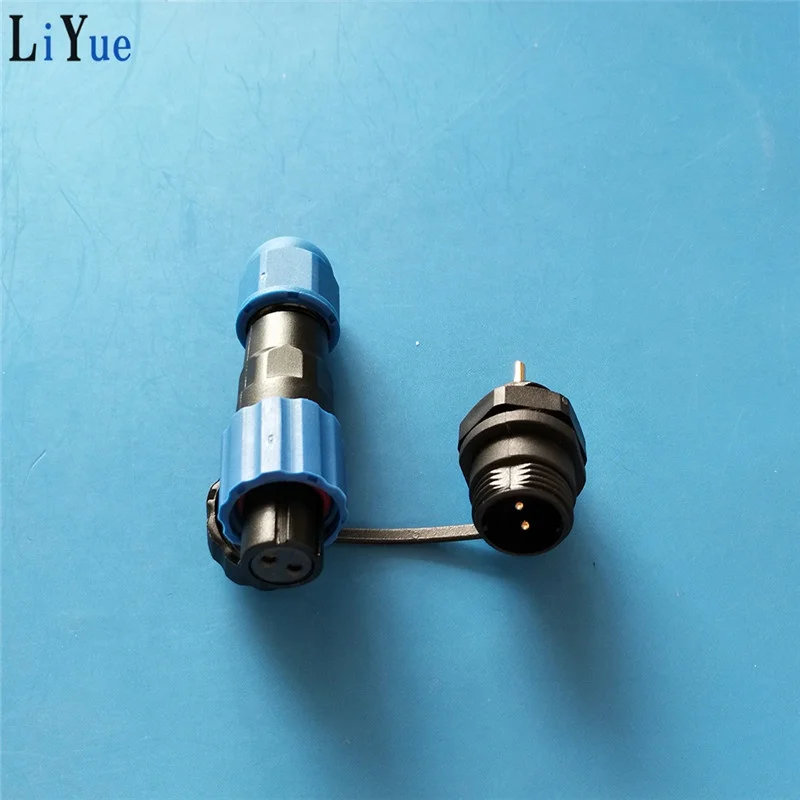

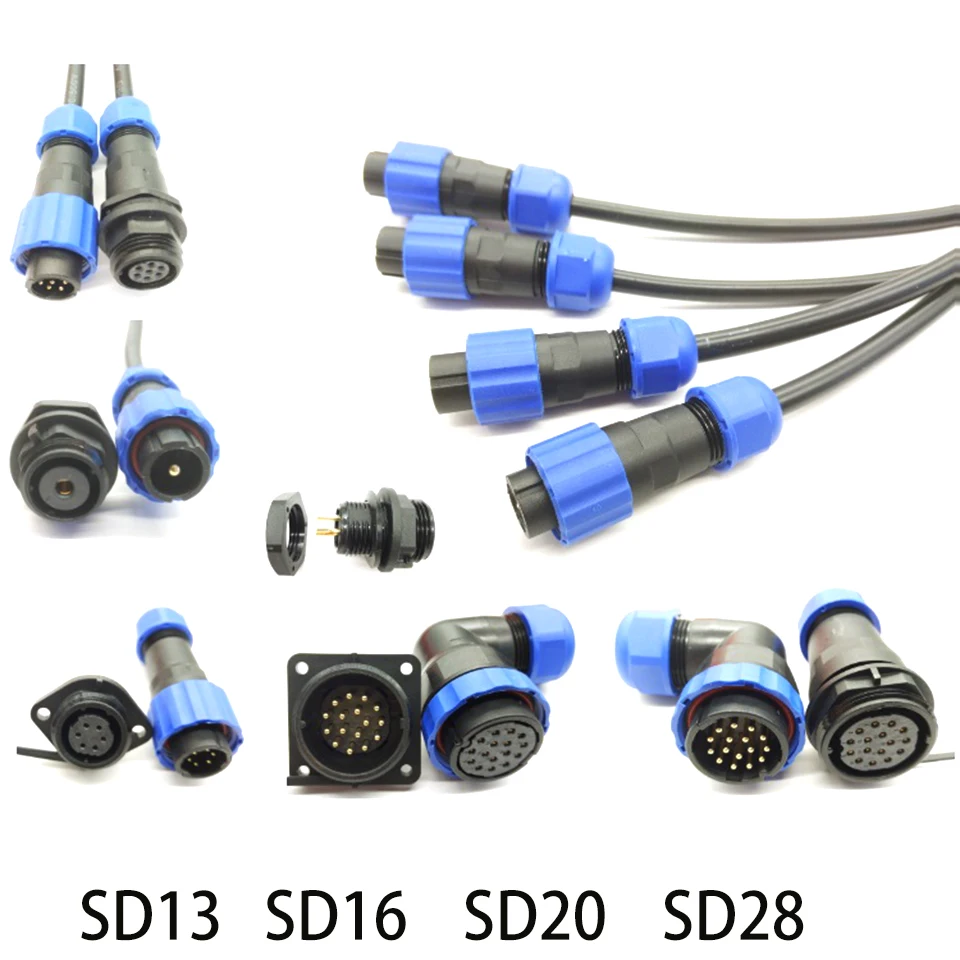

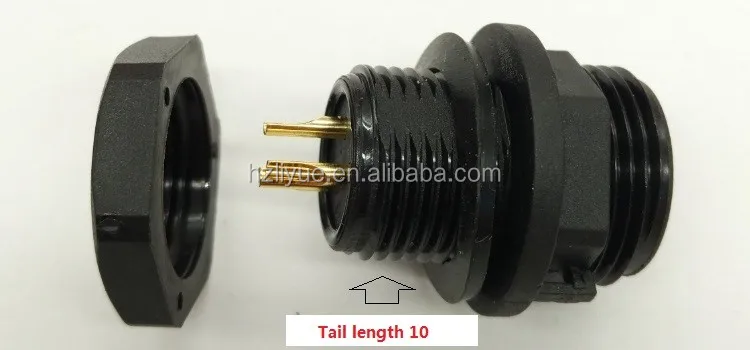

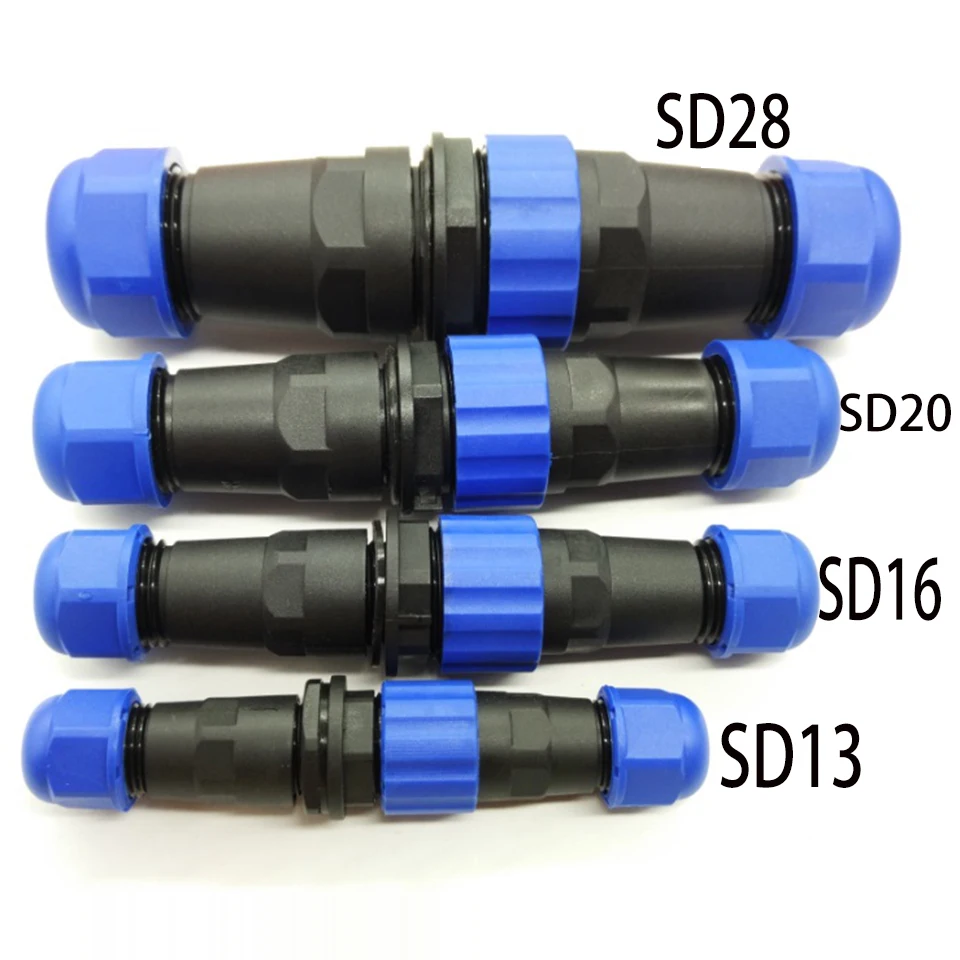

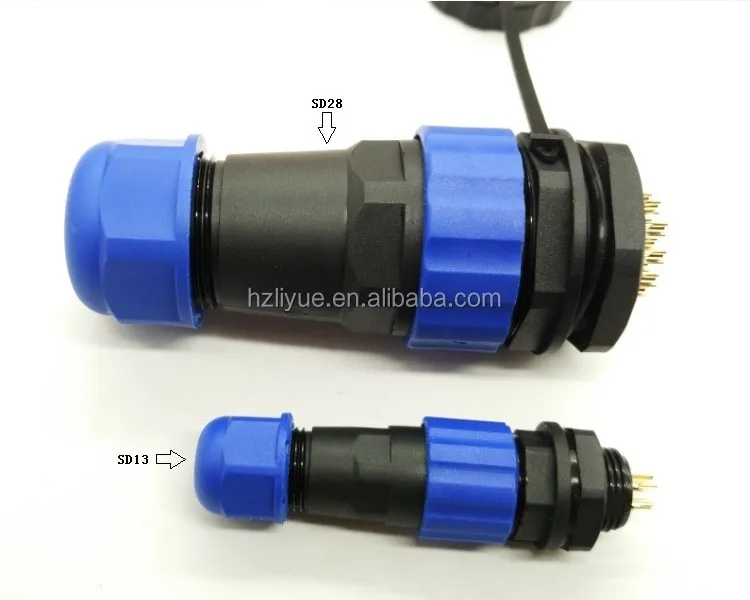

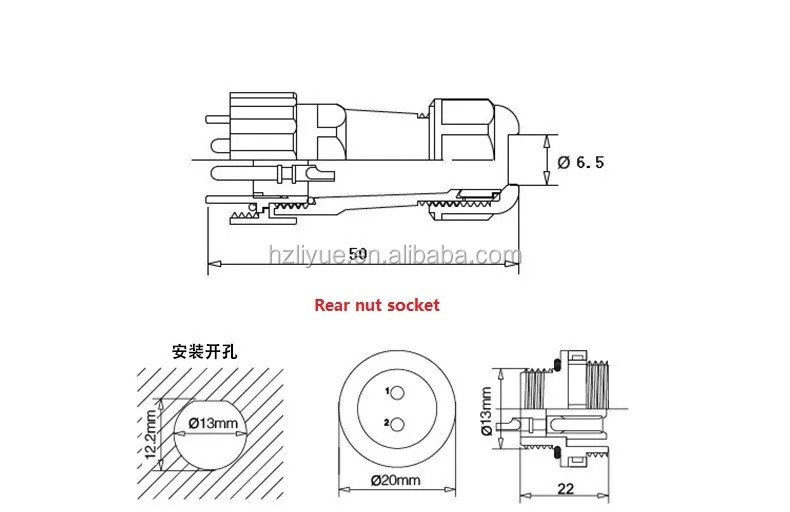

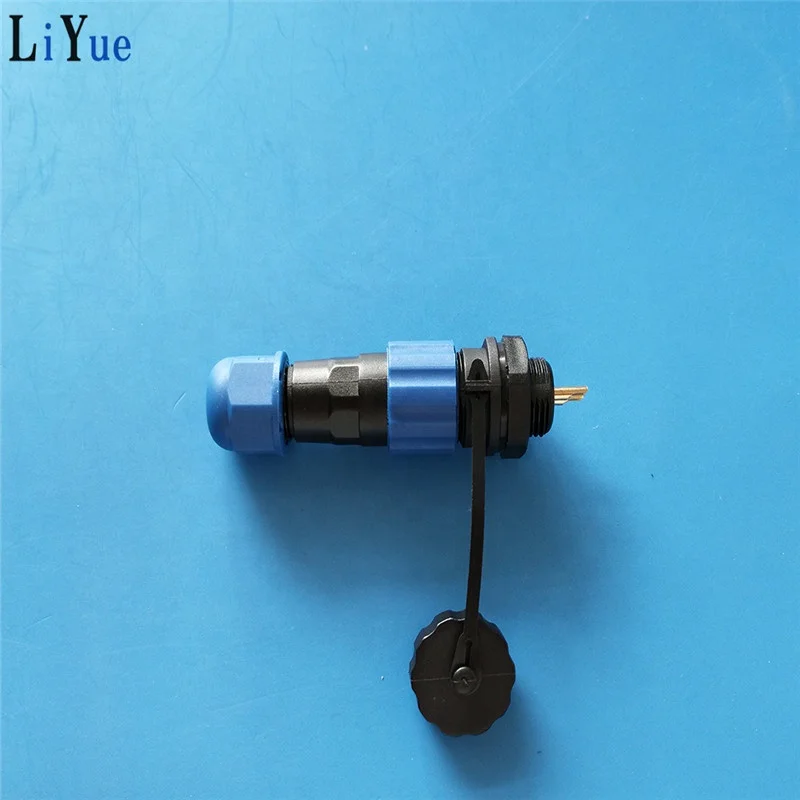

SD13 SD16 SD20 SD28 M13 M16 M20 M28series automotive plastic waterproof straight plug 2 24P electric rear mount socket connector

The working current supports 25A, 5A,It has special functions of anticorrosion, resistance to light and water, and so on.
It is suitable for machine equipment, outdoor LED display and so on.

The specific features are as follows:
1. working temperature: -45°C~105 °C
2. relative humidity: 90%~95%(40±2°C)
3. salt fog:5%NaC1 in fog 48h
4.sealing:IP68 (2m water depth 2H is not deep water)
5. applicable line diameter: Φ12.0~15.0mm
6. mechanical life: 500 times
7. insulation resistance: normal 500M Ω
8. working current: 2 contact parts: 20A, 1 contact 5A
9. contact resistance: 2 2M contact, 1 contact: 5M

10. working voltage and withstand voltage (sea level) working voltage: 250V (AC) withstand voltage: 2500V (AC)

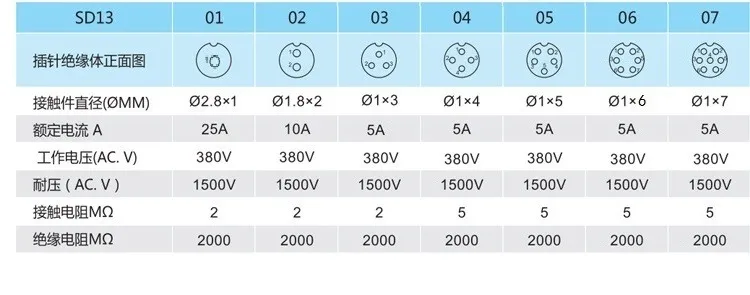

Specification parameter:
1.Material: flame retardant nylon
2.Soldering pinholes: Gold Plated beryllium bronze with gold plating style
3.Seal ring: three ethylene propylene rubber
4.ROHS environmental protection materials

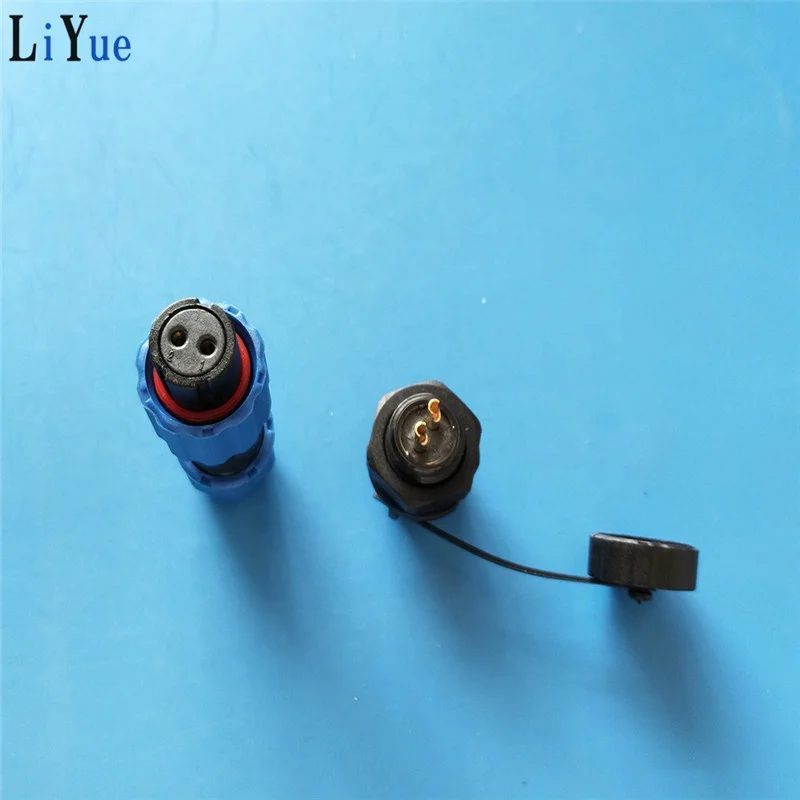

5.Shell sex: male head mother head
6.Connection mode: threaded connection
7.Design of combined design: Welding
8.Shell shape: Circular
9.Contact resistance: less than 5 ohms
10.Insulation resistance: more than 500 ohm atDC500V
11.Resistance to high pressure: more than 1000V/1Minute (normal 2.5KV water 1.0KV)
12.Rated current: (FUS-1) 10A (FUS-2) 15A
13.Working temperature range: (below 45 to 105 above) Celsius
14.Seal protection: 1m depth of water for two weeks
15.Resistance to pluggable times: more than 3000 times

Alice Wang

Tel/whatsapp:+86 157 6709 6164

Wechat:ly157 670 9664

QQ:22 1987 5582

OEM is available.
