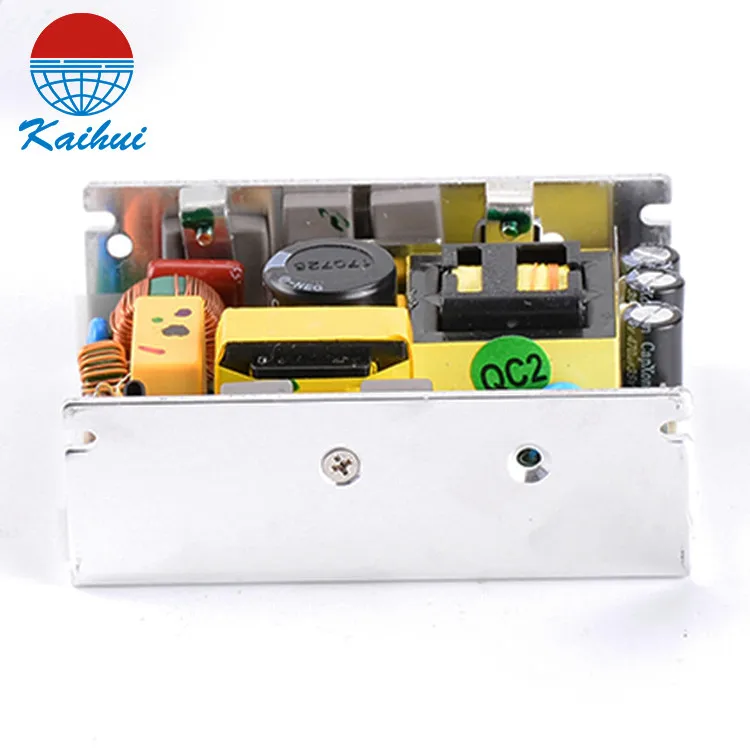

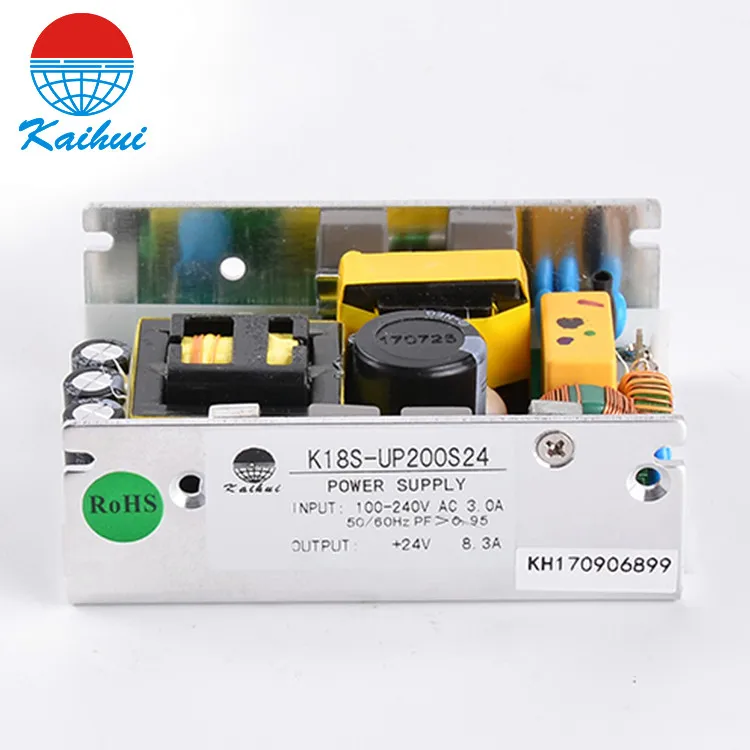

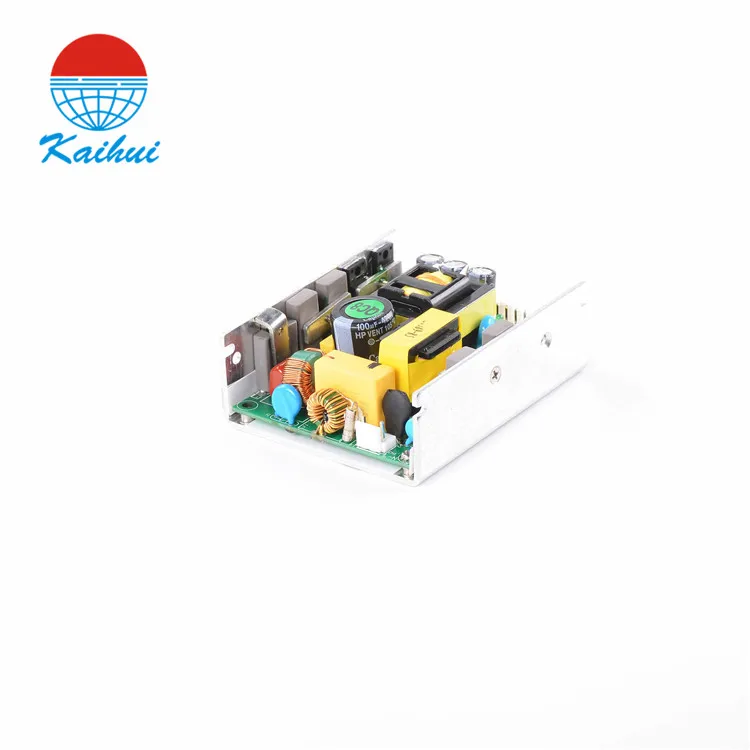

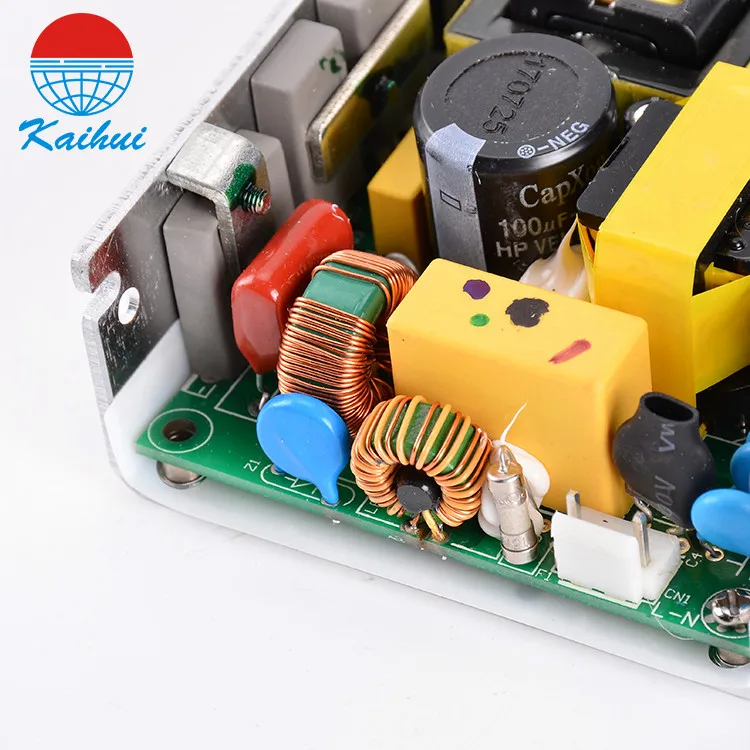

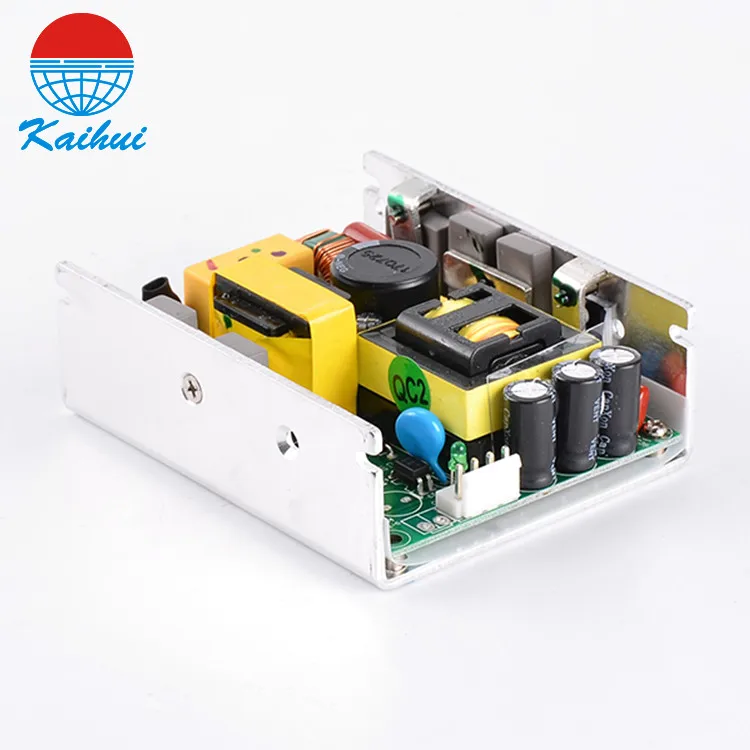

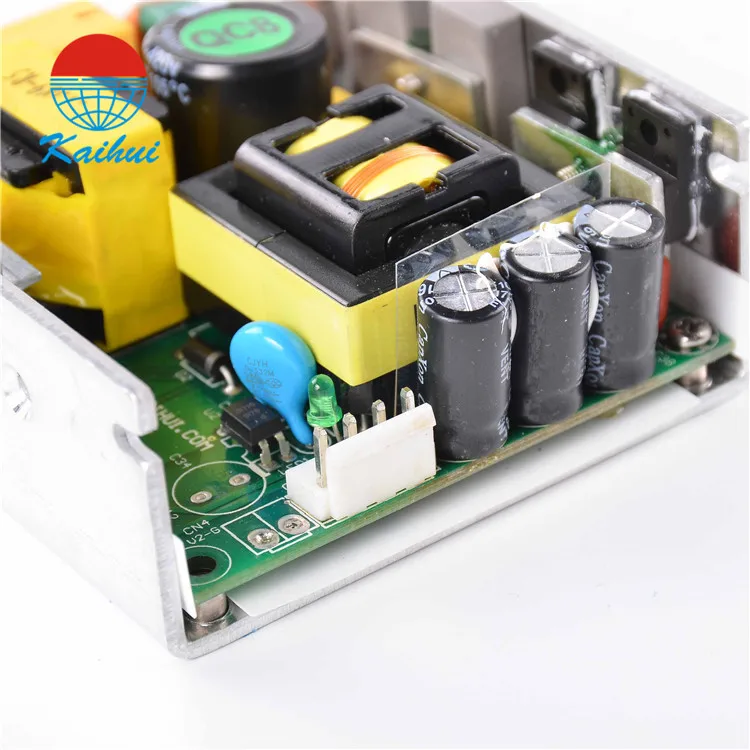

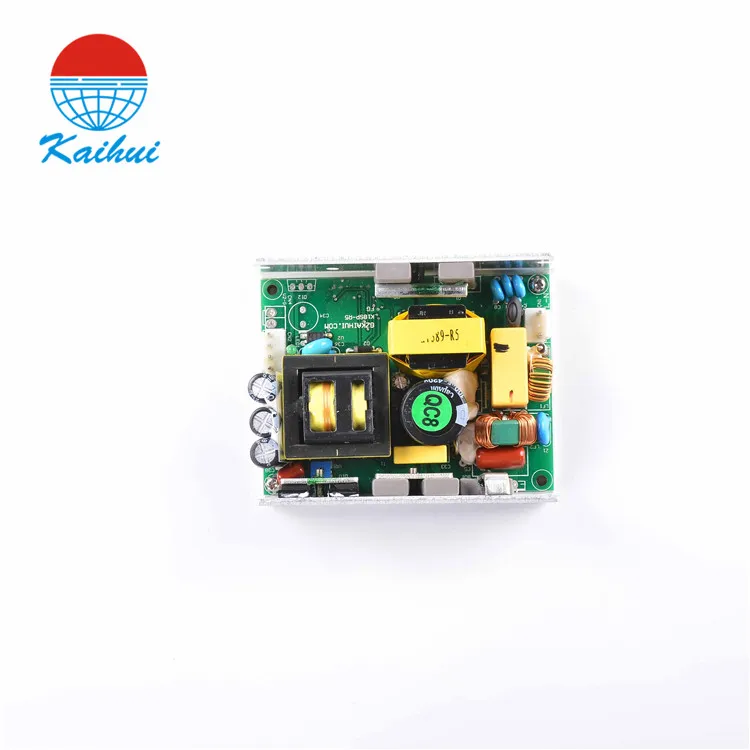

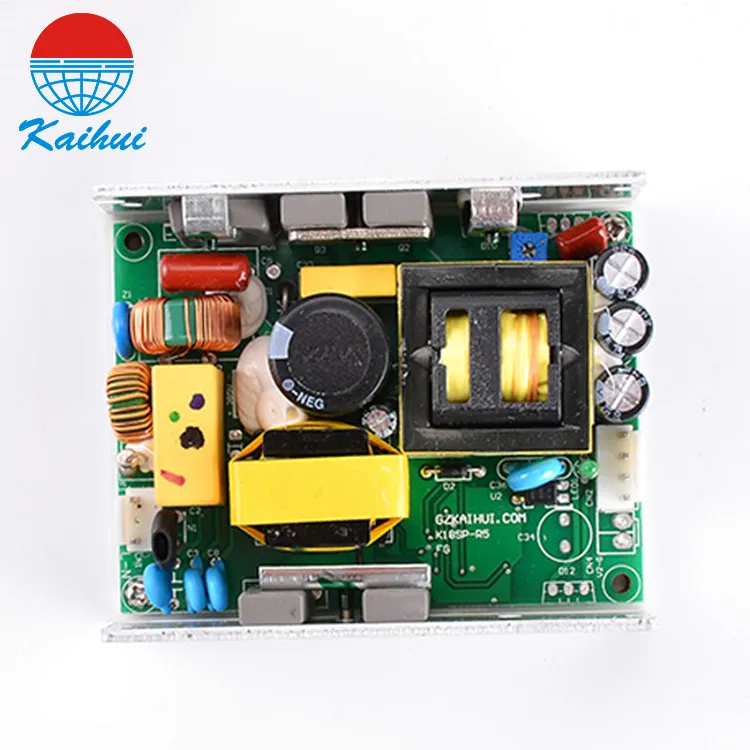

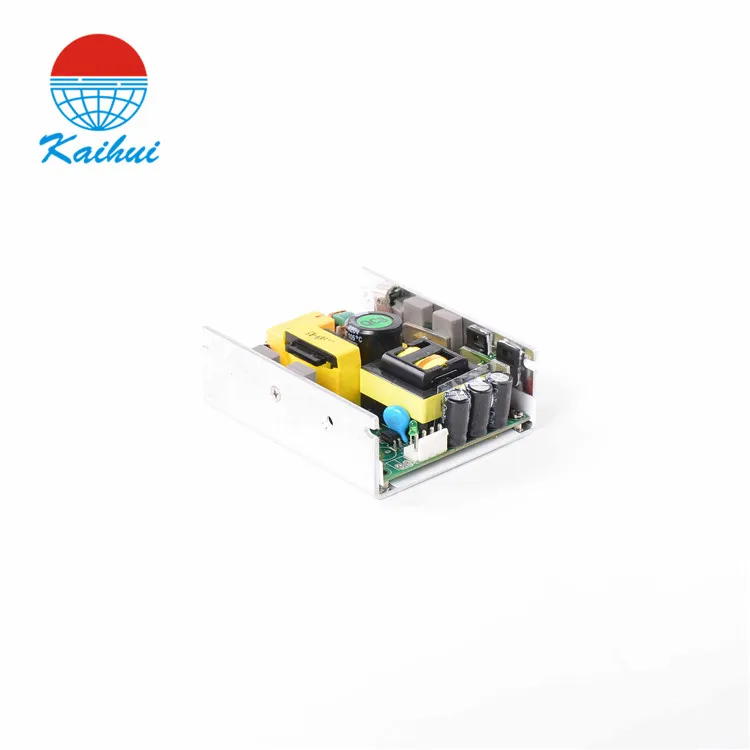

KAIHUI K18S UP200S24 24v 200w 8.8a power supply for passive speaker

1,High efficiency;

2,Built-in filter, low output noise;

3,Wide range of AC input voltage;

4,Overload, over-voltage, over-temperature protection.

 parameter           Item No.

K18S-UP200S24

OUTPUT

DC Output Voltage

+24Vdc

Output Rated Current

8.5A

Output Current Range

0-8.5A

Rated power

204W

Ripple noise

240mVp-p

Output adjustable range

±10%

Output Accuuracy

±1%

Line Regulation

±0.5%

Load Regulation

±0.5%

Set up,Rise,Hold up time

200Ms, 200Ms, 200Ms

INPUT

Input Voltage range

100~240V AC

AC current

2A/115Vac

Input frequency

50~60Hz

Efficiency

91% @230Vac

Cold start 15A/230V

<0.5mA@240V

>0.95@115V;>0.9@230V

Over Temp.protection

105~180%Automatic protection

When the shell temp.>105℃,shut down then automic recovery when the temp.<105℃.

Output over-voltage

28V-33V

ENVIRONMENT

Working Temp.,Humidity

-20~40℃,10~90% RH,no consideration

Storage Temp.,Humidity

-20~85℃,10~95% RH

Temp.,Drift

±0.03%/℃(0~50℃)

Vibration

10~500Hz, 2G 10min./1cycle,PERIOD FOR 60min. EACH AXES

SAFETY&EMC

Safety standards

GB4943

Pressure

I/P-O/P:3KV; I/P-FG:1.8KV;O/P-FG:0.6KV DC 1min.

Insulation resistance

I/P-O/P, I/P-FG, O/P-FG:500VDC / 100M Ohms

EMC standards

EN55022B

OTHER

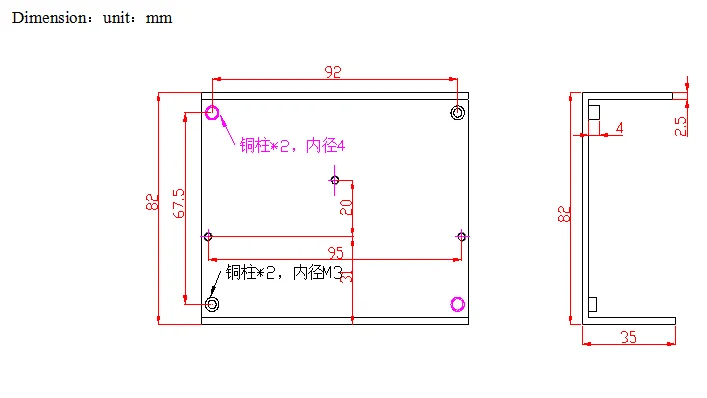

Demension

100*82*35mm

Weight

0.3KG

1,All the parameters in the 230VAC input, rated load, temperature 25 ℃, humidity 70% under the conditions of determination;
2, Accuracy: including setting error, line adjustment rate, load regulation rate;
3,Ripple test: connect the power supply and load with 30cm long wire and 0.1u and 47u capacitance at the load end, measured on the load side with 20MHz oscilloscope;
4,Line regulation: at rated load conditions, the input voltage changes from low to high measured;

5,Load regulation: the measured output load from 0 to 100% load change measured;
