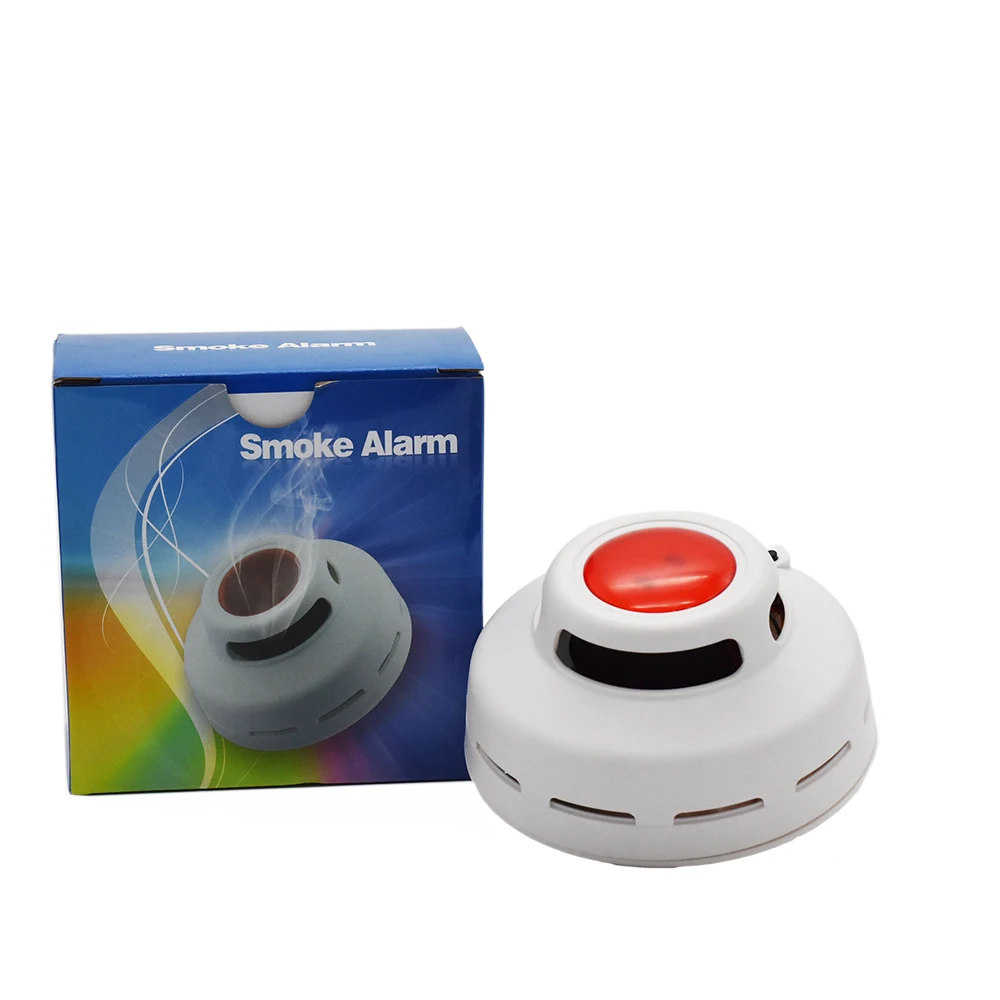

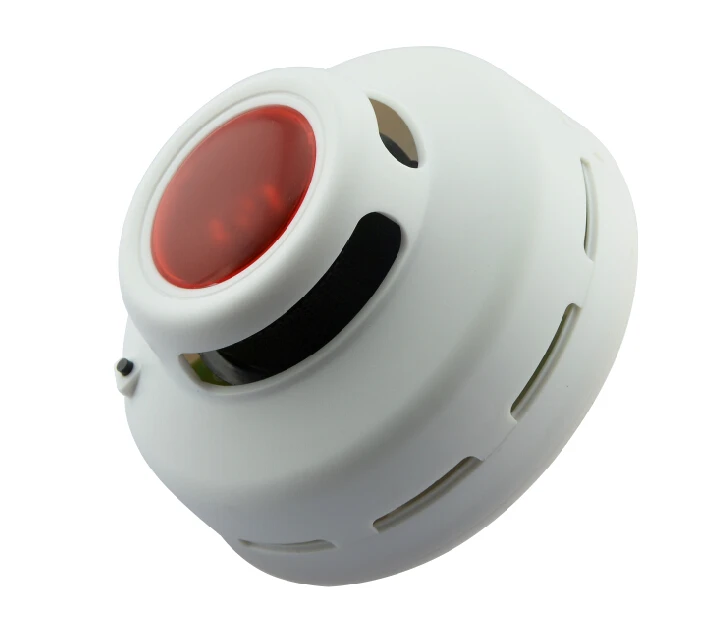

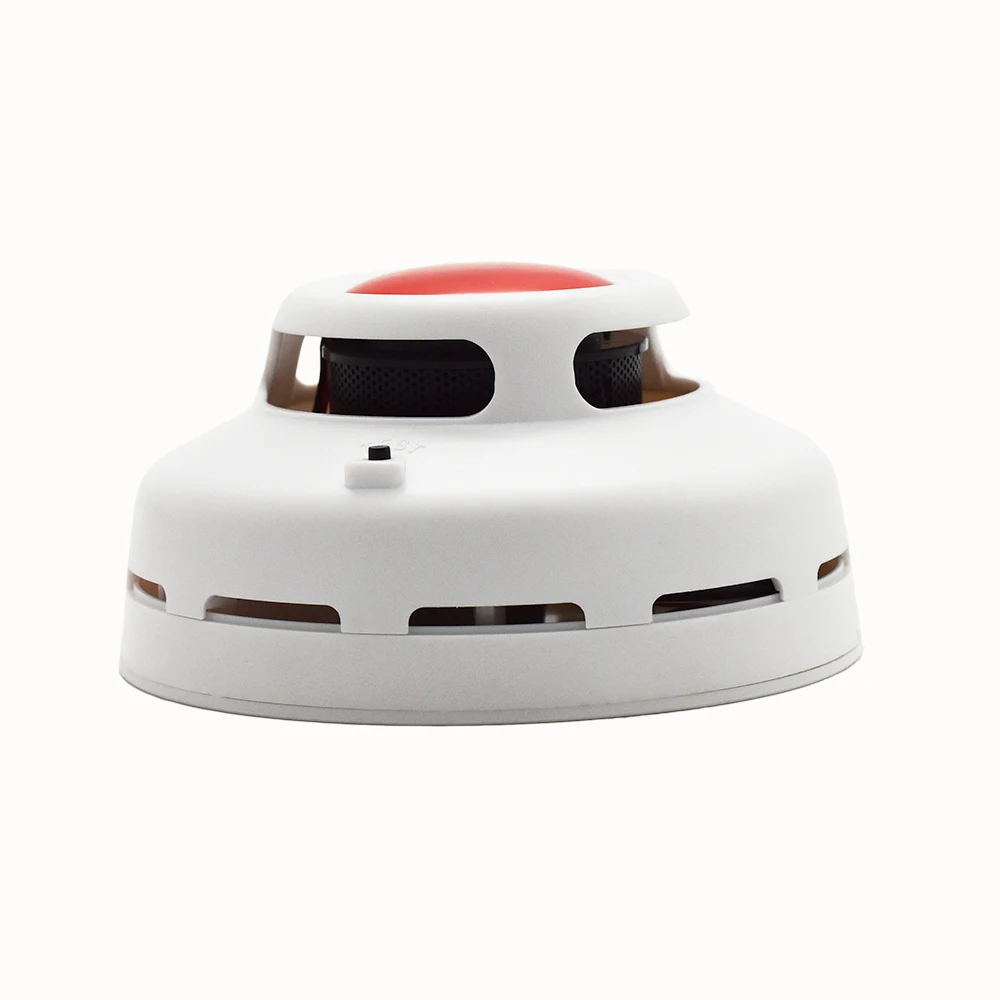

Photoelectric smoke alarm home alarm fire detection CE approved





The product is a new smoke detector, hereinafter called detector. With a unique structure design and an intelligent MCU to process photoelectronic signals, it is provided with dust-proof, mothproof and anti-light interference etc. functions, ensuring the detector stability from design basis and suitable for all kinds of installation environments and also with the optional wireless interconnection function. It reacts very quick to visible smoke released by smoldering fire and flaming fire, and suitable for fire alarm in house, factories, shopping malls, hotels, restaurants, office buildings, teaching buildings, banks, libraries, warehouses, etc..




































































Model No.



JKD-516



Power Supply



9V battery (6F22 carbon battery, DC TYPE)



Static current



<10uA



Alarm current



<35mA



Sensitive level



2.06%/ft ± 1.3



Alarm indication



Big Area LED flashes in Red



Alarm Sound



85dB/3m



RF



315MHz/433MHz (Wireless TYPE)



Transmitting Distance



200 meters (Open)



Temperature



-10~50



Relative Humidity



≤95%RH



Dimensions



112*32mm



Execution standard



GB4715-2005, En14604, UL217



Detecting area



80 at 6-12m installation height; 60 at installation height <6m















Feature





Adopts MCU Auto-Processing Technology
   Wireless Interconnection Alarm (Optional)
   Low-battery warning
   Auto-Reset after trigger
   Infrared Photoelectronic Sensor
  Sound & Flash Alarm & LED indicating Alarm
  SMT Manufacture Technology, Reliable Stability
  Dust-proof, Mothproof and Anti White light interference

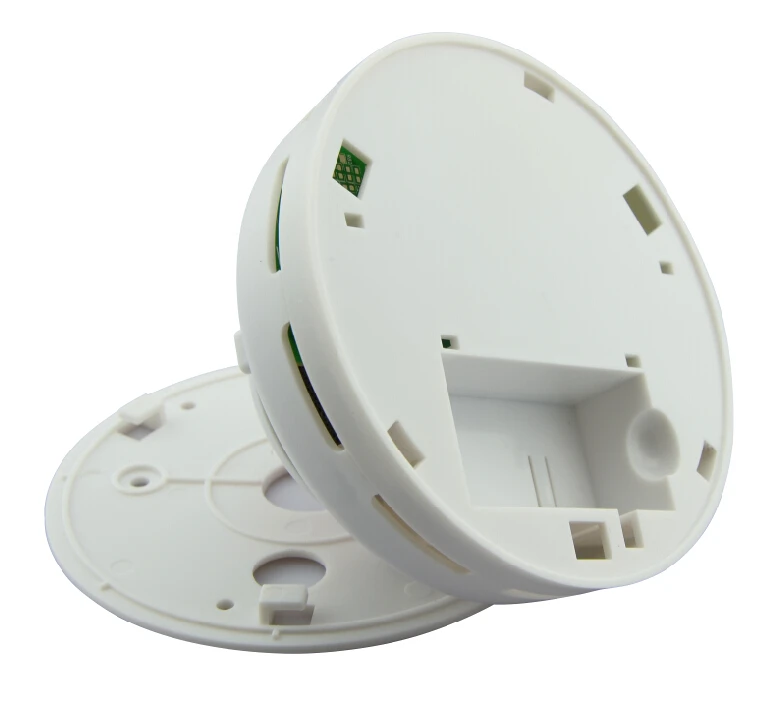

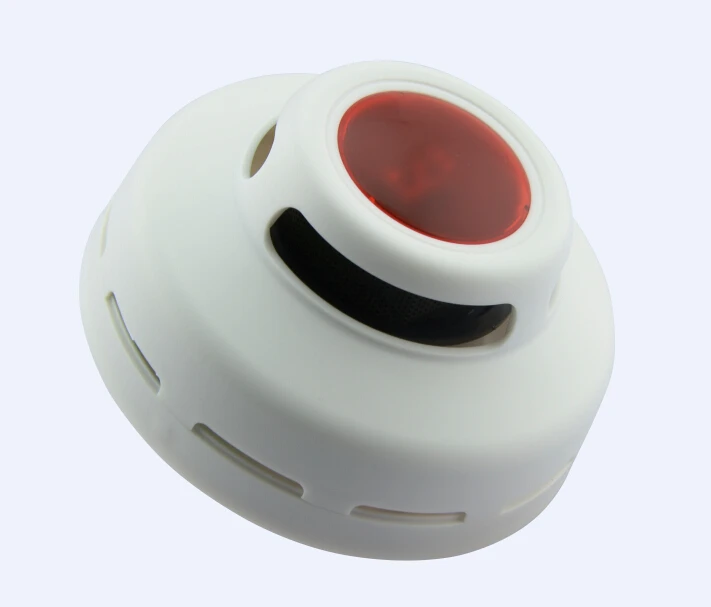

 JKD-516-4JKD-516-2







Application

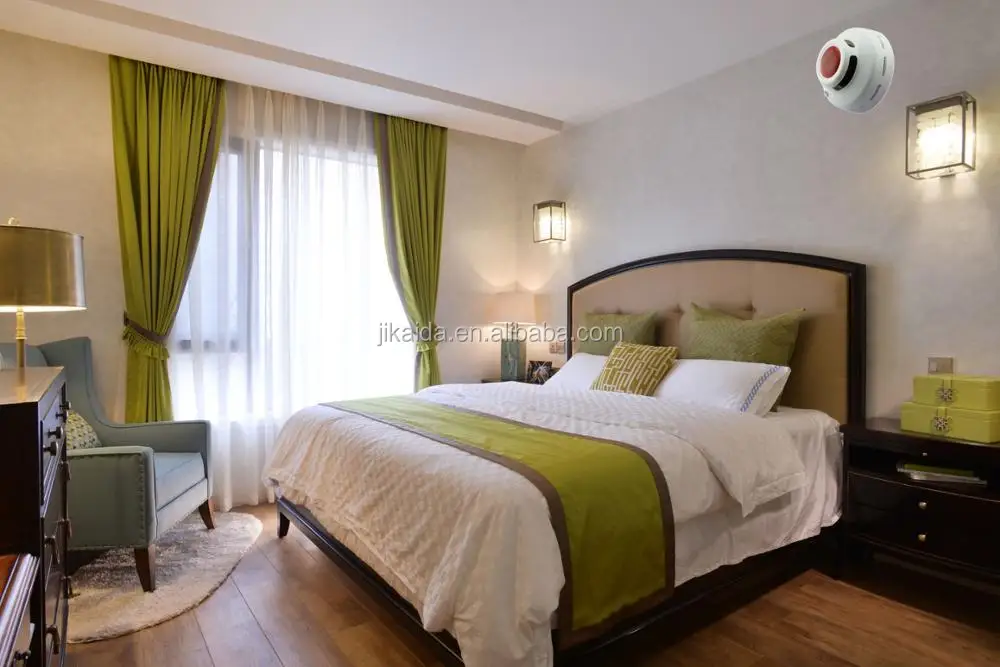

Smoke alarm install in bed room:

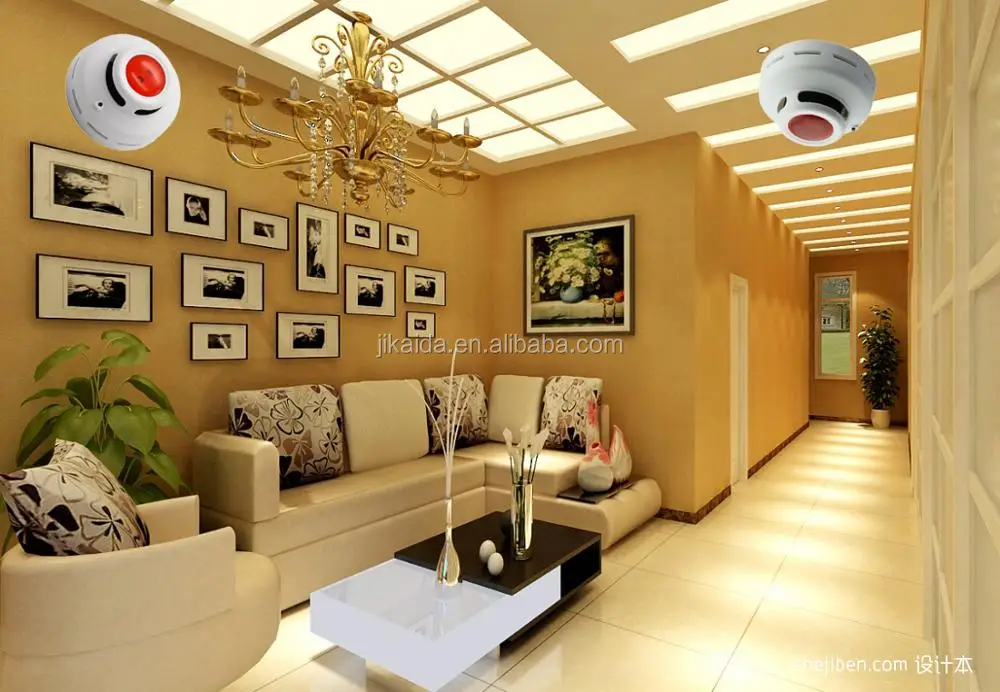

  Also can be installed room and hallway:(no greater than 7.5m from the farthest wall, no greater than 7.5m from a door, no greater 7.5m to next smoke alarm)
















Packaging & Shipping










2









Our Services





As a factory


1. we can provide the latest production dynamics at any time
2. lowest price
3. We have professional technical and professional QC
4.We can arrange delivery   flexible
5. We have a professional sales offer professtional service.














Company Information


  The Shenzhen Ji Kaida Technology Co., Ltd. is a professional fire and security alarm products research and development, production and sales of high-tech innovation and enterprise, the company since its inception, always adhere to people-oriented corporate purposes, the customer-centricbusiness philosophy runs through the work of each one, always put the development, research and production of a new generation of electronic products as the company's main goal, the company's research and technological strength is strong, perfect production and testing equipment, and has engaged in a product development developmentthe talents of the production management team. The company has passed ISO9001: 2008 international quality management system certification and CE / FCC / UL / RoHS product certification, and has a number of independent R & D patents, the company mainly produces automatic fire extinguishing ball, gas detectors, unlimited alarm systems, infrared detectors, The fire alarm detectors and their component parts, sound and light alarm. The products are mainly exported to Europe, North America, South America, the Middle East, Southeast Asia, Russia, Australia and other countries and regions, the company always adhere to high quality products, reasonable prices, quality service "to serve the purpose, is willing to work with you to jointly develop domestic and foreign markets.





QQ20160708155649_











Certifications

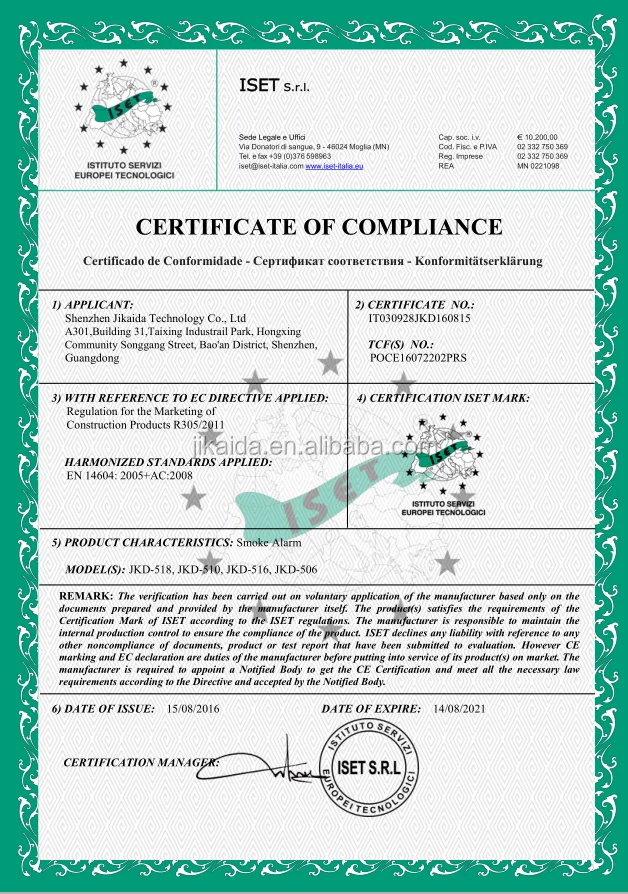

 Smoke-CESmoke-RoHS














FAQ































































































FAQ:


1, Q: Is sample available? is it free?


      A:  samples is welcome order to test. but it should be paid.

2, Q: do you Offer OEM/ODM?
     A: yes, we accept OEM in MOQ 1000pcs for package, ODM in MOQ 5000pcs.

3,  Q: How many is MOQ?
     A: no MOQ  limited.

4,  Q: what's the price?
      A: Price depends on quantity, we have the best price as we are the original manufacture .

5, Q: What certificate does detectors have?
     A: for co detector:  CE-EN50291;for smoke detector: CE-EN14604; for gas detector:  CE-EN50194

6, Q: Does the detector wireless?
     A: yes, we offer wireless, 315/433 mhz interconnected.

7, Q: Does your detector the same as other company?
    A: except JKD-510&602, others is our patented product.

8, Q: does the price above including freight?
     A: No, all price is base on EXW.

9, Q: how do you shipping the goods?\\
      A: always by Express, aslo we accept sea shipping, but it takes long time.

.
