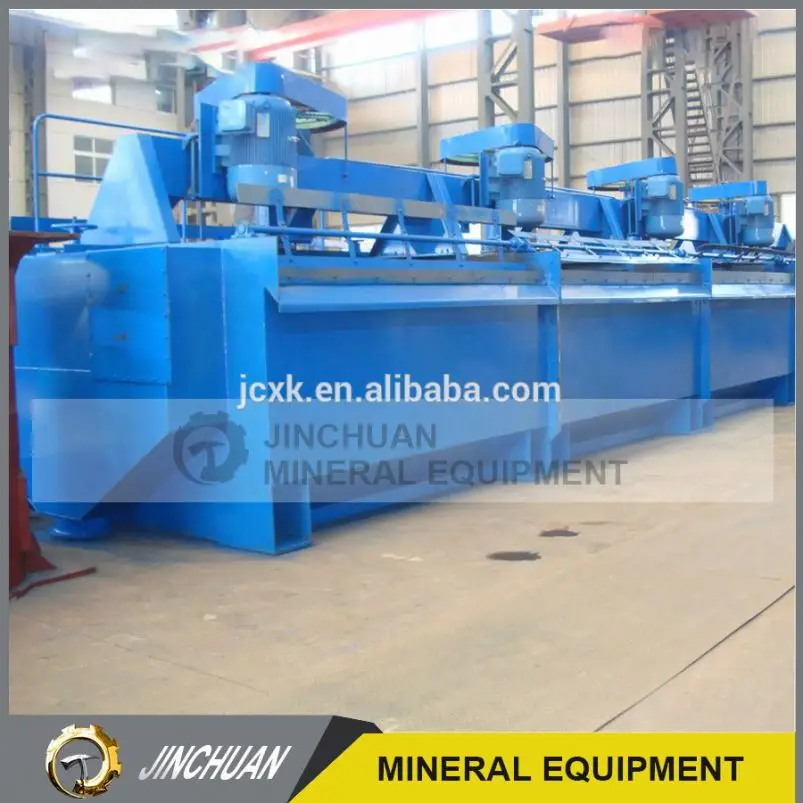

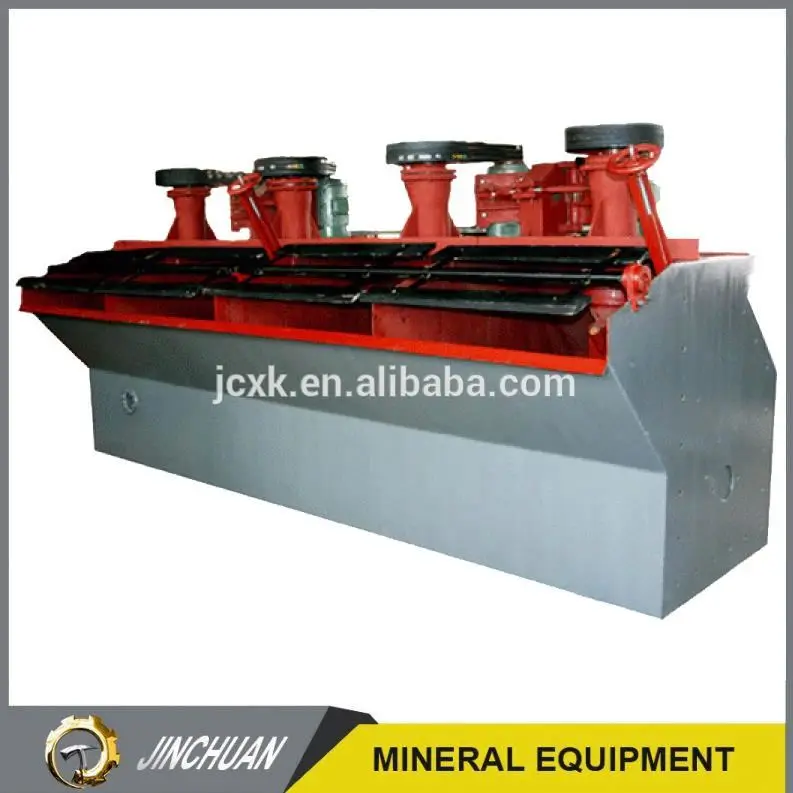

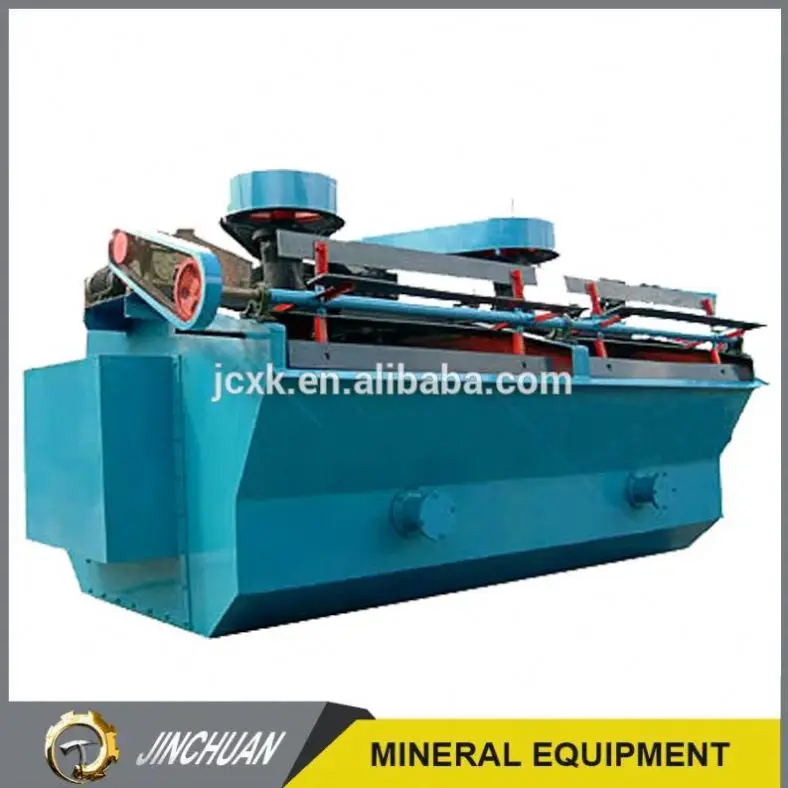

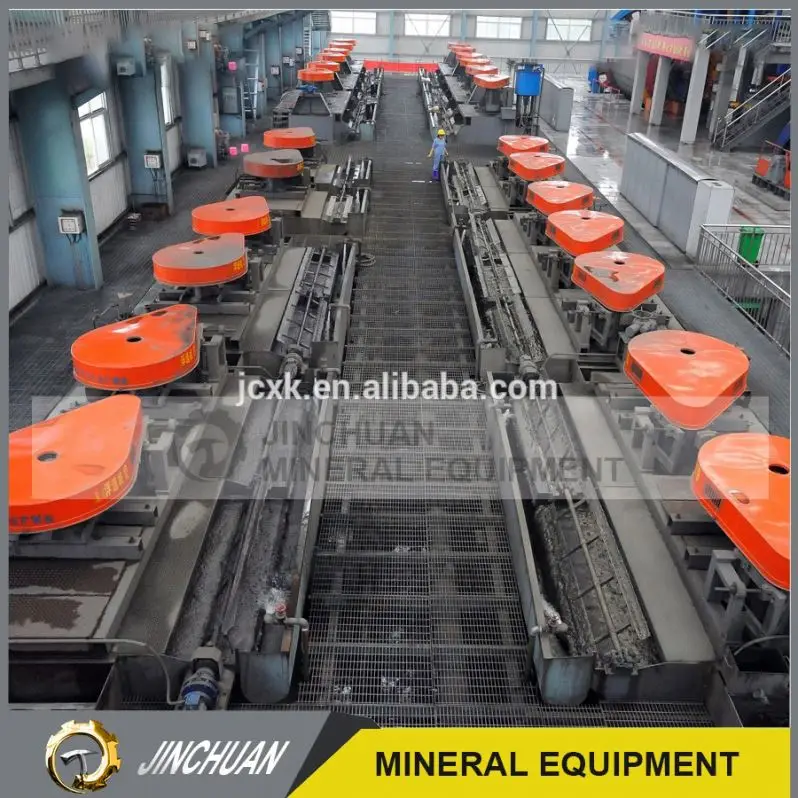

Ore dressing machine flotation machine for lead&zinc

Introduction

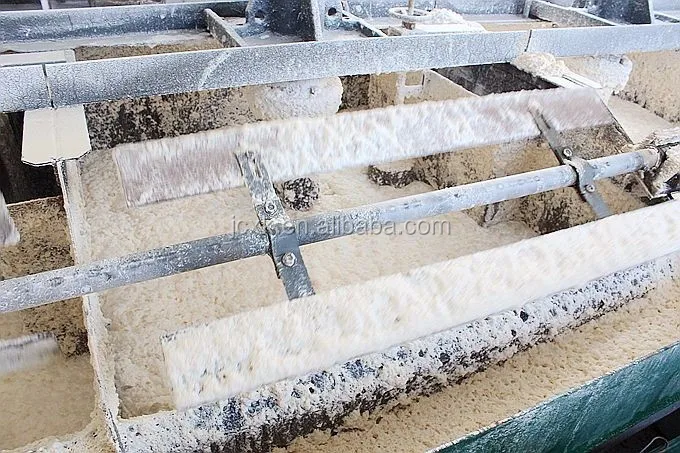

Floatation Separator is usually a continuous process by a few tanks, dozens of tank flotation machine connection, including roughing, scavenging, concentration operations. The use of flotation machine should meet the following requirements about equipment and processes, varies parts are complete and intact. Machines function normally and achieve the required aeration rate. Motor drives impeller rotating through belt and pulley. On the one hand, the machine inhaled enough air mixed with slurry, on the other hand, stirring the mixture of pulp and pharmaceutical. At the same time, refinement of the bubble, the particles adhere to the bubbles on the role of reagents and float to the slurry surface. So it the formation of mineralized froth layer and scraped by the scraper.

Main Features

1. Air charging system is mainly composed by the inlet air pipe;
2. The flotation machine has large inhaling capacity and low energy consumption;
3. Complete flotation circuit with inhaling air and pulp, no auxiliaries are needed;
4. Reasonable circulation of pulp decreases coarse sand sedimentation.

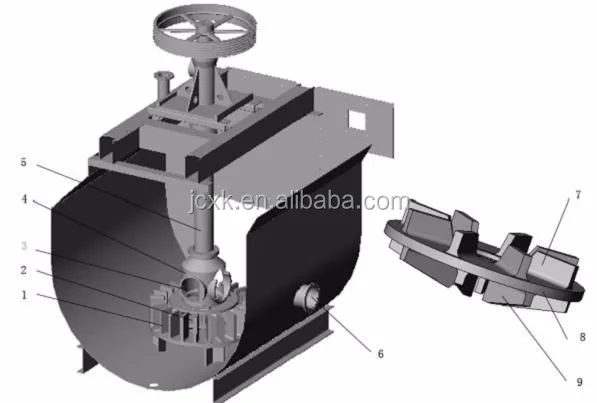

Machine Parts

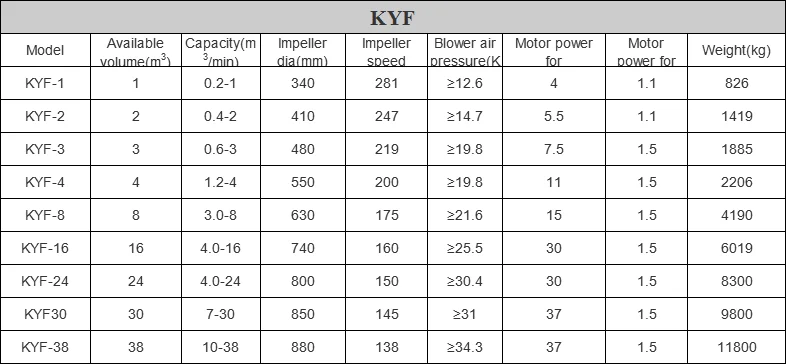

XCF mode and KYF mode are inflation flotation machine. Impellers' little diameter and lower peripheral speed make power consumption reduce 30-50%. Air distributor is equipped in cell to get air evenly, lengthening impeller and rotor's service life. KYF mode has no self-suction pulp function but lower power consumption,XCF mode has self-absorption pulp,places horizontally without foam

pump,and equipped with stator to form negative pressure zone,but power consumption is little more than that of XCF type, so XCF and KYF combined together to work,the former as suction tank, the latter as direct-current cell, combined flotation machine place horizontally without foam pump.

Application

Flotation cell can be often seen in ore dressing factory, which is applied for sorting non-metallic material, and which is one important flotation plant. And what's more, flotation concentrator can be used for sorting the metal material including copper, lead and gold. And flotation cell is also being called flotation separator, flotation machine and flotation-cell.

Work pinciple

The working principle of flotation cell: The mineral pulp being added pharmacy will be passed into the gas, and the electric rotor will bring the movement of part pieces to mix and stir in order to make the mineral and gas be sufficiently mixed, and at this minute, the grain of mineral pulp is above on the bubble, floating on the surface, which can reach the purpose of sorting the mineral material through blade scrapings.
