New type fire tube mini waste heat industrial steam boilers price
- Category: >>>
- Supplier: Henan Swet Boiler Co. Ltd.
Share on (60789935711):
Product Overview
Description

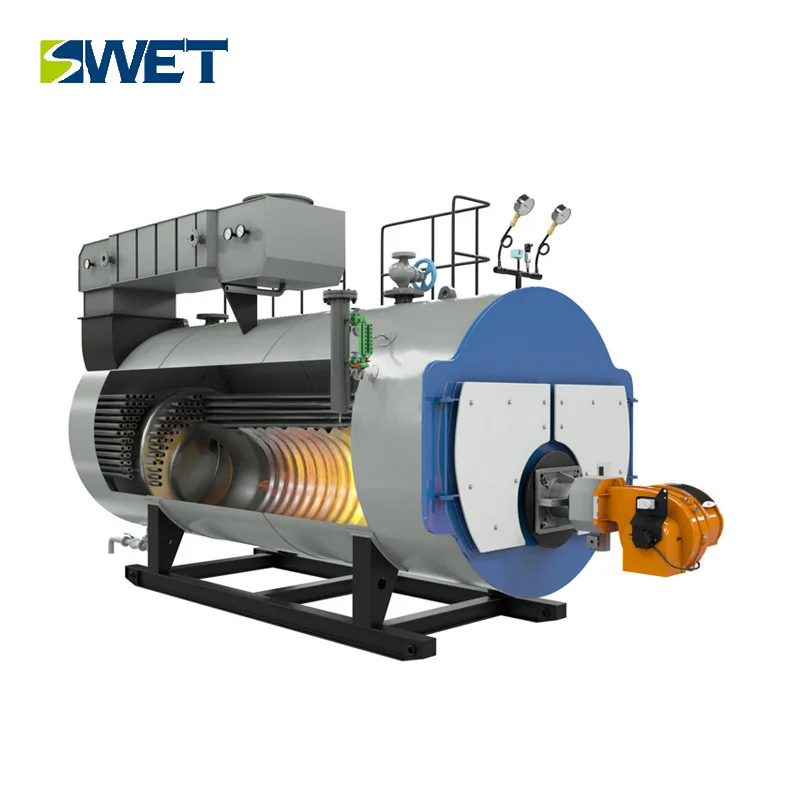

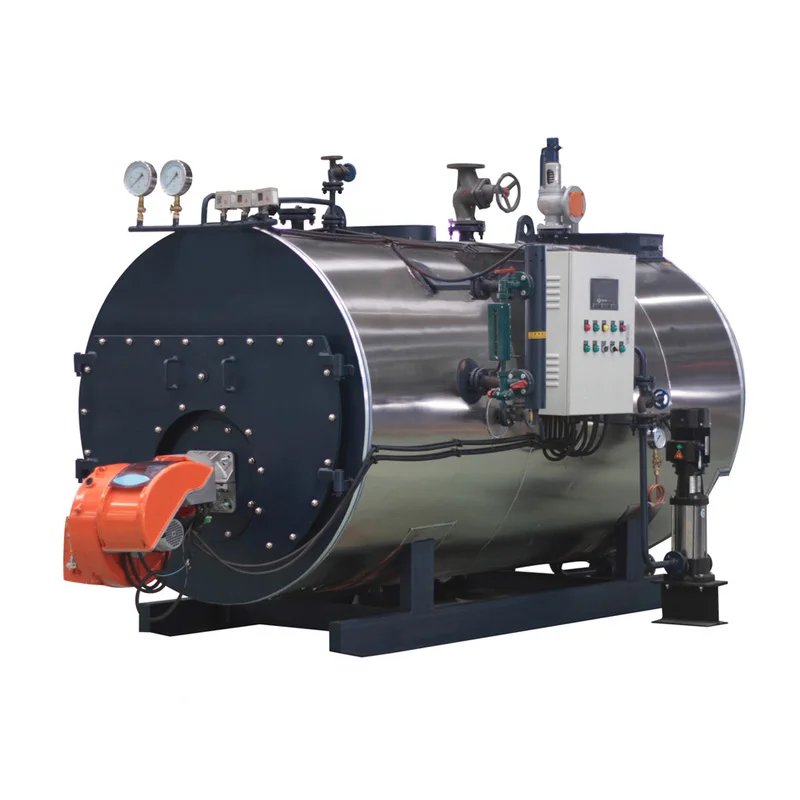

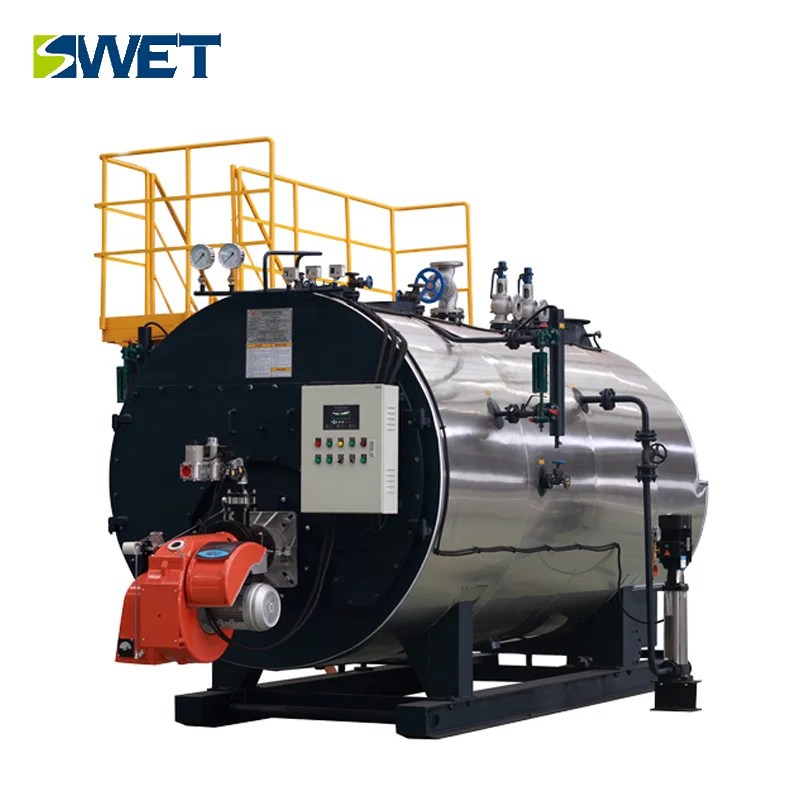

New type fire tube mini waste heat industrial steam boilers price
Product Description
Advanced and reasonable design

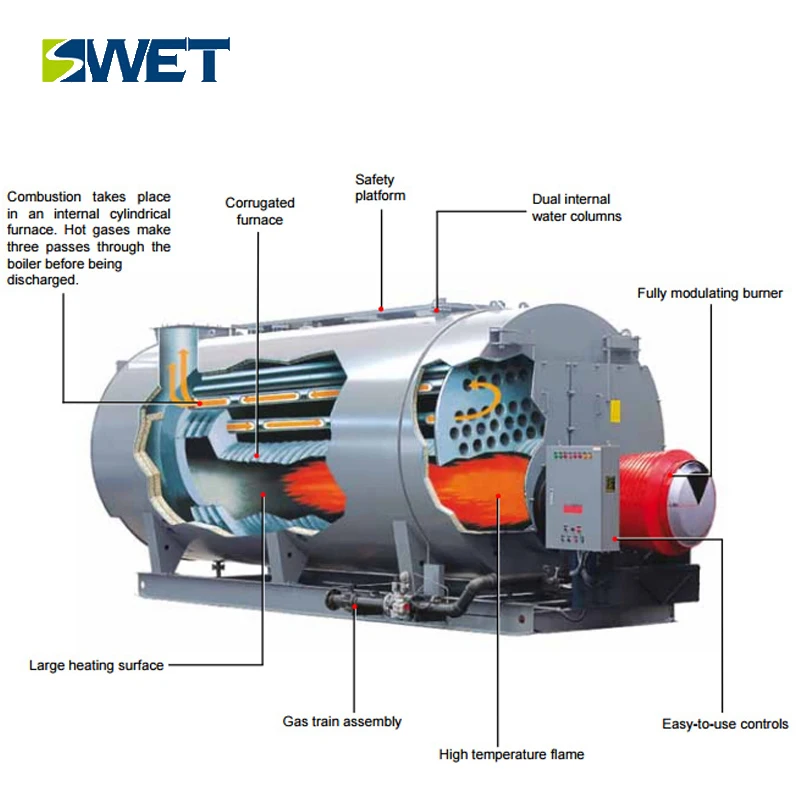

WNS series steam boiler adopts the most sophisticated three returns all wet back structure,thread smoke tube structure weld joint with high quality.
A large combustion chamber which increases the radistion heating furnace
Reasonable boiler combustor design, suitable for different fuels such as diesel, natural gas, town gas and so on, the fuels can burn completely and increasing the radiation heating furnace area,reducing the NOX emissions.
(1)This kind of burning gasoline boiler uses new type fireproof material, no preload, high thermal efficiency, stable air pressure, steam can produce high quality products in a short time.
(2)When burning, the noise is low, pollution-free, flue gas is burned completely, which can save fuel cost and improve economic efficiency.and this is an environment-friendly and energy-saving product.
industrial steam boilers price,waste heat steam boiler,steam boiler mini
Product data
WNS series automatic gas (oil) steam energy saving boiler product selection form | |||||||
Model | Rated capacity | Working pressure | Steam temperature | Feed temperature | Testing efficiency | Gas consumption | Outline dimension |
Unit | t/h | Mpa | ℃ | ℃ | % | Nm³/h | mm(L*W*H) |
WNS20-2.5-Q(Y) | 20 | 2.5 | 226 | 105 | 97.62 | 1407.5 | 8660*3520*4831 |
WNS20-1.25(1.6)-Q(Y) | 20 | 1.25/1.6 | 194/204 | 105 | 97.51 | 1459 | 8870*3550*3750 |
WNS10-1.25(1.6)-Q(Y) | 10 | 1.25/1.6 | 194/204 | 105 | 96.75 | 837.25 | 6370*2812*3514 |
WNS6-1.25(1.6)-Q(Y) | 6 | 1.25/1.6 | 194/204 | 105 | 96.58 | 433.51 | 5470*2770*3195 |
WNS4-1.0(1.25)(1.6)-Q(Y) | 4 | 1.0/1.25/1.6 | 184/197/204 | 20 | 96.3 | 334.23 | 4880*2710*2600 |
WNS3-1.0(1.25)(1.6)-Q(Y) | 3 | 1.0/1.25/1.6 | 184/197/204 | 20 | 95.99 | 245.12 | 4762*2447*2469 |
WNS2-1.0(1.25)-Q(Y) | 2 | 1.0/1.25 | 184/197/204 | 20 | 95.81 | 163.72 | 4030*2010*2210 |
Performance features: symmetrical furnace, uniform distribution, good cooling, sufficient combustion, long service life, stable output | |||||||
Production Process
Important production process of the product
(1) The boiler is composed of a tube sheet manufacturing process, a barrel manufacturing process, a manhole device manufacturing process, a drum manufacturing process, and a boiler assembly process.
(2) After the components of the boiler are assembled, they are packaged or sent directly to the user.
Application: boiler for textile mill, milk pasteurization,corrugated machine, sugar factory,pringting dyeing mill,medicine industry, food & beverage industry, chemical industry, garment industry, food processing industry, and wood processing industry, etc.
(1)The steam boiler for food industry and wood processing.
(2) The steam boiler for asphalt plant and brewery.
(3) The steam boiler for printing mill and garment industry.
(4) The steam boiler for hospital and school
(5) The steam boiler hotel and paper industry.
(6) The steam boiler steel industry and rice mill and so on.
Company Information
industrial steam boilers price,waste heat steam boiler,steam boiler mini industrial steam boilers price,waste heat steam boiler,steam boiler mini
1. We have a perfect service consulting system
Will provide you with a full range of pre - sale service.
Sell boilers, build a demonstration project, make a friend, open
A market is our eternal business philosophy. We are happy to offer
Provide clean energy for developing companies We will work with you to promote
National Industrial Progress and Energy Conservation and Emission Reduction.
2. Boiler performance is good
50 years of hot sales business culture quality and stability
China 's first circulating fluidized bed boiler products and technology.
China 's first industrial boiler manufacturer
3. Leading the technology
Industrial boilers sold more than 2,000 units.
Production of the first circulating fluidized bed industrial boiler market share is high.
4. Industry brand
Boiler design, manufacturing, transportation, installation, service integration.
safe to use
A-class boiler qualification certification, circulating fluidized bed boiler professional manufacturer

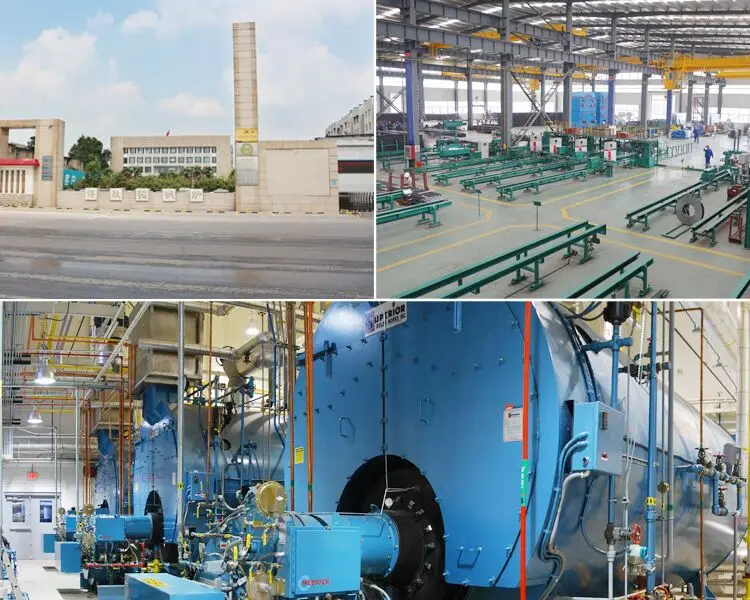

Company qualification
(1)The scale of the factory covers an area of 130,000 square meters, of which the construction area is 60,000 square meters. The company has strong technical force. The factory has more than 1,100 redundant employees, including 217 engineers and
technicians. 12 senior engineers.
(2)Chinese Academy of Sciences circulating fluidized bed boiler research and development base.
(3)China 's top ten boiler manufacturing enterprises.
(4)Shanghai Industrial Boiler Research Institute Industrial Boiler Technology Development Relying on the unit.
(5)North China Water Conservancy and Hydropower University teaching and research base
(6)The China’s first circular flow bed (CFB)boiler manufacture.
industrial steam boilers price,waste heat steam boiler,steam boiler mini
Packaging & Shipping
According to customer's requirements, our company can provide FOB inland transporation, CFR/ CIF ocean delivery. For ensure the customer get the quality products smoothly and safely, our company has professional transporation team for handling the cargo loading, safe transporation, cargo discharge. Our oil diesel heating industrial steam boiler has good price.
(1) Industrial steam boiler package.
(2) In all boiler attachments or plywood wooden boxes.
(3) Packing specification: customer requirements.
(4) Bulk, wooden boxes, crates
industrial steam boilers price,waste heat steam boiler,steam boiler mini
OEM Service
industrial steam boilers price,waste heat steam boiler,steam boiler mini
FAQ
1. What are the available fuel for the oil gas fired boiler?
Oil gas fired boiler could burn both liquid fuel and gaseous fuel. The liquid fuel could be heavy oil, light oil, diesel, furnace oil, bunker oil, LPG (liquefied petroleum gas), etc. The gaseous fuel could be natural gas, city gas, bio-gas, etc.
2. Whether the boiler can burn dual fuel or multi-fuel?
Swet boiler have oil burner, gas burner, and oil&gas dual fuel burner, we can offer the specific burner based on customers’ requirement.
3. What is the texture of spirally corrugated tube?
The texture of spirally corrugated tube is 20#.
4. The brand of burner?
The brands of burner are Italy Baltur, Rellio, Elco, etc.
5. What is the thickness of combustion chamber?
the thickness of corrugated furnace is different based on working pressure and furnace diameter, generally, the thickness is between 10~18mm, large combustion space, and combustion sufficient.
Our Services
1. Technical services
According to the user's technical requirements, at any time to design units
user units to provide technical services.Provide detailed design and installation
of technical parameters for the user unit.Providing technical services in the
installation engineering for the user units and providing on-site technical support.
After installation, the boiler host can be debugged free of charge.The company is
free to send experts to the boiler for the use of units of fireman on-site technical
training, training content including operation, maintenance, maintenance.
2. Quality assurance
The design and manufacture of the products are strictly carried out in accordance
with the "GB" standard and the factory quality assurance system of China, and are
strictly monitored according to the national standards of China.
Provide the quality guarantee issued by the competent department to the use unit.
After the product is put into operation, it can guarantee the user to achieve the required
output and stable and reliable operation.
Manager:Lin Hu
Mobile/Wechat:+86 18237412321
Website:www.swet-boiler.com
Whatsapp:+86 18237412321
industrial steam boilers price,waste heat steam boiler,steam boiler mini
