4300 Автоматический Металлический Лист вверх и вниз папка машина
- Category: Sheet Folding Machine >>>
- Supplier: Nantong Super Machinery Co. Ltd.
Share on (60789959425):
Product Overview
Description

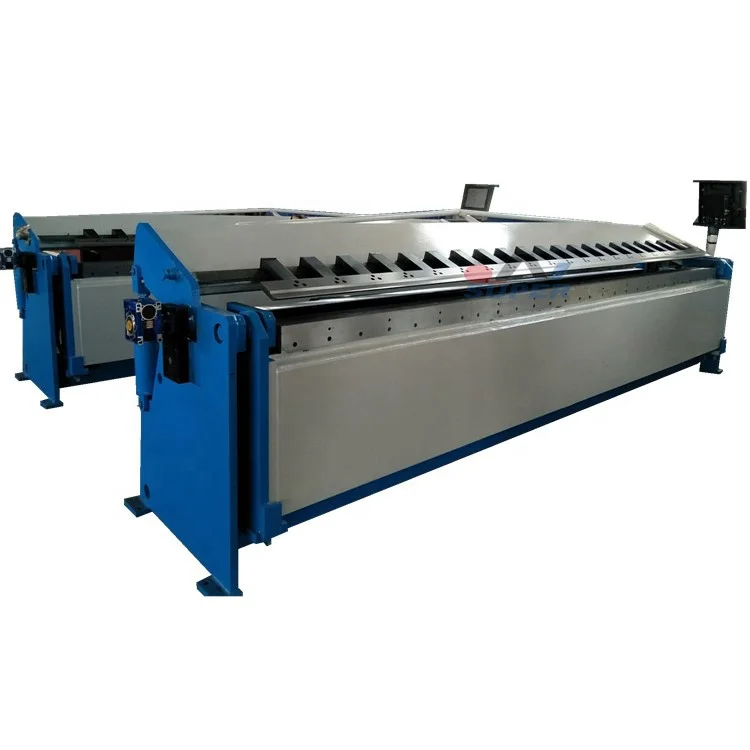

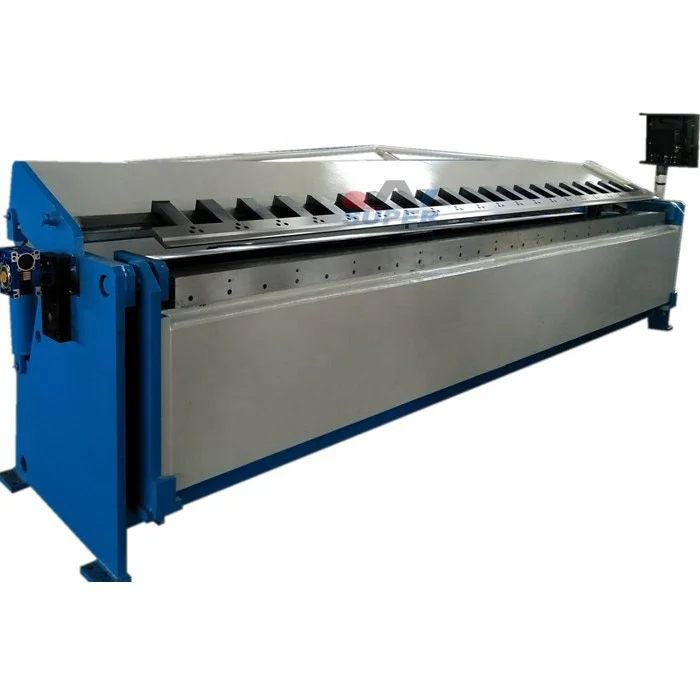

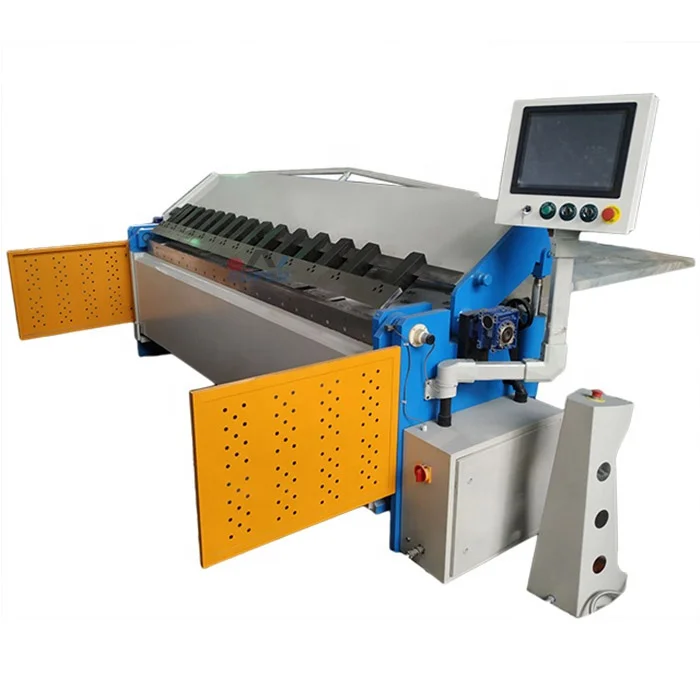

Automatic Metal Sheet Up and Down Folder Machine
related product-1
PRESS BRAKE CUTTING SHEAR MACHINE PLATE ROLLING MACHINE PROFIL BENDER
MANDREL BENDER IRONWORKS TRUE CUT MACHINE C/Z MACHINE
Product Description
Main Functions:Automatic Metal Sheet Up and Down Folder Machine
Main Parameters:Automatic Metal Sheet Up and Down Folder Machine
| Model | Folding Thickness(mm) | Folding Length(mm)) | Main motor(KW) | Net weight(kg) | Dimensions(L*W*H)mm |
| W67Y/K-2X2500 | 2 | 2500 | 2.2 | 1800 | 3300x850x1550 |
| W67Y/K-2X3200 | 2 | 3200 | 2.2 | 3700 | 4100x1550x1550 |
| W67Y/K-2X4300 | 2 | 4300 | 5.5 | 7200 | 5500x1200x1800 |
| W67Y/K-3X2500 | 3 | 2500 | 4 | 3100 | 3450x1130x1800 |
| W67Y/K-3X3200 | 3 | 3200 | 4 | 3800 | 4150x1200x1800 |
| W67Y/K-3X4000 | 3 | 4000 | 4 | 6100 | 4900x1200x1900 |
| W67Y/K-4X2500 | 4 | 2500 | 5.5 | 3250 | 3750x1640x1650 |
| W67Y/K-4X3200 | 4 | 3200 | 5.5 | 3950 | 4450x1640x1650 |
Fold die and control
Main structure
The main parts of the machine tool adopt welded steel plate construction.
The mahcine is composed of 1.bed 2. presssing beam3. bending beam 4.back gauge 5.die sets 6.hydraulic system 7.safety guards 8.electrical system,working harmoniously and reliably
Clamp Die
 |  |
| Top type Customized by customer's drawing | Standard Segmented type or designed by drawing |
Optional Control Panel
 |  |  |
| Touch Screen Controller | E21S Controller | Button Controller |
Folder Profiles
Packaging & Shipping
Packaging & Shipping
1. LCL Loading Packaging: Steel pallet and plywood case.
2. FCL Loading Packaging: Steel pallet with plastic film.
3. Shipping: by sea
