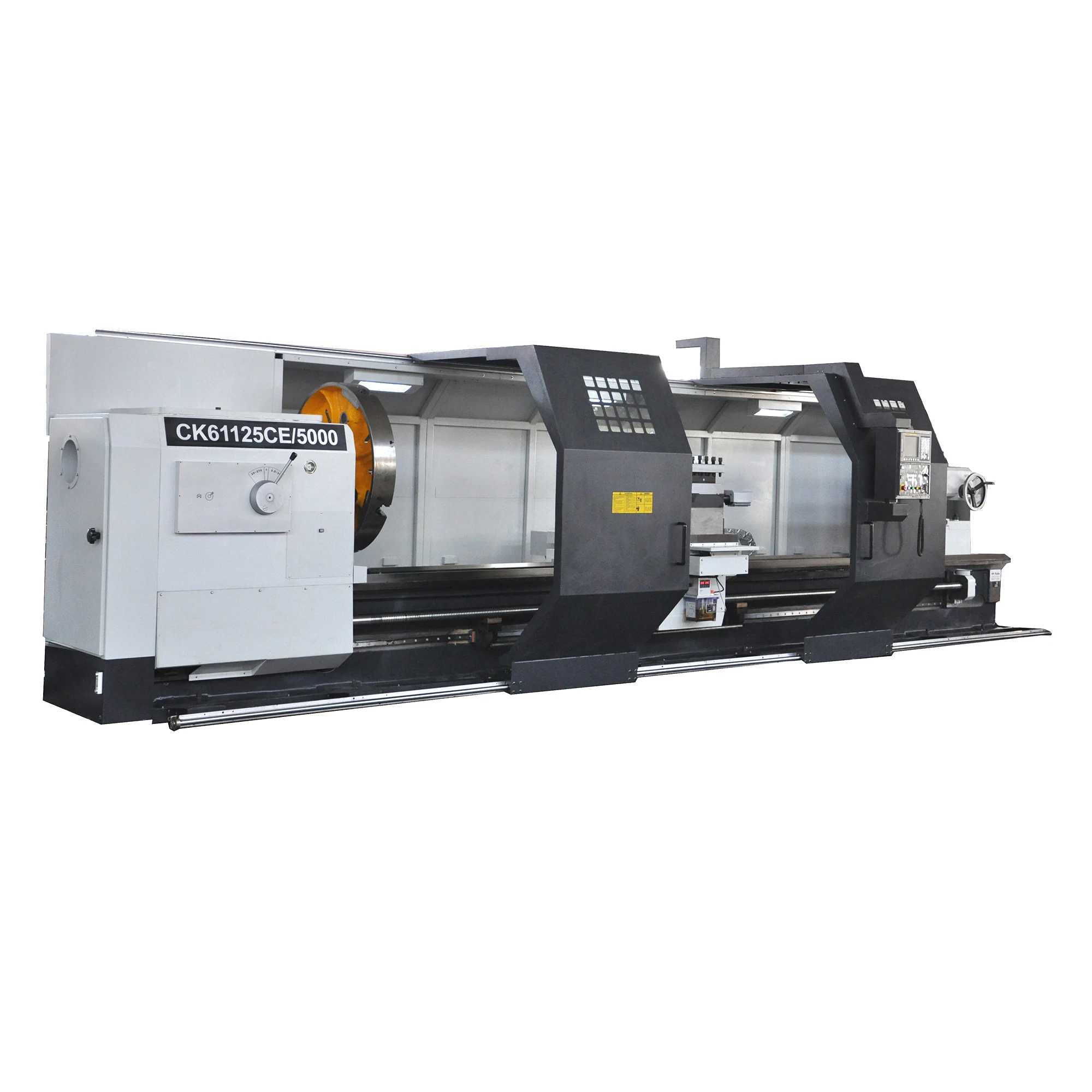

Product Overview
Description
FEATURES AT A GLANCE
Product Features
1. Longitudinal and cross feeds are effected by servo motors driven by ball screws.
2. Centralized lubrication system in headstock for less heating and heat distortion.
3. Supersonic frequency hardened guide ways ensure high precision and long service life.
Right elevation
Left elevation
Back elevation
PRODUCT SPECIFICATIONS
MODELS | CK61100CE | CK61125CE | CK61140CE | ||||
CAPACITY | |||||||
Max. swing over bed | Ф1000 mm | Ф1250 mm | Ф1400 mm | ||||
Max. swing over carriage | Ф620 mm | Ф815 mm | Ф990 mm | ||||
Width of bed | 755 mm | ||||||
Max. length of workpiece | 1.5/ 2/ 3/ 4/ 5/ 6/ 8/ 10 m | ||||||
Max. turning length | 1.3/ 1.8/ 2.8/ 3.8/ 4.8/ 5.8/ 7.8/ 9.8 m | ||||||
Max. weight between centers | 5000 kg | ||||||
SPINDLE | |||||||
Spindle nose | A2-15 | ||||||
Spindle bore | Ф130 mm | ||||||
Spindle tapper | Metric Ф140 1:20 | ||||||
Steps of spindle speed(manual) | 2 steps (manual) | ||||||
Range of spindle speed | 2.5~34, 20~270 rpm | ||||||
FEED | |||||||
Rapid feed for axis Z | 8 m/min | ||||||
Rapid feed for axis X | 5 m/min | ||||||
TRAVEL | |||||||
Max.travel of Z axis | 1.55/2.05/3.05/4.05/5.05/6.05/8.05/10.05 m | ||||||
Max.travel of X axis | 580 mm | 685 mm | 820 mm | ||||

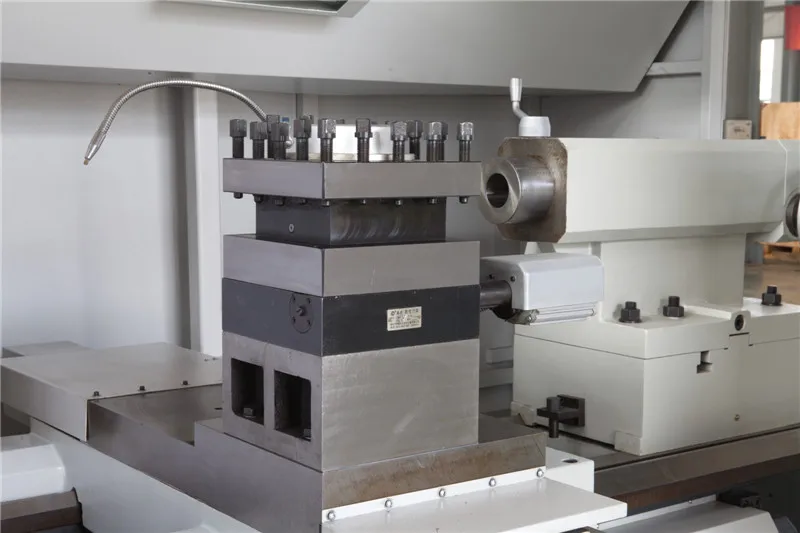

TOOL POST | |||||||
Tool post stations | 4 | ||||||
Tool cross section | 40×40 mm | 50×50 mm | |||||

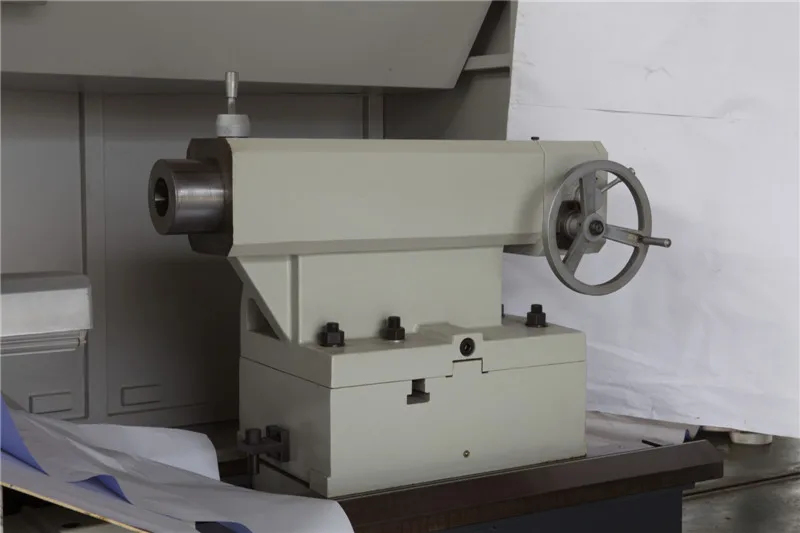

TAILSTOCK | |||||||
Tailstock sleeve outer dia. | Ф160 mm | ||||||
Tailstock sleeve taper bore | Metric Ф80 | ||||||
Tailstock sleeve travel | 300 mm | ||||||
OTHERS | |||||||
Mi. Input | 0.001 mm | ||||||
Main motor power | 22 kW | ||||||
Coolant pump power | 370 w | ||||||
Chuck diameter | Ф1000mm (4-jaw chuck) | Ф1250mm (4-jaw chuck) | |||||
PRODUCT CONFIGURATION

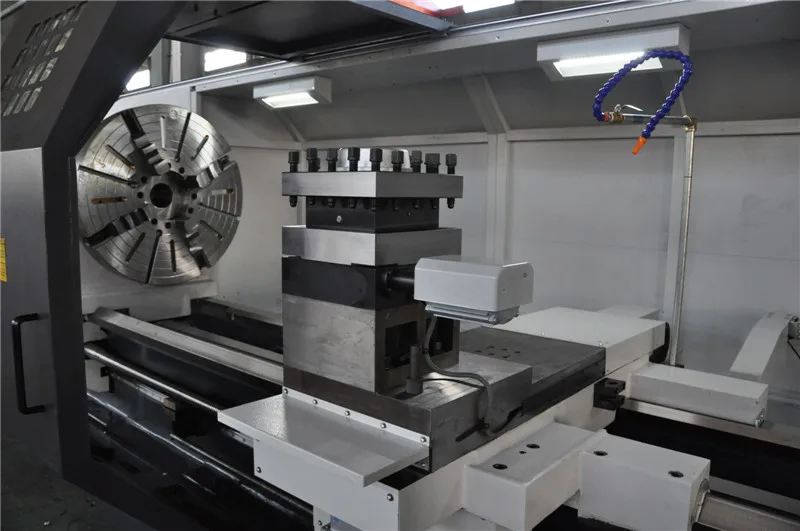

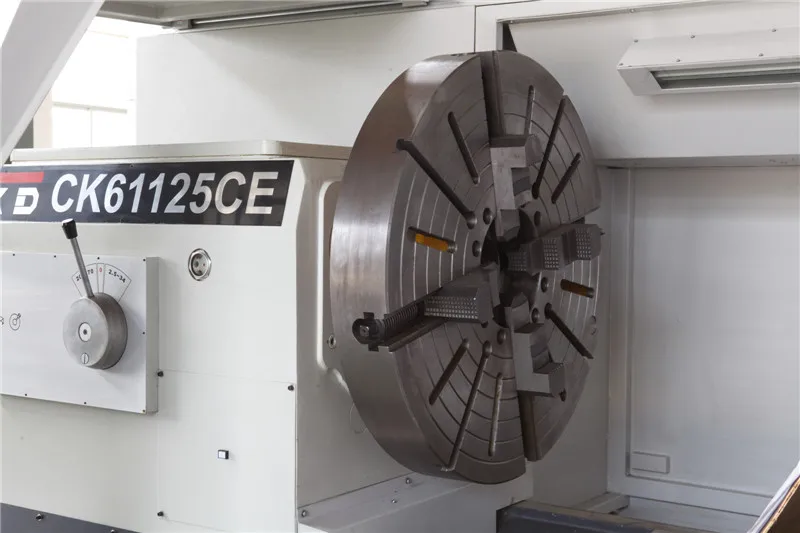

Big size manual chuck
4-station/6-station/8-station turret are optional.
Manual tailstock or hydraulic tailstock is optional.

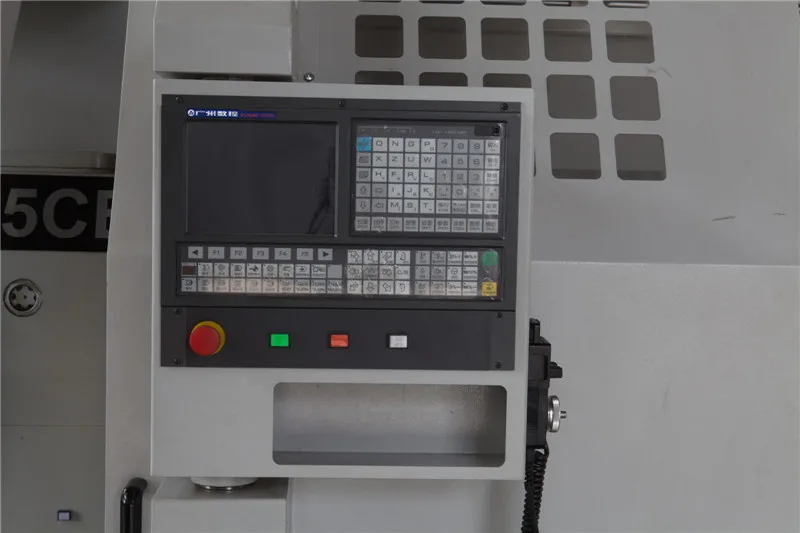

FANUC, SIEMENS, FAGOR, MITSUBISHI, GSK cnc controllers are optional.
Auto chip conveyor is optional.
Full sheet cover is optional.
