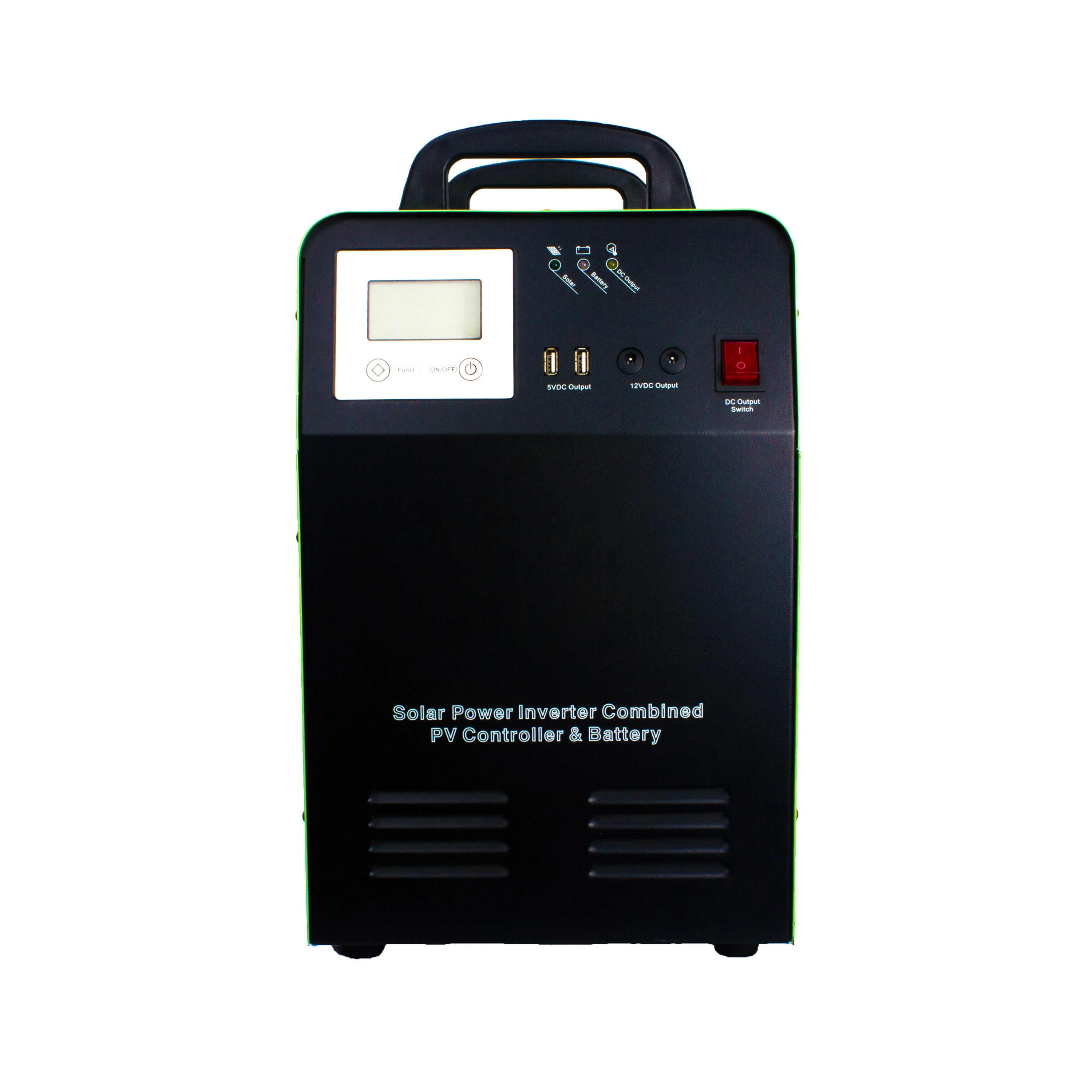

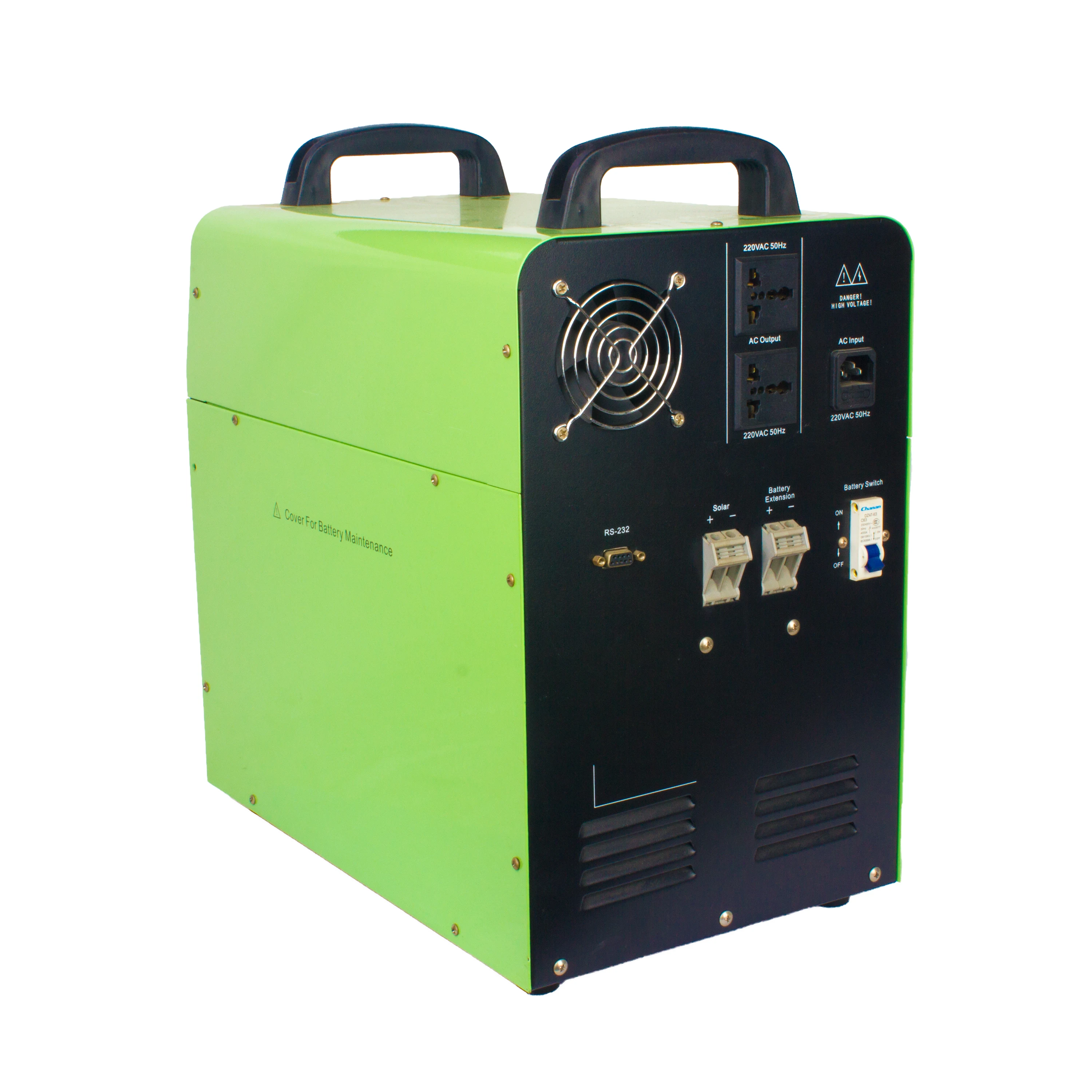

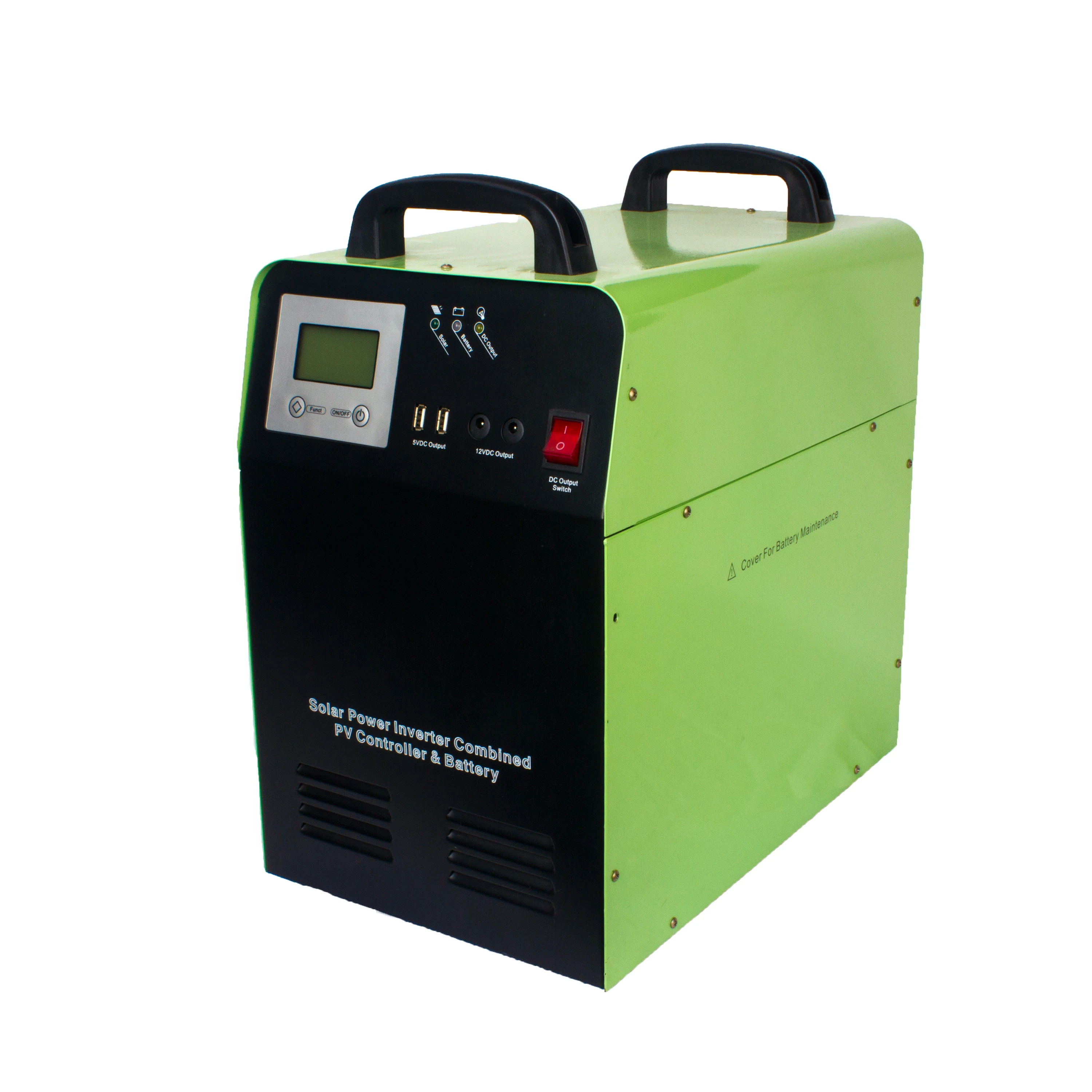

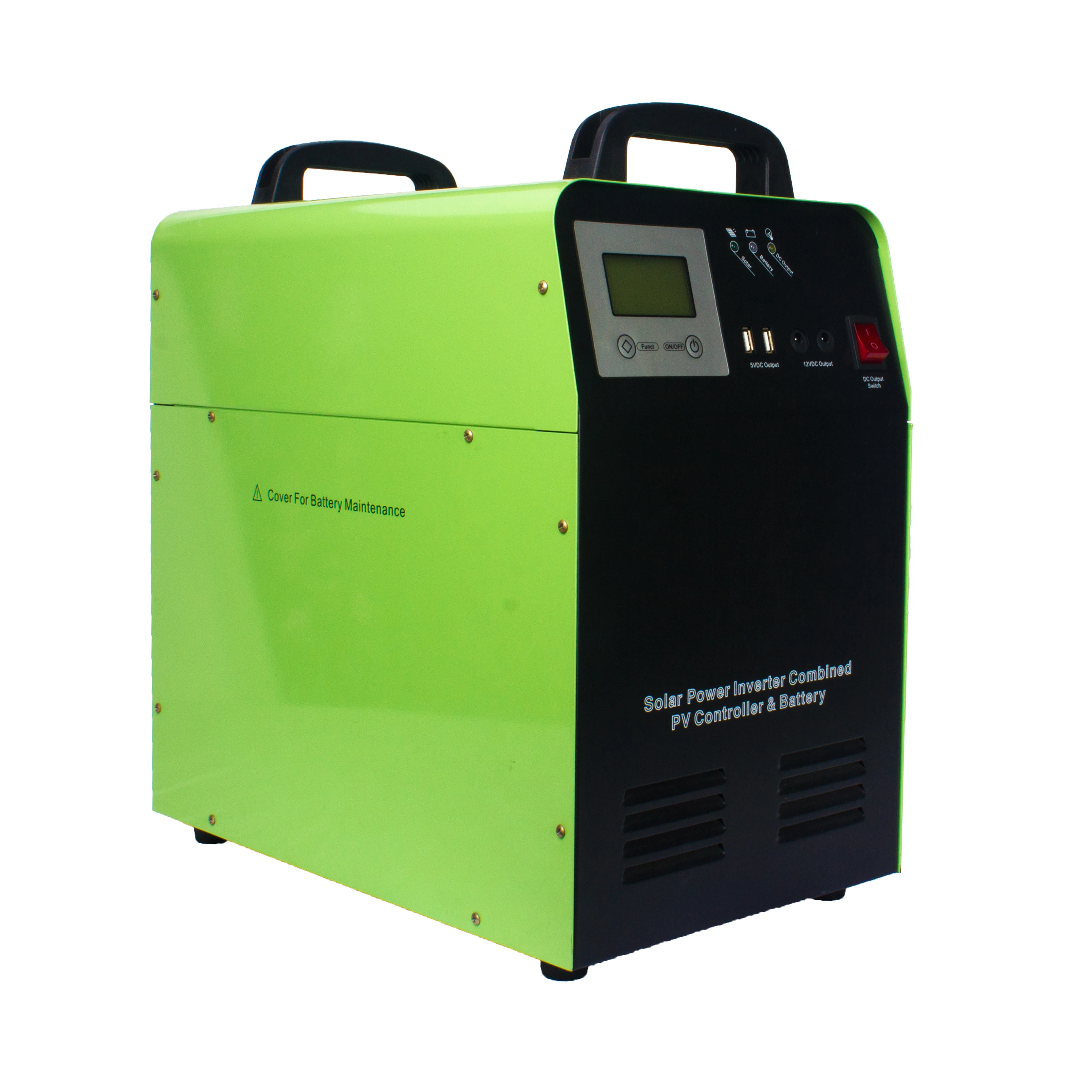

Multifunction 500W pure sine wave 220V 12V 24V output solar energy power inverter
- Category: >>>
- Supplier: Shenzhen Zhongguanda Technology Co. Ltd.
Share on (60790119124):
Product Overview
Description
Products Description
Product Paramenters
Model | AL-0.5KW |
RATED POWER | 500VA/500W |
INPUT | |
Voltage | 230 VAC |
Selectable Voltage Range | 170-280 VAC (For Personal Computers) |
90-280 VAC (For Home Appliances) | |
Frequency Range | 50 Hz/60 Hz (Auto sensing) |
OUTPUT | |
AC Voltage Regulation(Batt. Mode) | 230 VAC ± 5% |
Surge Power | 6400 VA |
Efficiency(Peak) PV to INV. | 97% |
Efficiency(Peak) Battery to INV. | 94% |
Transfer Time | 10 ms (For Personal Computers); 20 ms (For Home Appliances) |
Waveform | Pure sine wave |
BATTERY & AC CHARGER | |
Battery Voltage | 24 VDC |
Floating Charge Voltage | 27 VDC |
Overcharge Protection | 33 VDC |
Maximum Charge Current | 80 A |
SOLAR CHARGER | |
Maximum PV Array Power | 4000W |
MPPT Range@Operating Voltage | 120 - 450 VDC |
Maximum PV Array Open Circuit Voltage | 500 VDC |
Maximum Charging Current | 80A |
Maximum Efficiency | 98% |
PHYSICAL | |
Dimension, D*W*H (mm) | 100 * 300 * 440 |
Net Weight（kgs) | 9 |
Communication interface | USB/RS232/GPRS/WIFI |
OPERATING ENVIRONMENT | |
Humidity | 5% to 95% Relative Humidity ( Non-condensing) |
Operating Temperature | 0°C - 55°C |
Storage Temperature | -15°C - 60°C |
This is a multi-function inverter/charger, combining functions of inverter,MPPT60A/80A solar charger and battery charger to offer uninterruptiblepower support with portable size. Its comprehensive LCD display offersuser-configurable and easy-accessible button operation such as batterycharging current, AC/solar charger priority, and acceptable input voltagebased on different applications
Features
◆Rated power 1KW to 5KW
◆Pure sine wave output
◆Smart LCD setting( Working modes, Charge Current, Charge Voltage, etc)
◆Bult in MPPT80A100ASOLAR charge controller

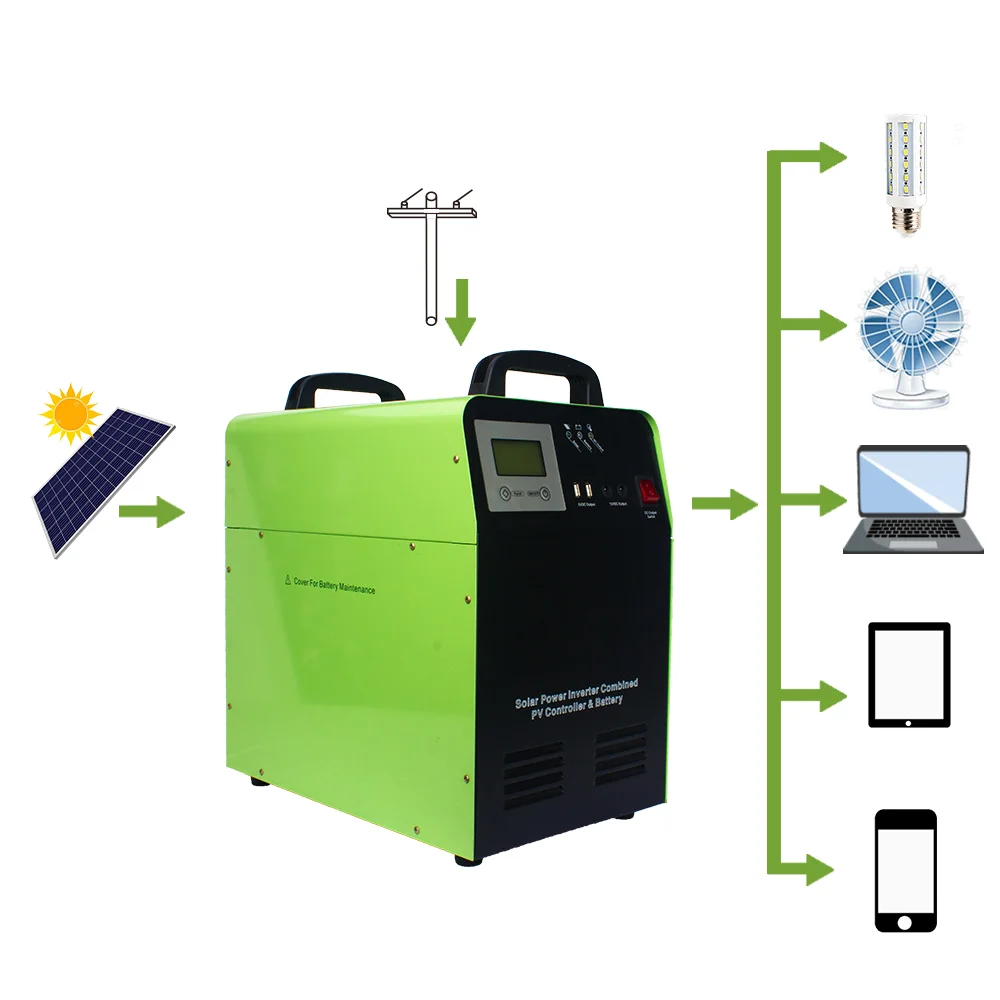

◆Combining solar system, AC utility, and battery power source to supplycontinuouspower
◆Overload, short circuit and Deep discharge protection
◆ Cold start function
◆Support USB, RS485 monitoring function with free CD
◆WIFI remote monitoring (optional)
◆Compatible to generator
◆Pure sine wave output
◆Smart LCD setting( Working modes, Charge Current, Charge Voltage, etc)
◆Bult in MPPT80A100ASOLAR charge controller
◆Combining solar system, AC utility, and battery power source to supplycontinuouspower
◆Overload, short circuit and Deep discharge protection
◆ Cold start function
◆Support USB, RS485 monitoring function with free CD
◆WIFI remote monitoring (optional)
◆Compatible to generator
