Android handheld biometric fingerprint machine device

Product Overview

Description

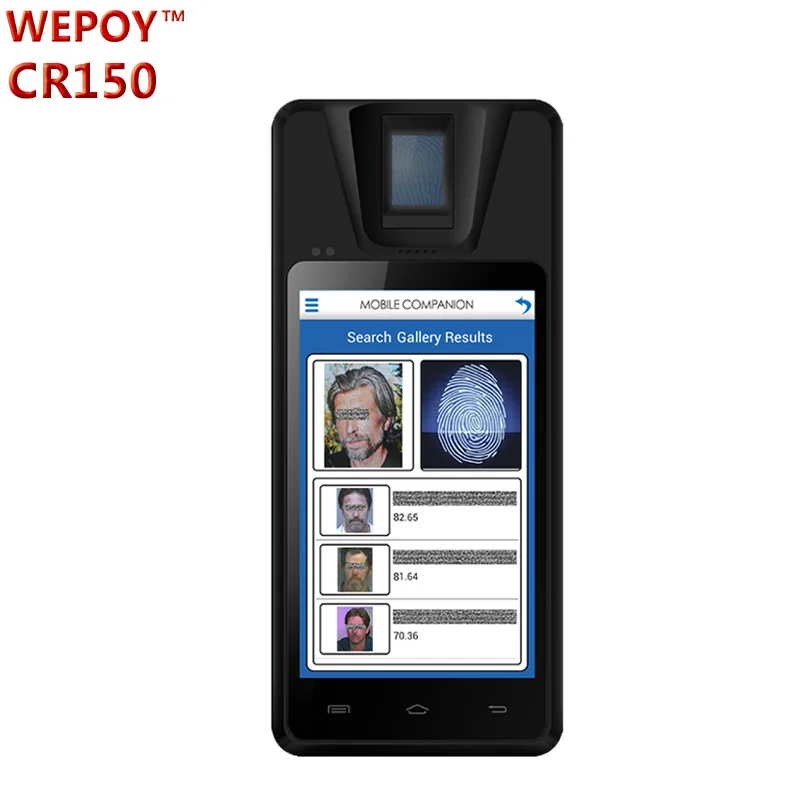

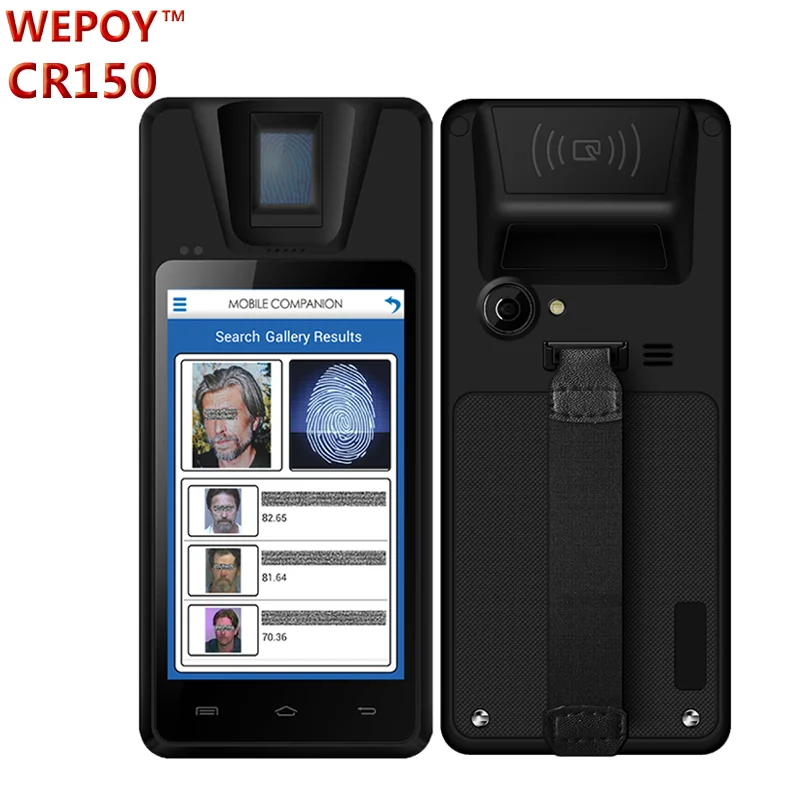

Android handheld biometric fingerprint machine device

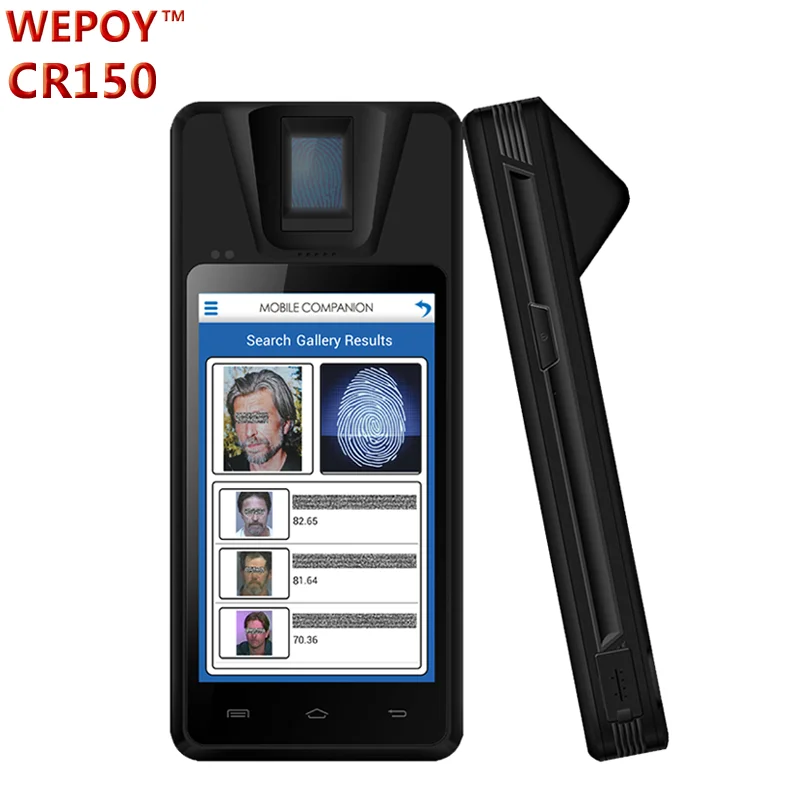

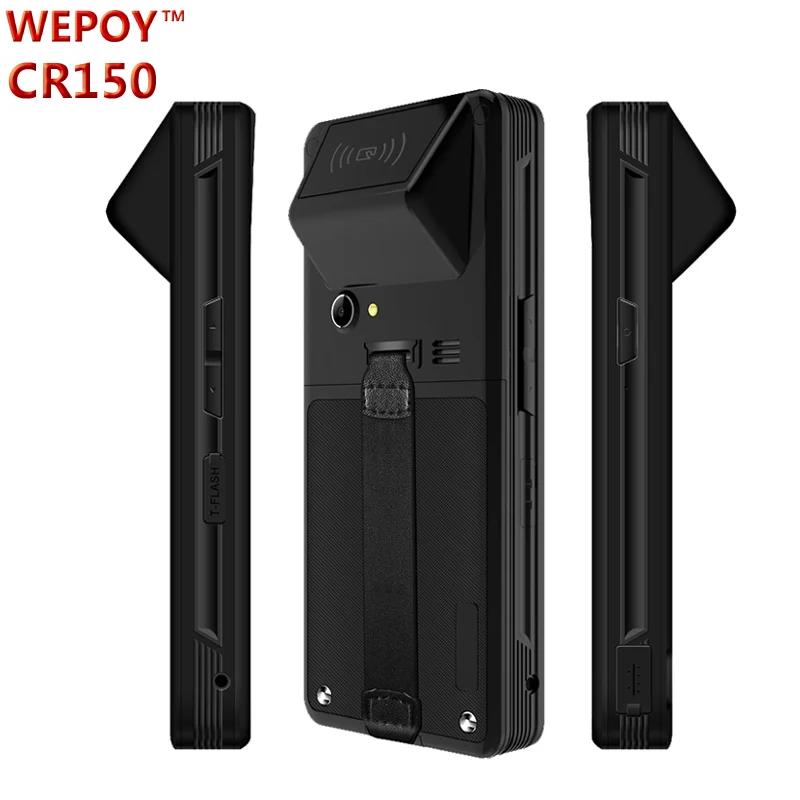

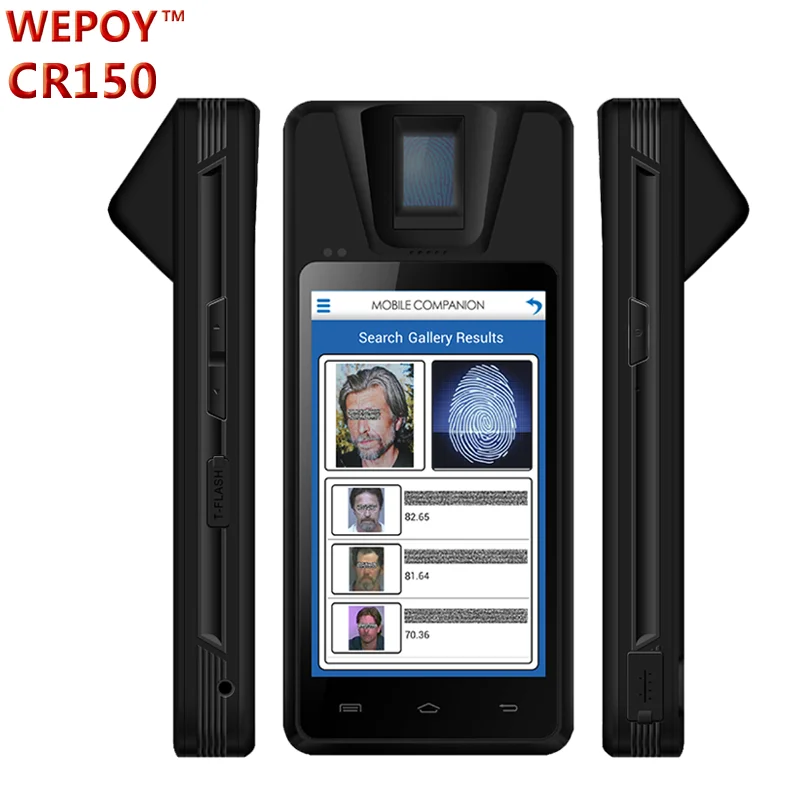

5"  Android Biometric Terminal CR150
Performance  Characteristics	Operating System	Android 5.1
	CPU	MTK Dual-core 1.3GHz
	Display	5.0 inches ( 480x854 )
	Panel	Capacitive screen
	RAM	1GB
	Flash	8GB
Physical  Characteristics	Dimensions  (LxWxD)	201mm*82mm*24mm/185mm*82mm*24mm
	Weight	486g/380g
	Input	Muti-language

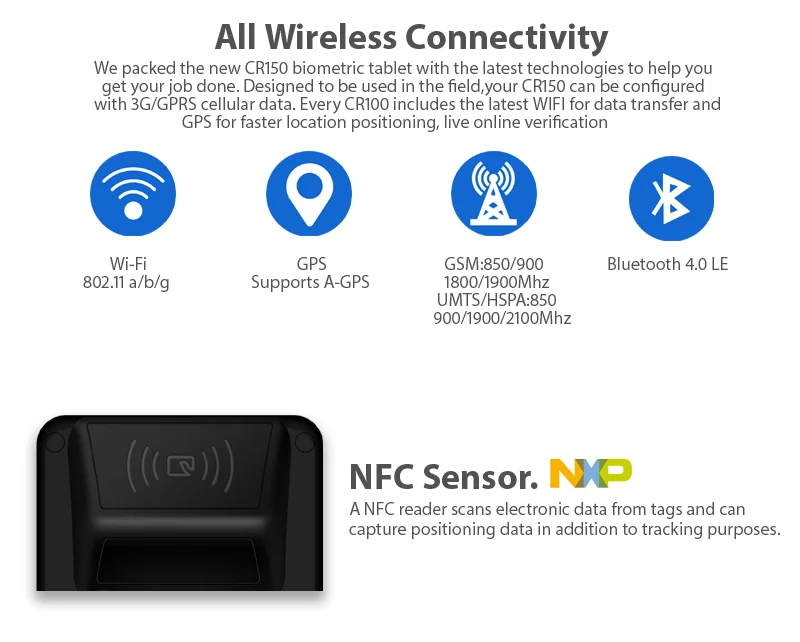

Radio  Communication	WiFi	802.11 b/g/n
	Bluetooth	Bluetooth 4.0
	WCDMA	GSM/EDGE/GPRS:   850, 900, 1800, 1900MHz                                                    WCDMA/UMTS/HSPA+: 850, 1900MHz or 900, 2100MHz

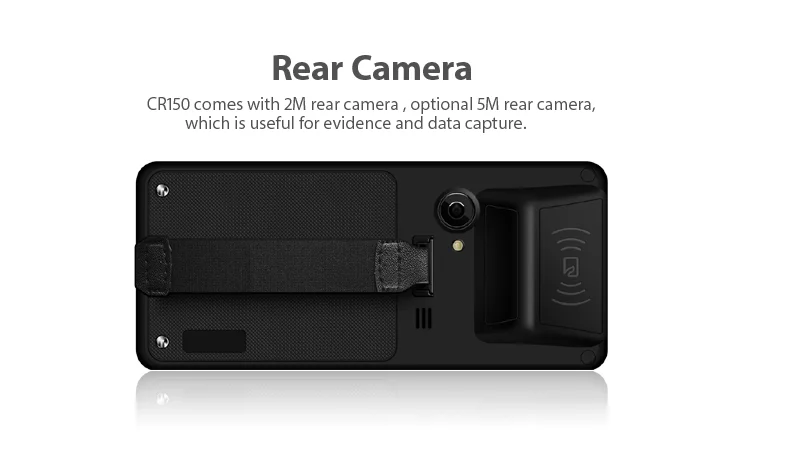

Standard	Camera	5MP
	GPS	GPS, Support AGPS
Optional	RFID Module	Read access time <3S                                                                                                                   Reading range: 0~5cm                                                                                                                Working frequency: 13.56MHz±7kHz

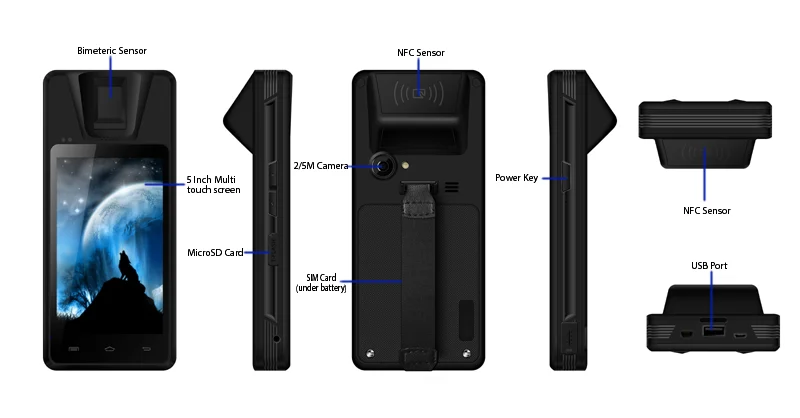

	Fingerprint	Optical sensor                                                          Capture size: 14*20mm                                                       Pixel: 320*480	Capacitive sensor                                     Capture size: 10.64*14mm                             Pixel: 256*288
		Resolution: 500DPI                                                                                                                              Gray scale: 256                                                                                                                       Authentication type: 1:1, 1:N
Power	Main Battery	Rechargeable: 3.7V 4000mAh Lithiumion polymer battery pack Optional: 3.7V/10000mAh Lithiumion polymer battery pack
Peripherals  and  Accessories	Expansion	SDHC/SDXC*1, SIM*2
	Interfaces	USB 2.0(OTG)*1 and Micro USB*1
Warranty	Warranty	1 year factory warranty for main device; 6 months for accessories

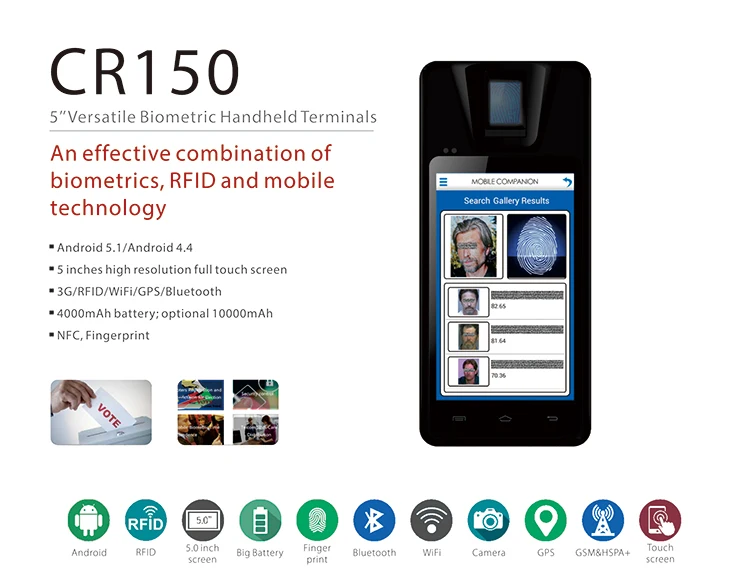

FEATURES:

Android 5.1/Android 4.4

5 inches high resolution full touch screen

3G/RFID/WiFi/GPS/Bluetooth

4000mAh battery; optional 10000mAh

NFC, Fingerprint



Commercial Cooperation:

 Our partners in more than 100 countries and regions around the world.

Our service:

1. OEM/ODM service.

2. Software customization according to customers’ requirement.

3. One year warranty for main device as well as 7*24 Online or phone technical support service.

4. Consulting Services help clients evaluate hardware, software and integrated services.

5. Onsite technical support service if online and phone services are not accessible.

FAQ:

Q The device won’t turn on.

AFirst please check if battery is installed correctly and battery rear cover is covered.

If there is battery and battery is installed correctly ,The program may be damaged. Please try resetting your device.

If it still doesn’t work, Please contact the service center.

QThe devicecan’t be charged.

AA Make sure the power cable and your device have been properly

connected.

Try to clean the charging terminals. If they still do not work,

your battery life might be finished or it may be a broken battery.

(The battery warranty lasts for 6 months)

QHow do I get the repair service?

AYou can send the device via a delivery service to our headquarter after confirmation.

When sending the package, make sure you pay for the shipping

fee in advance.When the repair is finished, headquarter will cover the shipping cost.

QMy battery drains very quickly.

A The battery can be drained quickly when the Wi-Fi or Bluetooth is

turned on.If it drains quickly regardless of using the options above,

please purchase another battery.

QThe device won’t connect GPRS?

AFirst check if SIM card is installed correctly and wireless function is opened.

Then make sure the access point is set correctly and SIM card has enough fee.

If it still doesn’t work , then check SIM card is damaged or not.
