Product Overview
Description
HIgh-end Small Pixel series led display Pitch P1.6 P1.9 P2 LED screen
Product Description
Parameters
Description | Technical parameter | |

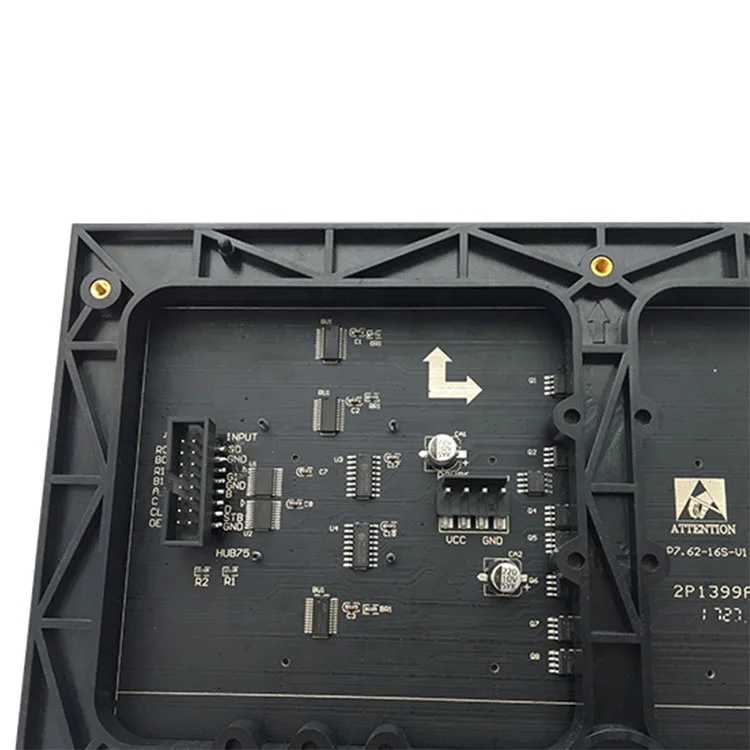

Unit module | Module size | 200x150mm |
Pixel pitch | 1.923mm(0.27kg) | |
Pixel density | 270422dots/m2 | |
Pixel configuration | 1R1G1B | |
Display color | Full color | |
Led chips | SMD1010 3 in 1 | |
Pixel resolution | W:208dots*H:156dots | |
Cabinet | Dimension | 400x300mm( die cast aluminum ) |
Quantities of module | 4pcs( cabinet size could be customized) | |
Cabinet pixels | 416x312dots | |
Thermal discharge | Fan*1pcs | |
Total weight | 4.7kg | |
Best viewing angle | >1 m | |
Temperature | Storage: -35°C~+85°C | |
Working: -35°C~+85°C | ||
Thickness | 5cm-6cm | |
Remarks: cabinet size can changed, upon project need. | ||
Power | Working voltage | AC220V/110V±10% |
Average power consumption | 450-550W | |
Max. Power consumption | ≤900W/sqm | |
Current | ≤20mA(single LED) | |
Control system | CPU | Pentium4 or above |
Operating system | WIN98/2000/NT/XP/WIN7 /WIN8/WIN10… | |
Control method | Synchronization | |
Main technical parameter | Driving device | 1/26 scan |
Drive type | Constant Current driver IC | |
Display type | Video/Graphics/Animation/Message/Text | |
Refresh frequency | 2400-3840Hz | |
Grey scale/colors | 256 levels of each color(R/G/B)/16.7M color | |
Brightness of white balance | 1500-1800cd/sqm | |
Brightness adjustment | 256 levels of each color(R/G/B)by software | |
Operating ambient humidity | 10%--95% | |
Video signal | PAL/NTSC VGA HDM1 DVI S-VIDEO RF RGBHV YUV …etc. | |
Control system | DVI display card+full color controller card | |
MTBF | ≥72hours | |
Life span | ≥100,000hours | |
Flatness | Tolerance of inter pixel ≤0.3mm | |
Tolerance of modules clearance≤0.6mm | ||
Power switch | Automatic switch | |
Communication distance | Unshielded twisted pair net line transmission distance 100m, max transmission distance 200m. | |
Multi-mode Optic fiber transmission distance 500m;Single-mode optic fiber transmission distance 10KM | ||
Software | LED media player | |

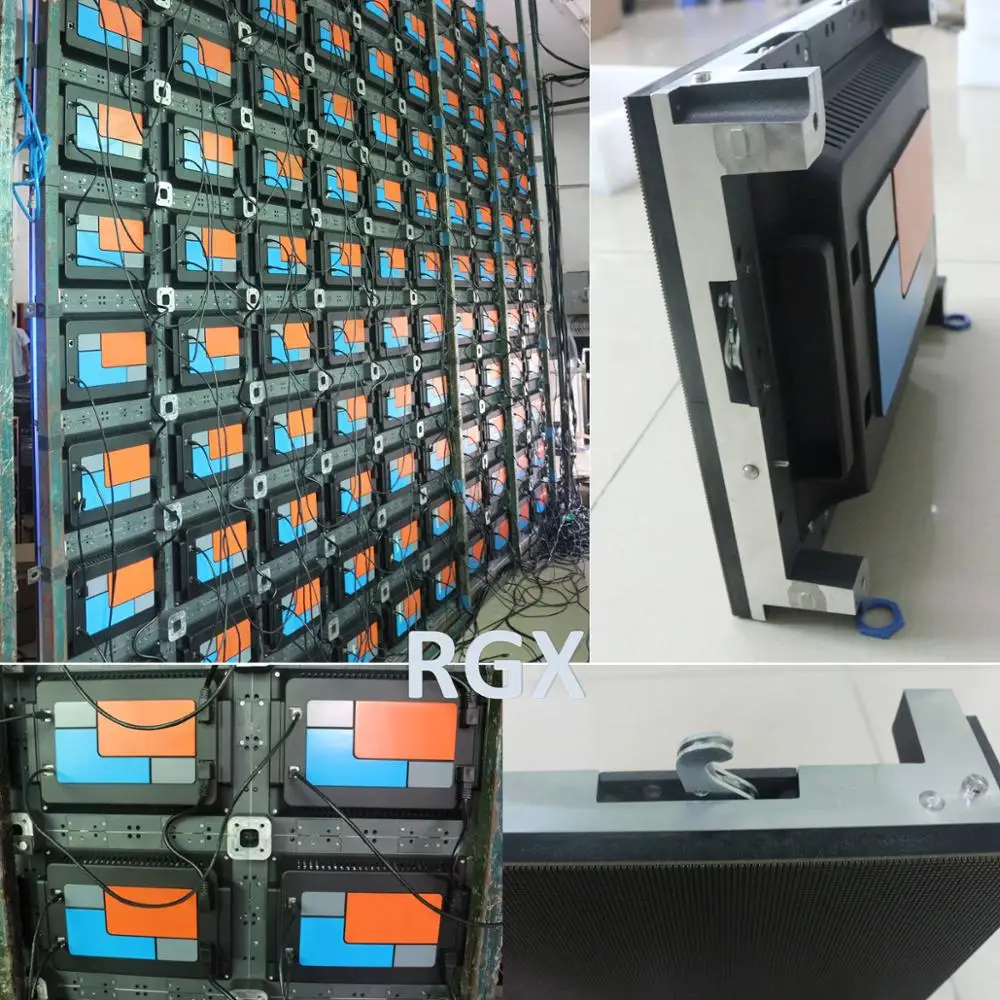

P1.923 portable led display video wall panel

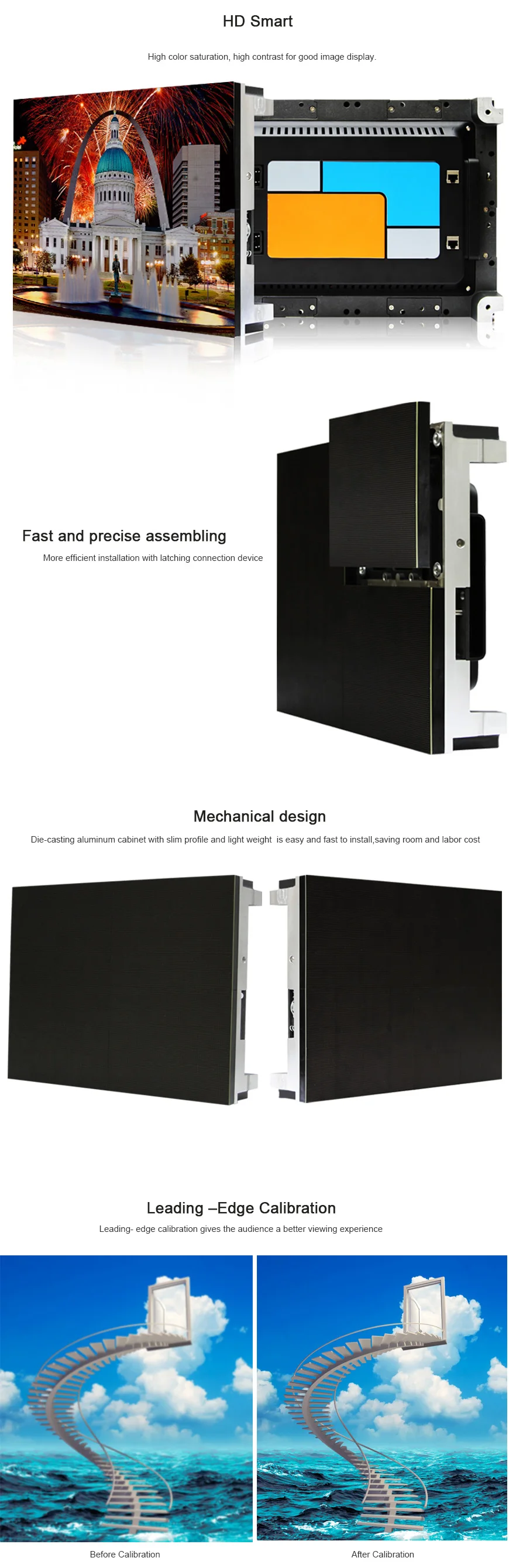

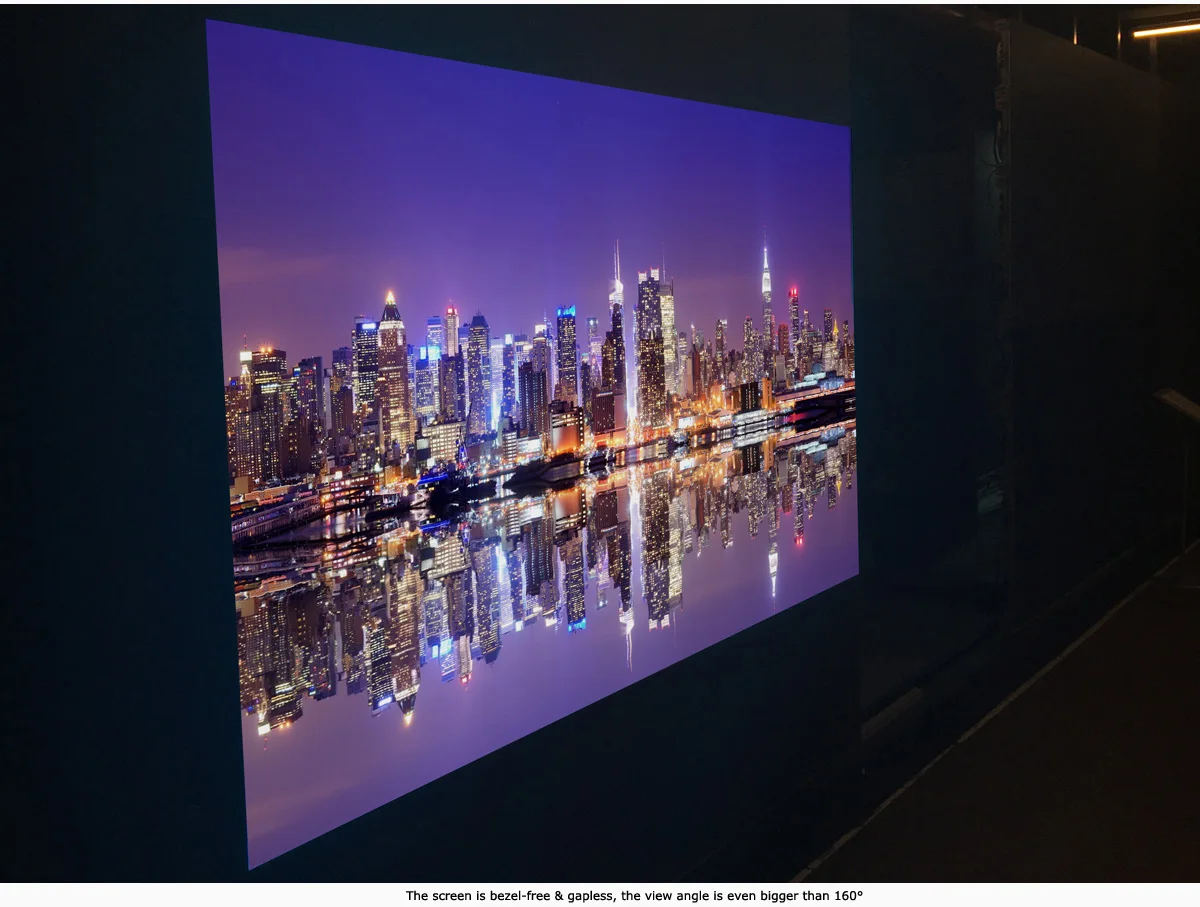

Seamless connection. The cabinet is die-casted by high precision CNC machine, when we set up the panels for a big screen, there will be no gaps between two contiguous panels. Meanwhile, high quality plastic mask covered the modules makes the flatness of the screen are very even, thus the view angle is up to 160°or even bigger

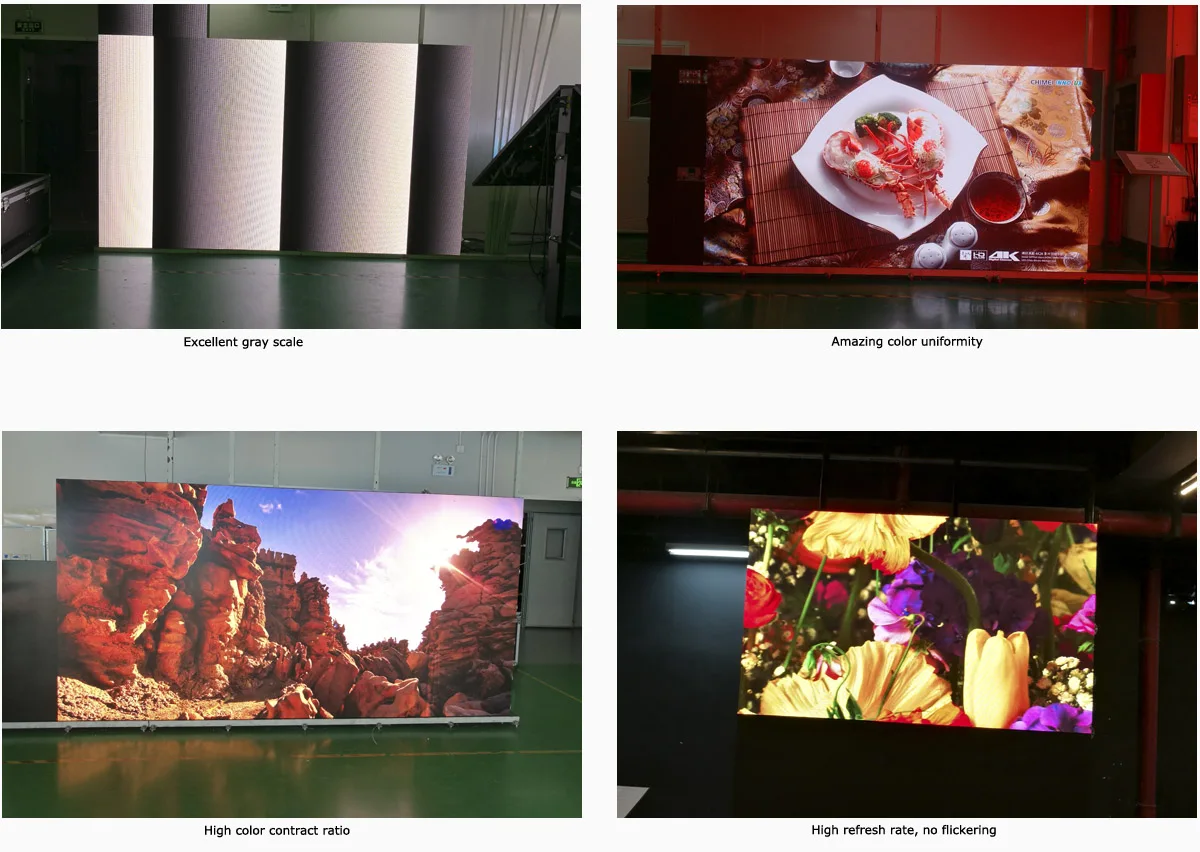

Great gray scale, high refresh rate and excellent white balance. Our screen is used high quality material, the gray scale is up to 14bits, refresh rate is up to 2500Hz and the white balance is very pure. So performance of the screen is extraordinary and stable
Function and Advantages
1. Cabinets are made of die-casting aluminium,can be sliced with no crack.
2.P1.667/P1.875/P1.923/P2/ P2.5/P3/P3.91/P4/P4.81 /P5/P6/P6.25/P7.62/P10 is optional for you.

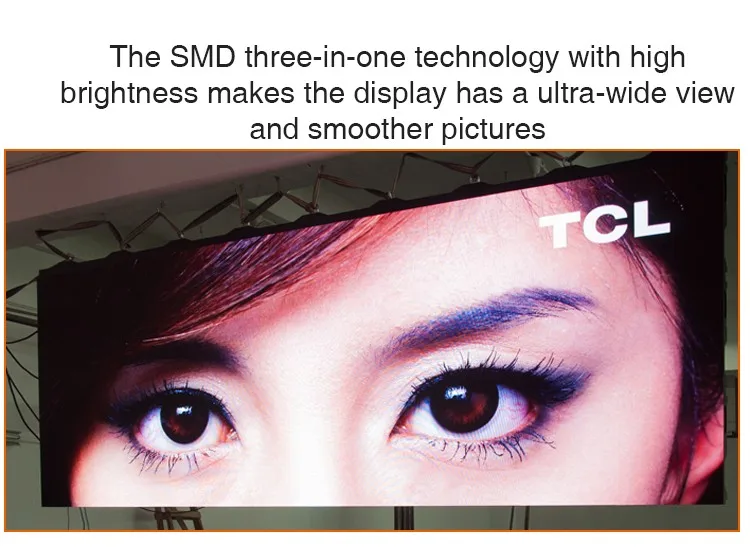

3. SMD three-in-one technology with high brightness makes the display have a ultra-wide view & vivid image when in use.
4. Work normally without air conditioning for low powe consumption.

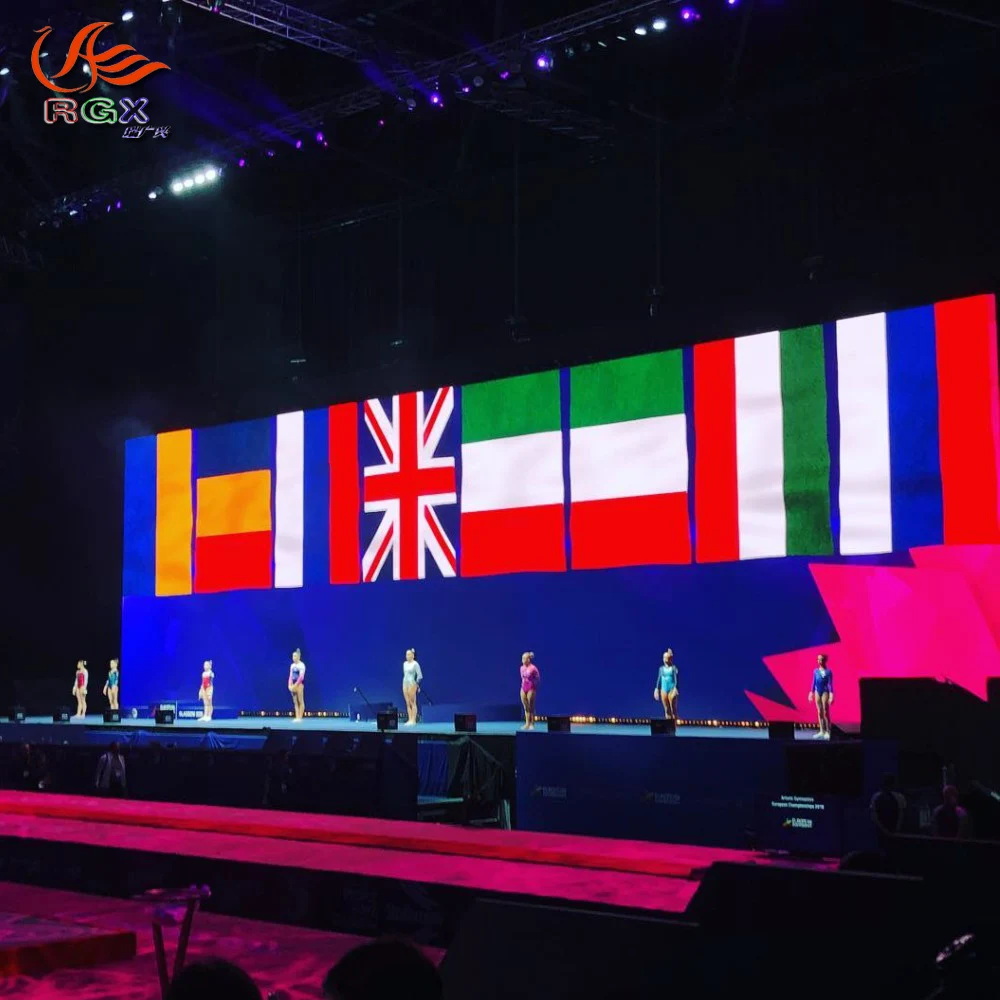

5.Suitable for OUTDOOR application,big square,shopping malls,railway stations,Airport,stage renting,etc.

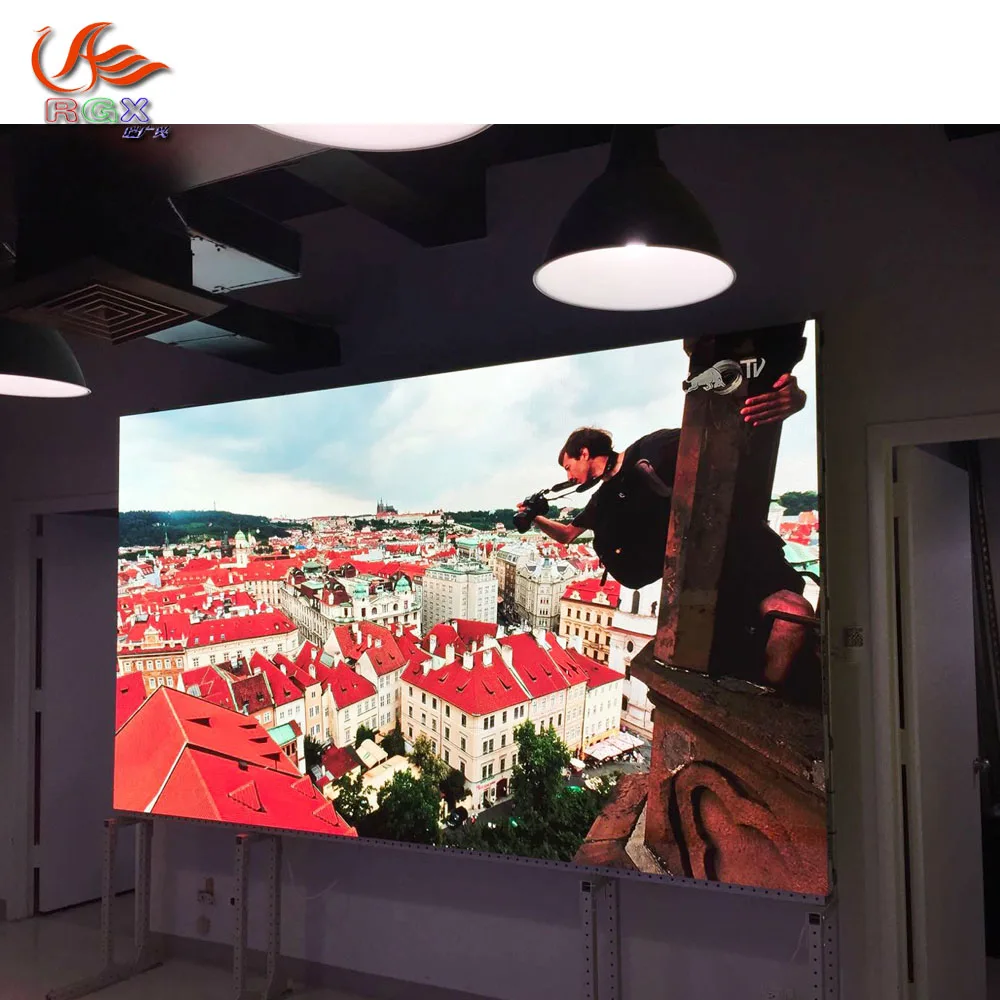

Application
More products for your chosen...
Our Services
1. After-sales service:
1) 24 hours on line guiance.
2) Service period: 3-5years warranty.life long free manitenance.
2. Pre-sales service:
1) free trainning.
2) Our company can train the users based on the manual. The training include system use, system maintenance and equipment protection
