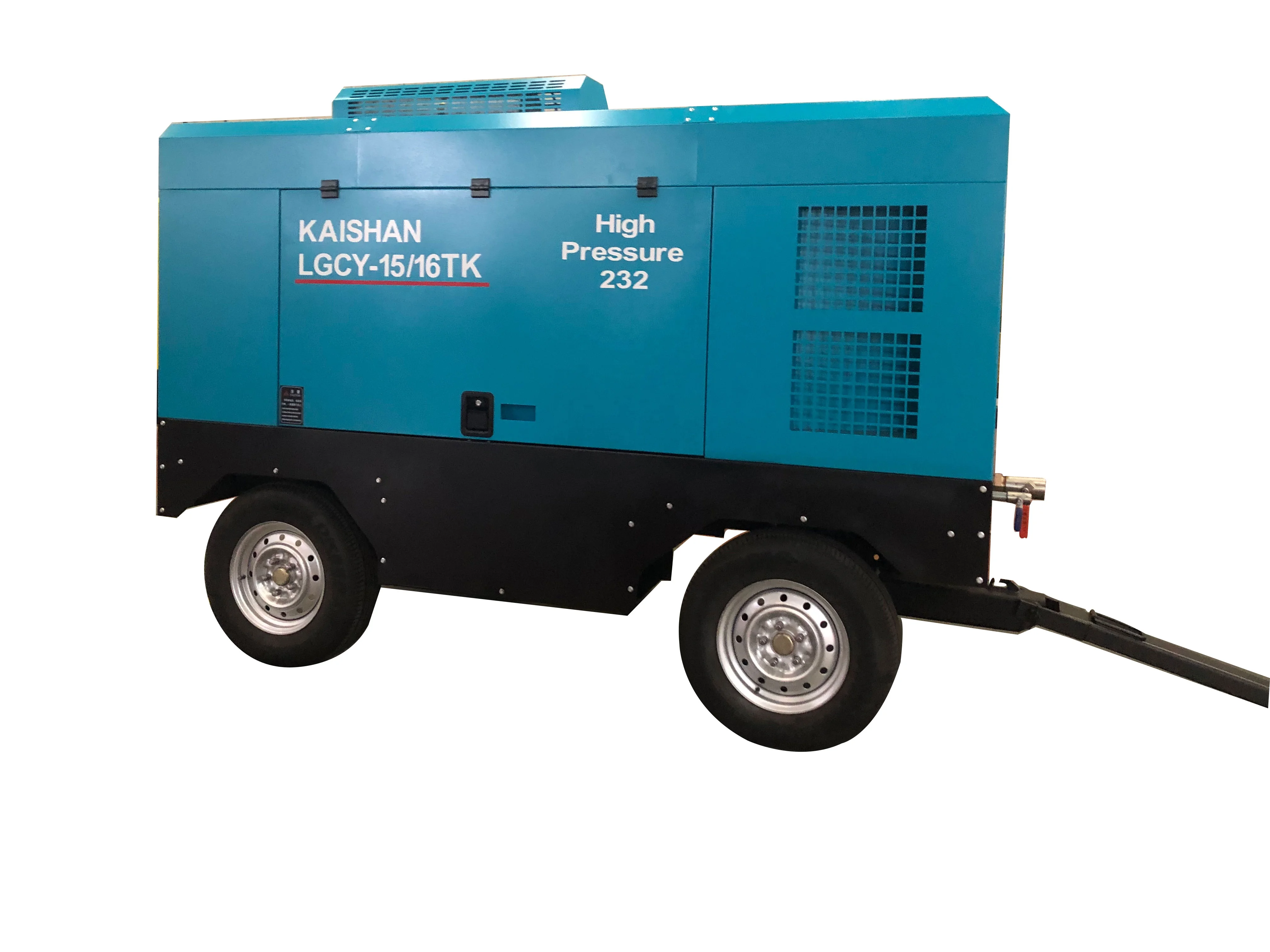

Diesel engine portable screw type 8 bar air compressor with jack hammer
- Category: >>>
- Supplier: Quzhou Jugong Machinery Co. Ltd.
Share on (60790240298):
Product Overview
Description
Diesel engine portable screw type 8 bar air compressor with jackhammer
Technical parameters of LGCY series screw air compressor
| Model | Working pressure (bar) | Capacity (m³/min) | Diesel engine model | Dimension (mm) | Weight (kg) | ||
| l | w | h | |||||
| LGCY-2.5/7 | 7 | 2.5 | D2001L03 | 2760 | 1560 | 1540 | 1000 |
| LGCY-3/7 | 7 | 3 | D2001L03 | 2760 | 1560 | 1540 | 1000 |
| LGCY-4/7 | 7 | 4 | D2001L03 | 2760 | 1560 | 1540 | 1100 |
| LGCY-6/7 | 7 | 6 | YCD4B22-95 | 3750 | 1920 | 1700 | 1400 |
| LGCY-7.5/7 | 7 | 7.5 | YC4D80-K20 | 3900 | 1920 | 1700 | 1850 |
| LGCY-9/7 | 7 | 9 | YC4D95Z-K20 | 3900 | 1920 | 1700 | 1850 |
| LGCY-10/7 | 7 | 10 | YC4D95Z-K20 | 3900 | 1920 | 1700 | 1900 |
| LGCY-10/10 | 10 | 10 | 4BTA3.9-C125 | 3900 | 1920 | 1900 | 1900 |
| LGCY-8/14 | 14 | 8 | 4BTA3.9-C125 | 3900 | 1920 | 1900 | 1900 |
| LGCY-9/14.5 | 14.5 | 9 | YC6B150Z-K20 | 4080 | 1980 | 2350 | 2380 |
| LGCY-12/7 | 7 | 12 | 4BTA3.9-C125 | 3900 | 1980 | 1900 | 2050 |

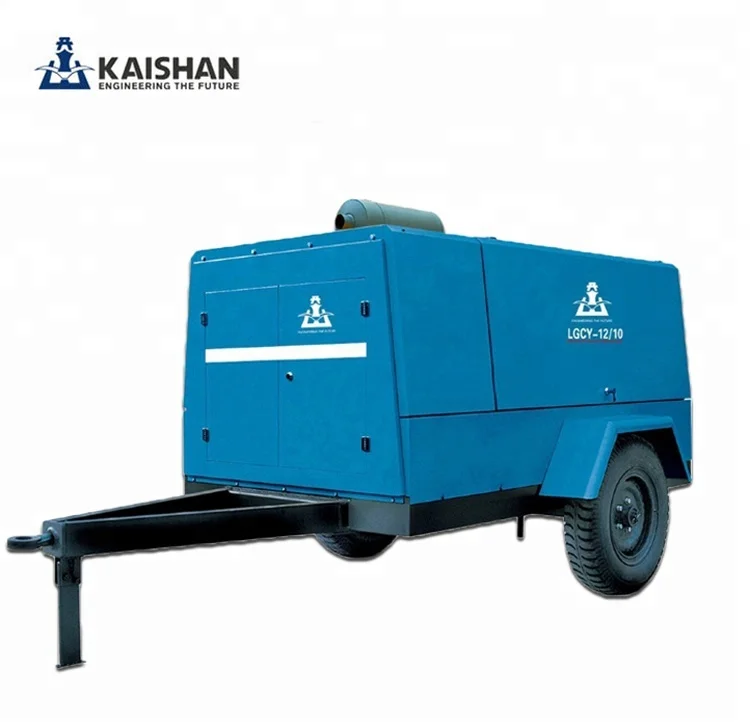

| LGCY-12/10 | 10 | 12 | YC6B150Z-K22 | 4080 | 1980 | 2350 | 2380 |
| LGCY-10/13 | 13 | 10 | YC6B150Z-K23 | 4080 | 1980 | 2350 | 2380 |
| LGCY-10/11K | 11 | 10 | 6BT5.9-C150 | 4080 | 1980 | 2350 | 2380 |
| LGCY-12/7A | 7 | 12 | YC4A125Z-T21 | 4000 | 1940 | 1900 | 2050 |

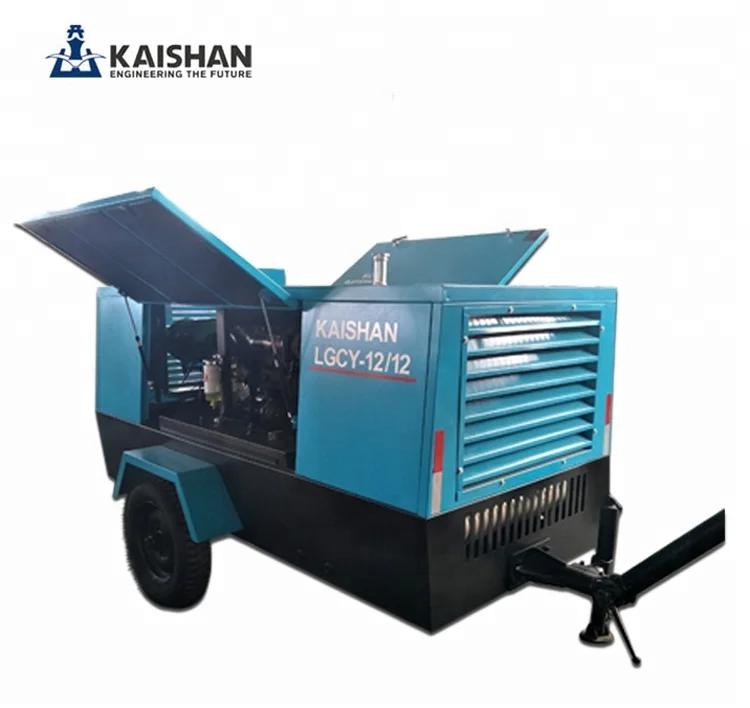

| LGCY-12/12 | 12 | 12 | 6BT5.9-C150 | 4080 | 1980 | 2350 | 2380 |
| LGCY-11/13 | 13 | 11 | 6BT5.9-C150 | 4080 | 1980 | 2350 | 2380 |
| LGCY-13/13 | 13 | 13 | 6BT5.9-C150 | 3450 | 1520 | 2220 | 2750 |
| LGCY-13/13A | 13 | 13 | YC6A180Z-T10 | 3450 | 1520 | 2220 | 2750 |
| LGCY-17/7 | 7 | 17 | 6BT5.9-C180 | 3380 | 1640 | 2350 | 3050 |
| LGCY-15/13 | 13 | 15 | WD415.23 | 3380 | 1650 | 2500 | 3350 |
| LGCY-15/13A | 13 | 15 | YC6A240-20 | 3380 | 1650 | 2500 | 3350 |
| LGCY-16/13K | 13 | 16 | 6CTA8.3-C215 | 3980 | 1800 | 2450 | 3700 |

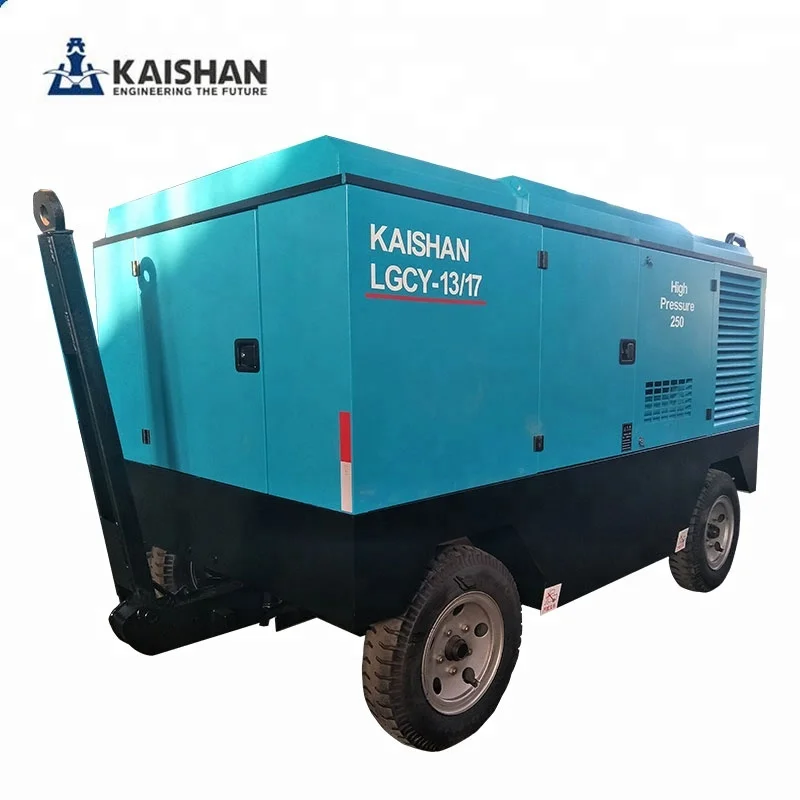

| LGCY-13/17 | 17 | 13 | 6CTA8.3-C215 | 3780 | 1980 | 2350 | 2380 |
| LGCY-18/17 | 17 | 18 | 6CTA8.3-C260 | 3980 | 1800 | 2450 | 3700 |
| LGCY-17/14.5 | 14.5 | 17 | 6CTA8.3-C260 | 3980 | 1800 | 2450 | 3700 |
| LGCY-19/14.5 | 14.5 | 19 | 6CTA8.3-C260 | 3980 | 1800 | 2450 | 3700 |

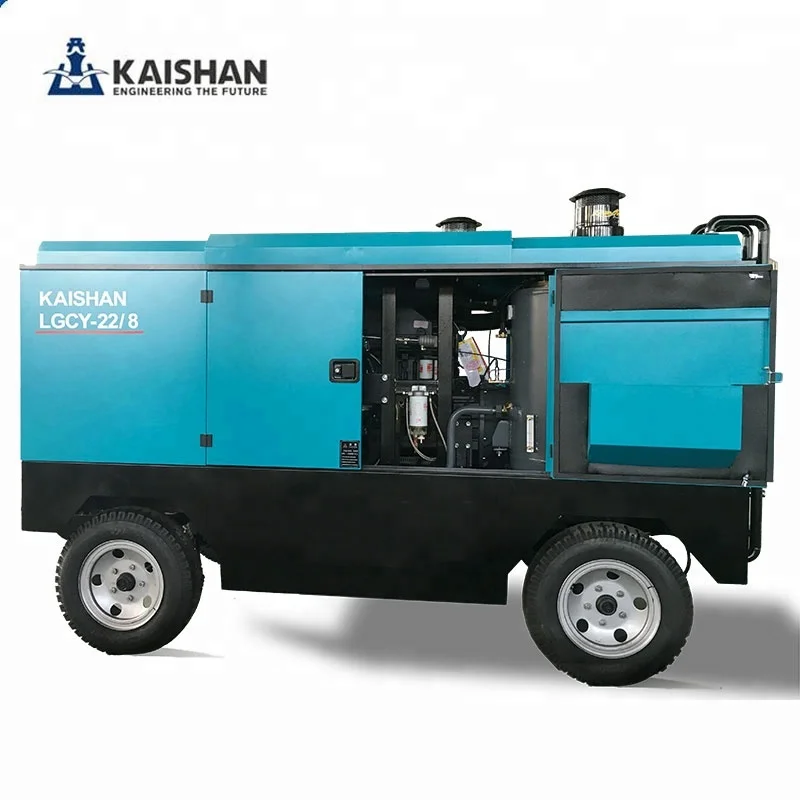

| LGCY-22/8 | 8 | 22 | 6CTA8.3-C260 | 4580 | 1950 | 2600 | 4000 |
| LGCY-22/14 | 14 | 22 | YC6MK340L-K20 | 4580 | 1950 | 2600 | 4500 |
| LGCY-22/14K | 14 | 22 | 6CTA8.9-C325 | 4580 | 1950 | 2600 | 4500 |
| LGCY-22/18 | 18 | 22 | YC6MK340L-K20 | 4580 | 1950 | 2600 | 4500 |
| LGCY-22/18K | 18 | 22 | 6CTA8.9-C325 | 4580 | 1950 | 2600 | 4500 |
| LGCY-27/10 | 10 | 27 | YC6MK340L-K20 | 4600 | 1950 | 2850 | 5000 |
| LGCY-32/10 | 10 | 32 | YC6MK400L-K20 | 4600 | 1950 | 2850 | 5000 |
| LGCY-32/10 | 10 | 32 | 6CTA8.9-C360 | 4600 | 1950 | 2850 | 5000 |
| LGCY-19.5/19 | 19 | 19.5 | 6CTA8.3-C260 | 3980 | 1800 | 2650 | / |
| LGCY-19.5/19A | 19 | 19.5 | Yuchai YC6M260L-K20 | 3980 | 1800 | 2650 | / |
| LGCY-22/20 | 20 | 22 | 6CTA8.3-C325 | 4600 | 1950 | 2850 | / |
| LGCY-22/20 | 20 | 22 | Yuchai YC6MK340L-K20 | 4600 | 1950 | 2850 | / |
| LGCY-27/20 | 20 | 27 | Yuchai YC6MK400L-K20 | 4600 | 1950 | 2850 | / |
| LGCY-26/20 | 20 | 26 | 6LTA8.9-C360 | 4600 | 1950 | 2850 | / |
| LGCY-27/22 | 22 | 27 | Chongqing NTA855-P400 | 4600 | 1950 | 2850 | / |
| LGCY-33/25 | 25 | 33 | QSZ13-C550 or Yuchai YC6K500L | 4700 | 2100 | 2500 | / |
| LGCY-33/35 | 35 | 33 | KTA19-P630 or C-18ACERT | 4700 | 2100 | 2500 | / |
FAQ
Q1: Are you factory or trade company?
A1: We are factory. And we have ourselves trading company.
Q2: What the exactly address of your factory?
A2: Our company is located in JNo.9 Kaixuan Ave West,Economic Zone Quzhou, Zhejiang, China
Q3: Warranty terms of your machine?
A3: One year warranty for the machine and technical support according to your needs.
Q4: Will you provide some spare parts of the machines?
A4: Yes, of course.
Q5: What about the voltage of products? Can they be customized?
A5: Yes, of course. The voltage can be customized according to your equirement.
Q6: Which payment term can you accept?
A6: 30% T/T in advanced, 70% T/T against the B/L copy.
Q7: How long will you take to arrange production?
A7: 380V 50HZ we can delivery the goods within 7-15 days. Other electricity or other color we will delivery within 25-30 days.
Q8: Can you accept OEM orders?
A8: Yes, with professional design team, OEM orders are highly welcome.
Q9: Which trade term can you accept?
A9: Available trade terms: FOB, CIF, CFR, EXW, CPT, etc.
