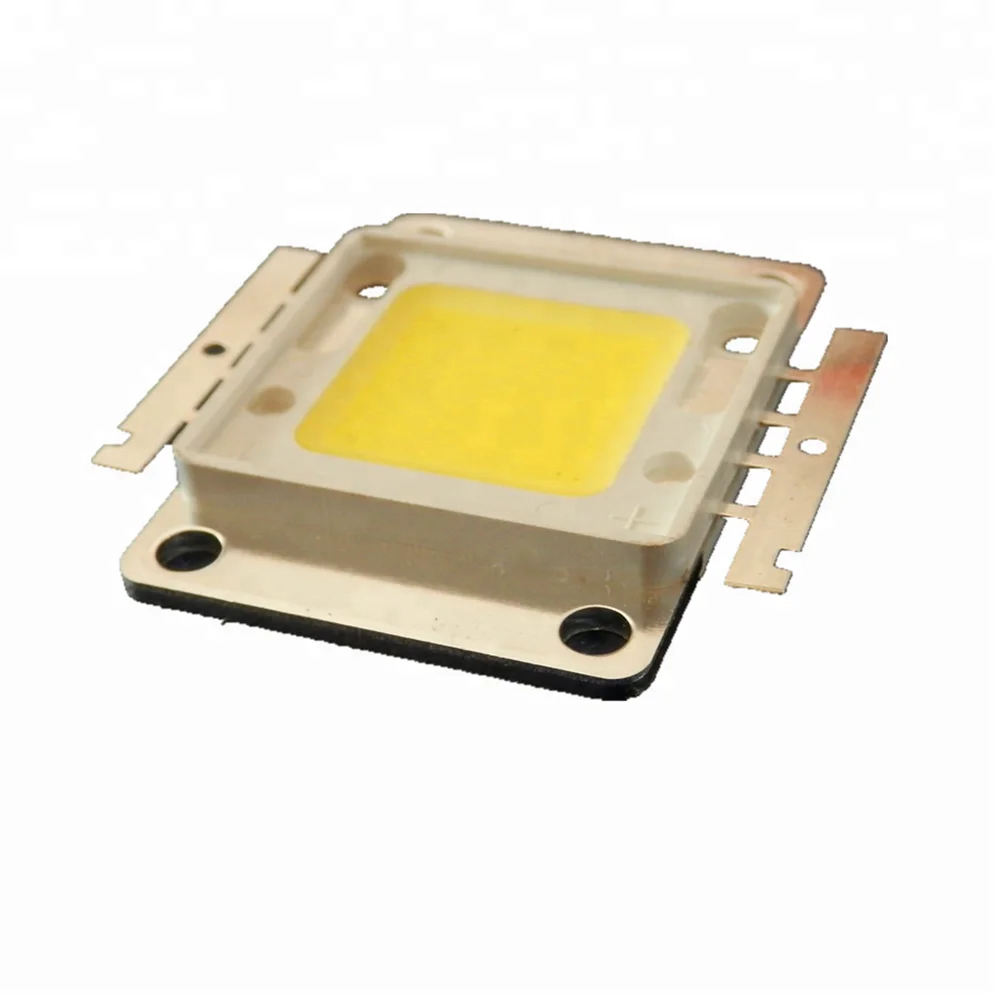

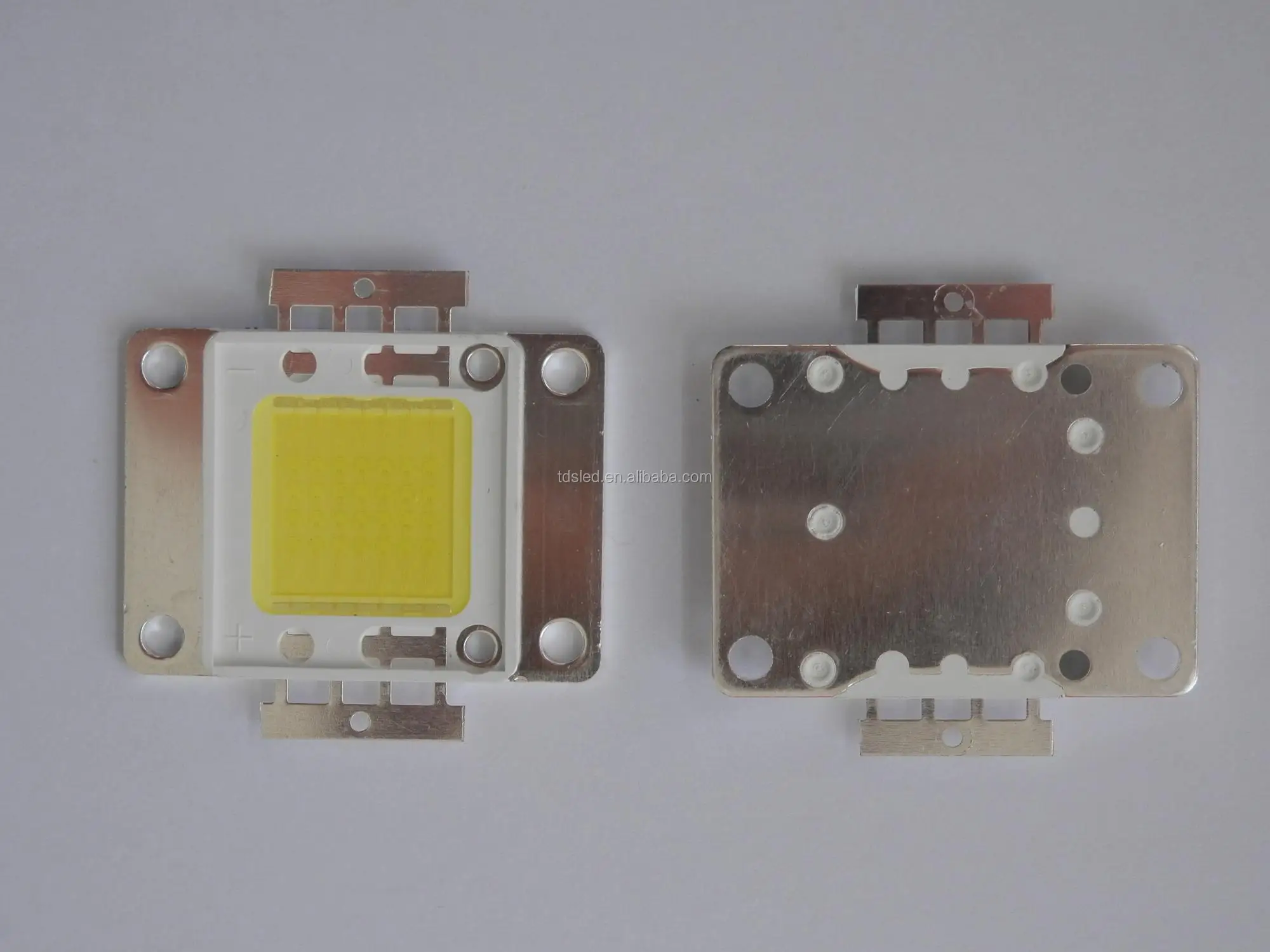

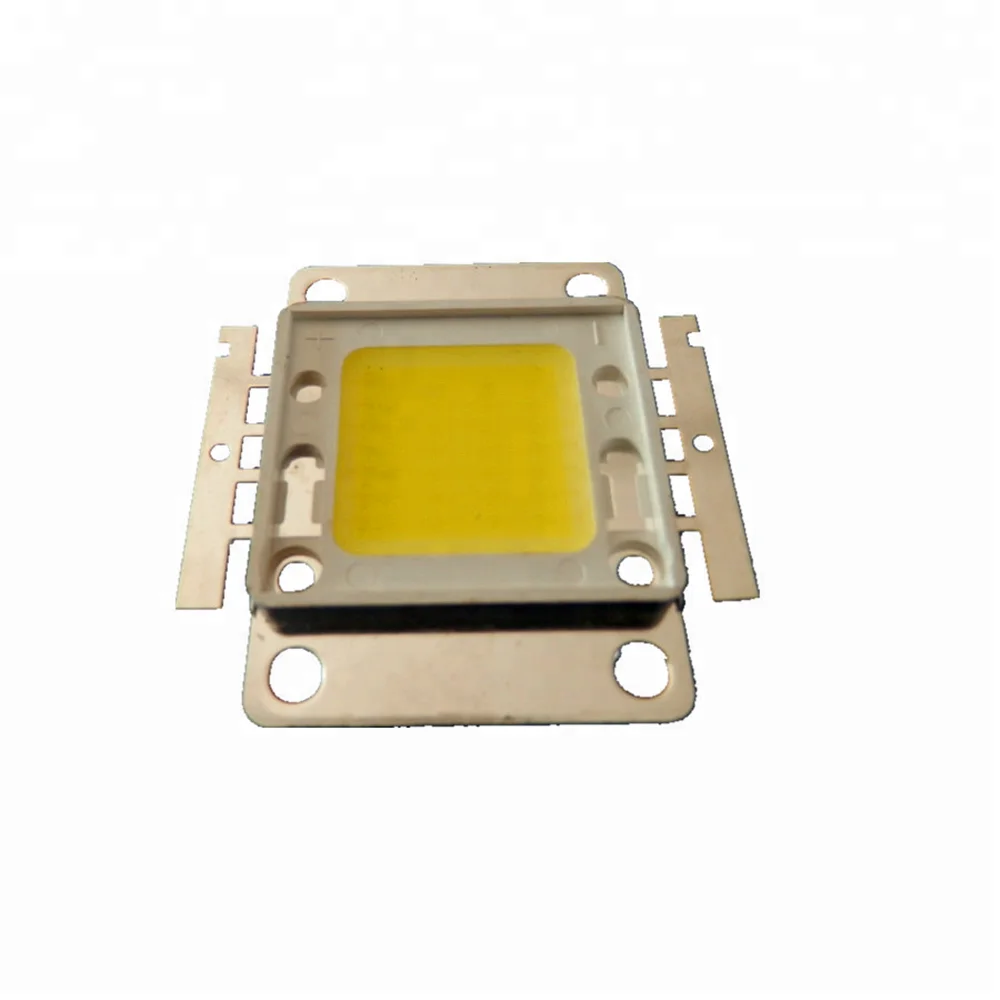

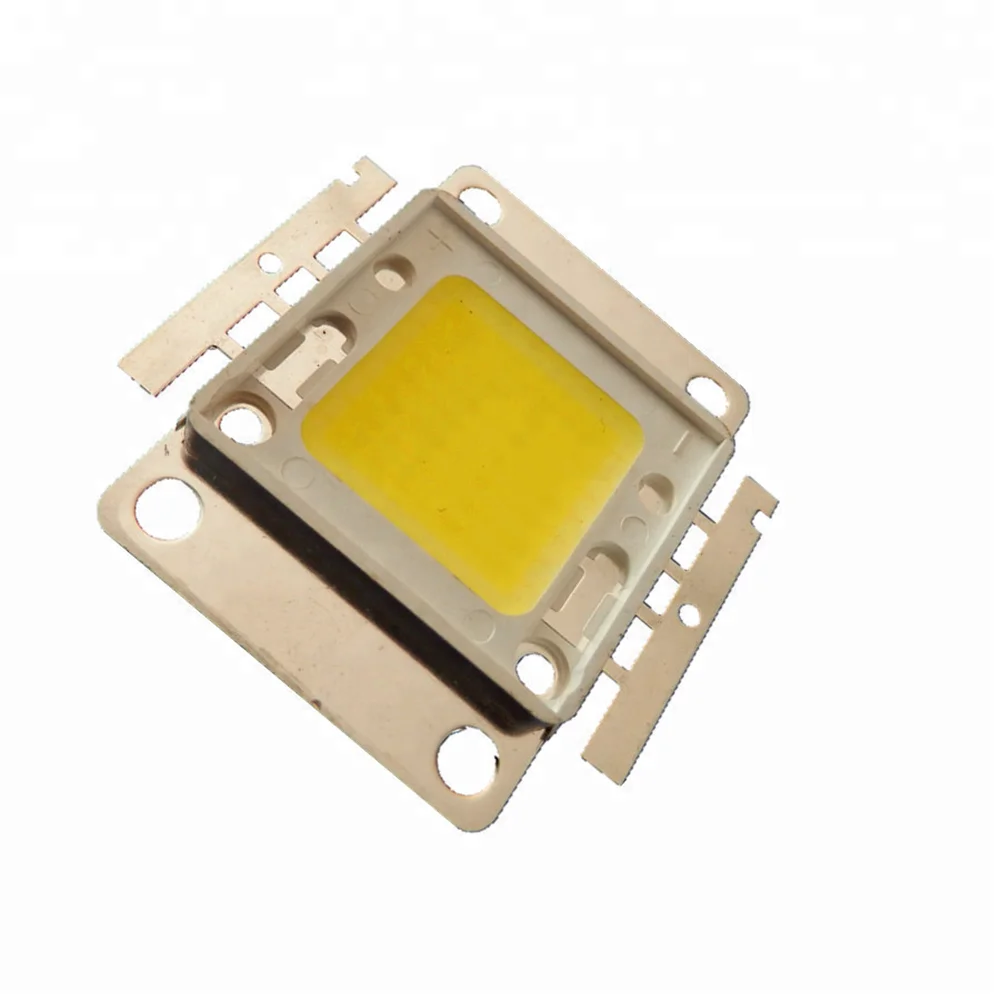

minimum size 12V 30W 50W high power led chip in 40mm x 28mm 46mm x 40mm
- Category: >>>
- Supplier: Wuxi Tds Lighting Co. Ltd.
Share on (60790266049):
Product Overview
Description
Quick Detail

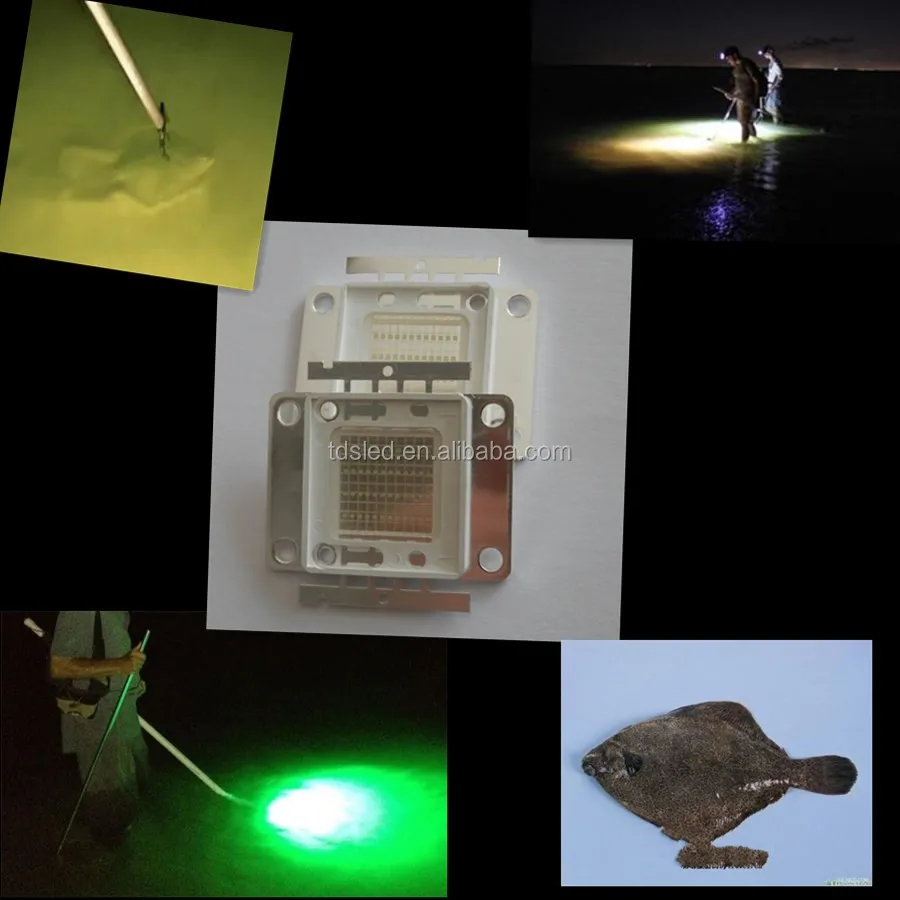

Attention: The 30W Fishing Light Can be 100-110lm/w and 140-150lm/w in 2500-3000-3500 warm white and 6000-6500K Natural White.Also Green color(OEM Design is available)
Power available: 30W 40W 50W 60W
Name | Model | Color | Angle(°) | wave length/Color (IF=2.45A) | Luminous flux (IF=2.45A) | forward voltage (IF=2.45A) | ||||
MIN | MAX | MIN | MAX | MIN | MAX | |||||
30W LED | TDS-P030LRC11 | RED | 160 | 620nm | 625nm | 300 | 400 | 12 | 14 | |
TDS-P030LAD18 | BLUE | 160 | 460nm | 465nm | 400 | 550 | 12 | 14 | ||
TDS-P030LAF25 | GREEN | 160 | 520nm | 525nm | 1000 | 2200 | 12 | 14 | ||
TDS-P030LAO27 | WHITE | 160 | 2000K | 3000K | 2000 | 3000 | 12 | 14 | ||
TDS-P030LAQ27 | WHITE | 160 | 3000K | 4000K | 2000 | 3000 | 12 | 14 | ||
TDS-P030LAS27 | WHITE | 160 | 4000K | 5000K | 2000 | 3000 | 12 | 14 | ||
TDS-P030LAU27 | WHITE | 160 | 5000K | 6000K | 2000 | 3000 | 12 | 14 | ||
TDS-P030LAW27 | WHITE | 160 | 6000K | 7000K | 2000 | 3000 | 12 | 14 | ||
TDS-P030LAY27 | WHITE | 160 | 7000K | 8000K | 2000 | 3000 | 12 | 14 | ||
TDS-P030LAZ27 | WHITE | 160 | 8000K | 9000K | 2000 | 3000 | 12 | 14 | ||
TDS-P030L4RGB | RGB | 160±5 | R=40LM | G=80LM | B=25LM | As per Data sheet | ||||
Power alternative:
| Fishing Light LED | POWER | IF | VF |
| 30 | 2.45A | 12-14V | |
| 40W | 3.5A | 12-14V | |
| 50W | 4.2A | 12-14V | |
| 60W | 5.25A | 12-14V |
Application
LED Dimension
