Vacuum crystallization system rotary evaporator rotovap evaporative crystallizer

Product Overview

Description

Henan Zhongyi KORI Equipment Co.,Ltd is manufacturing Vacuum Rotary Evaporator 1l 2l 3l 5l 10l 20l 30l 50l and 100l



To be more safety , we can use Ex-proof motor rotary evaporator 10l 20l 30l 50l 100l



 We also have glass reactors ( including jacketed glass reactor, single layer glass reactor, triple layer glass reactor ),  vacuum nustche filter, heating mantle ,short path distillation machine,  chiller and vacuum pump for options

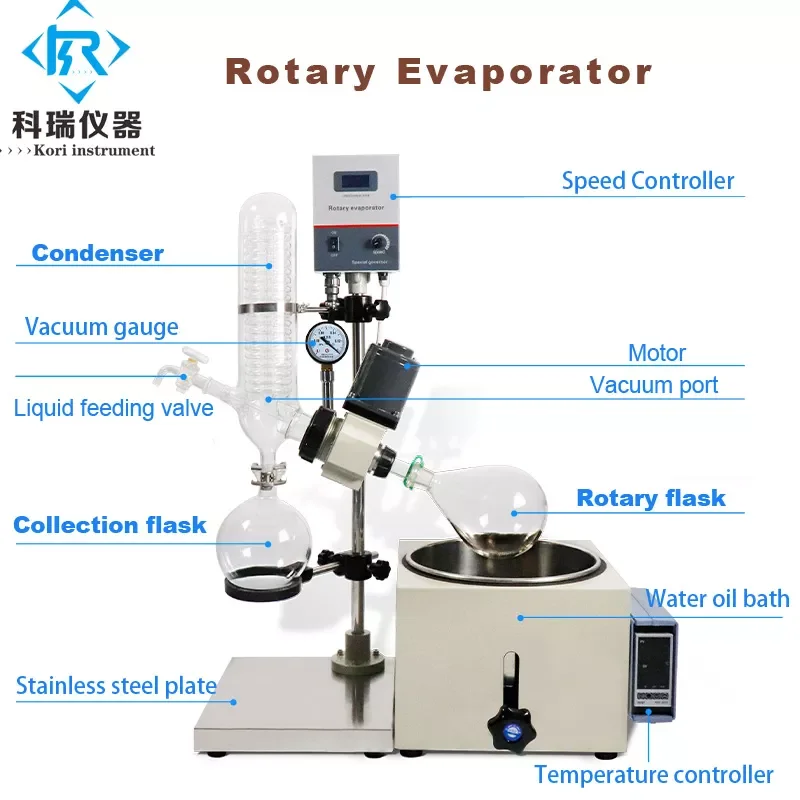

 A rotary evaporator (or rotavap /rotovap) is a device used in chemical laboratories for the efficient and gentle removal of solvents from samples by evaporation. technology, chemicals,  cosmestic  and many more .



 Rotary vacuum evaporators are efficient laboratory distillation units for applications like standard solvent distillations, concentration of reaction mass or solutions, separation of solvents from extracts, crystallization and powder drying. It always used in several big industrials, including but not limited to: Lab vacuum distillation , Biotechnology, chemicals, cosmestics and many more .

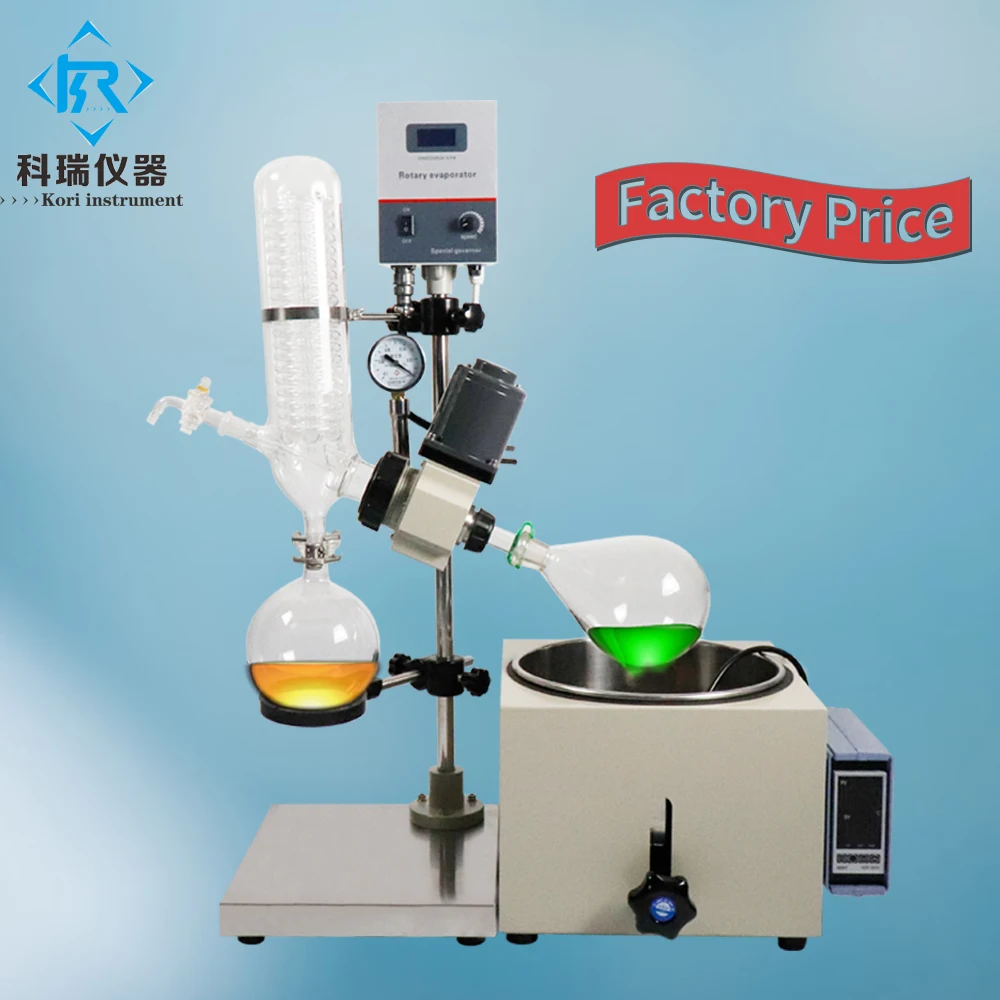

 Please see more details about 1L  Rotary  Evaporator









Feature:



1. Strong & Durable Stainless steel frame , Stainless steel 304 material

2. High Borosilicate GG3.3 with uniform thickness with good performance in physical and chemical property

3. Triple Coil Pipe inside Condenser

4. Intelligent Digital Temperature display (Actual & Setting Temperature)

5. AC Induction motor, no brush, no spark with adjustable frequency speed

6. Explosion proof is optional for 10L,20L,30L,50L



7. Vacuum Pump is optional for Rotary evaporator

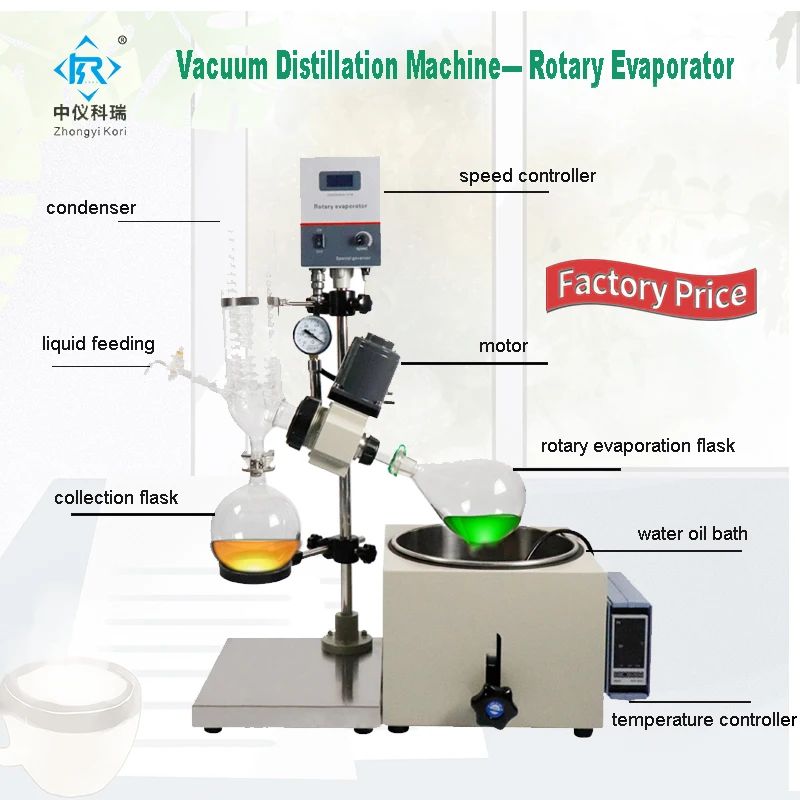

1L Glass vacuum evaporator/Vacuum distillation appratus/Short path distill /Rotary Rotovap

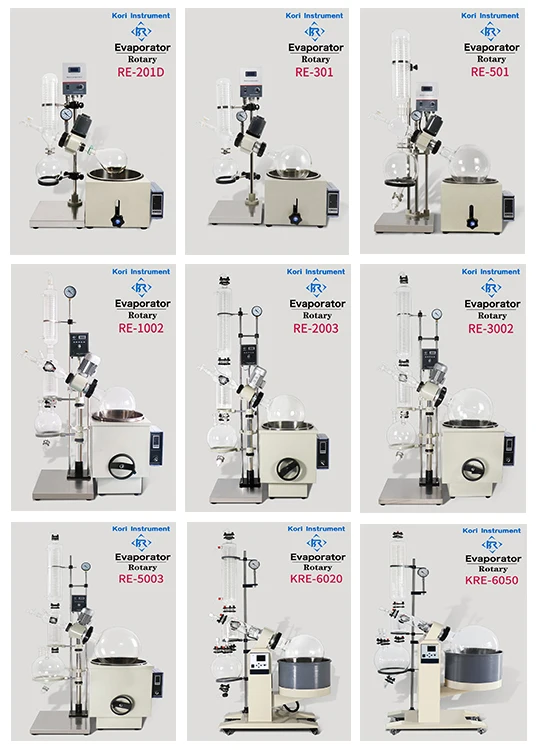

Rotary evaporator specifications



Model	RE-201	RE-301	RE-501
Name	rotary evaproator 1l 2l	rotary evaproator 3l	rotary evaproator 5l
Rotary flask	1L Or 2l	3L	5L
Collection flask	0.5L or 1L	1L	3L
Motor	40W	40W	40W
Rotation speed	0-120rpm	0-120rpm	0-120rpm
Heating wattage	1000w	1500w	1500w
Voltage	220v	220v	220v

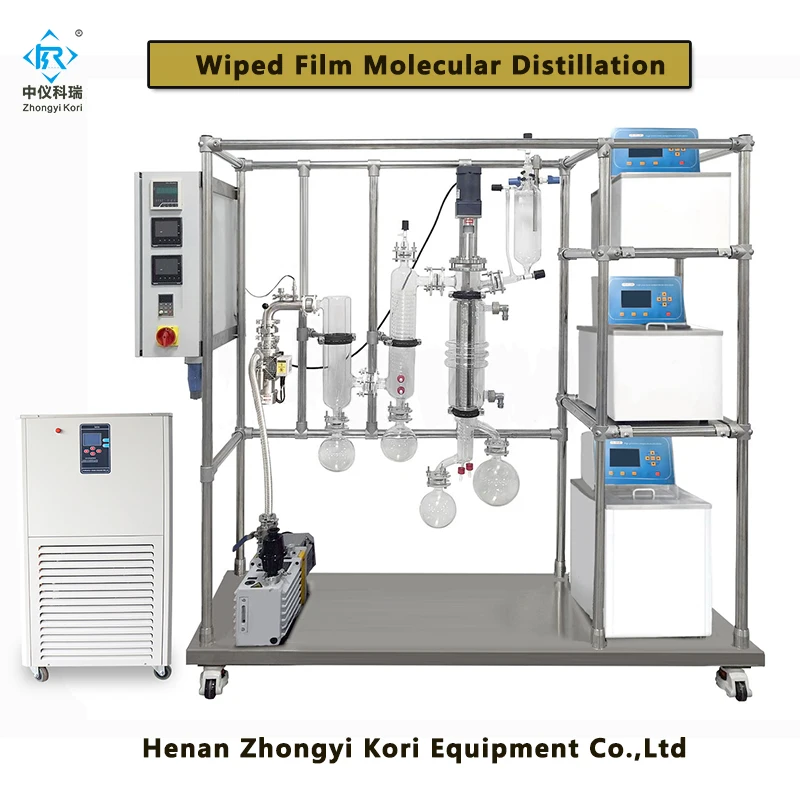

 Welcome you to visit our factory for rotary evaporators, glass reactors, vacuum filter, short path distillation ,wiped film molecular distillation system, chiller , heating cooling machine

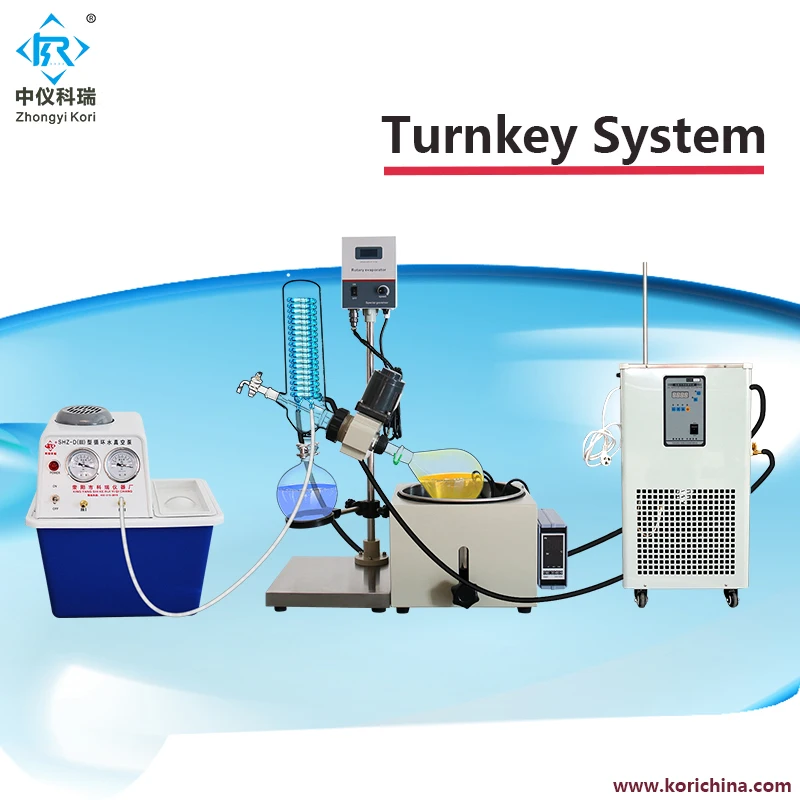

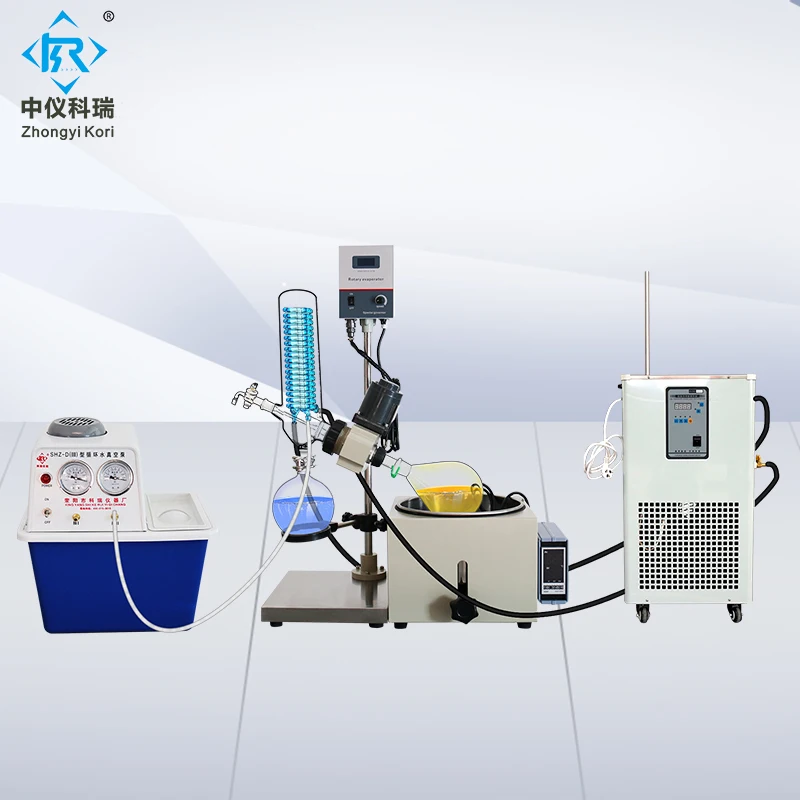

 Rotary evaproator vacuum distillation turnkey setup









  0l and 50L
