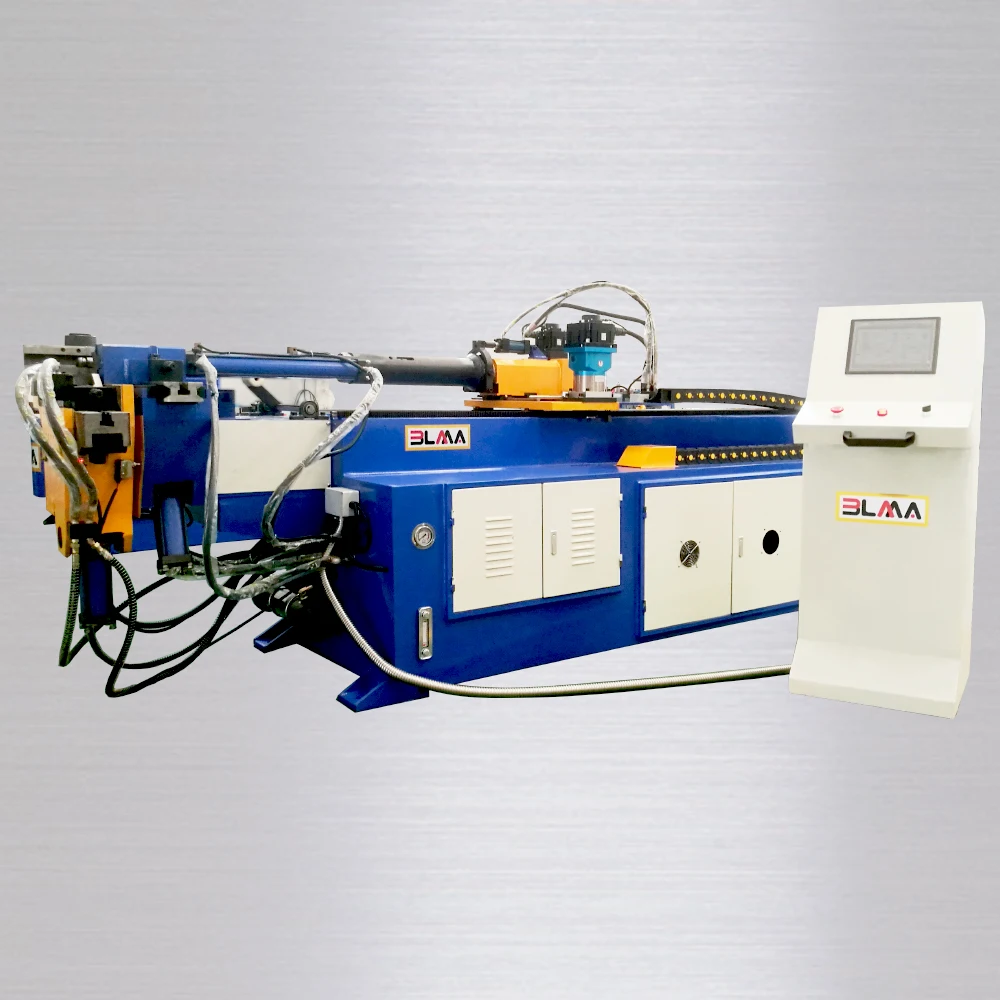

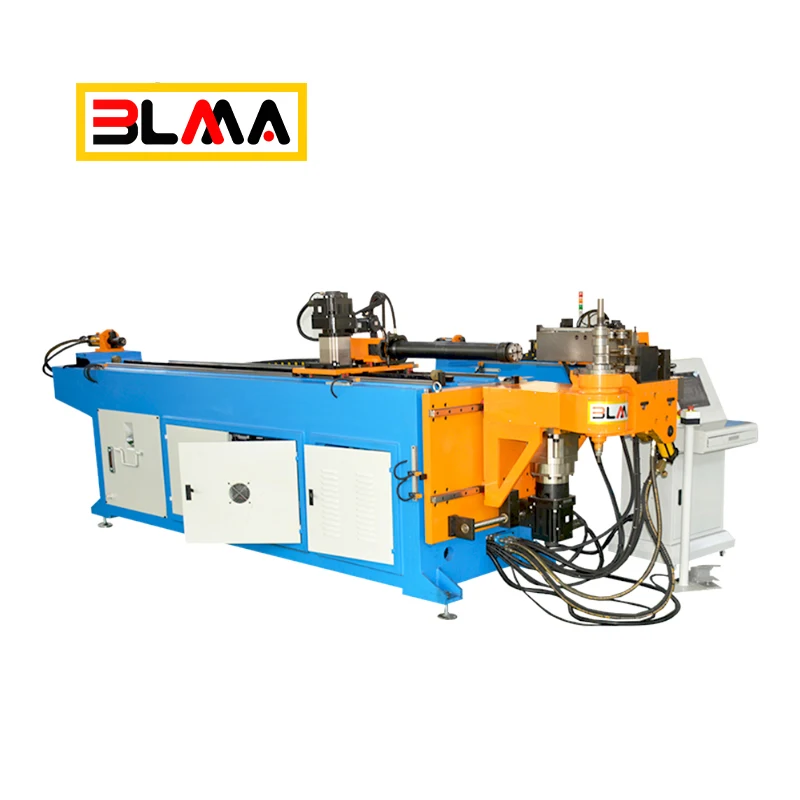

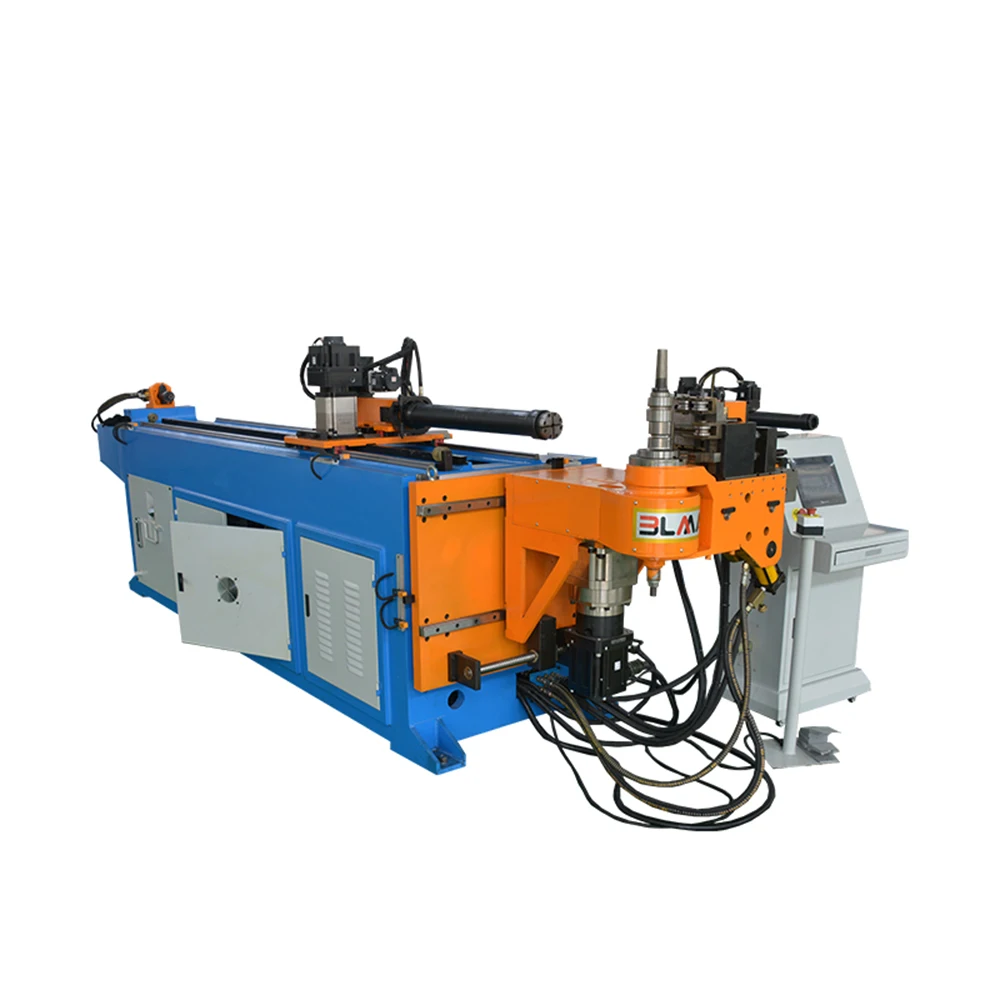

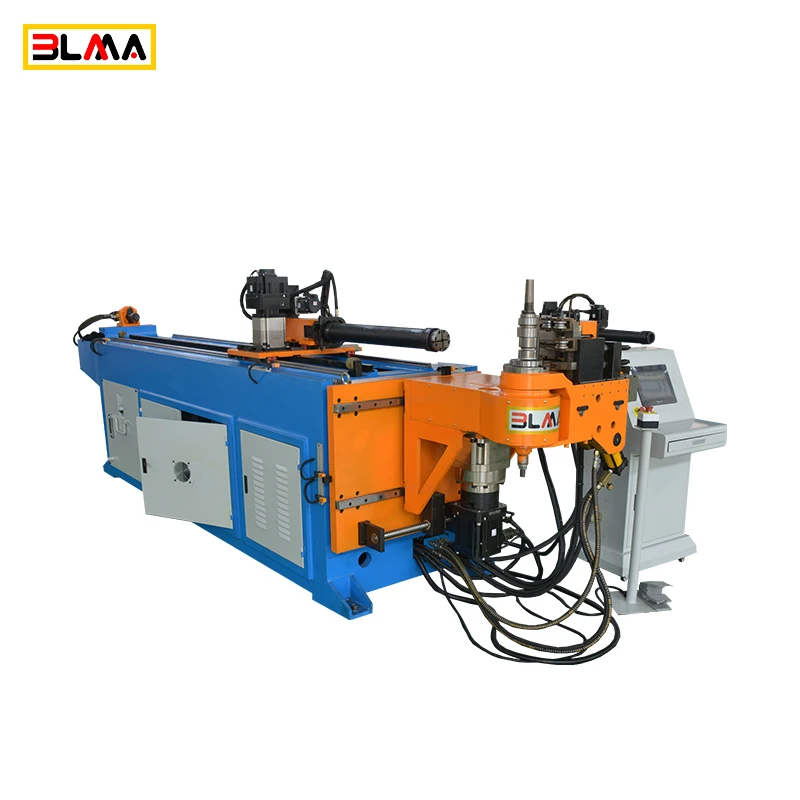

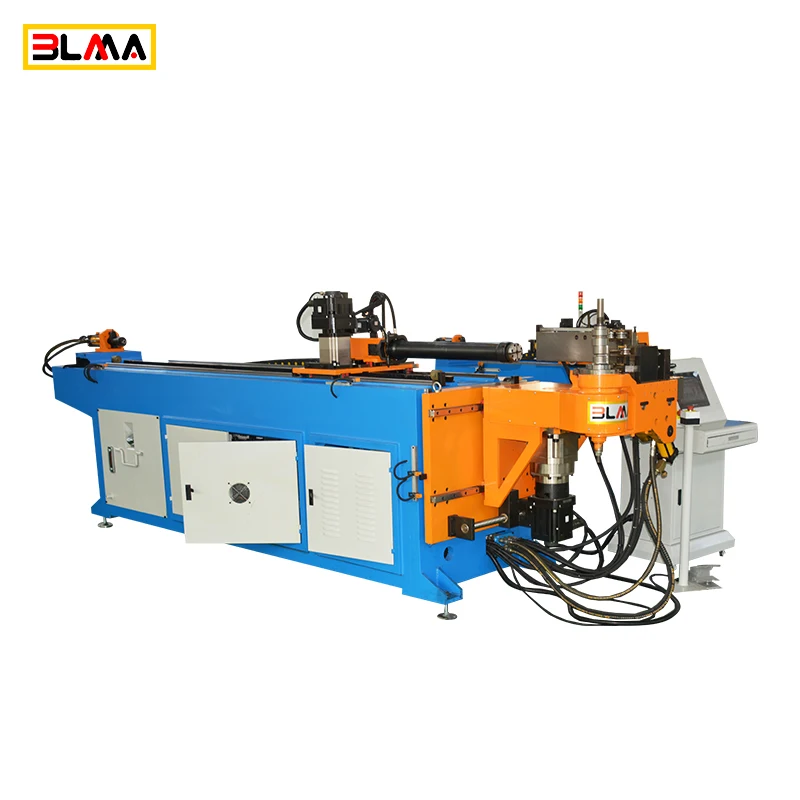

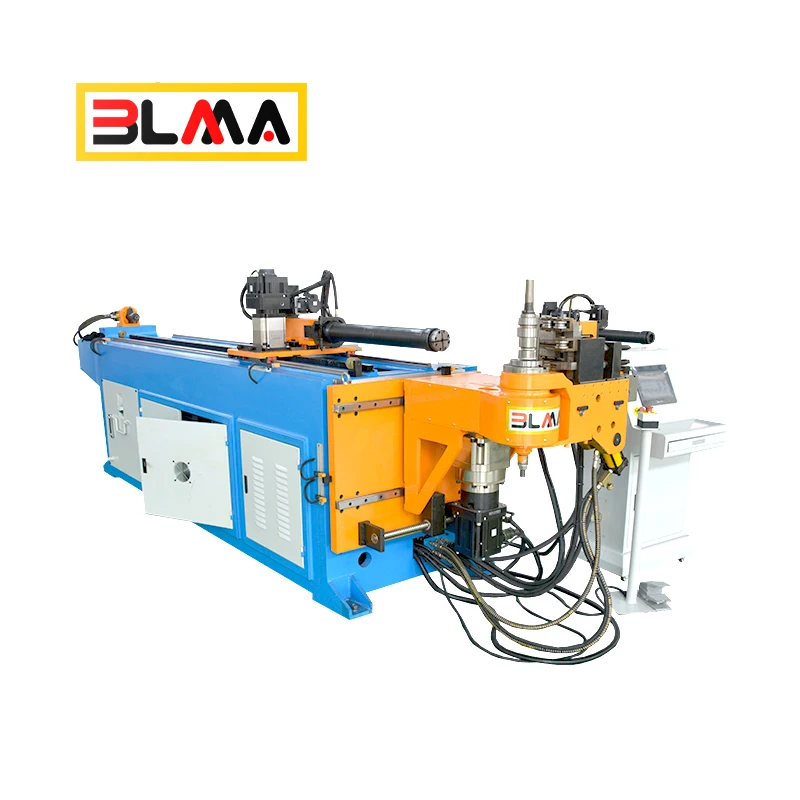

Automatic air conditioner exhaust cnc hydraulic tube pipe bender machine price
- Category: Bending Machines >>>
- Supplier: Nanjing Blma Machinery Co. Ltd.
Share on (60790286407):
Product Overview
Description
Products Description
Main features
* Fully automatic and CNC pipe bending machine
* Equipped with 2 servo motor programmable axis
* Feeding: servo motor drive; Rotation: servo motor drive
* Bending: hydraulic and encoder control; Servomotor with reducer.
* Imported hydraulic system and PLC(standard) unit or IPC(optional).
* Automatic lubrication system for moving areas.
* Self-diagnostic system, detecting the error immediately.
* Multiple groups pipe-bending information storage.
* Electric cabinet cooling fan and the hydraulic cooling system ensure the equipment long-time work stably under the high temperature.
* Touch screen and human/machine interface control provide user friendly operations.
* Equipped with 2 servo motor programmable axis
* Feeding: servo motor drive; Rotation: servo motor drive
* Bending: hydraulic and encoder control; Servomotor with reducer.
* Imported hydraulic system and PLC(standard) unit or IPC(optional).
* Automatic lubrication system for moving areas.
* Self-diagnostic system, detecting the error immediately.
* Multiple groups pipe-bending information storage.
* Electric cabinet cooling fan and the hydraulic cooling system ensure the equipment long-time work stably under the high temperature.
* Touch screen and human/machine interface control provide user friendly operations.
Max bending capacity | Ø50mmx3mm |
Max bending radius | R250mm |
Min bending radius | According to pipe diameter |
Max bending degree | 190° |
Max effective distance of mandrel | 2500mm |
Feeding method | Direct feeding/clamping feeding |
Bending speed | Max 85°/s |
Rotary speed | Max 200°/s |
Feeding speed | Max 1000mm/s |
Bending accuracy | ±0.1° |
Rotary accuracy | ±0.1° |
Feeding accuracy | ±0.1mm |
Information inputting method | Working value (Y, B, C) |
Bending method | Hydraulic |
Hydrualic motor power | 5.5kw |
Rotary servo motor power | 0.75kw |
Feeding servo motor power | 1.5kw |
Max storage unit (3) | 1000 groups |
Max oil pressure | 12Mpa |
Machine weight | 2500kg |
Mitsubishi Servo Motor
The feeding and rotary are drived by servo motor. It is with high efficiency, accurate bending angle and feeding.
Mitsubishi Servo Driver
Bending pipes with servo motor power, high precise bending angle and compensation value.
Electrics
Schneider, France brand
Valve
7 Ocean, Taiwan brand
Air cooler
Ensure the stability of the machine for a long time
PLC Controller
A pipe per bending all individually preparing five action sequence and 10 sections of speed, allows the operator to match the use, improve work efficiency, reduce the fitting interference
Details Images
Bending sample
Recommend Products
Our services
Pre-service
1.We will help you confirm the model of our machine according to your offered pipe information.
2.You are very welcome to see our machine how to work in the factory before you place an order
with us.
with us.
Aftersales-service:
1. Our machine is easy to use. Operation manual and teaching video will be sent out with machine.
We also offer free training in our factory, the following is our training contents:
Detailed function of our machine, 1 hour;
NC control using, 0.5 hour;
Tooling installation and adjustment, 0.5-1 hours;
Maintenance and repair, 0.5-1 hours;
Real operation according client products, 1-2 hours.
During the training period,we offer free pick-up,hotel and food.
2. We guarantee machine quality for 13 months, during this period, if spare parts of the machine are not man-made damage, we can send the component to the customer by DHL, TNT freely. We also offer free training in our factory, the following is our training contents:
Detailed function of our machine, 1 hour;
NC control using, 0.5 hour;
Tooling installation and adjustment, 0.5-1 hours;
Maintenance and repair, 0.5-1 hours;
Real operation according client products, 1-2 hours.
During the training period,we offer free pick-up,hotel and food.
3.Our factory provide the service for the customer forever, if the customer need operation help,we
provide 24 hours on-line reply service.
provide 24 hours on-line reply service.
Company Profile
FAQ
1. How to choose the Pipe Bending Machine?
You have to inform us following details:
- Max. outside diameter
- Wall thickness range
- Bending radius (CLR)
- The pipe material
- The drawings if possible
2.Do you provide any training to make sure our user can operate the machine very well?
1)We will provide detailed video and instruction book for this machine;
2)We also offer training in our factory to all the clients,and we will arrange everything for you during these days in our city, to make sure every client will be the expert in using our machine!
3. How long warranty can you provide?
Our machine warranty is one year,and we use all the stable compoenents with long working life!
And we can also send our technician to do the after-sale service in client's factory!
4.What kind of solution you can offer to make sure your pipe bending machine can do our job?
1)We will help you confirm the model of our machine according to your offered pipe information.
2)Before you start the order for this big value machine,you can offer your workpiece drawing to us.
We can design the tooling to make your products in our workshop,after you are sure that the workpiece is good,then we can confirm the order finally.
3)You can visit us to check how to bend your product before you start the order.During this period, you can also learn how to use this machine well!
You have to inform us following details:
- Max. outside diameter
- Wall thickness range
- Bending radius (CLR)
- The pipe material
- The drawings if possible
2.Do you provide any training to make sure our user can operate the machine very well?
1)We will provide detailed video and instruction book for this machine;
2)We also offer training in our factory to all the clients,and we will arrange everything for you during these days in our city, to make sure every client will be the expert in using our machine!
3. How long warranty can you provide?
Our machine warranty is one year,and we use all the stable compoenents with long working life!
And we can also send our technician to do the after-sale service in client's factory!
4.What kind of solution you can offer to make sure your pipe bending machine can do our job?
1)We will help you confirm the model of our machine according to your offered pipe information.
2)Before you start the order for this big value machine,you can offer your workpiece drawing to us.
We can design the tooling to make your products in our workshop,after you are sure that the workpiece is good,then we can confirm the order finally.
3)You can visit us to check how to bend your product before you start the order.During this period, you can also learn how to use this machine well!
