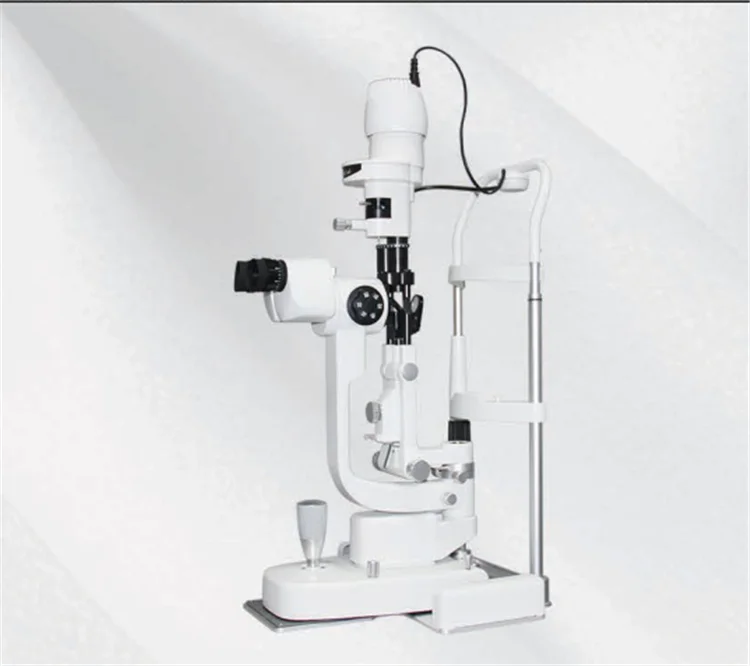

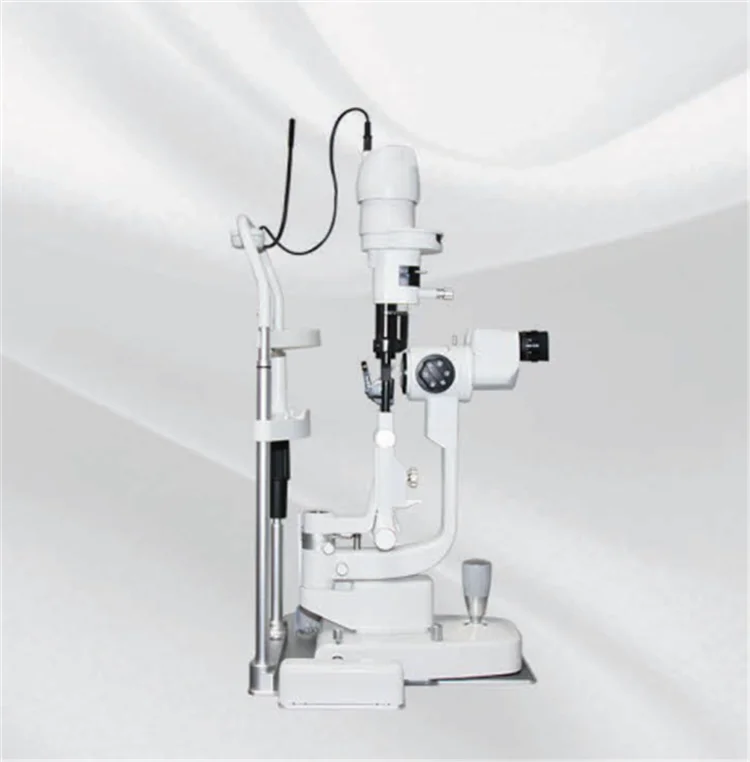

SL 400 Microscope digital china slit lamp medical examination led slit lamp

Product Overview

Description



Features:

14mm aperture provides broader and clearer field of view.

Joystick is made by metal, and the overall appearance is fantastic, and at the same time it increases clinical operation space.

Five-step drum magnification, Five-step drum magnification of eyepiece. Sclera vein could be ocserved under the 40X magnification.

All the joints can be connected by accessories with with international standards.

By stepless adjustable photoelectric box, it can provide all kinds of appropriate brightness of the  lightening according to the clinical doctors’ actual demand.

Four different filters can be inserted into the illumination pathway. Anti-ultraciolet radiation filter ensures patients’ safety during examination.

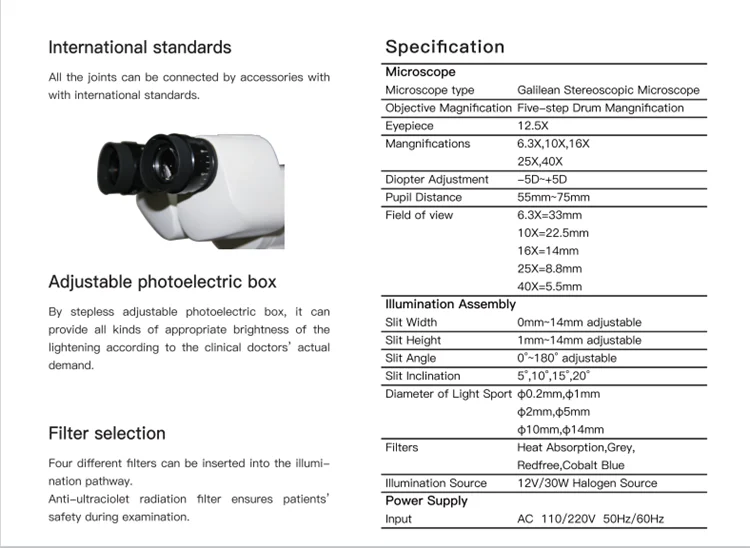

Microscope

Eyepiece	12.5X
Mangnifications	6.3X,10X,16X,25X,40X
Diopter Adjustment	-5D~+5D
Pupil Distance	55mm~75mm
Field of view	6.3X=33mm,10X=22.5mm,16X=14mm,25X=8.8mm,40X=5.5mm

Illumination Assembly

Slit Width	0mm~14mm adjustable
Slit Height	1mm~14mm adjustable
Slit Angle	0°~180° adjustable
Slit Inclination	5°,10°,15°,20°
Diameter of Light Sport	φ0.2mm,φ1mm,φ2mm,φ5mm,φ10mm,φ14mm
Fliters	Heat Absorption,Grey,Redfree,Cobalt Blue
Illumination Source	12V/30W Halogen Source
Power Supply	AC  110/220V  50Hz/60Hz
