perforated plastic roll transparent Polyolefin Heat Shrink Film for household essentials

Product Overview

Description

1) Thickness Range:
12 MIC-40 MIC
2) Main Type:
Single Wound / Center Fold / Hot Needle Perforated Shrink Film
3) Applicartion:
Electronic,Cosmetics,Food,Daily Necessities,Pharmaceutical,Office Stationery,Toy,Household Products etc
4)Advantage:
Thickness is well- uniformity , shrink rate can reach 65%, widely applied on irregular product packaging
Coefficient of fraction stable, it's convenient for high-speed package processing
Proportion average between the film layers, perfect sealing
High temperature resistance, can keep toughness property under -20℃
High tensile strength, apply to manual, semi-automatic & high speed automatic packaging machinery.

5)Technical Parameters

TEST ITEM	UNIT	ASTM TEST	TYPICAL VALUES
THICKNESS			12um 15um 19um 25um 30um
TENSILE
Tensile Strength(MD)	N/mm2	D882	115     110     110    95      85
Tensile Strength(TD)			110     105    105    90      80
Elongation(MD)	%		115     120    125    130    130
Elongation(TD)			110     115     115   125     125
TEAR
MD	g	D1922	10.5   14.5    17.5   23.5   28.5
TD			10.0   13.5    16.0   23.0   27.0
SEAL STRENGTH
MD/Hot Wire Seal	N/mm	F88	0.65    0.81   1.03   1.25    1.55
TD/Hot Wire Seal			0.68    0.86   1.06   1.30    1.65
COF(Film To Film)
Dynamic		D1894	0.23     0.22   0.22    0.25    0.25
Static			0.24     0.23    0.24   0.26    0.25
OPTICS
Haze		D1003	2.2      2.6      3.2      3.9       4.5
Clarity		D1746	98.5    98.0    97.0    95.0     92.0
Gloss @ Deg		D2457	85.5    87.0     83.5   81.5     80.0
BARRIER
Oxygem Transmission Rate	cc/m2/day	D3985	11300  10800  7200   5400   4500
Water Vapor Transmission Rate	gm/m2/day	F1249	45.5      38.5    26.5    22.5    20.5
SHRINKAGE PROPETIES			MD        TD           MD       TD
100°C	%	D2732	22          31         20         28
Free Shrinage               110°C			38           45        34         45
120°C			58            63        57         60
130°C			65            67        64         65
100°C	Mpa	D2838	1.80        2.65      1.85     2.55
Shrink Tension               110°C			2.70         3.50     2.85     3.65
120°C			2.80         3.65     2.90      3.60
130°C			2.60         3.15      2.70     3.05

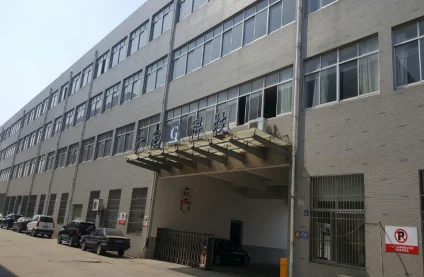

 6)Workshop

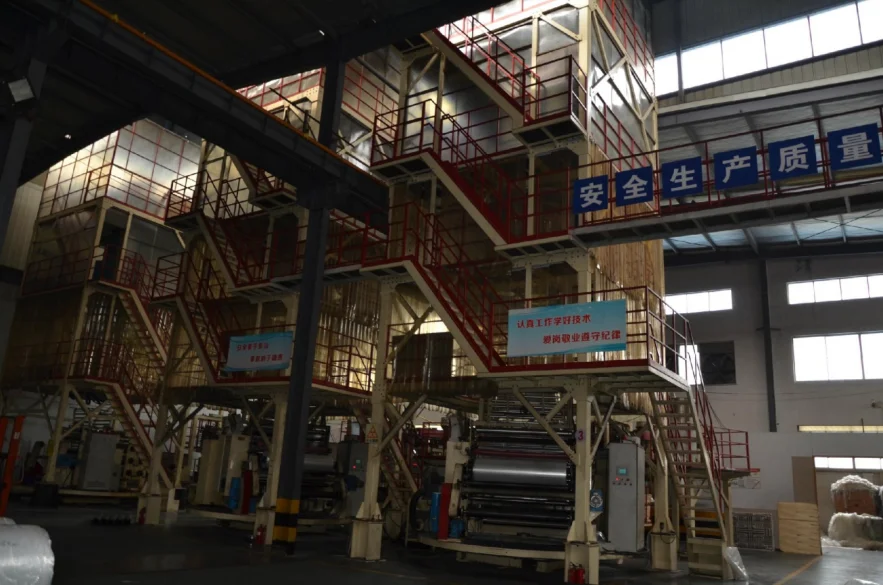

7)POF Blowing Machine

8)Cutting Machine

9)POF Shrink Film Center Folded Machine

10)Our Valued Customers

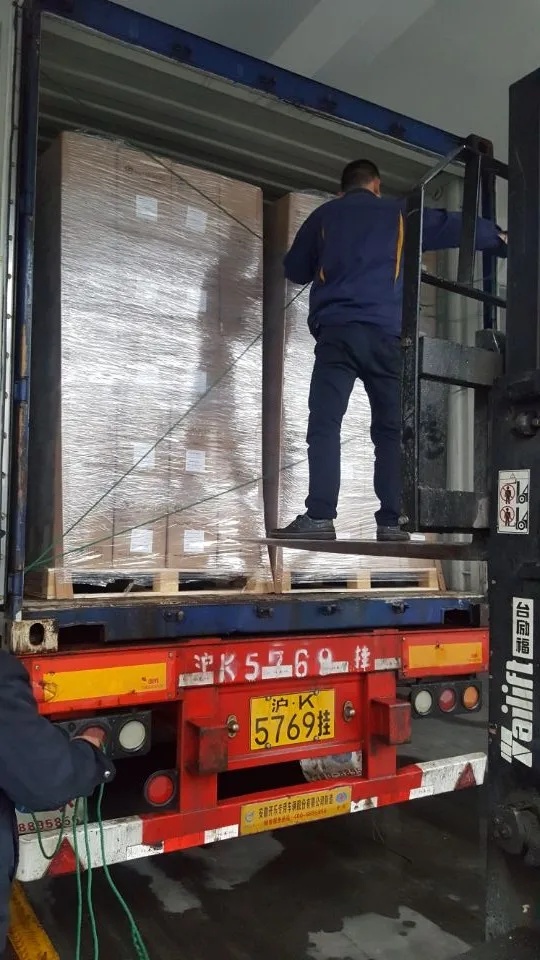

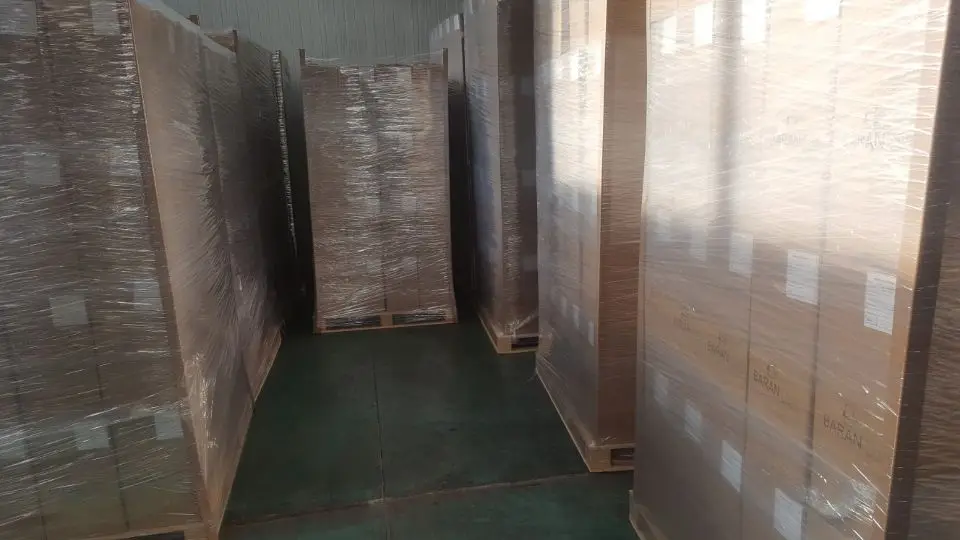

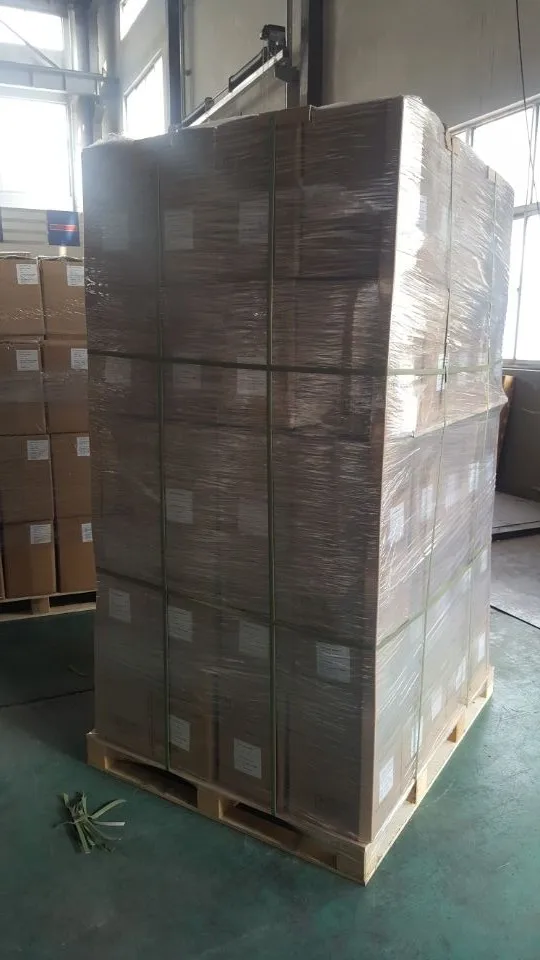

11)Packaging&Shipping

12)Contact Information
