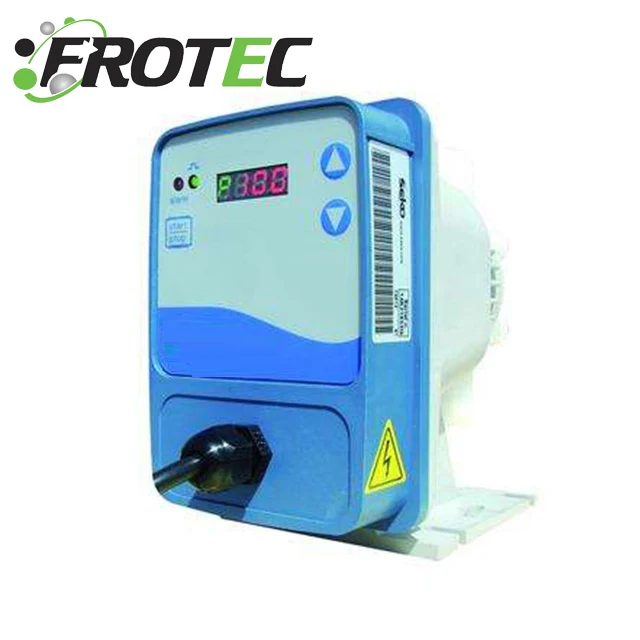

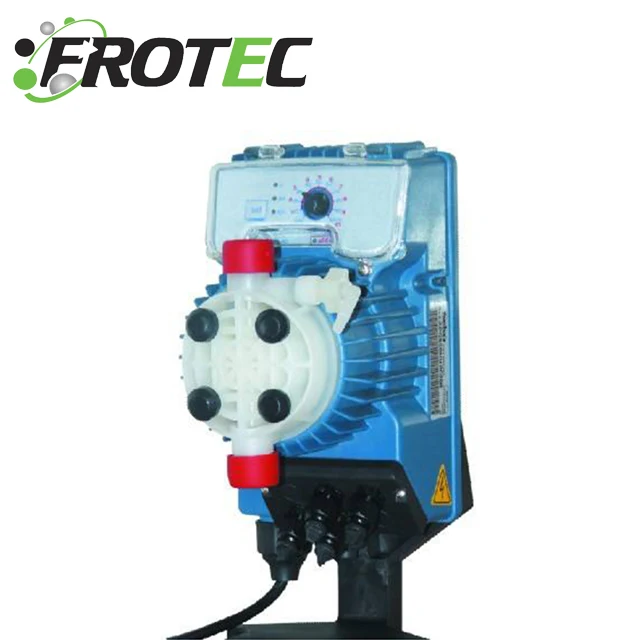

AMS201 detergent dosing pump/chlorine dosing pump/seko dosing pump

Product Overview

Description



AMS201 detergent dosing pump/chlorine dosing pump/seko dosing pump

♦ Part one: Frotec  Dosing Pump Description

1.Brief introduction and Technical Specification





Model	Flow Rate	Pressure	Pump head Material	Power	Voltage
AMS200	0-9L/H	2-10bar	PVDF	14W	100-240V
AMS201	0-1L/H	7bar	PVDF	14W	100-240V
DMS200	0-9L/H	2-10bar	PVDF	14W	100-240V
DMS201	0-1L/H	7bar	PVDF	14W	100-240V
AKS500	0-1.5L/H	4-20bar	PVDF	20W	100-240V
AKS600	0-7L/H	8-20bar	PVDF	20W	100-240V
AKS603	0-8L/H	2-12bar	PVDF	20W	100-240V
AKS800	0-18L/H	1-12bar	PVDF	40W	100-240V
AKS803	0-54L/H	0.1-5bar	PVDF	40W	100-240V

The dosing pump is a microprocessor-controlled, short-stroke, solenoid-driven,
diaphragm-type dosing pump for metering liquid, non-combustible media.
It is popular to our customer for its precise design, reliable operation, good performance-cost ratio.
It is widely applied to all kinds of chemicals dosing, with a good anti-corrosion performance of the liquid ends.

The dosing pump is controlled by a microprocessor, a fixed stroke length, variable stroke frequency, a solenoid-driven diaphragm metering pump.

Pump outlet flow can be changed through adjust the stroke frequency speed.

It can be used for a variety of chemical liquid transport.

Type	dosing pump
Max pressure range	1.0-20 L/H
Max flow	1-8.2  bar
Weight	2.8kgs
Voltage	220VAC  50/60HZ     110VAC  50/60HZ
Frequency	120/160/180 n/m
Pump material	PP, PV, PS,FF ,PF
Main application	Chemical, flocculant, water        treatment…

 Features



1. Newly designed ALM electromagnetic structure, more stable.

2. Enclosure protection class IP65, the use of more security.

3. Programmable high-precision microprocessor control with digital display and four touch keys, intuitive operation, clear and more convenient.

4. Diaphragm damage can be detected and alarmed.

5. Standard durable ball one-way valve design, higher work efficiency and accuracy.

6. Switch button conveniently and cooperation more conveniently.



 Application

1.Sewage treatment works;

2. Electroplating, circuit boards;

3.Power plant water treatment;

4. Paper,swimming pool and other industry;

5. Precise dosing of PAC, polyacrylamide(PAM), bleach chemicals or additives.









 ♦ Part two: Frotec  Service



 1. Our Service

Welcome to your inquiry,you are promised to get our quotation withing 24 hours

We are pleased to send you a sample on you confirm

We promise that we will implement your order on time

You are promised to get the best quality at the best price with the best service



2.FAQ



a.OEM service available for filter cartridge?

Yes,  OEM service is available, but the Frotec brand price better than OEM



b.Payment Term

We can accept  L/C, T/T, Western Union, MoneyGram and paypal



c.Certicification

We had passed ISO9001



d.Shipping

If your order is not big enough , Door to Door Service is the best choice via UPS,FEDEX,DHL,EMS.

For big quantity, by air or by sea through your forwarder is one Normal Way , we also can provide cost-effective forwarder for your reference.



e. Lead  time

The normal lead time is 7-15 days, which depends on your quantity.
