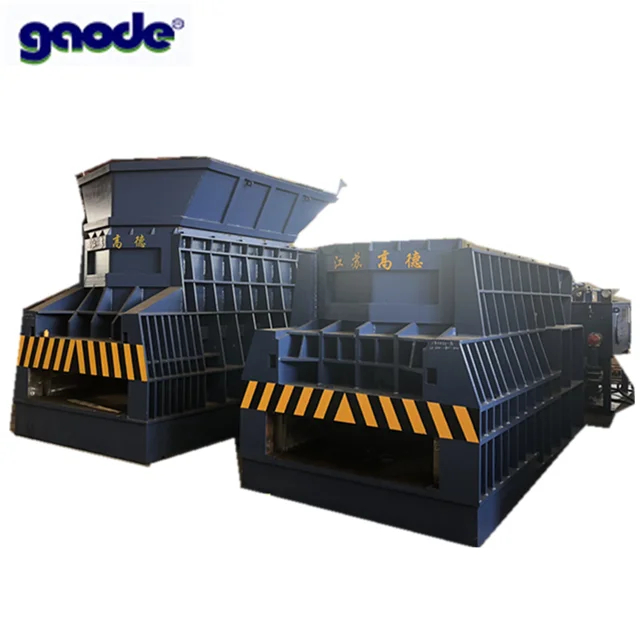

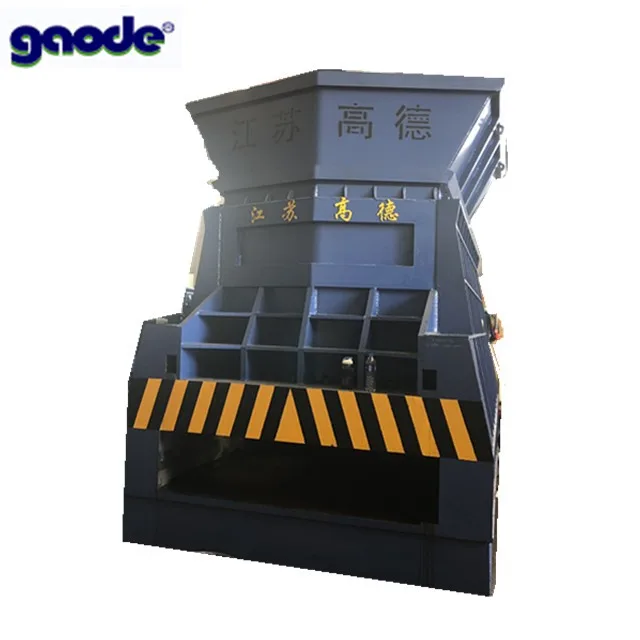

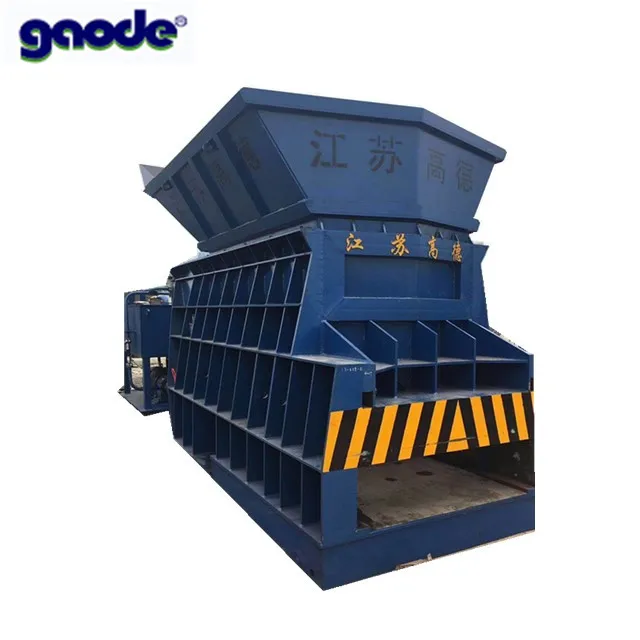

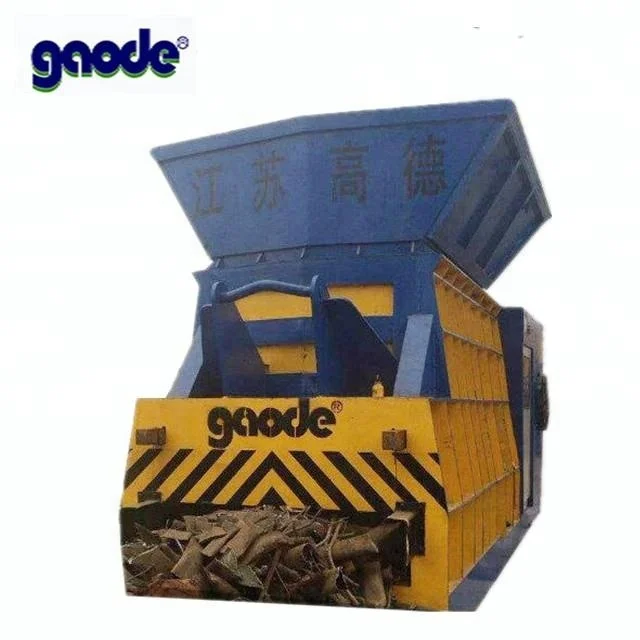

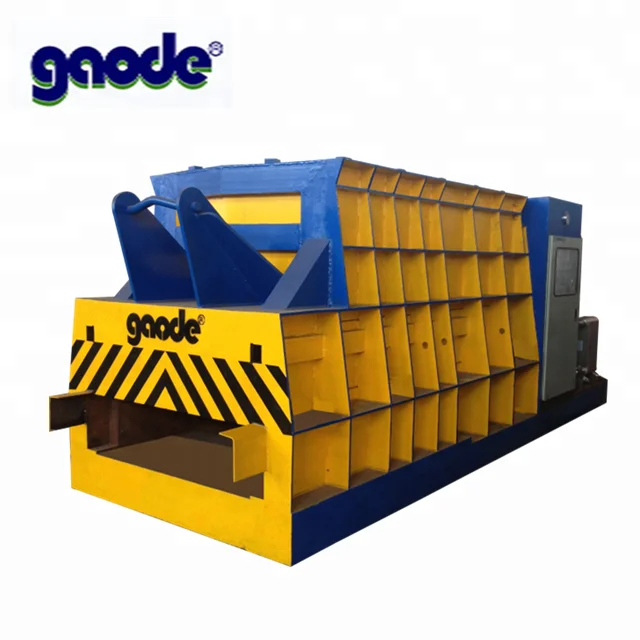

Manufacturer Automatic gaode hydraulic steel scrap metal shearing
Advantages
The advantages of the container shear as compared to common guillotine shears can be summarised as follows:
- low specific investment and running costs
- continual loading of the shear in the feed hopper with simultaneous ejection of the cut scrap - no pre-compaction by lids
- Shear control carried out by grabber crane operator no additional operator needed
- self-enclosed operation with integrated diesel engine
- collection and transport by towing vehicle for transport containers or flat bed trailer
- efficient one-man loading, cutting and removal from one or several container shears using a digger
- little space required as compared to stationary shears
- no assembly and foundation costs are needed for operation
- does not require the usual clearance for operation as it is a mobile unit
- thanks to the horizontal cut with a large guided blade carriage there is little wear
- the forces working on the blade carriage always tend towards the centre, avoiding twisting forces
- all inner surfaces have a Hardox-wear plate cover and therefore undergo less wear
- the scrap is introduced from above, due to the movement of the pre-compressor the scrap automatically slips down and the cut scrap is pushed out of the front
Specification
No | Technical Parameter | Remark | ||||||
1 | Cutting cylinder | Model | YG320/220-900 | 2Sets | ||||
Cutting force | 2000KN*2 | Stroke | 900MM | |||||
2 | Press cylinder | Model | YG250/160-750 | 1Set | ||||
Press force | 1250KN | Stroke | 750MM | |||||
3 | Press Box Size(L×W×H)(MM) | 2400*1400*1880 |
| |||||
7 | Feeding opening size(L×W×H)(MM) | 3200*2400*900 |
| |||||
8 | Hydraulic system working pressure | 21.5Mpa |
| |||||
9 | Blade length | 1400MM |
| |||||
10 | Cutting height | 400MM |
| |||||
11 | Total power | 74KW |
| |||||
12 | Power supply | 380V/3HP 50HZ |
| |||||
13. | Cycle time | 2-3 times/min |
| |||||
Application:
The container shear is particularly suited to:
- Operation at scrap yards without a power supply
- as an additional unit when capacity is reached on other scrap shears
- to prepare scrap for shredding
- processing scrap at sources of waste generation
- as a low cost alternative to guillotine shears when using several container shears beside one another with a scrap handling machine
- as a processing unit for impurities in commercial waste that cannot be processed further by a shredder
Work Flow
Packaging & Shipping
Packaging: in nude wrapped with plastic film
Shipping time: 20-25days after signing the contract
Shipping port: Shanghai
