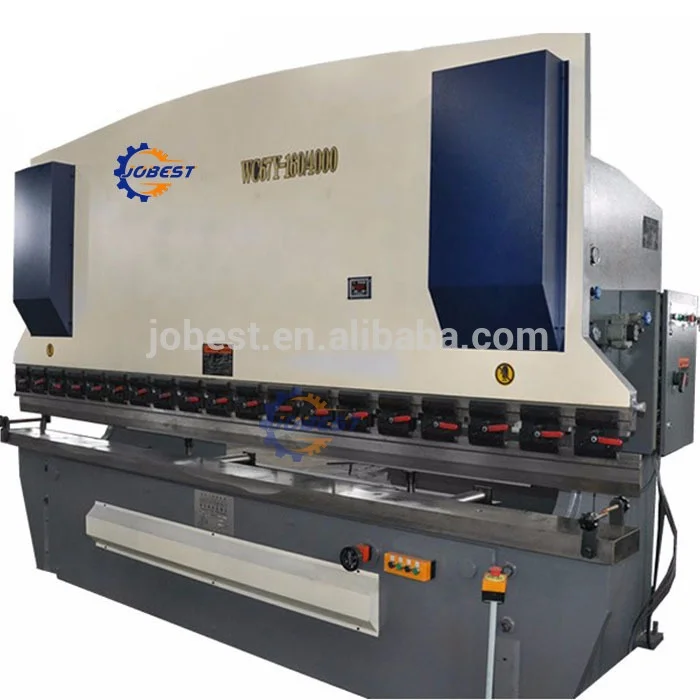

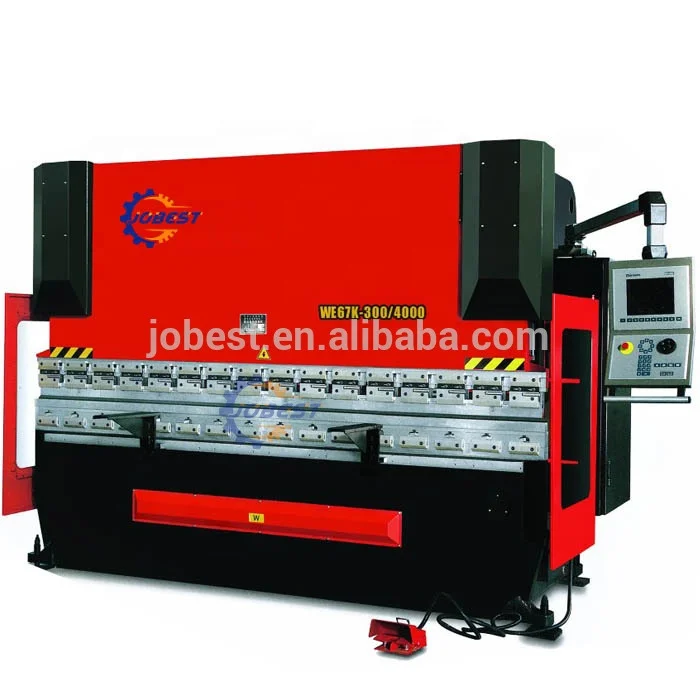

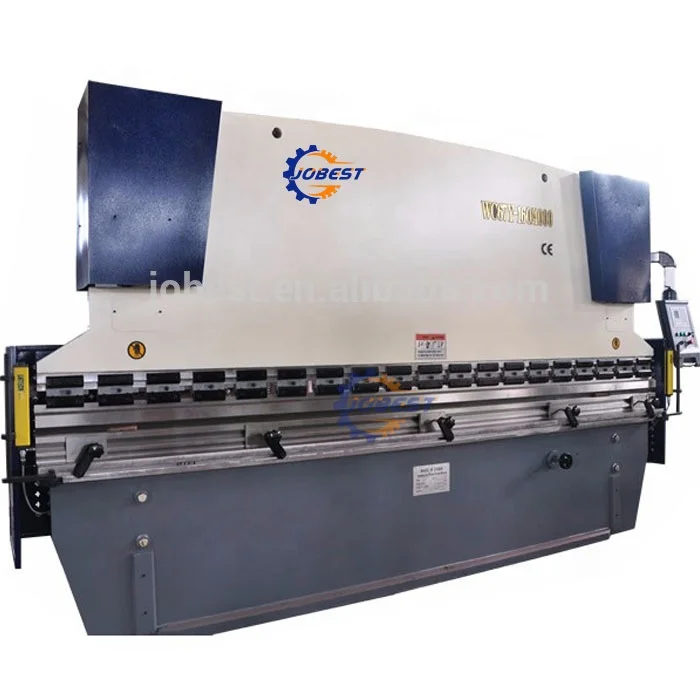

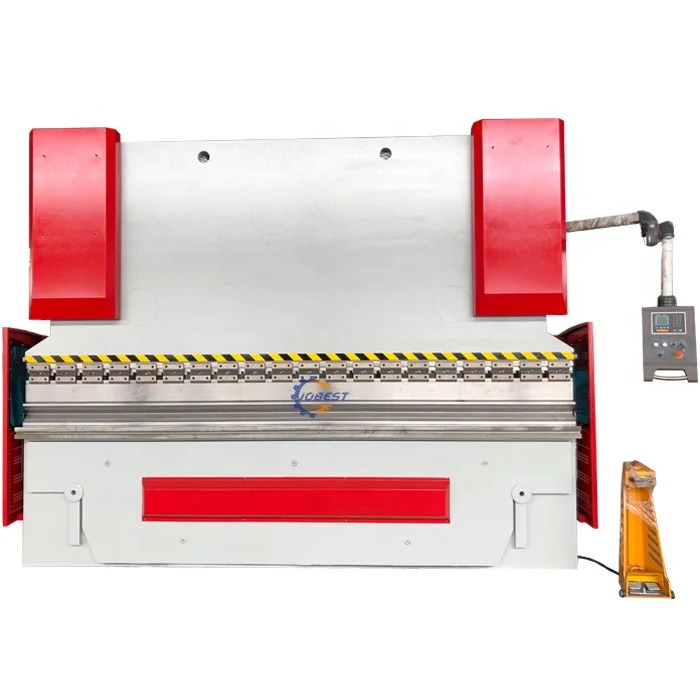

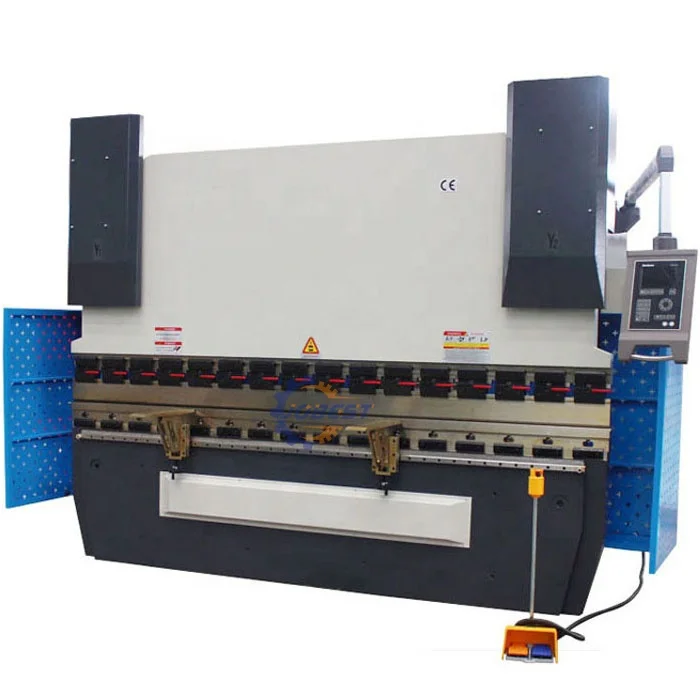

WC67Y 100T/3200 Hydraulic NC Press Brake Sheet Metal Bending Machine 100 Tons X3200mm Hydraulic Plate Bending Machine 100t/3200
- Category: >>>
- Supplier: Nantong Jobest Machinery Technology Co. Ltd.
Share on (60790392858):
Product Overview
Description
WC67Y-100T/3200 Hydraulic NC Press Brake , Sheet Metal Bending Machine 100 Tons X3200mm Hydraulic Plate Bending Machine 100t/3200
Related Products
Final Products
Product Description
WC67K-100T/3200 Hydraulic NC Press Brake , Sheet Metal Bending Machine 100 Tons X3200mm Hydraulic Plate Bending Machine 100t/3200
1. All steel welded structure, integrated treatment (vibration aging, heat treatment) heating to eliminate stress, have good rigidity and stability
2. Heat treatment of the rack, rigidity optimization verification on entire machine and the application of hydraulic compensation structure jointly ensure the bending precision of MB8 series Press Brakes.
3. Programming a product simply consists of introducing the characteristics of the material to be bent,the dimensions of the product and the necessary tooling & die.The optimizing software searches for the best bending cycle.
4. Rear block distance, upper stroke, electric adjustment, manual fine adjustment device, digital display.
5. Imports including linear transducer,pressure proportional valve and servo motor.
6. Ram stroke(Y1,Y2) and backgauge(X,R,Z) are controlled by controller automatically,high productivity.
7. Adopting Electro-hydraulic proportional servo synchronization. Optional point within stroke can be controlled.Repeat precision of Y axes: ±0.01mm, Parallism: 0.02mm. Strong ability of deviation resistance.
8. Backgauge adopts ball-bearing screw and rolling guideway,quick speed and high repeat positioning precision.X axes with resolution 0.1mm.
9. Top mold install with deflection compensation mechanism. Machine model above 250 tons and more than 4000mm length can be used bottom deflection compensation agencies.

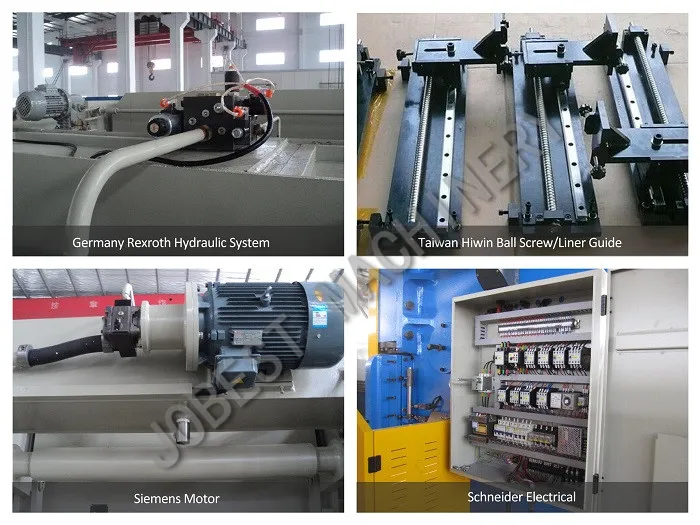

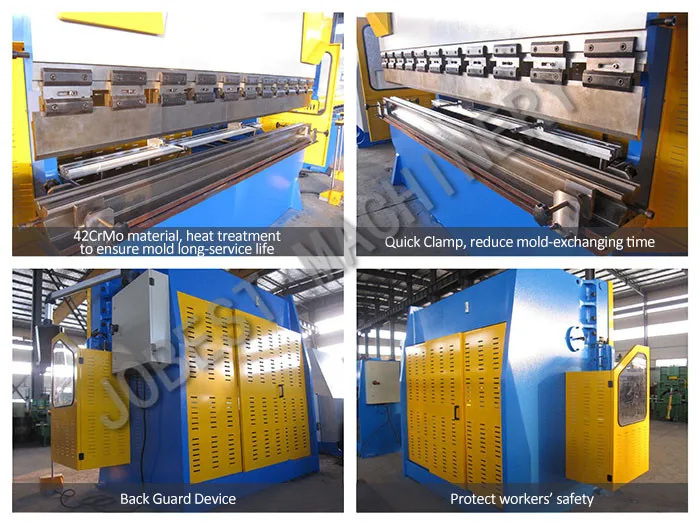

Press Brake Details
WC67K-100T/3200 Hydraulic NC Press Brake , Sheet Metal Bending Machine 100 Tons X3200mm Hydraulic Plate Bending Machine 100t/3200
Technical Parameters
WC67K-100T/3200 Hydraulic NC Press Brake , Sheet Metal Bending Machine 100 Tons X3200mm Hydraulic Plate Bending Machine 100t/3200
| Model | Nominal Pressure | Working table Length | Distance of column | Throat depth | Max. Opening Height | Slide Stroke | Motor power |
| WC67Y-40T/2200 | 400 | 2200 | 1650 | 200 | 320 | 100 | 4 |
| WC67Y-40T/2500 | 400 | 2500 | 2000 | 200 | 320 | 100 | 4 |
| WC67Y-63T/2000 | 630 | 2000 | 1600 | 250 | 320 | 100 | 5.5 |
| WC67Y-63T/2500 | 630 | 2500 | 2000 | 320 | 400 | 150 | 5.5 |
| WC67Y-63T/3200 | 630 | 3200 | 2700 | 320 | 400 | 150 | 5.5 |
| WC67Y-80T/2500 | 800 | 2500 | 2000 | 320 | 400 | 150 | 5.5 |
| WV67Y-80T/3200 | 800 | 3200 | 2700 | 320 | 400 | 150 | 7.5 |
| WC67Y-100T/3200 | 1000 | 3200 | 2700 | 400 | 460 | 180 | 7.5 |
| WC67Y-125T/3200 | 1250 | 3200 | 2700 | 400 | 460 | 180 | 7.5 |
| WC67Y-125T/4000 | 1250 | 4000 | 3200 | 400 | 460 | 180 | 7.5 |
| WC67Y-160T/3200 | 1600 | 3200 | 2700 | 400 | 460 | 180 | 7.5 |
| WC67Y-160T/4000 | 1600 | 4000 | 3200 | 400 | 460 | 180 | 7.5 |
| WC67Y-200T/3200 | 2000 | 3200 | 2700 | 400 | 460 | 180 | 7.5 |
| WC67Y-200T/4000 | 2000 | 4000 | 3200 | 400 | 480 | 180 | 11 |
| WC67Y-200T/6000 | 2000 | 6000 | 4800 | 400 | 480 | 180 | 11 |
| WC67Y-250T/3200 | 2500 | 3200 | 2700 | 400 | 480 | 200 | 15 |
| WC67Y-250T/4000 | 250 | 4000 | 3200 | 400 | 560 | 200 | 15 |
| WC67Y-250T/5000 | 2500 | 5000 | 4000 | 400 | 560 | 250 | 15 |
| WC67Y-250T/6000 | 2500 | 6000 | 4800 | 400 | 560 | 250 | 15 |
| WC67Y-300T/4000 | 3000 | 4000 | 3200 | 400 | 560 | 250 | 22 |
| WC67Y-300T/5000 | 3000 | 5000 | 4000 | 400 | 560 | 250 | 22 |
| WC67Y-300T/6000 | 3000 | 6000 | 4800 | 400 | 630 | 250 | 22 |
| WC67Y-400T/4000 | 3000 | 4000 | 3200 | 400 | 630 | 320 | 30 |
| WC67Y-400T/5000 | 4000 | 5000 | 4000 | 400 | 630 | 320 | 30 |
| WC67Y-400T/6000 | 4000 | 6000 | 4800 | 400 | 630 | 320 | 30 |
| WC67Y-500T/4000 | 5000 | 4000 | 3200 | 400 | 630 | 320 | 37 |
| WC67Y-500T/5000 | 5000 | 5000 | 4000 | 400 | 630 | 320 | 37 |
| WC67Y-500T/6000 | 5000 | 6000 | 4800 | 400 | 630 | 320 | 37 |
| WC67Y-600T/5000 | 6000 | 5000 | 4000 | 320 | 630 | 320 | 45 |
| WC67Y-600T/6000 | 6000 | 6000 | 4800 | 500 | 630 | 320 | 45 |
| WC67Y-800T/5000 | 8000 | 5000 | 4000 | 500 | 800 | 350 | 55 |
| WC67Y-800T/6000 | 800 | 6000 | 4800 | 500 | 800 | 350 | 55 |
| WC67Y-1000T/6000 | 10000 | 6000 | 4800 | 500 | 800 | 400 | 75 |
Packaging & Shipping
WC67K-100T/3200 Hydraulic NC Press Brake , Sheet Metal Bending Machine 100 Tons X3200mm Hydraulic Plate Bending Machine 100t/3200
Company Information
Nantong Jobest Machinery Technology Co., Ltd founed in 1998, is a leader of Metal Forging Machine. Such as Shearing Machine, Press Brake Machine, Plate Rolling Machine, Profile Bending Machine, Hydraulic Press Machine, Notching Mahine, Iron Worker Machine, Laser Cutting Machine, etc. Meanwhile we're familiar with kinds of Processing Machines to help our clients choose the most suitable machine on the best quality by economically.
