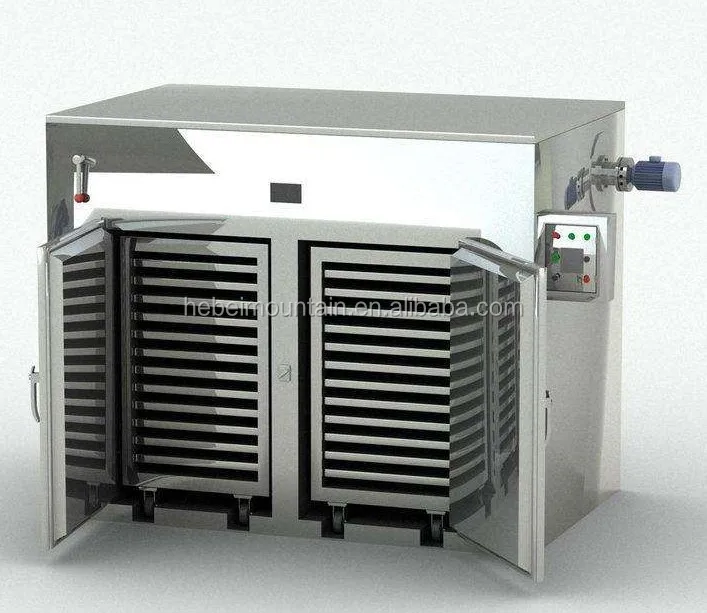

1500L tray dryer for industrial powder, granule, pellets,fruit drying

Product Overview

Description

Fruit drying machine/Mushroom Drying Machine/Drying Cabinet/Industrial Electric food dryer/food dehydrtior /Herb moringa leaf drying machine(leaves drying machine)

Main introduce of Stainless steel fruit drying oven



Our industrial Stainless steel fruit drying oven is equipped with noise elimination and thermal stable & high temperature resistance axial flow fan, and automatic temperature controlling system.
The entire circulating system of this Stainless steel fruit drying oven is fully enclosed to make the heat efficiency of the drying oven increase from 3-7%(the traditional drying oven) to 35-45% at present, highest heat efficiency can reach 50%.
All of our Tray type Fruit and Vegetable dryer is manufactured according to international quality standards and come up to advanced world standards. They are energy saving and can reduce greatly the production cost and raise work efficiency.
Application of Stainless steel fruit drying oven

This Stainless steel fruit drying oven is used for heating and solidification, drying and dehydrtion in many field, such as pharmaceutical, medicinal industry, chemical industry, food industry, agricultural and sideline products and seafood,light industry, heavy industry and so on.

It can be applicable for drying many kinds of materials, such as raw material, meat, crude drug, Chinese herb, extract, powder, granule, pellets, (carbon pellets, wood pellets, etc.), pill, packing bottle, pigment, dyestuff, moringa leaf, tea leaf, and dried fruit pieces, de-watering vegetable, sausage, plastics, electric component, etc.

Drying fruits: drying apple, lemon, banana, kiwi, figs, pear, peach, pineapple, mango, raisin, jujube, etc.

Drying vegetable: drying mushroom, pepper, red chili, onion, tomato, etc.

Drying nuts: walnuts, peanuts, pecans, pistachio nuts, cashew nuts, hazelnuts, etc.

Drying seafood: sea cucumber, fish, sardines, etc.

Work Principle

Its work principle is that used steam or electric heating air, then made a cycling dry with heated air. There are even dry and lower discre-paney of temperature difference in the each side of even. In the dry course of suppling continuously flesh air and discharging hot air so that the even might be in good condition and kept proper temperature and humidity.



Technical Parameter

Style	Radiator Area (sq.m)	Voltage Heat Powder (KW)	Inter Volume  (L)	Wind Machine Electric Power  (KW)	Inner Bake Temperature Difference	Overall Size(mm)	Baked Car	baking tray	Tempe- rature Control Box	Weight (kg)
MT-0250FDD	1	3.5	250	0.45	±1	950*950*1500	1	24	have	200
MT-0500FDD	2	7	500	0.45	±1	1950*950*1500	2	48	have	350
MT-1000FDD	4	15	1000	0.45	±2	1950*1950*1500	4	96	have	550
MT-1500FDD	4	25	1500	0.45	±2	1950*1950*1800	4	96	have	740
MT-2000FDD	4	30	2000	0.45×2	±2	1950*1950*2200	8	192	have	930
MT-3000FDD	8	45	3000	0.45×3	±2	4000*1950*1800	8	192	have	1200
MT-4000FDD	8	50	4000	0.45×3	±2	4000*1950*2200	16	192	have	1800
MT-5000FDD	10	60	5000	0.45×4	±2	5000*1950*1800	16	192	have	2600
MT-09000FDD	12	90	9000	0.45×4	±2	5500*2100*2200	48	384	have	3500
MT-20000FDD	20	160	20000	0.45×8	±2	10000*2000*2100	96	384	have	6500
